Product Overview

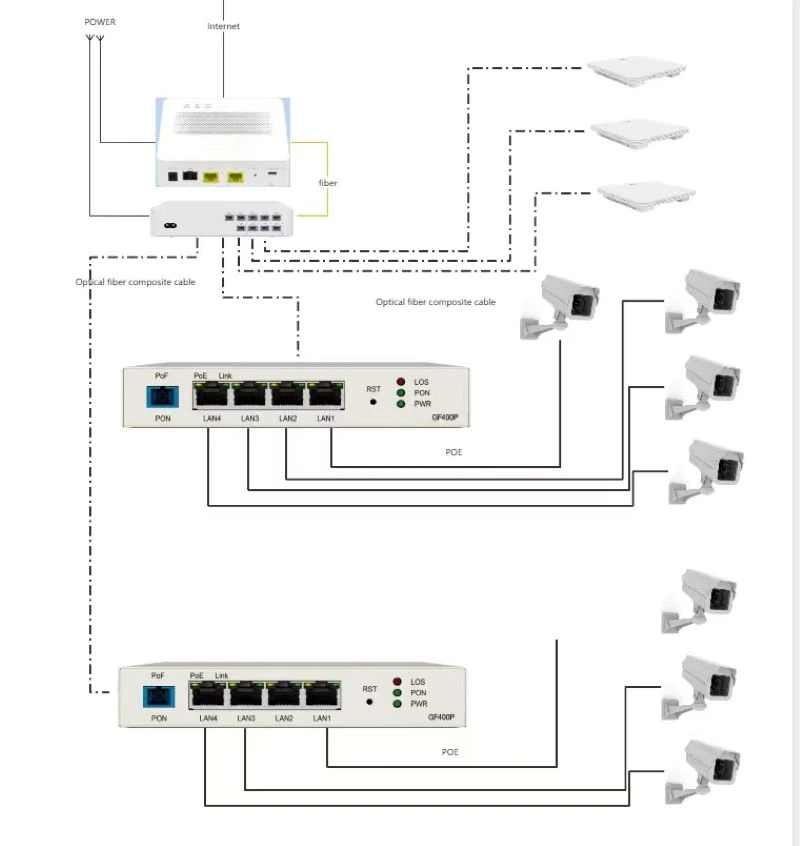

GF400P is a PoF industrial ONU for all-optical network solution, providing 1*G/EPON adaptive SC port, 4*GE LAN port,high-speed access, downlink 2.5Gbps, uplink 1.25Gbps; support Plug & Play, OMCI remote config; PON port supports PoF optoelectronic hybrid cable access, RJ45 supports PoE 30W output, to achieve" No Power Mode" from the server room to the terminal.

Features

◼ Adopts point-to-multipoint network topology, effectively collects and aggregates users' dispersed Ethernet services, and provides standard RJ45 Gigabit Ethernet interfaces on the user side.

◼ Support IGMP multicast, effective use of broadband

◼ Support vlan pass-through/tagging/translation/Qin-Q/trunkMulticast passthrough support

◼ Provide remote management via OLT, supports local web/telnet management

◼ Support line loopback detection for user-side Ethernet interfaces

◼ Support IEEE 802.1q VLAN Protocol

◼ Support IEEE802.3x flow control (full duplex)

◼ Support IEEE 802.1p, CoS protocols

◼ Support port speed limit

◼ Support -30°C~70°C operating environment

◼ Support IPv4 and IPv6

◼ Support cloud management

◼ Support PoF

Specification

Model Number:GDFI-152(GF400P)
*DESCRIPTION : 4GE PoF Industrial ONU**
Item		Configuration
User interface		4*GE RJ45 interface
PoF PON interface		GPON and EPON Mode Auto-adaptive Interface Mode: Optical Composite Cable (PoF)
		GPON: Uplink 1.25Gbps / Downlink 2.5Gbps Transmit optical power: 0~4dBm Optical power: -7dBm~-28dBm
		EPON: uplink 1.25Gbps / downlink 1.25Gbps Transmit optical power: 0~4dBm Optical power: -7dBm~-27dBm
		PoF input voltage: 48V-57V
PoE Standard		IEEE 802.3af/at (PSE)
PoE Power Supply Type		End-span
PoE Pin Assignment		1/2(+), 3/6(-)
PoE Power Output		48~57V DC
PoE Power		30W max for each port, 120W max in total
Sizes		1198528mm
Environment		Working temperature: -30°C~70°C Operating humidity: 0% to 85% (non-condensing) Storage temperature: -40°C~80°C Storage humidity: 5%~95% (non-condensing)
Input Voltage		PoF: 48V-57V DC: 48V-57V
Power Consumption		<130W

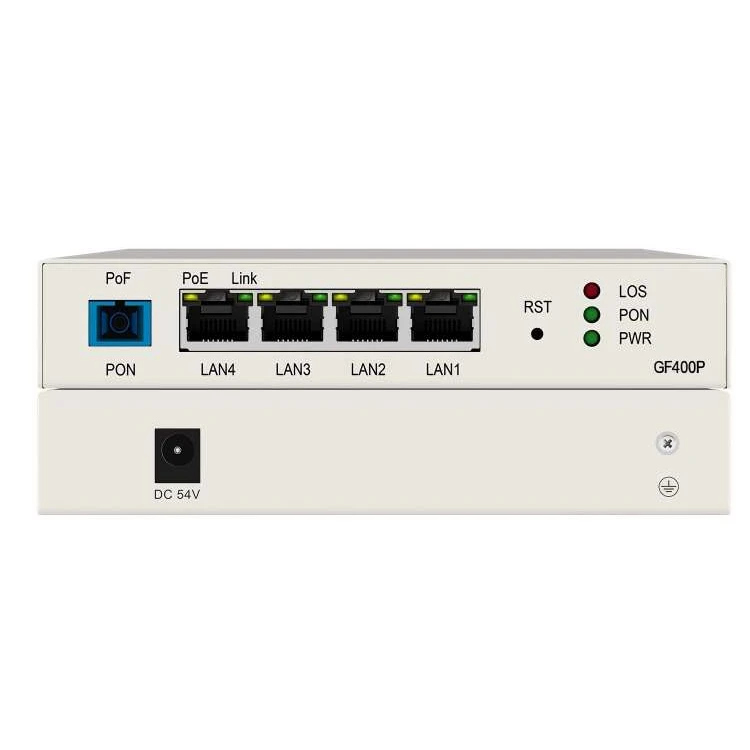

Indicator light	State of Affairs	Descriptions
PWR	Power status	On: The ONU is power on Off: The ONU is Power off
PON	ONU Register	On: Success to register to OLT Blinking: In process of registering to OLT Flash: registering to OLT Off: Fail to register to OLT
LOS	Optical Signal	Red light on: no optical signal input or abnormal optical signal input Off: Normal light signal input
Link	LAN Port Status	On: Link connection is normal Flash: data transfer Off: the link is not working
PoE	PoE status	On: power supply status Off: unpowered state
