Description

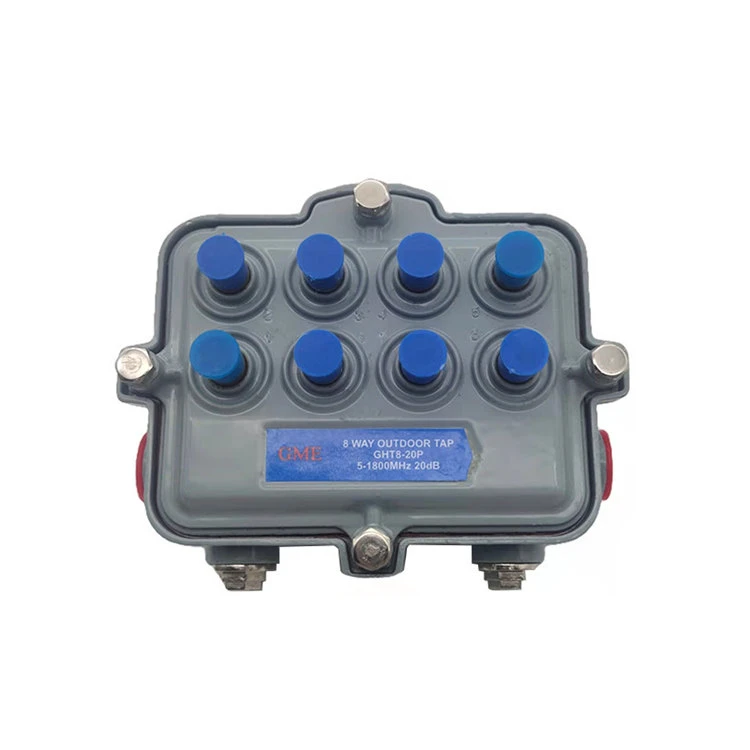

8 Way Outdoor TAP have been designed with the future of the CATV industry in mind. All units come complete with a factory installed power passing bar for uninterrupted service when the faceplate is removed. Interchangeable faceplates allow for future network growth while minimizing costly equipment upgrades for cable providers.
Features
• 5-1800 MHz Bandwidth (1000MHz/1200MHz option also available)
• Plug In Module: PIM Feature for Conditioning Tap
• PF: Power Through the F Port Option. 12 A Current Capacity
• Standard Jumper Installed
• 15 A Current Capacity
• Printed Circuit Boards
• SR : Blocking Capacitors on the "F" Ports for Extended Surge Resistance
• CB: Continuous Bar AC/RF Bypass Switch when Faceplate Removed
• Aluminum Alloy Housing used for Corrosion Resistance
• Double Polyurethane Coating for Greater Weather Protection
• Rubber Gasket and RFI Shielding Gasket
• Epoxy Sealed and Nickel Plated Brass "F" Ports
• Options: PIM-EQ-xx, PIM-CS-xx, PIM-RPA-xx, PIM-FPA-xx, PIM-HPF-54
• Easy Interchangeable 2/4 Port Faceplates
• Aerial or Pedestal Installation
• Compliant with SCTE Guidelines
• Surge Withstand: IEEE C62.41-1991 Category B3/6kV Combination Wave, 3000 A
Specification
|
Place of Origin: Guangdong, China |
|||||||||||||||||||
|
Model Number: GDST-040 (GHT8-20P-1.8) |
|||||||||||||||||||
|
Parameter |
Frequency [MHz] |
318T-18-11T |
318T-18-14 |
318T-18-17 |
318T-18-20 |
318T-18-23 |
318T-18-26 |
318T-18-29 |
318T-18-32 | 318T-18-35 | |||||||||
|
Insertion loss [dB] |
5 – 10 |
T |
3.8 |
1.8 |
1.5 |
1.3 |
1 |
1 |
0.9 | 0.9 | |||||||||
|
10 – 65 |
T |
3.6 |
1.6 |
1.5 |
1.1 |
0.8 |
0.8 |
0.7 | 0.7 | ||||||||||
|
65 – 300 |
T |
4 |
1.8 |
1.5 |
1.2 |
0.9 |
0.9 |
0.9 | 0.8 | ||||||||||
|
300 – 550 |
T |
4.7 |
2.5 |
1.9 |
1.7 |
1.3 |
1.3 |
1.3 | 1.2 | ||||||||||
|
550– 750 |
T |
5 |
2.7 |
2.1 |
1.8 |
1.5 |
1.5 |
1.4 | 1.3 | ||||||||||
|
750 - 862 |
T |
5 |
3 |
2.3 |
2 |
1.8 |
1.7 |
1.7 | 1.4 | ||||||||||
|
862 – 1000 |
T |
5.1 |
3.1 |
2.4 |
2.1 |
1.9 |
1.8 |
1.8 | 1.5 | ||||||||||
|
1000 – 1218 |
T |
5.3 |
3.3 |
2.6 |
2.3 |
2.1 |
2 |
2 | 1.7 | ||||||||||
|
1218 - 1500 |
T |
5.6 |
4 |
3 |
2.6 |
2.5 |
2.6 |
2.6 | 2.6 | ||||||||||
|
1500 – 1700 |
T |
5.8 |
4.5 |
3.5 |
3 |
2.5 |
3 |
3 | 3 | ||||||||||
|
1700 – 1800 |
T |
6 |
5.2 |
3.5 |
3.5 |
3 |
3.5 |
3.5 | 3.5 | ||||||||||
|
Return loss [dB min.] |
5 – 10 |
≧16 |
≧16 |
≧16 |
≧16 |
≧16 |
≧16 |
≧16 |
≧16 | ≧16 | |||||||||
|
10 – 47 |
≧16 |
≧16 |
≧16 |
≧16 |
≧16 |
≧16 |
≧16 |
≧16 | ≧16 | ||||||||||
|
47 – 850 |
≧16 |
≧16 |
≧16 |
≧16 |
≧16 |
≧16 |
≧16 |
≧16 | ≧16 | ||||||||||
|
850 – 1218 |
≧12 |
≧12 |
≧12 |
≧12 |
≧12 |
≧12 |
≧12 |
≧12 | ≧12 | ||||||||||
|
1218– 1500 |
≧12 |
≧12 |
≧12 |
≧12 |
≧12 |
≧12 |
≧12 |
≧12 | ≧12 | ||||||||||
|
1500 - 1700 |
≧12 |
≧12 |
≧12 |
≧12 |
≧12 |
≧12 |
≧12 |
≧12 | ≧12 | ||||||||||
|
1700 – 1800 |
≧12 |
≧12 |
≧12 |
≧12 |
≧12 |
≧12 |
≧12 |
≧12 | ≧12 | ||||||||||
|
Tap value (dB) Tolerance |
5 – 65 |
11 |
14 |
17 |
20 |
23 |
26 |
29 |
32 | 35 | |||||||||
|
65 – 860 |
11 |
14 |
17 |
20 |
23 |
26 |
29 |
32 | 35 | ||||||||||
|
860 – 1218 |
11 |
14 |
17 |
20 |
23 |
26 |
29 |
32 | 35 | ||||||||||
|
1218– 1500 |
11 |
15 |
17 |
20 |
23 |
26.5 |
29 |
32 | 35 | ||||||||||
|
1500 - 1700 |
11 |
15.5 |
18 |
20.5 |
23 |
26.5 |
29 |
32 | 35 | ||||||||||
|
1700 - 1800 |
11 |
15.5 |
18.5 |
20.5 |
23.5 |
27 |
29 |
32 | 35 | ||||||||||
|
Isolation [dB min.] |
Out-Tap |
Tap-Tap |
Out-Tap |
Tap-Tap |
Out-Tap |
Tap-Tap |
Out-Tap |
Tap-Tap |
Out-Tap |
Tap-Tap |
Out-Tap |
Tap-Tap |
Out-Tap |
Tap-Tap | Out-Tap | Tap-Tap | Out-Tap | Tap-Tap | |
|
5 – 10 |
T |
18 |
24 |
18 |
26 |
18 |
27 |
18 |
29 |
18 |
30 |
18 |
32 |
18 | 33 | 18 | 35 | 18 | |
|
10 – 65 |
T |
26 |
30 |
26 |
32 |
26 |
33 |
26 |
35 |
26 |
36 |
26 |
38 |
26 | 39 | 26 | 41 | 26 | |
|
65 – 860 |
T |
24 |
28 |
24 |
30 |
24 |
31 |
24 |
33 |
24 |
34 |
24 |
36 |
24 | 37 | 24 | 39 | 24 | |
|
860 – 1218 |
T |
22 |
26 |
22 |
28 |
22 |
29 |
22 |
31 |
22 |
32 |
22 |
34 |
22 | 35 | 22 | 37 | 22 | |
|
1218– 1500 |
T |
20 |
25 |
20 |
25 |
20 |
25 |
20 |
25 |
20 |
30 |
20 |
25 |
20 | 30 | 20 | 30 | 20 | |
|
1500 - 1700 |
T |
17 |
25 |
17 |
25 |
17 |
25 |
17 |
25 |
17 |
30 |
17 |
25 |
17 | 30 | 17 | 30 | 17 | |
|
1700 – 1800 |
T |
17 |
25 |
17 |
25 |
17 |
25 |
17 |
25 |
17 |
30 |
17 |
25 |
17 | 30 | 17 | 30 | 17 | |
