Description

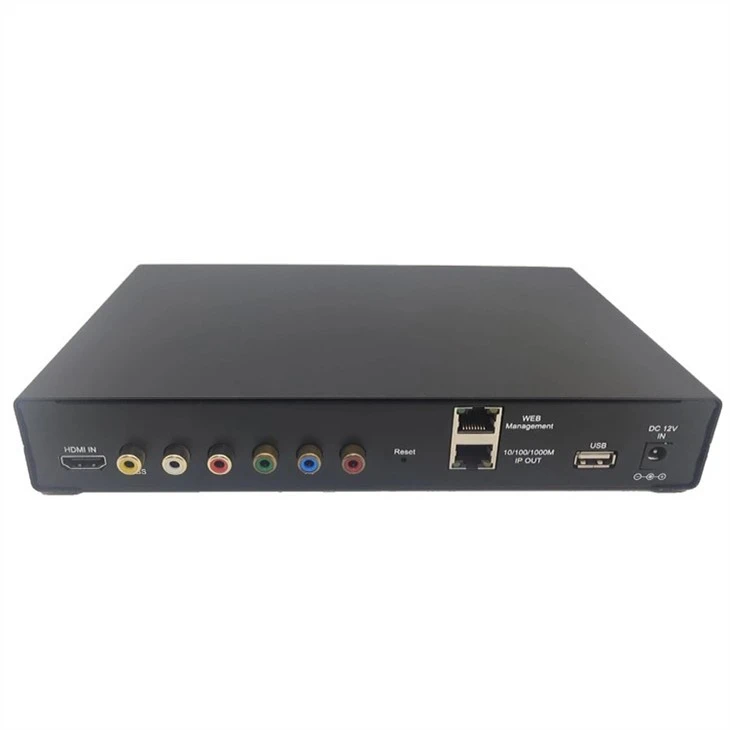

GME's 1Channel hdmi to ip streamer With RCA Input GHIM-1100 HD IP Streamer allows the user to stream any one audio/video source over a IP Network to Smart HDTV's or connected computers within the IP Network.
The IP Streamer accepts a HDMI, Component, or Composite video input and the unit is designed to deliver a rich HD/SD Streaming experience for its users deploying MPEG-2 or H.264 standards.
Specification
|
Place of Origin: Guangdong, China |
|
|
Model Number: GDM-029 (GHIM-1100) |
|
|
INERFACES |
|
|
Ethernet x 2 |
1Gbps, RJ-45 (Web Management & IP Out) |
|
Input Channel x 4 |
HDMI, YPbPr, CVBS |
|
Audio Input |
Analog, Coaxial |
|
USB Input |
USB 2.0 With MPEG-4, tsvideos File system FAT32(32G), NTFS(2T) |
|
ENCODING |
|
|
Video Format |
HD H.264 AVC/HP@L4.0 |
|
SD MPEG-2/MP@ML |
|
|
Audio Format |
MPEG2 / AAC |
|
Resolution |
FHD 1080P25, 1080P30 1080i50 1080i60 |
|
HD 750P50 20P60 SD 480i/p, 576i/p |
|
|
Video Bit Rrate |
H.264 12 Mbps MAX |
|
Audio Bit Rrate |
MPEG-2 8 Mbps MAX |
|
Audio Sample Rate |
384Kbps 48KHz |
|
INTPUT |
|
|
Video Input |
HDMI 1080P 25/30, 1080i 50/60 Max |
|
PYPbPr 1080i, 720P, 576i/P, 480i/ |
|
|
CVBS NTSC, PAL |
|
|
Y Input Level |
1V±0.2Vp-p |
|
Pb/Pr Input Level |
0.7V±0.1Vp-p |
|
CVBS Input Level |
1V±0.2Vp-p |
|
Streaming Protocols |
DLNA |
|
UDP / RTP multicasting |
|
|
UDP / RTP unicasting |
|
|
HTTP Live Streaming (HLS) |
|
|
OTHER |
|
|
Power Supply |
12v adaptor |
|
Display |
LCD panel @ 2x 16 characters |
|
Dimension |
235mm x 160mm x 40mm |
|
Environmental for Operating |
Temperature 5℃-40℃ |
|
Relative Humidity 80% @ 30℃ |
|
FAQ
Q: Can you produce the order with the customer's brand?
A: Yes, of course. OEM & ODM service is warmly provided.
Q: How do you control product quality?
A: Quality first. All our selected products undergo standardized testing before packaging and shipping.
Q: How do you ship the goods?
A: We usually transport by sea or air.
Q: What is your main market?
A: Europe, North America, South America, The middle east, and etc.
