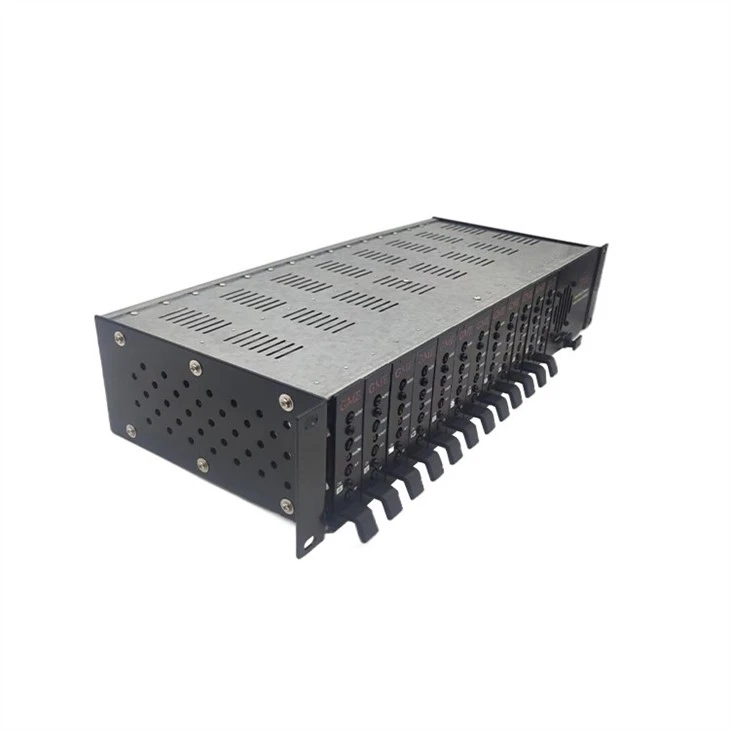

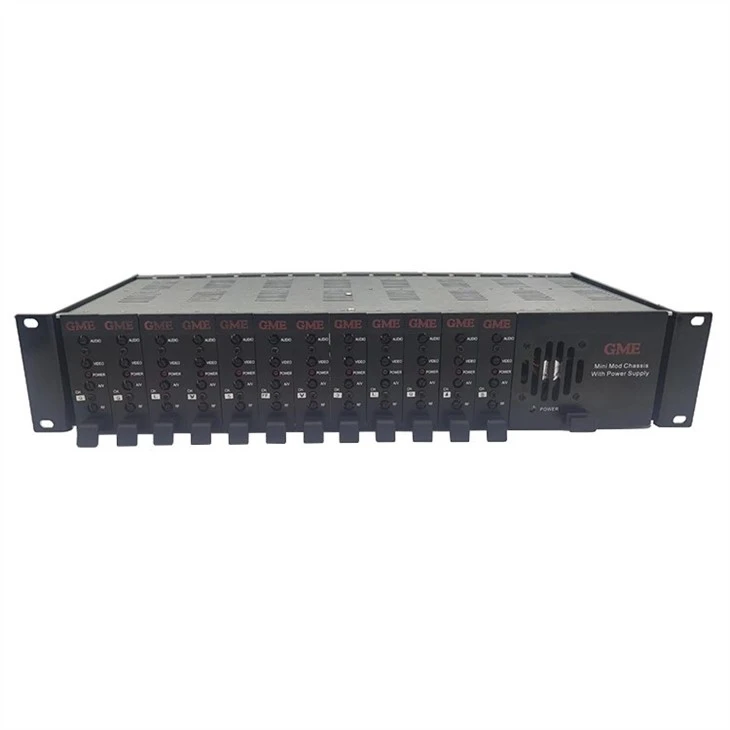

Description
MTCM-45 Fixed Channel SAW Filterd Modulator is a professional quality channelized heterodyne audio/video modulator with adjacent channel capability. The channel can be easily re-adjusted into the other channel in its group. Lo band, Mid band, Hi-band, Super band, Hyper band and Ultra band by changing the setting of oscillator dip switch and the returning of output filter. The PLL oscillator with microprocessor can control the output frequency to meet F.C.C required accuracy and off-setting. This modulator accepts standard polarity(sync negative) video in the range of 0.7V to 2.6V p-p.
- Saw filter for superior vestigial side band response.
- Microprocessor controlled frequency setting meet all F.C.C. accuracy and off setting requirement.
- Channel can be re-set within its band by re-setting dip switch and output filter only.
- Pre-emphasis defeat switch accessible from side panel for the insertion of composite BTSC stereo signal.
Specification
|
Place of Origin: Guangdong, China |
|
|
Model Number: GDM-006 (MTCM-45) |
|
|
RF |
|
|
Output Channels |
CATV 2-135, UHF 14-69 |
|
Output Level |
45dBmV (min) |
|
Range: |
12dB (Adjustable) |
|
A/V carrier ratio |
-11dB to -22dB (Adjustable) |
|
Visual Carrier Stability |
±5 KHz |
|
Aural Carrier Offset |
±4.5MHz |
|
Aural Carrier Stability |
±10 kHz |
|
Spurious Output (dBc) |
-60 dBc |
|
C/N Ratio (in-band) |
-60 dBc |
|
Broadband Noise (dBc) |
-95 |
|
VIDEO |
|
|
Min Video Input |
.5Vp-p |
|
Frequency Response |
±1.7dB (30Hz to 4.2MHz) |
|
Video S/N |
60dB |
|
Hum Ratio |
-60dB |
|
Differential Gain |
±5% |
|
Differential Phase |
±5 degrees |
|
Group Delay |
75nsec |
|
AUDIO |
|
|
Input Requirements |
500mV (25 kHz dev) |
|
Input Impedance |
10kΩ |
|
Frequency Response |
±1.5 dB (50Hz-15kHz) |
|
Distortion (THD) |
1% |
|
Pre-Emphasis |
75usec (Selectable) |
FAQ
Q: Can you produce the order with the customer's brand?
A: Yes, of course. OEM & ODM service is warmly provided.
Q: How do you control product quality?
A: Quality first. All our selected products undergo standardized testing before packaging and shipping.
Q: How do you ship the goods?
A: We usually transport by sea or air.
Q: What is your main market?
A: Europe, North America, South America, The middle east, and etc.
