Description

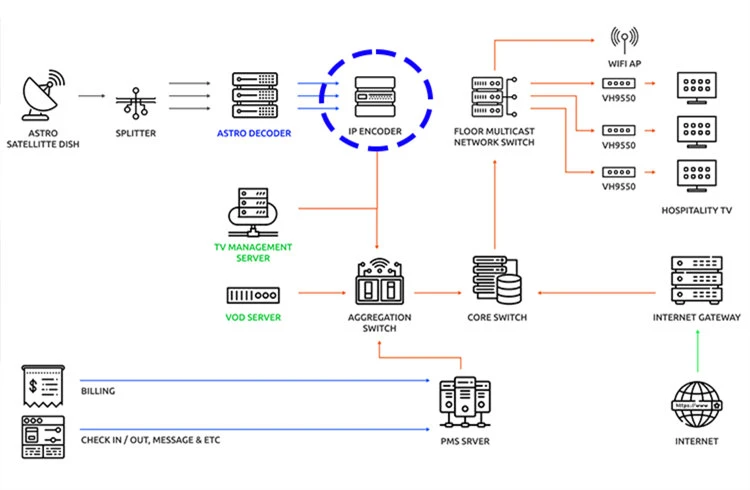

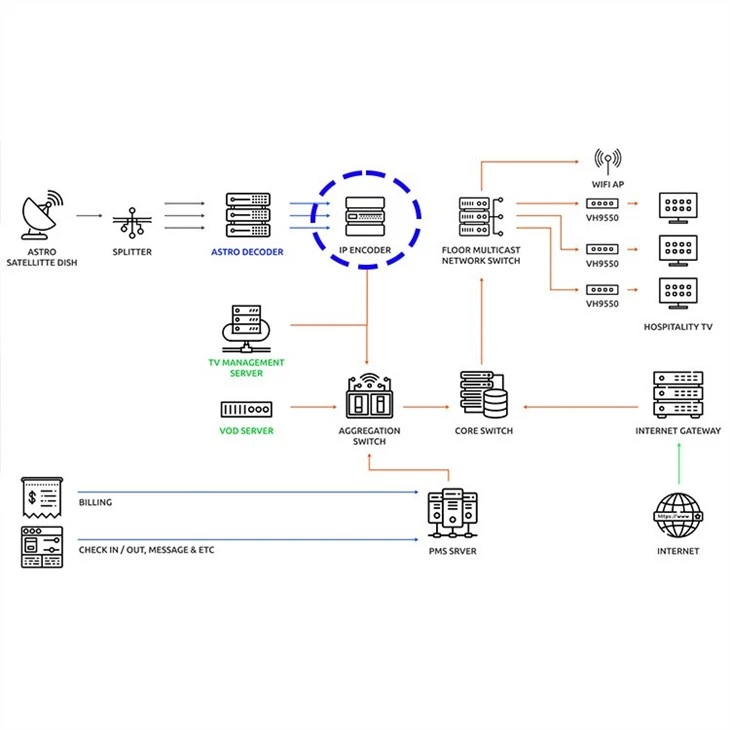

A professional Full HD IP Streamer Signal Channel IP Encoder With RCA Input with 4 HDMI inputs, it allow the user to stream any one audio/video source over a IP Network to Smart HDTV's or set top box within the IP Network.
The IP Streamer accepts a HDMI, Component, or Composite video input and the unit is designed to deliver a rich HD/SD Streaming experience For its users deploying MPEG-2 or H.264 standards.
The Signal Channel IP Encoder with RCA Input is a cutting-edge device designed to convert analog audio signals from RCA inputs into digital IP streams. This encoder is a valuable tool for various audio applications, providing a seamless transition from traditional analog setups to modern IP-based systems.
Specification
|
Place of Origin: Guangdong, China |
||
|
Model Number: GDM-026 (IPE101) |
||
|
INPUT |
||
|
Input Interface |
1 x HDMI |
|
|
1 x YPbPr |
||
|
1 x CVBS |
||
|
Input Resolution |
HD |
1080P25/30, 1080i50/60Max: |
|
YPbPr |
1080i, 720P, 576i/P: |
|
|
CVBS |
NTSC, PAL |
|
|
OTHER |
||
|
USB lnput |
USB 2.0 update firmware |
|
|
Power Supply |
AC100~240V50/60Hz |
|
|
Display |
LCD panel @ 2x 16 characters |
|
|
Dimension |
485mm x 320mm x 45mm |
|
|
Environmental for Operating |
Relative Humidity |
80% @ 30℃ |
|
OUTPUT |
||
|
Port 1 |
Web Management |
|
|
Port 2 |
IP Out, 10/100/1000M |
|
|
Streaming Protocols |
DLNA, UDP/RTP, Multicasting & Unicasting |
|
|
H.264 ENCODER |
||
|
Video Format |
HD |
H.264 AVC/HP@L4.0 |
|
SD |
MPEG-2/MP@ML |
|
|
Audio Format |
MPEG-2/AAC |
|
|
Resolution |
HD |
1080P25, 1080P30Max |
|
SD |
480i, 576i |
|
|
Video Bit Rate |
H.264 12 Mbps MAX, MPEG-2 8 Mbps MAX |
|
|
Audio Bit Rate and Sample Rate |
384Kbps/48KHZ |
|
|
Configurable Parameters |
Service Name, Service ID, Video PID, Audio PID, PMT PID, PCR PID |
|
