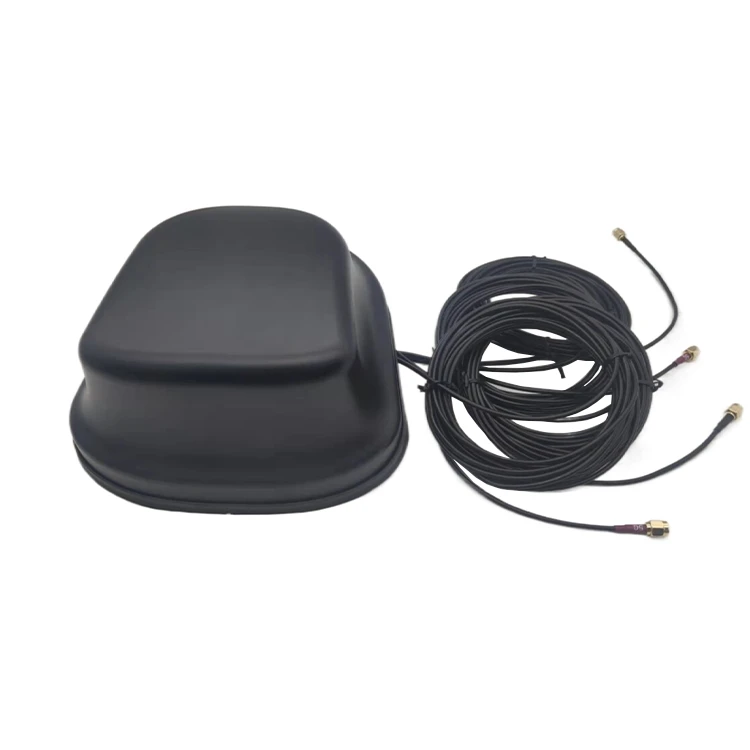

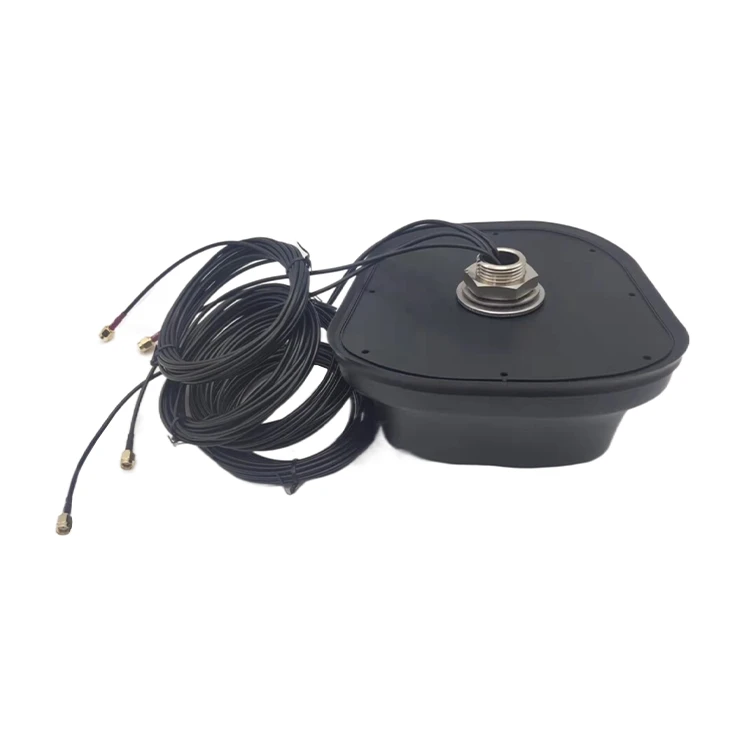

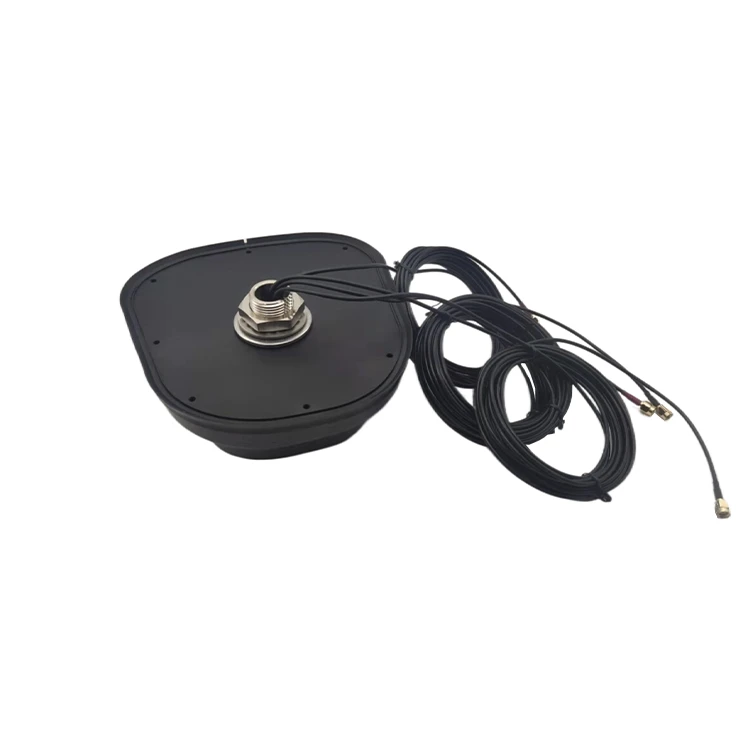

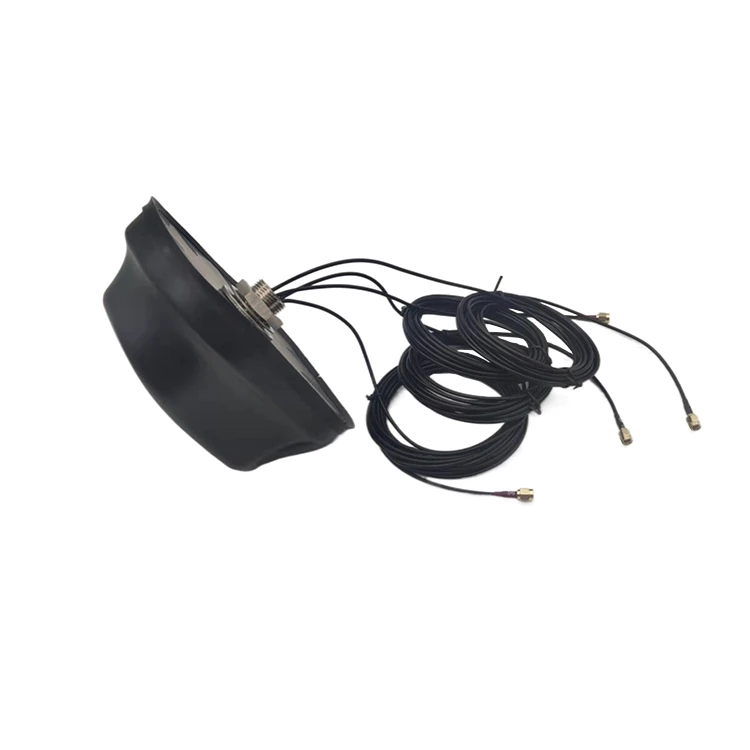

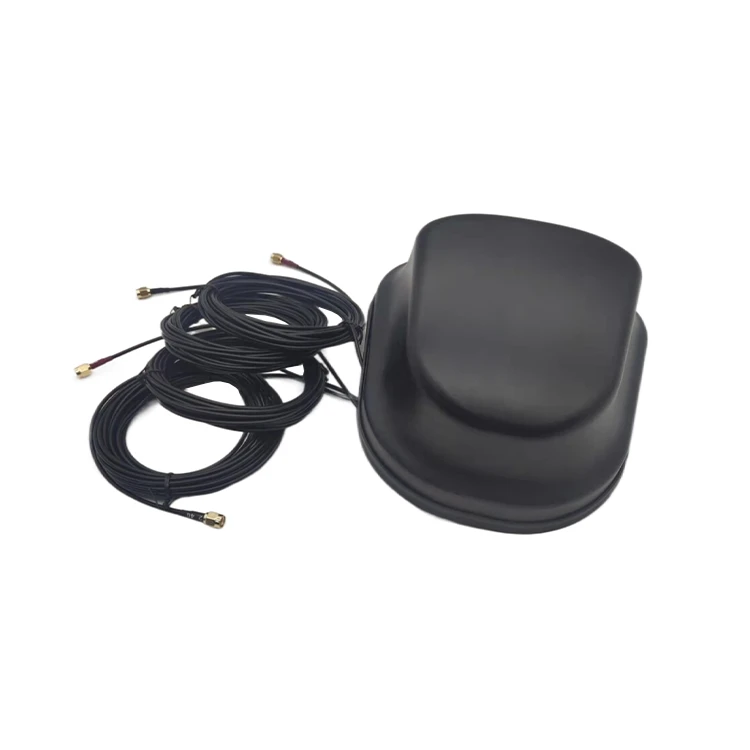

GNSS + NR MIMO×4 + WiFi MIMO Antenna is a highly integrated multi-system antenna design specifically developed for modern smart devices (such as smartphones, automotive terminals, IoT devices, etc.). It supports Global Navigation Satellite System (GNSS), 5G New Radio (NR) Multiple Input Multiple Output (MIMO), and WiFi MIMO communications.
SPECIFICATIONS
| Item | Specifications | |||
| GNSS Antenna | Frequency | GPS L1/L2/L5 GLONASS G1/G2/G3 COMPASS B1/B2/B3 Galileo E1/L1/E2/E5a/E5b/E6 |
||
| Polarization | RHCP | |||
| LNA Gain | 40±2dB | |||
| Noise Figure | ≤2.0dB | |||
| Supply Voltage | 3~ 12V DC | |||
| Current Consumption | ≤60mA | |||
| V.S.W.R | <2.0 | |||
| Impedance | 50 Ω | |||
| 5G NR Antenna MIMO*4 | Frequency Range | 698~960MHz/1710~2690MHz/2900~3800MHz | ||
| V.S.W.R | <3.0 | |||
| Polarization | Linear | |||
| Gain | 4dBi(Typ.) | |||
| Impedance | 50Ω | |||
| WIFI Antenna MIMO*2 | Frequency Range | 2400~2483.5MHz/4900~5925MHz | ||
| V.S.W.R | <2.5 | |||
| Polarization | Linear | |||
| Gain | 4dBi(Typ.) | |||
| Impedance | 50Ω | |||

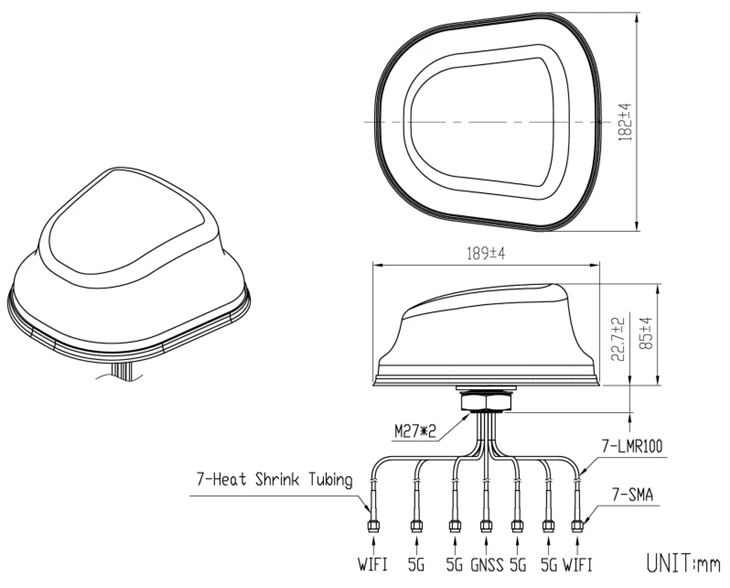

| Mechanical | Cable | LMR100*7 | ||
| Connector | SMA or others | |||
| Material | PC/ABS | |||
| Mounting Method | Screw | |||
| Environmental | Operating Temperature | -40℃~+85℃ | ||
| Relative Humidity | Up to 95% | |||
| Ingress Protection | IP67 (exclude cable outlet) | |||
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |||
| Environmentally Friendly | ROHS Compliant | |||
