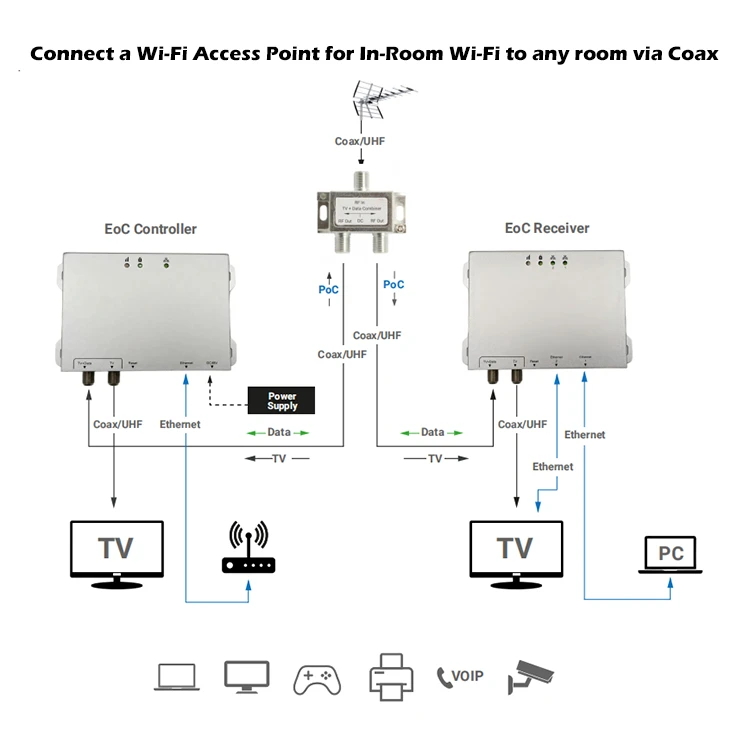

G.hn Ethernet over Coax is a solution that efficiently utilizes existing coaxial cable resources for network extension. It is particularly suitable for environments with high stability requirements and where rewiring is difficult. This technology provides a reliable, high-speed alternative for scenarios such as home networks, multimedia transmission, and commercial buildings, serving as an important complement to fiber optic and Wi-Fi networks.
|
Model Number:GDMOCA-019(GME310500)
|
||
|
DESCRIPTION: G.hn EoC Controller & Endpoint
|
||
|
ITEM
|
Q.C LIMIT
|
TEST CONDITIONS
|
|
1. Frequency
|
|
|
|
Frequency Range G.hn
|
2~200MHz
|
|
|
Frequency Range TV
|
230~1000MHz
|
|
|
2. Insertion Loss
|
|
|
|
G.hn Port
|
< 4.0dB
|
2~200MHz
|
|
TV Port
|
< 7.0dB
|
230~1000MHz
|
|
3. Return Loss
|
|
|
|
G.hn Port
|
> 7.5dB
|
2~200MHz
|
|
TV Port
|
> 7.5dB
|
230~1000MHz
|
|
4. Rejection
|
|
|
|
G.hn Port
|
> 25dB
|
2~200MHz
|
|
TV Port
|
> 25dB
|
230~1000MHz
|
|
5. Connectors
|
|
|
|
F Connector
|
|
|
|
G.hn Port
|
F-female
|
|
|
TV Port
|
F-female
|
|
|
Impedance
|
75 ohms
|
|
|
Rotation Torque Strength
|
> 10kgf.cm
|
|
|
LAN Connector
|
RJ45 female
|
|
|
DC Connector
|
DC Jack 5.5mm/2.0mm
|
|
|
6. Network
|
|
|
|
Ethernet Ports
|
TECA-R 2pcs(LAN1/LAN2)
TECA-C 1PCS(LAN1) |
|
|
Ethernet Interface
|
10/100/1000M
|
|
|
MDI/MDI-X
|
Full/Half Duplex/Auto-Negotiation
|
|
|
7. Other
|
|
|
|
AC Adapter voltage
|
100~240VAC 50/60Hz
|
|
|
DC Output
|
+ 48V
|
|
