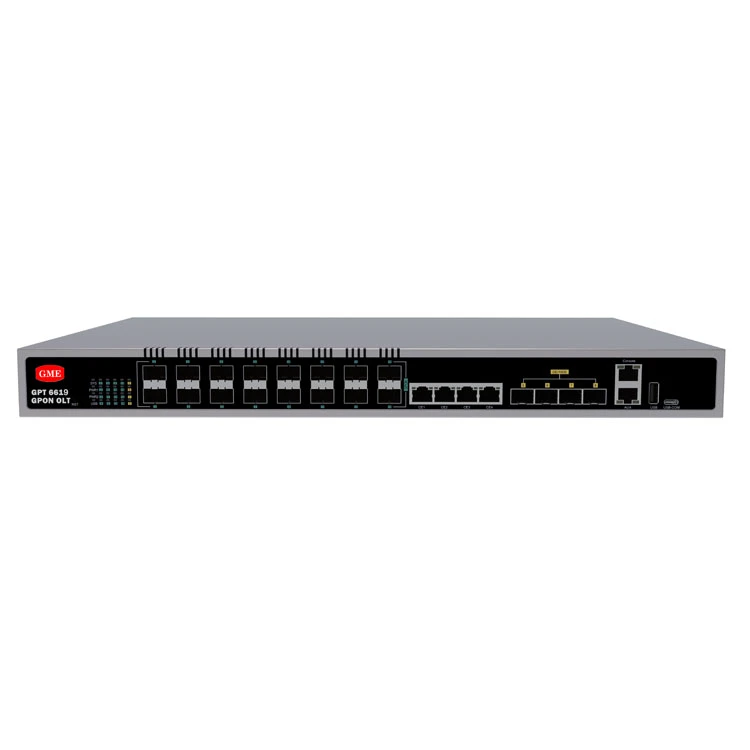

The 16 Port GPON OLT (Optical Line Terminal) is a high-performance fiber access device designed for FTTH (Fiber to the Home), enterprise broadband, and telecom operator networks. It features 16 GPON ports, enabling high-density fiber connectivity to support multiple ONUs (Optical Network Units) with ultra-fast and stable data transmission.
Specifications
| Item | GPT-6619 | |||
| Chassis(Rack) | 1U 19 inch standard box | |||
| Uplink Port | QTY | 8 | ||
| RJ45 | 4 | |||
| SFP (1GE) | / | |||
| SFP+ (10GE) | 4 | |||
| EPON | QTY | 16 | ||
| Port | Physical Interface | SFP Slots | ||
| Max splitting ratio | 0.130555556 | |||
| Backplane Bandwidth (Gbps) | 104 | |||
| Port Forwarding Rate (Mpps) | 124.992 | |||
| Dimension (LxWxH) | 442*319*43.6mm | |||
| Weight | 4.80kg | |||
| Power Consumption | 85W | |||
| Power Supply | AC | Working Voltage Range: 100~240V, Rated Voltage: 110V/220V | ||
| DC | Working Voltage Range: -36~-75V, Rated Voltage: -48V/-60V | |||
| Operating | Working Temperature | -20 ~ +60°C | ||
| Storage Temperature | -40 ~ +70°C | |||
| Environment | Relative Humidity | 5 ~ 95% (non-condensing) | ||
