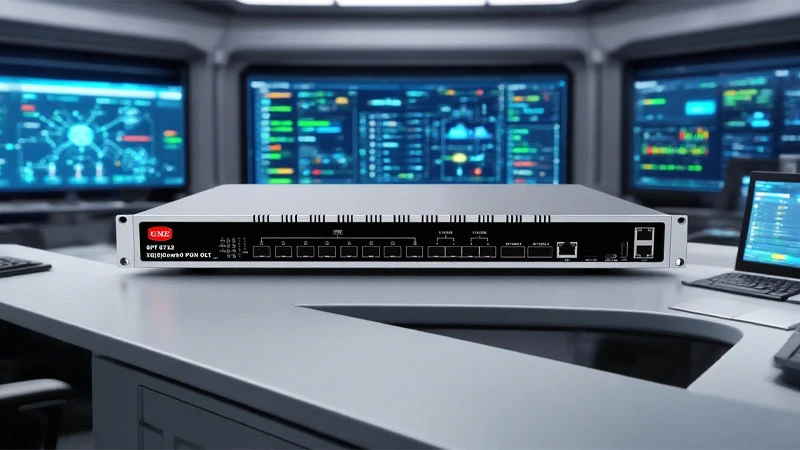

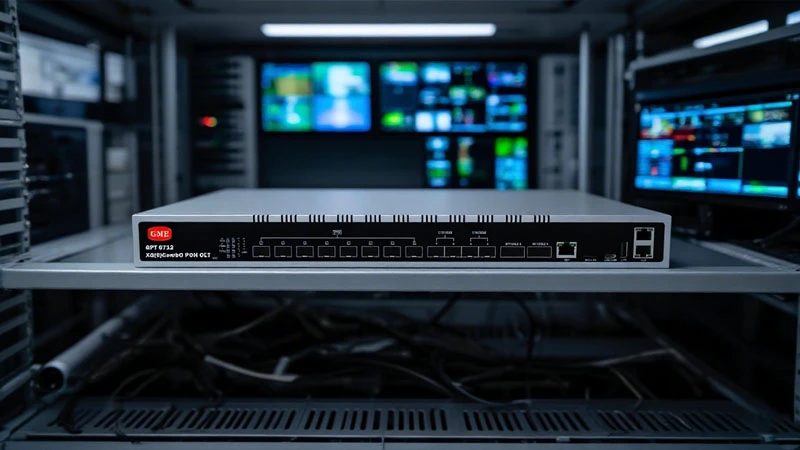

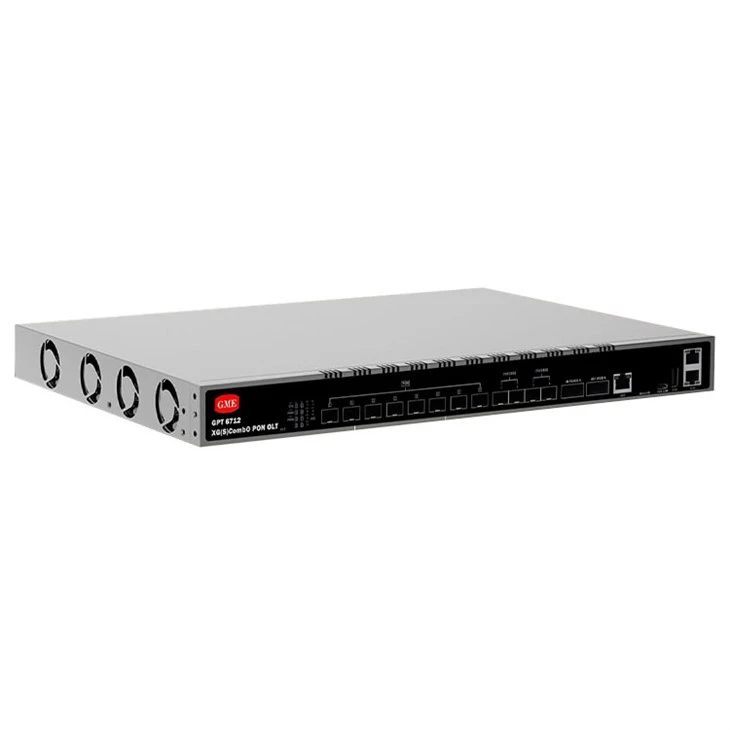

GPT 6712 is a compact OLT access device with 8 PON ports (optional GPON, XG-PON, XGS-PON), and also supports single GPON mode. You can choose the smooth upgrade from GPON to XG(S)-PON, and switch to XG(S)-PON&GPON Combo mode in the early stage, considering the stability of the original business during future upgrades.
Compact High-Density 8-Port 10G Combo (GPON/XGS-PON) OLT
Advantages and Features of 8-Port 10G Combo PON OLT
The 8 Port XGS-PON OLT is designed for next-generation fiber access scenarios in telecom operators, enterprise campuses, and smart communities. With symmetric 10G speeds, high capacity, and carrier-grade reliability, it meets the demands of future broadband upgrades and multi-service convergence.
High Bandwidth Capability
Each port supports symmetric 10G rates, with a total bandwidth of up to 80Gbps across 8 PON ports, meeting the growing demand for future broadband services.
Large User Capacity
Each PON port supports up to 128 ONU devices, allowing the entire unit to manage thousands of users, making it ideal for large-scale access deployments.
Flexible Network Architecture

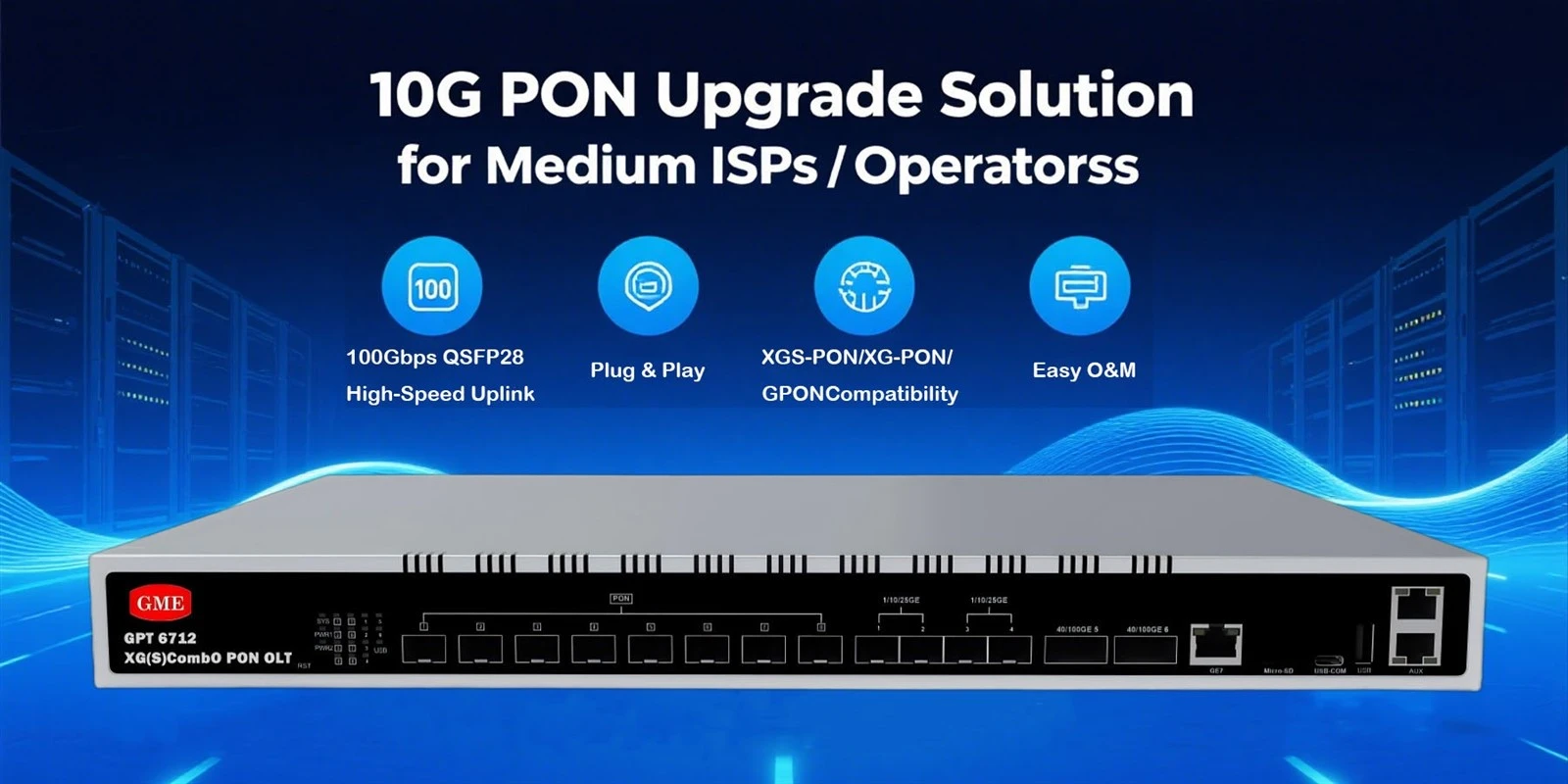

Supports smooth evolution from GPON to XG-PON and XGS-PON, with strong compatibility to seamlessly integrate with existing fiber networks.
Multi-Service Carrying Capability
Supports IPTV, CATV, VoIP, dedicated data lines, and IoT services, enabling multi-service convergence, simplifying network architecture, and reducing operational costs.
Carrier-Grade Reliability
Supports dual power redundancy, protection switching, and link protection mechanisms to ensure stable network operation.
Intelligent Management
Provides multiple management methods including CLI, SNMP, and Web-based interfaces, supporting remote configuration and monitoring to improve operational efficiency.
Cost-Effective Deployment
Compared with traditional wired access, PON technology significantly reduces fiber usage and maintenance costs, ensuring a higher overall return on investment (ROI).

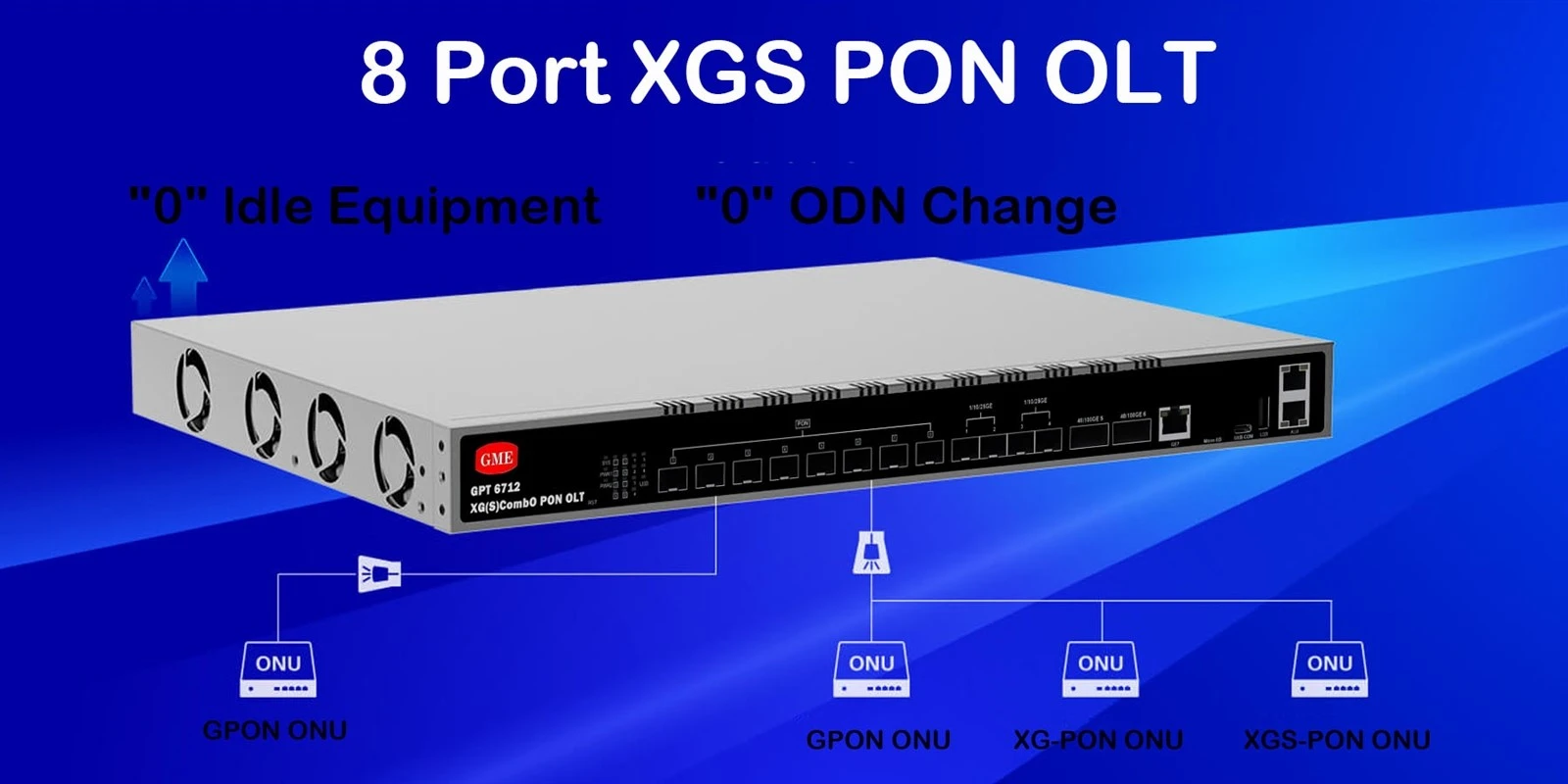

Flexible Switching of PON Port Modes
All ports feature selectable GPON/XGS-PON operating modes, facilitating seamless migration from GPON to XGS-PON and enabling a streamlined upgrade to 10Gbps network capacity.
Specifications
|
Item |
GPT 6712 |
|
|
Chassis |
Rack |
1U 19Inch Standard Box |
|
Uplink Port |
QTY |
8 |
|
RJ45(GE) |
1 |
|
|
SFP28(25GE) |
4 |
|
|
QSFP28(25GE/50GE/100GE) |
2 |
|
|
XG(S)-PON/GPON Port |
QTY |
8 |
|
Physical Interface |
SFP+ Slots |
|
|
Connector Type |
XG(S)-PON&GPON Combo mode: N2_C+ |
|
|
Single GPON mode: Class B+/C/C+/C++/C+++/C++++ |
||
|
Optical Splitting Ratio |
1:256(Maximum), 1:128(Recommended) |
|
|
Management Ports |
1*10/100/1000BASE-T out-band port, 1*CONSOLE port, 1*USB3.0, 1*Type-C USB console, 1*MicroSD port |
|
|
Backplane Bandwidth (Gbps) |
1960 |
|
|
Port Forwarding Rate(Mpps) |
566.928 |
|
|
XG(S)-PON&GPON Combo Port Specification |
Transmission Distance |
20KM |
|
XG(S)-PON Port Speed |
GPON:Upstream1.244Gbps,Downstream 2.488Gbps XG-PON: Upstream 2.488Gbps, Downstream 9.953Gbps XGS-PON: Upstream 9.953Gbps, Downstream 9.953Gbps |
|
|
Wavelength |
GPON:Upstream 1310nm, Downstream 1490nm XG(S)-PON:Upstream: 1270nm Downstream: 1577nm |
|
|
Supported PON ports |
PON 1~8 (8 PON ports are in XG(S)-PON&GPON Combo mode by default ) |
|
|
GPON Port Specification |
Transmission Distance |
20KM |
|
GPON Port Speed |
Upstream: 1.244Gbps,Downstream: 2.488Gbps |
|
|
Wavelength |
Upstream: 1310nm, Downstream: 1490nm |
|
|
Supported PON ports |
PON 1~8 (Each PON port can be manually hot-switch to GPON mode) |
|
|
Lightning Protection |
Power Lightning Protection |
6KV |
|
Interface Lightning Protection |
4KV |
|
|
Power Supply |
AC |
Working Voltage Range: 100~240V, Rated Voltage: 110V/220V |
|
Number of Fans |
4 |
|
|
Management Mode |
CLI(Console/Telnet/SSH)/WEB/SNMP |
|

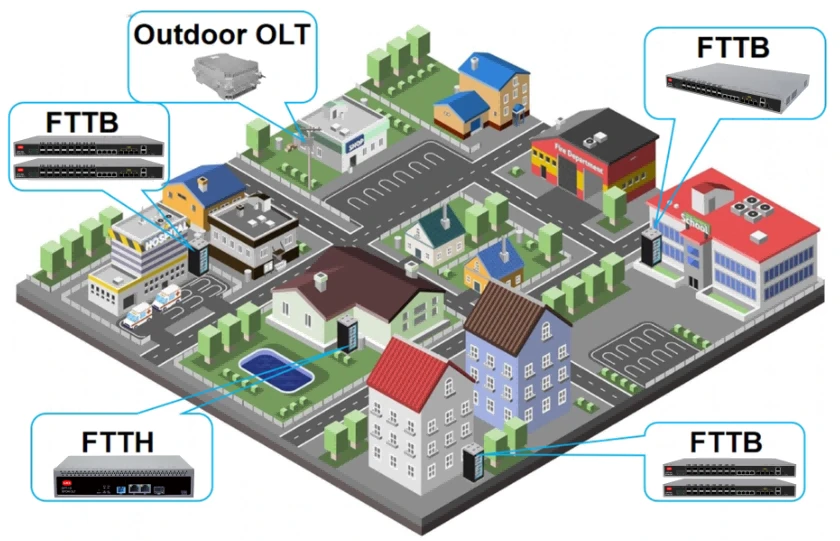

FTTx applacation

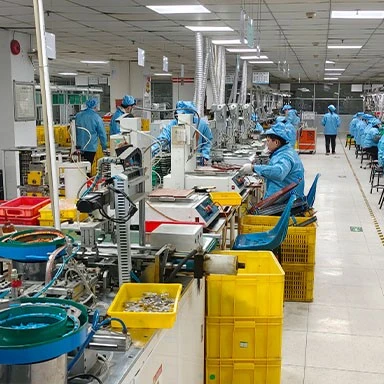

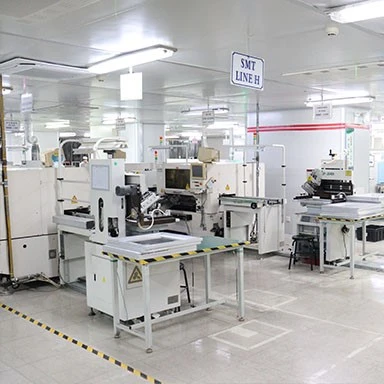

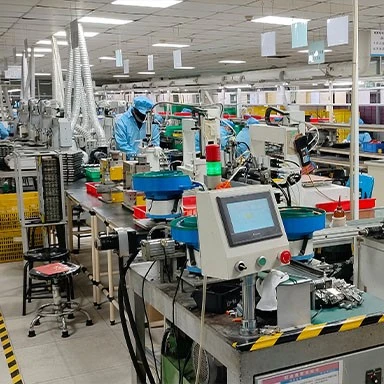

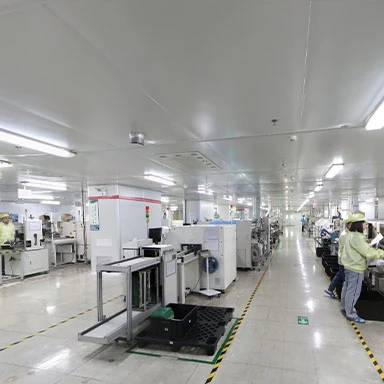

Our Production Workshop
Our Certificate
payment method

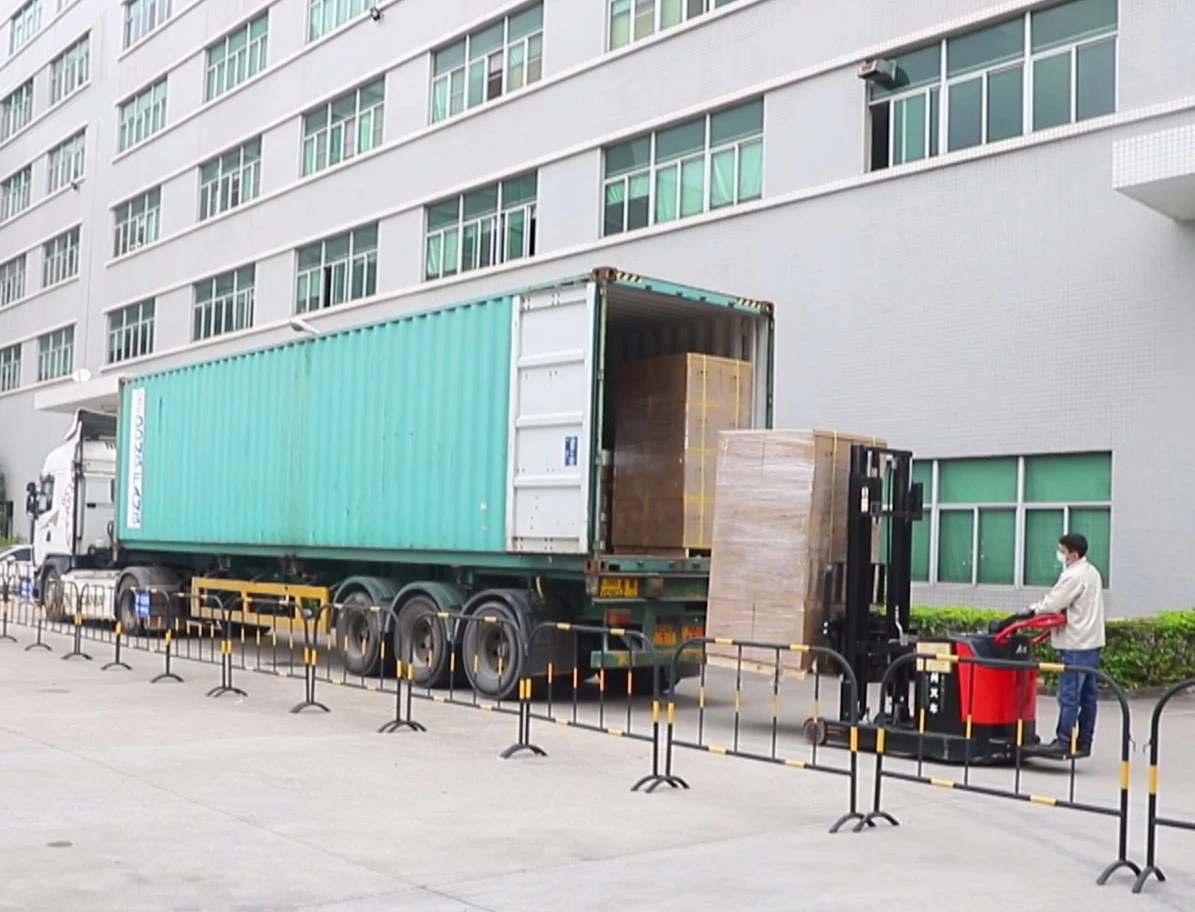

Packaging & Transport
Packaging & Transport
PACKING
We will pack our products tightlyto ensure that they are notdamaged in transit.
TRANSPORT
We support the three major transportation by sea, landand air to ensure that your goods can arrive on time.
FAQ
Q: You are factory or trading company?
A: we are 100% factory and also do trading online
Q: What is your shipping way?
A: We usually ship it via DHL /UPS/Fedex/TNT/Aramex. if you have big quanti-ty, you can choose Air or Sea shipment.
Q: What is your payment term?
A: T/T wire bank transfer, L/c, etc.
Q: How can you slove the problem if we receive the defective goods?
A: Send us the pictures or video first time, we would like to offer free replace. ment goods for you.
Q: Can ltake a sample for quality check?
A: Sure,we can offer sample for your testing.
Q: Can we have our logo or company name to be printed on yourproducts or the?
A: Yes,you sure. We accept OEM/ODM orders and provide services for logoprinting ,carton marks as well as packing designings.You can send us the artwork by email in jPG,TIF ,Al,EPS,TIFF of CorelDraw for-mats Logo printing may require MOQ which may vary from different mod-els.Please contact us for details.
