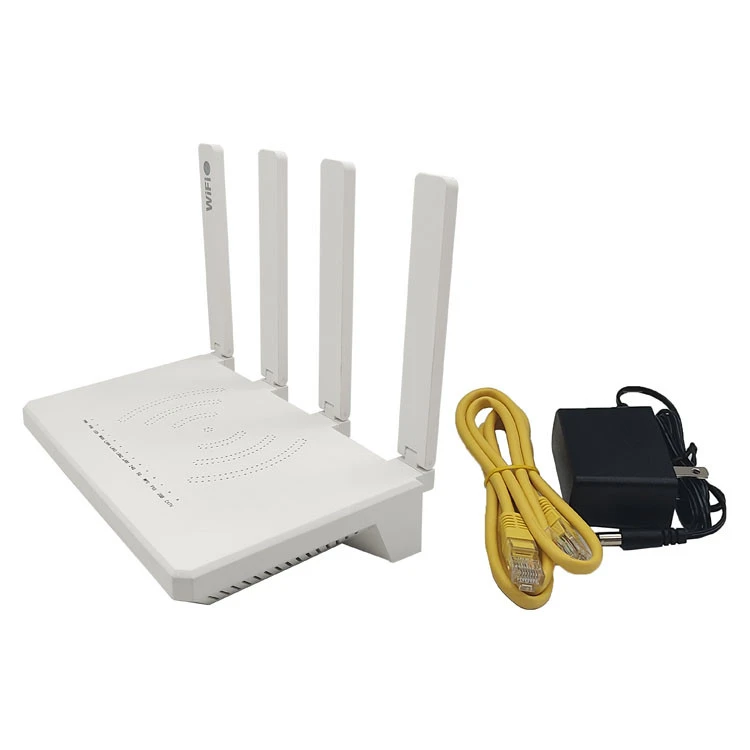

This ONU is designed for FTTH. It supports XPON dual-mode technology (EPON and GPON),With WiFi speeds up to 3000Mbps, it also supports IEEE 802.11b/g/n/ac/ax technology and other Layer 2/Layer 3 features, It is widely compatible with the global mainstream OLT brand, supports plug-and-play, OMCI and TR069 remote maintenance features.
Features:
- Support ACL to configure data packet filter flexibly
- Support TR069 for ACS(Auto Config Server)
- In compliant with IEEE802.3ah & ITU-T G.984 standard
- Support data encryption, group broadcasting, port VLAN separation ,etc.
- Support Dynamic Bandwidth Allocation (DBA)
- Support ONU auto - discovery/Link detection/remote upgrade of software
- Support power off alarm function ,easy for link problem detection
- Support wireless security of 64/128 bit WEP,802.1x,WPA and WPA2
- Support port VLAN configuration
Description:
|
Hardware Parameter |
|
|
Dimension |
200mm×156.8mm×32.33mm(L×W×H) |
|
Net Weight |
0.35kg |
|
Operating Condition |
Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensed) |
|
Storing Condition |
Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed) |
|
Power Adapter |
12V/1.5A, External AC-DC power adapter |
|
Power Supply |
≤12W |
|
Interface |
1XPON + 4GE + 1POTS + 1USB 3.0 + WiFi 6, CATV optional |
|
Indicators |
PWR, PON, LOS, WAN, LAN1~4, 2.4G, 5G, WPS, FXS, USB, CATV |
|
|
|
|
Interface Parameter |
|
|
PON Interface |
1XPON port (EPON PX20+ and GPON Class B+) SC single mode: HG3232AX30T-H:SC/APC connector HG3232AX30-H:SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm (EPON) or -8dBm (GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm |
|
User Interface |
4×GE, Auto-negotiation, RJ45 ports 1×POTS RJ11 Connector |
|
Antenna |
2.4GHz/5GHz 2T2R, external antennas |
|
CATV interface |
Optical receiving wavelength: 1550±10nm Optical input range: +2～-18dBm Optical reflection loss: ≥40dB RF frequency range: 47～1000MHz RF output impedance: 75Ω RF output level and AGC range: ≥81±2dBuv@+1 ~ -10dBm ≥79±2dBuv@ 0 ~ -11dBm ≥77±2dBuv@-1 ~ -12dBm ≥75±2dBuv@-2 ~ -13dBm ≥73±2dBuv@-3 ~ -14dBm ≥71±2dBuv@-4 ~ -15dBm MER: ≥32dB (-14dBm optical input) |
|
Function Data |
|
|
O&M |
WEB/TELNET/OAM/OMCI/TR069 Support private OAM/OMCI protocol |
|
Internet Connection |
Support Routing Mode |
|
Multicast |
IGMP v1/v2/v3, IGMP snooping MLD v1/v2 snooping |
|
VoIP |
SIP and IMS SIP G.711a/G.711u/G.722/G.729 Codec Echo cancellation, VAD/CNG, DTMF Relay T.30/T.38 FAX Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference Line testing according to GR-909 |
|
WIFI |
WiFi 6: 802.11a/n/ac/ax 5GHz, 2.4GHz WiFi: 2.4GHz\5GHz 2×2, 2 dual band antennas, rate up to 3Gbps, Multiple SSID WiFi Encryption: WEP-64/WEP-128/WPA/WPA2/WPA3 Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band Support WiFi Easy-mesh function |
|
L2 |
802.1p Cos,802.1Q VLAN |
|
L3 |
IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS |
|
Firewall |
Anti-DDOS, Filtering Based on ACL/MAC /URL |
