Introduction

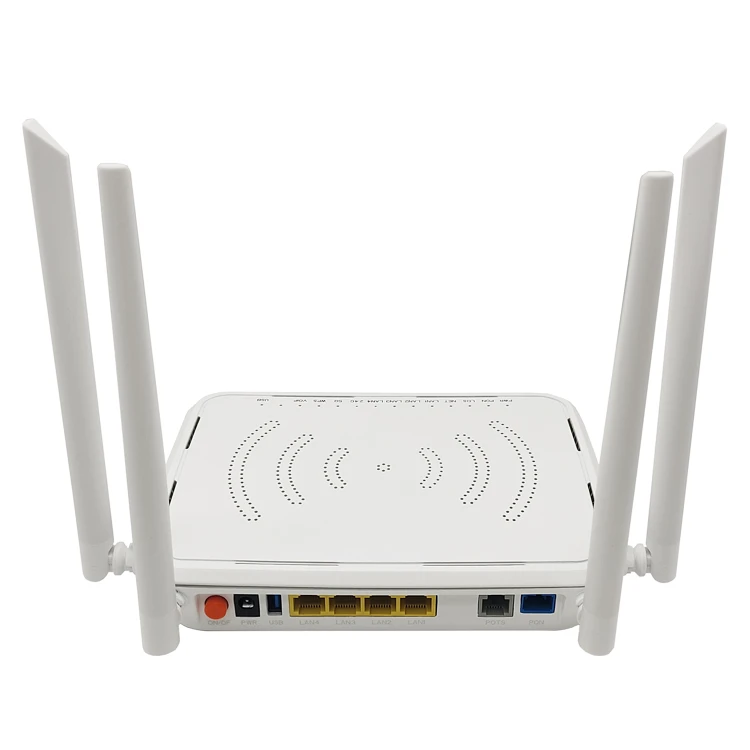

This ONU is designed for FTTH. It supports XPON dual-mode technology (EPON and GPON),With WiFi speeds up to 3000Mbps, it also supports IEEE 802.11b/g/n/ac/ax technology and other Layer 2/Layer 3 features, It is widely compatible with the global mainstream OLT brand, supports plug-and-play, OMCI and TR069 remote maintenance features.
Features
- In compliant with IEEE802.3ah & ITU-T G.984 standard
- Support device - based rate limitation and bandwidth control
- Up to 20KM transmission Distance
- Support data encryption, group broadcasting, port VLAN separation ,etc.
- Support Dynamic Bandwidth Allocation (DBA)
- Support ONU auto - discovery/Link detection/remote upgrade of software;
- Support port VLAN configuration
- Support power off alarm function ,easy for link problem detection
- Support DHCP server
- Support QOS configuration
- Support port binding
- Support port forwarding
- Support ACL to configure data packet filter flexibly
- Specialized design for system break down prevention to maintain stable system
- Support software online upgrading
- Support TR069 for ACS(Auto Config Server)
- Support multi-SSID (Maximum 4 SSID)
- Support automatic channel selection
- Support wireless security of 64/128 bit WEP,802.1x,WPA and WPA2
- Support auto adapt GPON and EPON mode
Description
|
Dimension |
186mm×136mm×33.5mm(L×W×H) |
|
Net weight |
0.42Kg |
|
Operating condition |
Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensed) |
|
Storing condition |
Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed) |
|
Power |
12V/1.5A |
|
Power supply |
≤12W |
|
Indicators |
PWR ,PON ,LOS ,NET ,LAN1~4 ,2.4G ,5G ,WPS,VOIP,USB |
|
PON |
1XPON port(EPON PX20+ and GPON Class B+) SC single mode, SC-UPC/SC-APC connector TX optical power: 0.5～+4dBm RX sensitivity: -28dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm |
|
User |
4×GE, Auto-negotiation,RJ45 ports 1×POTS RJ11 Connector |
|
Antenna |
2.4GHz 2T2R , 5GHz 3T3R |
|
O&M |
WEB/TELNET/OAM/OMCI/TR069 Support private OAM/OMCI protocol |
|
Internet connection |
Support Routing Mode |
|
Multicast |
IGMP v1/v2/v3, IGMP snooping MLD v1/v2 snooping |
|
VoIP |
SIP and IMS SIP G.711a/G.711u/G.722/G.729 Codec Echo cancellation,VAD/CNG,DTMF Relay Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference Line testing according to GR-909 |
|
WIFI |
WIFI6: 802.11a/n/ac/ax 5GHz, 2.4GHz WIFI:2.4G 2X2,5G 3X3,5 antennas.Multiple SSID WiFi Encryption: WPA/WPA2/WPA3 Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM Smart Connect for one Wi-Fi name - One SSID for 2.4GHz and 5GHz dual band |
|
Firewall |
Anti-DDOS, Filtering Based on ACL/MAC /URL |
FTTx applacation
