Describe

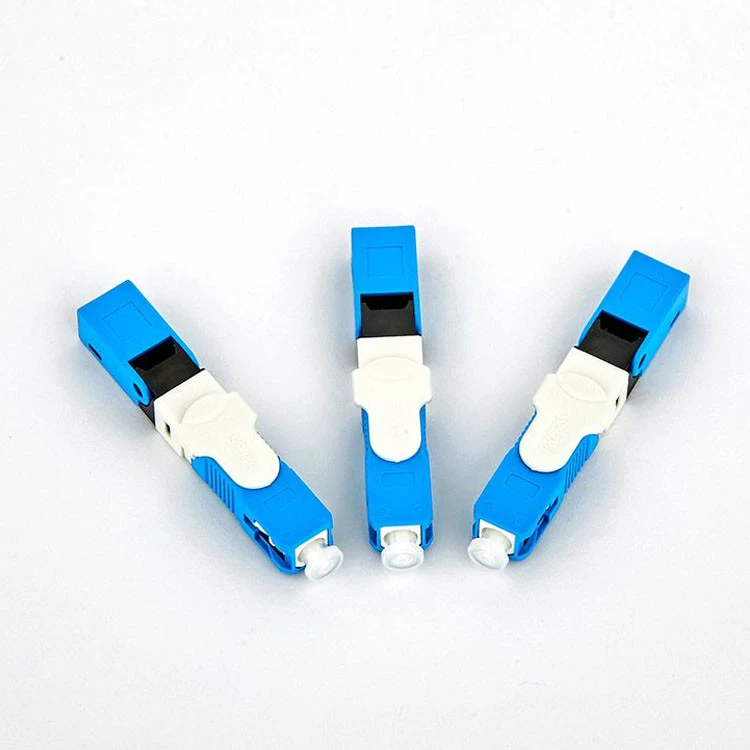

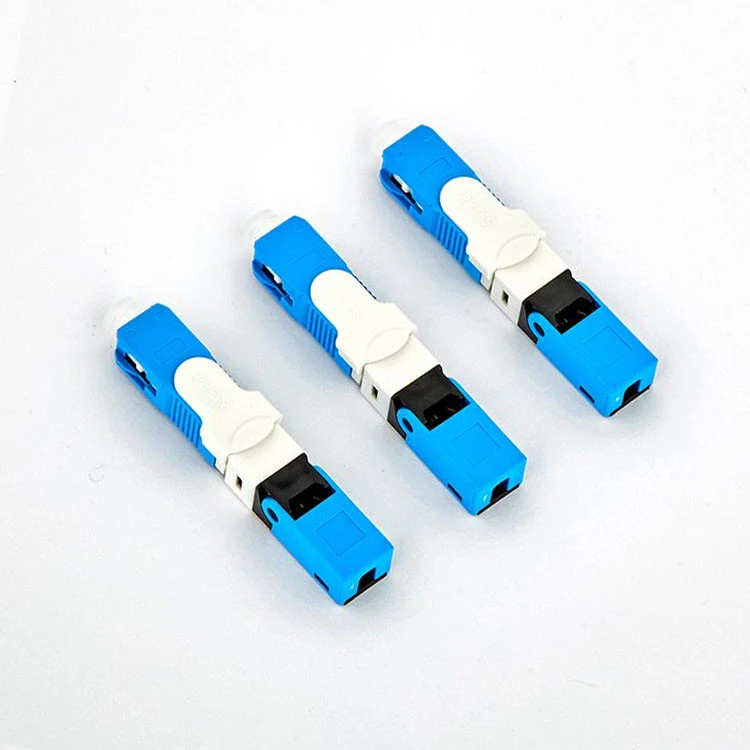

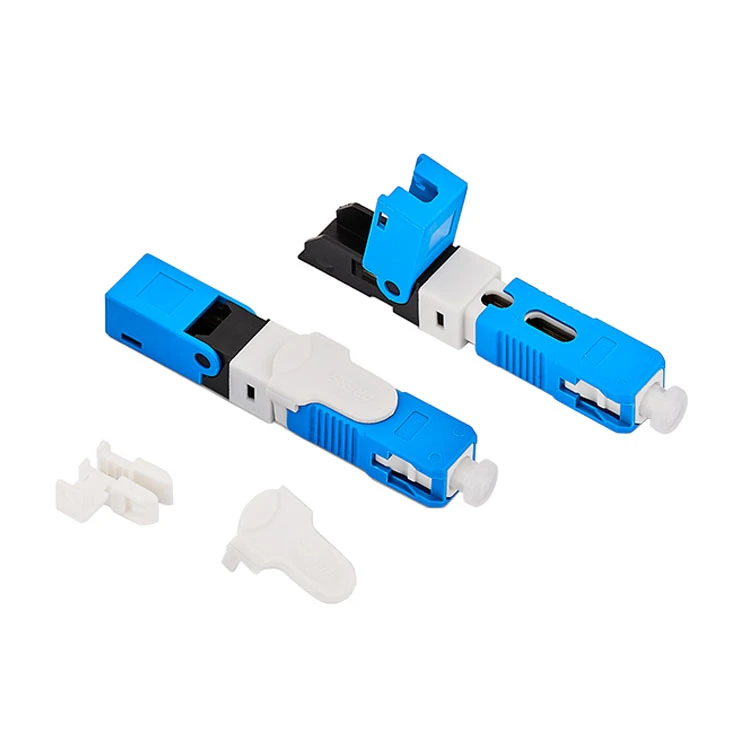

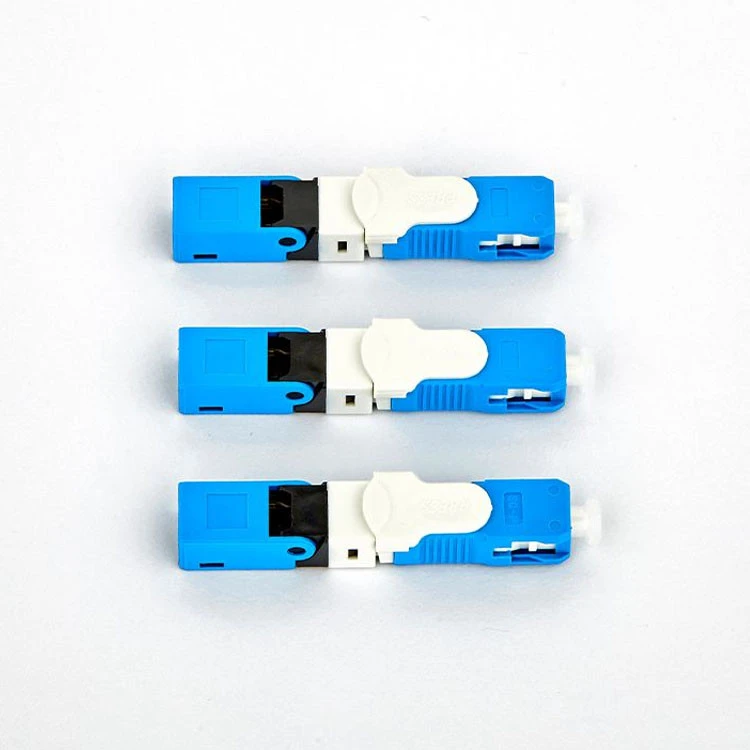

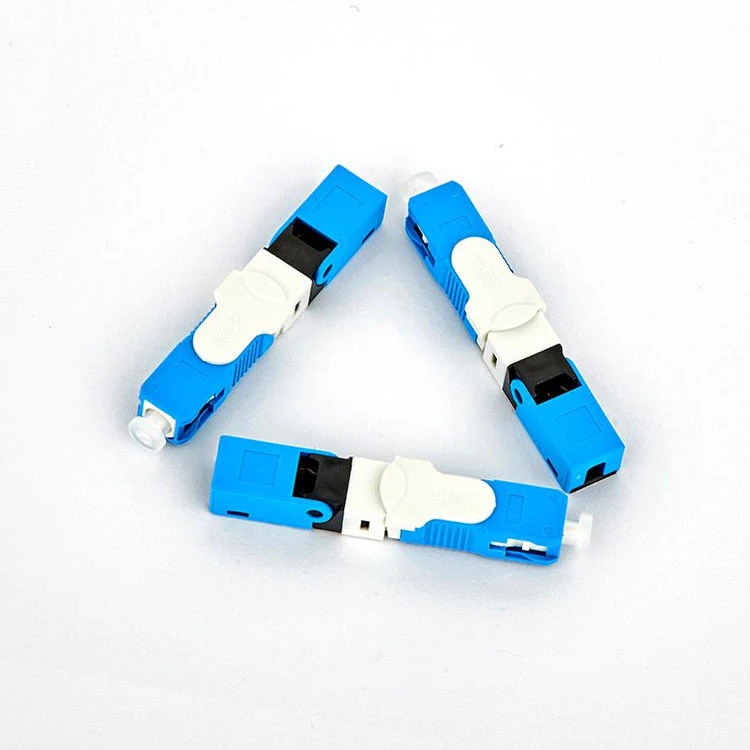

Quick Assembly SC connector can provide quick and easy terminations of fibers in the field. It allows the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system with features of high installation quality, high success rate and high reliability.
Parameter
-
Factory-installed fiber stub, no epoxy and polishing required, inside with index-matching gel.
- Product Length: 52mm ( without cap)
- Cable: Mainly Suitable for Drop Cable3.0*2.0mm , 2.0*1.6mm ,2.0*5.0mm.
- Fiber: G657A1, G657A2, G657B3, Fiber Diameter 125um, Coating Diameter 250um & 900um.
- Operating Temperature: -25 +75℃.
Application
- FTTH & Outdoor Fiber Terminal End
- Harsh Environment
- FTTA BBU RRU
- Data Video Transmission
- Optical Fiber Access Of Mobile Base Station
Specifications
|
Item |
GD09-A |
|
Length |
52mm |
|
Ferrules |
SM/UPC / SM/APC |
|
Inner Diameter of ferrules |
125um |
|
Insertion Loss |
AVG≤0.3dB MAX≤0.5dB |
|
Return Loss |
UPC≥45dB / APC≥50dB |
|
Working Temperature |
-20~+75℃ |
|
Storage Temperature |
-40~+85℃ |
|
Mating Times |
500Times |
|
Cable Diameter |
DROP CABLE : 2*3.0mm /2.0*5.0mm /2.0*1.6mm |
