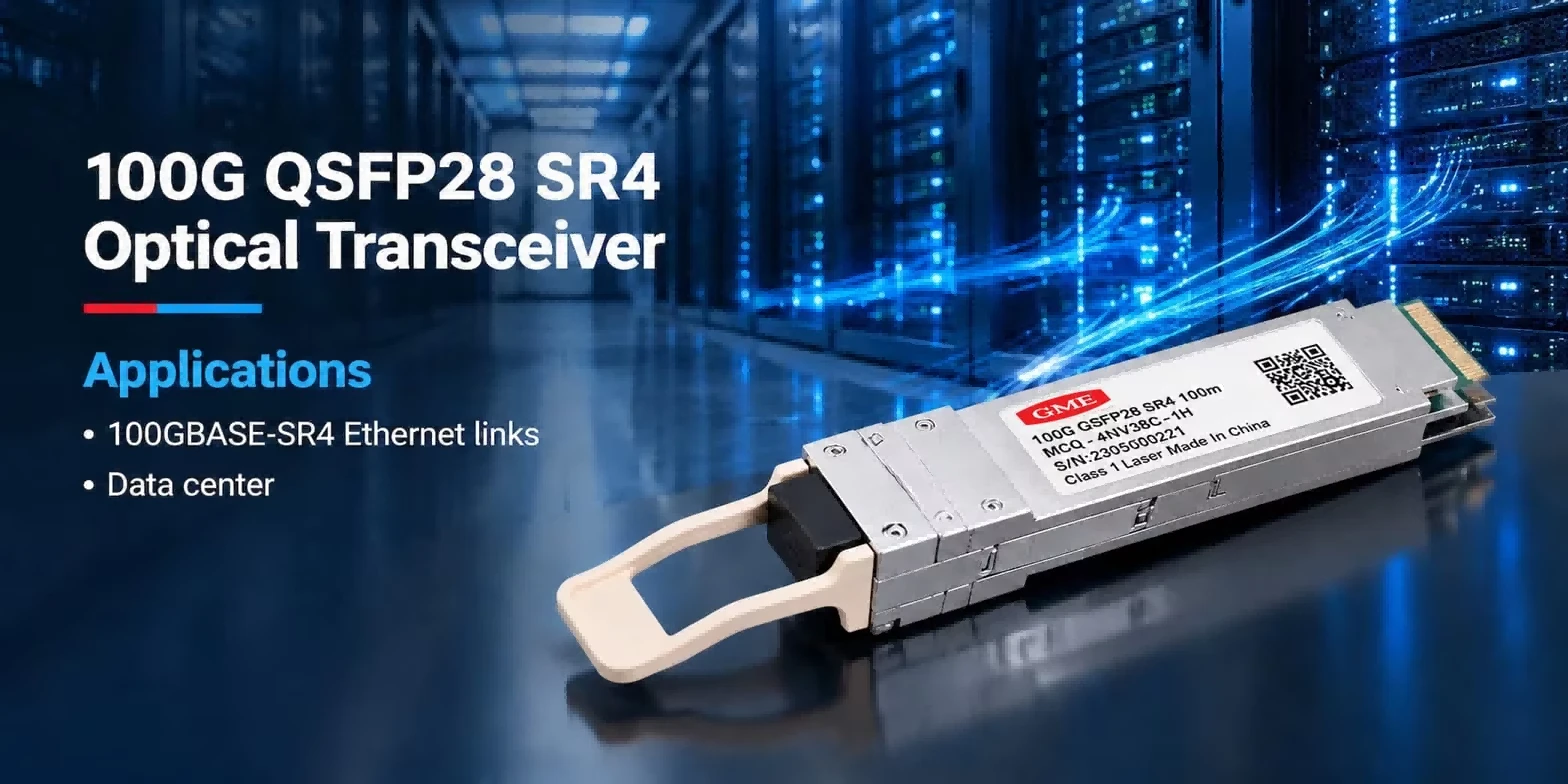

Built for high-performance 100G Ethernet with IEEE 802.3bm and SFF-8665 compliance in a compact QSFP28 form factor.
| Parameter | Symbol | Min | Typical | Max | Unit | Note |
| Center Wavelength | λC | 840 | 850 | 860 | nm | |
| Transmitter | ||||||
| Data Rate,each Lane | 25.78125±100 ppm | Gbps | ||||
| Modulation Format | NRZ | |||||
| Average Launch Power,each Lane | PAVG | -8.4 | 2.4 | dBm | ||
| RMS Spectral width | 0.6 | Nm | ||||
| Optical Modulation Amplitude, each lane |
-6.4 | 3.0 | dBm | |||
| Average Launch Power Lane @TX Off State |
-30.0 | dBm | ||||
| Launch Power in OMA minus TDEC,each Lane |
-7.3 | dBm | ||||
| Transmitter and Dispersion Eye Closure,each Lane |
4.3 | dB | ||||
| Extinction Ratio | ER | 2.0 | dB | |||
| Optical Return Loss Tolerance | TOL | 12 | dB | |||
| Transmitter Eye mask definition(X1,×2,X3,Y1,Y2,Y3) |
(0.3,0.38,0.45,0.35,0.41,0.5) | |||||
| Receiver | ||||||
| Data Rate,each Lane | 25.78125±100 ppm | GBaud | ||||
| Lane Wavelength Range | 840 | 850 | 860 | nm | ||
| Modulation Format | NRZ | |||||
| Damage Threshold,each Lane | THd | 3.4 | dBm | |||
| Average Receive Power | -10.3 | 2.4 | dBm | |||
| Receive Power (OMA),each Lane | 3.0 | dBm | ||||
| Stressed Receiver Sensitivity (OMAouter),each Lane |
SRS | -5.2 | dBm | |||
| Receiver Reflectance | RR | -12.0 | dB | |||
| Stressed Conditions for Stress Receiver Sensitivity |
||||||
| Stressed Eye Closure | 4.3 | dB | ||||
| Stressed Eye J2 Jitter | 0.39 | UI | ||||
| Stressed Eye J4 Jitter | 0.53 | UI | ||||
| OMA of each aggressor lane | 3 | dBm | ||||
| Stressed Receiver Eye Mask Definition(X1,X2,X3,Y1,Y2,Y3) |
(0.28,0.5,0.5,0.33,0.33,0.4) | |||||
| LOS Assert | LOSA | -30.0 | dBm | |||
| LOS De-assert | LOSD | -12.0 | dBm | |||
| LOS Hysteresis | LOSH | 0.5 | dB | |||
| OMAouter of each Aggressor Lane | 3 | dBm | ||||

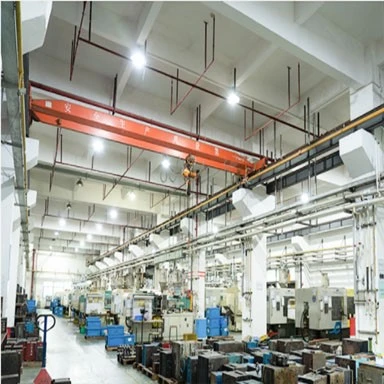

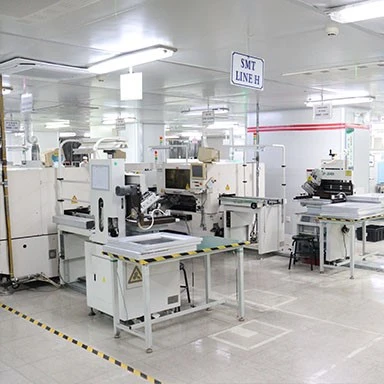

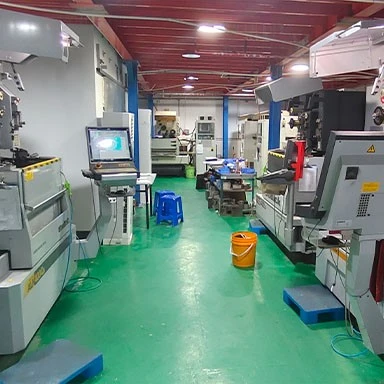

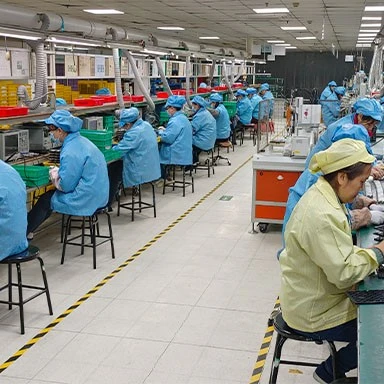

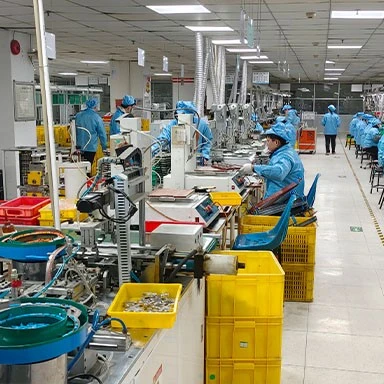

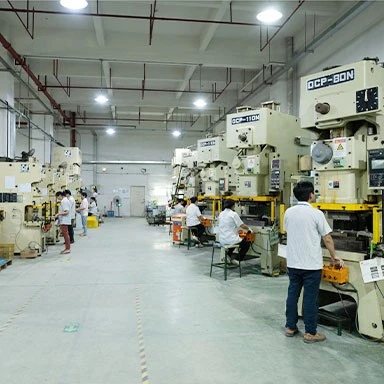

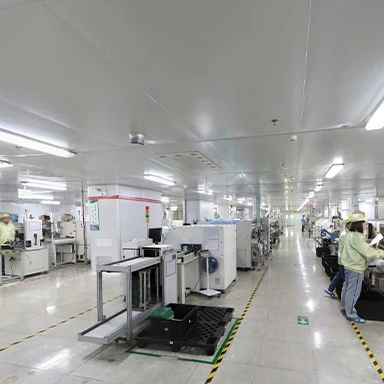

Our Production Workshop
Our Certificate
payment method
Packaging & Transport
PACKING
We will pack our products tightlyto ensure that they are notdamaged in transit.

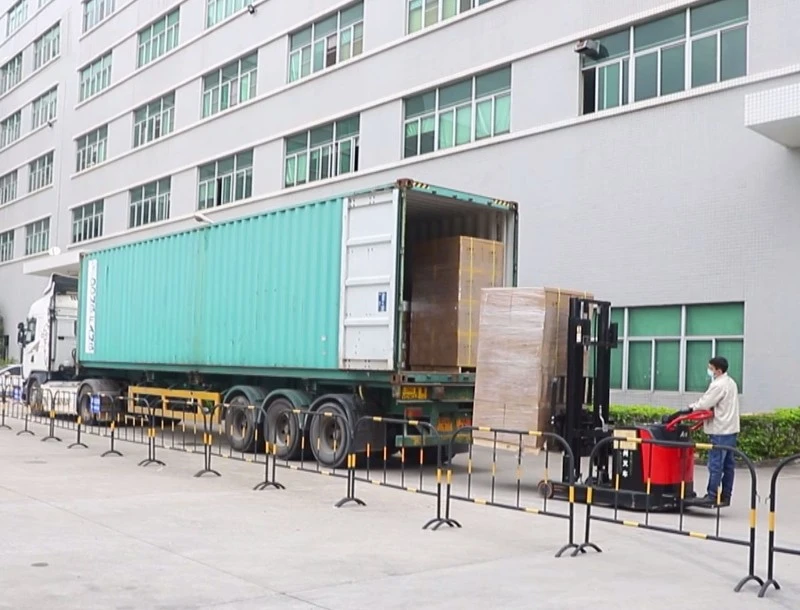

TRANSPORT
