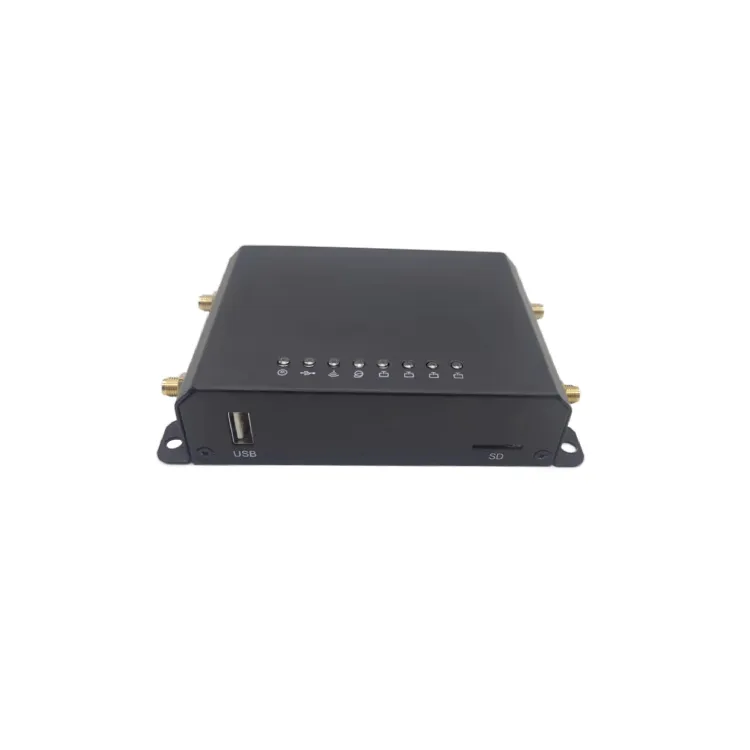

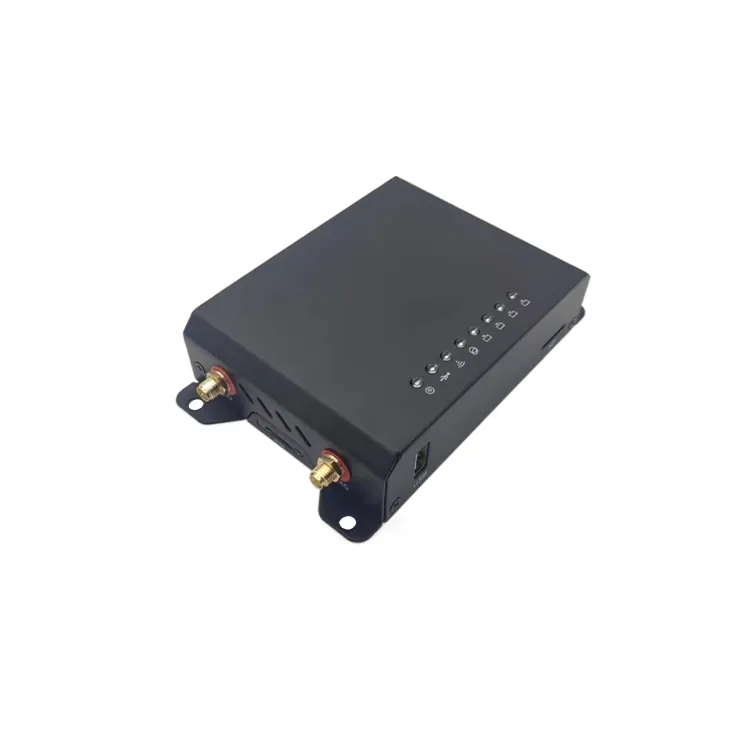

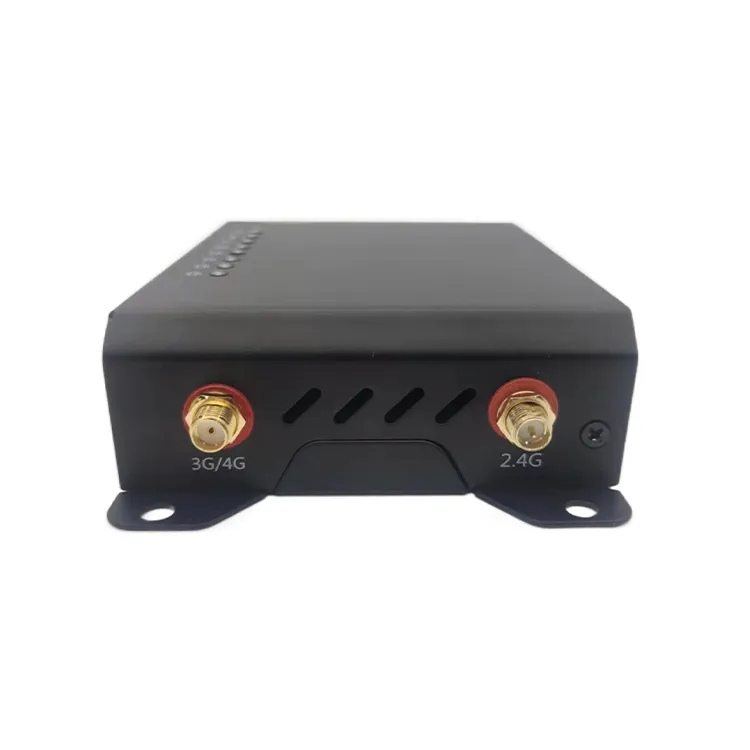

Model Number:GDSW-005(WE826-T2) |
|
|
Main chip |
MT7620A/580MHZ |
|
Memory |
DDR2 128MB (support DDR2 256MB Max) |
|
FLASH |
SPI 16MB (support 32MB Max) |
|
Protocol standard |
IEEE802.11n/802.11g/802.11b/802.3/802.3u |
|
Wireless rate |
Standard 2.4G 300Mbps, optional 4G/3G |
|
Frequency |
2.4G, optional 4G/3G |
|
Receiving sensitivity |
11N HT20 MCS7: -72dBm |
|
11N HT40 MCS7: -69dBm |
|
|
11G 54Mbps: -74dBm |
|
|
11B 11Mbps: -86dBm |
|
|
Antenna |
Standard 2pcs 5dbi, High gain Omnidirectional 2.4G Ant., Optional 4G/3G Ant. |
|

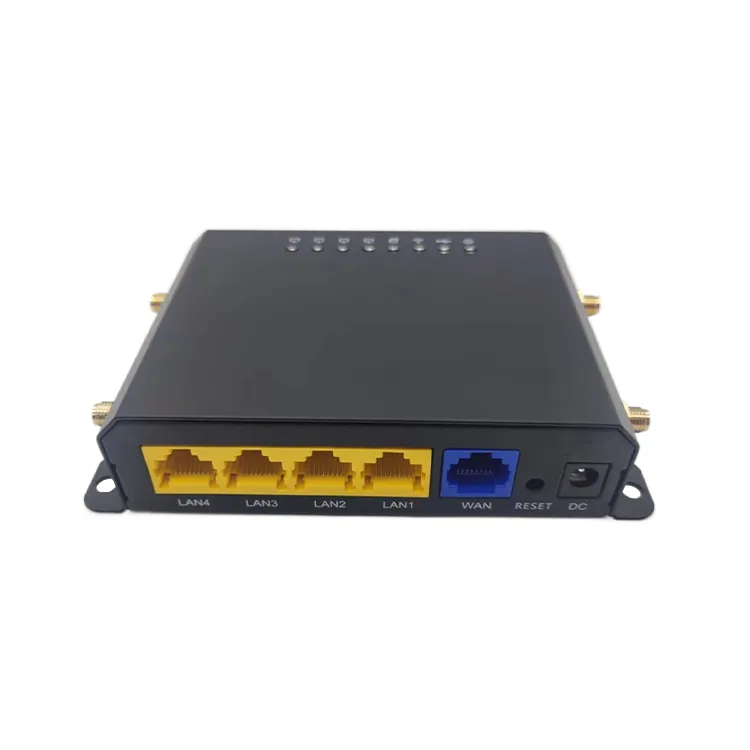

Port |
One 10/100M WAN port,(Auto MDI/MDIX) |
|
Four 10/100M LAN Port,(Auto MDI/MDIX) |
|
|
One DC Port |
|
|
One USB Port |
|
|
One TF Port |
|
|
One PCIE Port(Internal ) |
|
|

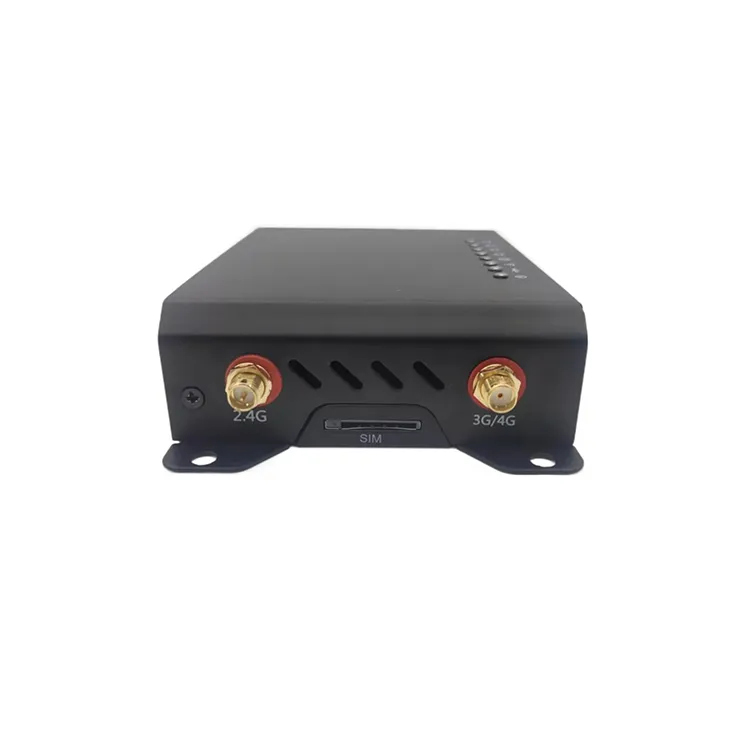

One SIM Port |
|
|
LED |
power/4G/WLAN/WAN/LAN1/LNA2/LNA3/LNA4 |
|
Button |
One Reset |
|
Power |
DC 12V/1A |
|
power consumption |
< 9W |
|
Dimension |
L*W*H=141*85*26 mm |
|
Color |
Metal Black ( Customized acceptable ) |
|
Package |
Inner Box 265*246*46 mm K9K |
|
Accessories |
Power adapter 1PCS |
|
Networking cable 1M 1PCS |
|
|
Users manu 1PCS |
|
|
Weight |
0.18KG |
|
Gross Weight |
0.44KG |
