Description

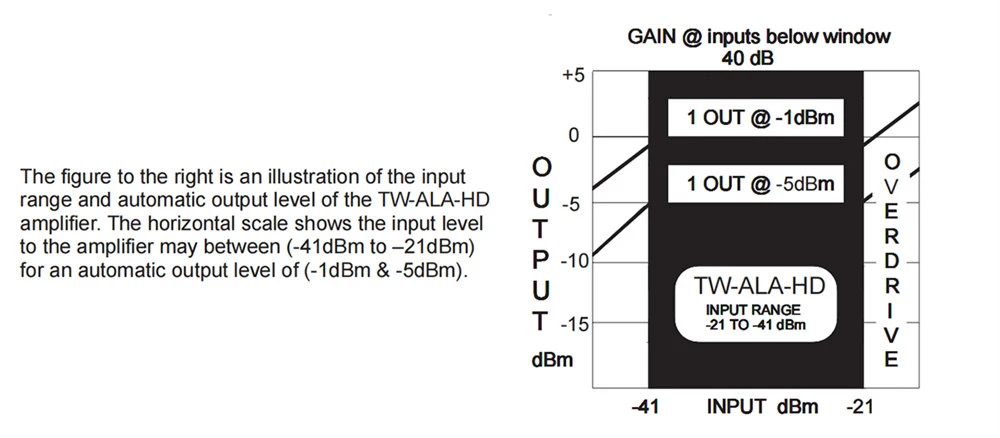

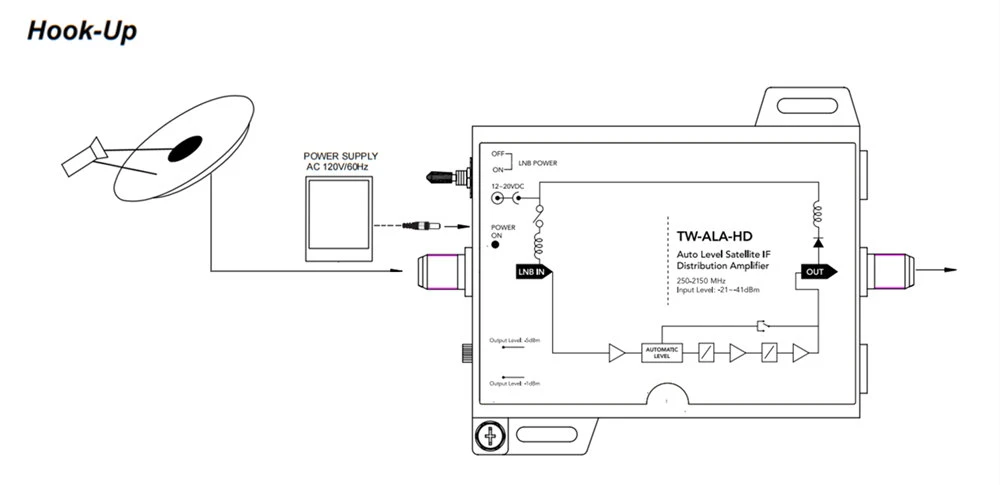

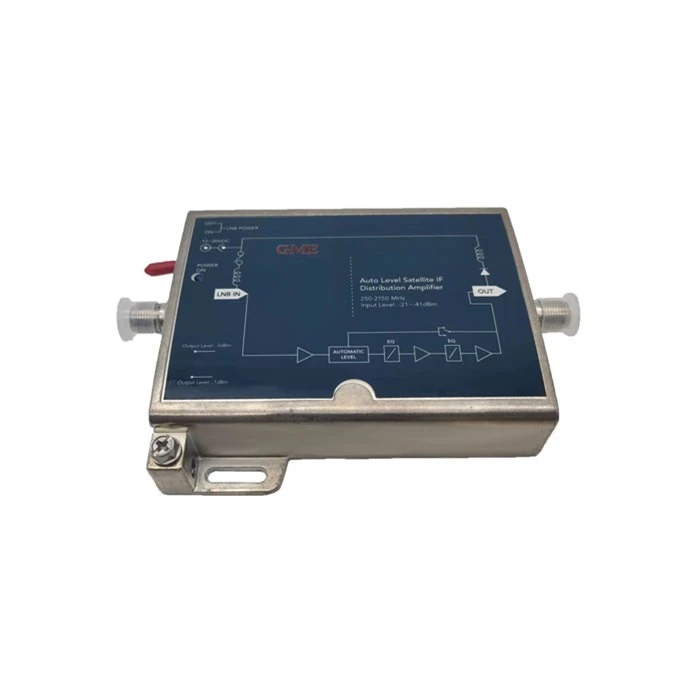

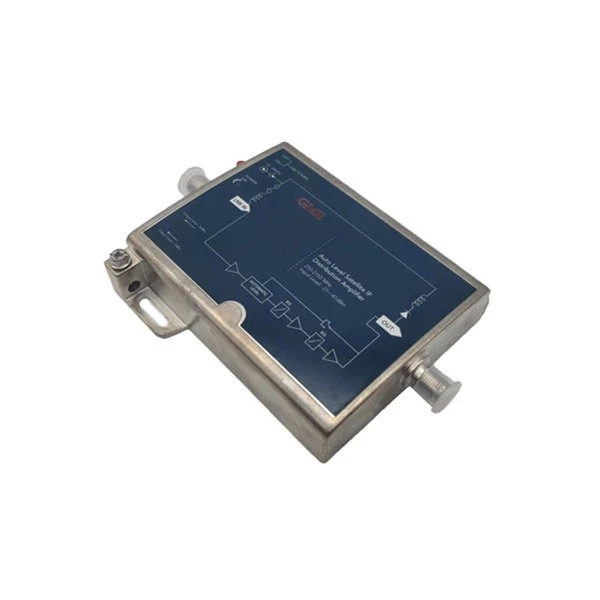

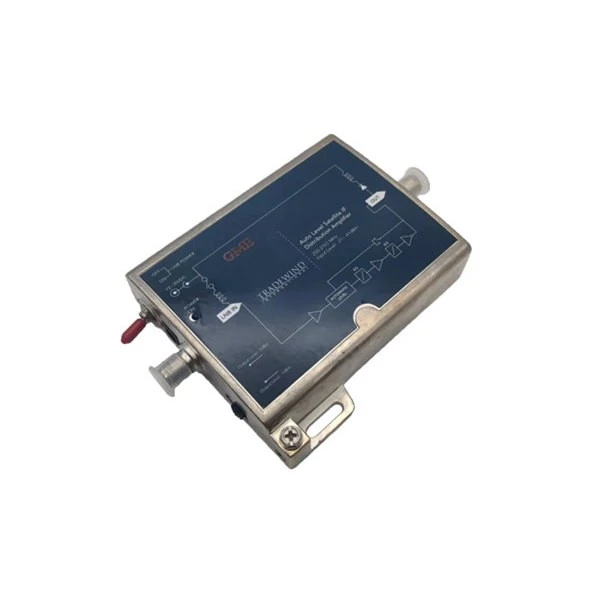

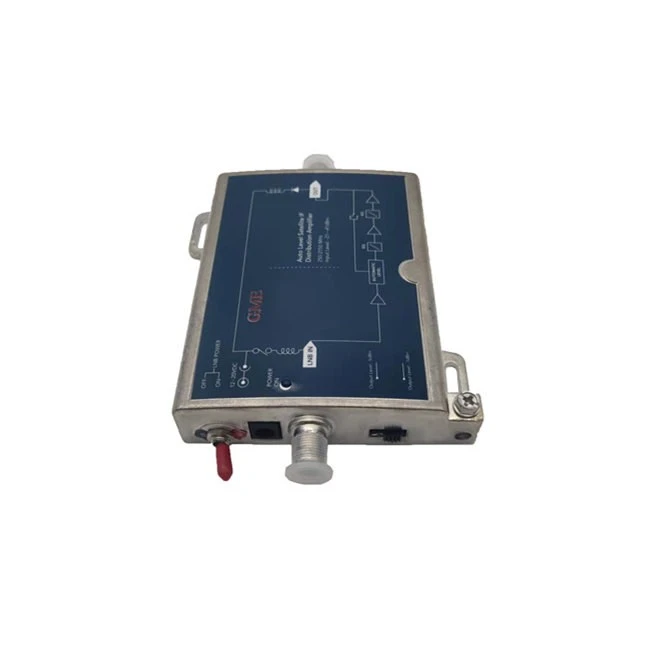

The TW-ALA-HD amplifiers process DBS transponders for coaxial cable distribution. Automatic level control circuitry provides a constant -1dBm & -5dBm output power over a 20dB input range. The input range compensates for installation variables like tap value and cable distance. The -1dBm & -5dBm output level works well in amplifier cascades. Gain is complemented with 10dB of slope compensation. Model TW-ALA-HD Auto Level Satellite IF Distribution Amplifier includes a power supply, an internal diplexer to power the LNB. The ON/OFF switch control the LNB power from RF input port, The led indicates the LNB to be powered from RF input. Diode steered powering allows the amp to be powered from the power connector or either input or output "F" connector.

Specification

Place of Origin: Guangdong, China
Model Number: GDAMP-020 (TW-ALA-HD)
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
FREQ RANGE	250 -2150 MHz
GAIN
@INPUTS BELOW ALC THRESHOLD	31 dB	28 dB MIN
	34 dB	33 dB MIN
	39 dB	38 dB MIN
	43 dB	41 dB MIN
	± 0.1 dB	± 0.2 dB
FLATNESS
RETURN LOSS
INPUT	- 10 dB	- 8 dB MIN
OUTPUT	- 12 dB	- 10 dB MIN
NOISE FIGURE	6 dB	7 dB MAX
OUTPUT LEVEL		-1 dBm & -5 dBm	32 TRANSPONDERS
INPUT LEVEL		-21 ~ -41dBm	@ -1 dBm &-5 dBm OUT
POWER SPECIFICATIONS
VOLTAGE		18VDC
CURRENT		600mA
CONNECTOR		"F" TYPE	ALL PORTS
IMPEDANCE		75 OHM	ALL PORTS
OPERATING TEMPERATURE		-20°C TO +50°C
POWER ADAPTOR
INPUT		120VAC/60Hz
OUTPUT		18VDC / 600mA
