Description

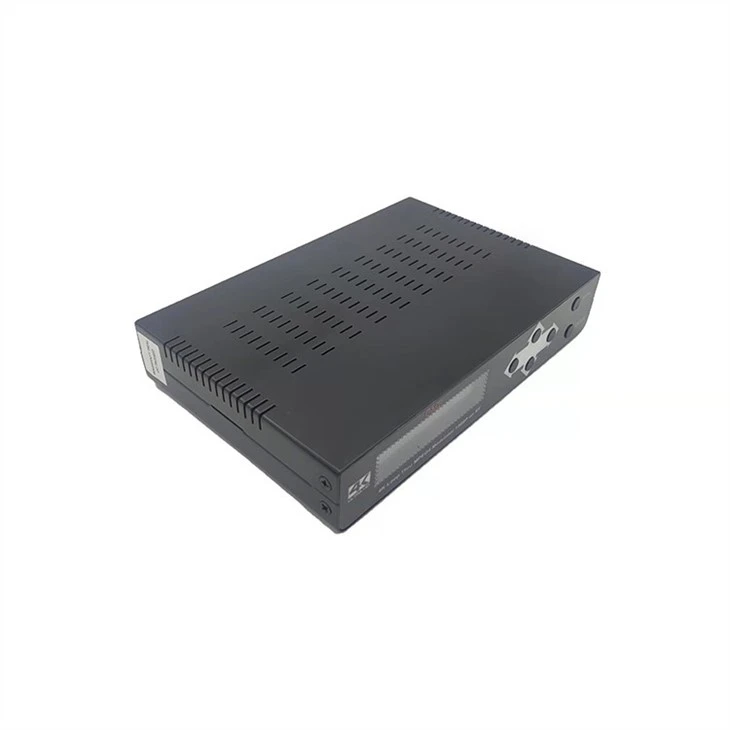

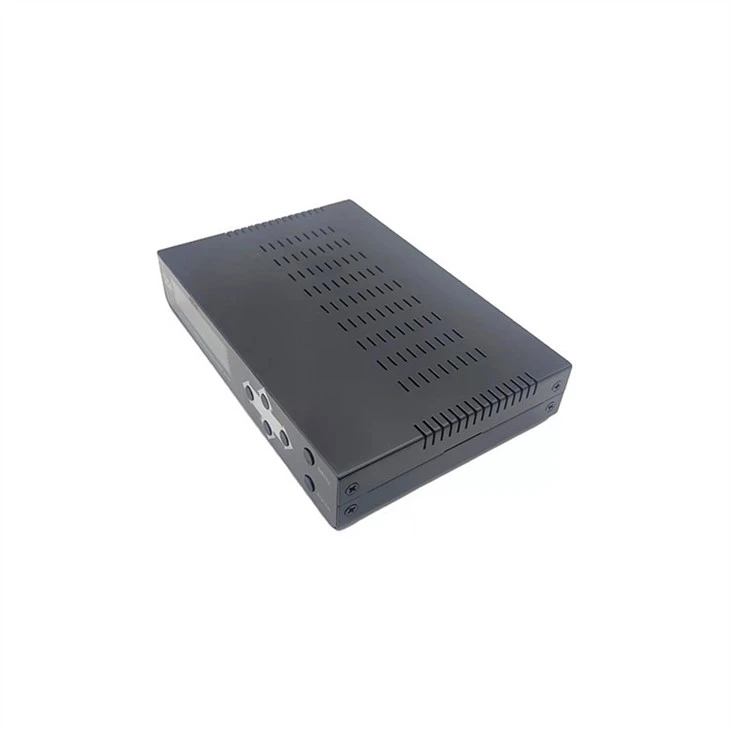

The GTM-860E-4K module able to generate a signal in DVB-T format (Digital Terrestrial Television) from HDMI input.
4K HD DVB-T Modulator is H264 encoding, DVB-T modulation integrated device to convert.
4K Pass FHD HDMI signal to DVB-T RF out. It has equipped with one channel HDMI input, one HDMI out(4K pass-though) and one DVB-T RF out.
The GTM-860E-4K module adjusts the compression rate to the available bandwidth, using the modulation DVB-T parameters.
Specification
|
Place of Origin: Guangdong, China |
|||
|
Model Number: GDM-002 (GTM-860E-4K) |
|||
|
ITEM |
TYPICAL |
Q.C LIMIT |
TEST CONDITIONS |
|
1. RF Output |
|||
|
Connector |
Female TYPE-F |
|
|
|
Impedance |
75 ohms |
|
|
|
Output Frequency Range |
CH5~CH74 |
177.5 MHz ~851.5MHz |
|
|
Low Band CH5~CH12 |
177.5 MHz ~226.5MHz |
|
|
|
High Band CH20~CH74 |
473.5MHz~851.5MHz |
|
|
|
RF Out Level |
97dBµV |
97dBµV ± 5dBµV |
|
|
RF Out Level ADJ |
|
0dBm~-30dBm |
|
|
MER |
|
>30dB |
|
|
2. RF Input |
|||
|
Connector |
Female TYPE-F |
|
|
|
Impedance |
75 ohms |
|
|
|
FREQ. RANGE |
|
|
50~ 950 MHz |
|
INSERTION LOSS |
- 4.8dB |
- 4.8 dB MAX. |
|
|
3. HDMI INPUT |
|||
|
Connector |
HDMI JACK |
|
|
|
Compatible format |
|
Auto /480I / 480P / 576I / 576P / 720P / 1080I /1080P / 4K |
|
|
4. HDMI OUTPUT |
|||
|
Connector |
HDMI JACK |
|
|
|
Needing the image and sound to export |
|
There can't be mosaic and the sound is distorted |
|
|
Compatible format |
|
Auto / 480I / 480P / 576I / 576P / 720P / 1080I / 1080P / 4K |
|
|
5. Front Panel Function |
|||
|
Buttons
|
|
MENU |
|
|
|
ENTER |
|
|
|
|
▲UP |
|
|
|
|
▼Down |
|
|
|
|
◀ Left |
|
|
|
|
▶ Right |
|
|
|
Display |
|
LCD |
|
|
6. USB2.0 |
|||
|
Connector |
USB2.0 JACK |
|
|
|
Signals |
|
|
Firmware Update |
|
7. General Data |
|||
|
Software |
|
Software Version |
|
|
Supply Voltage |
|
AC100V~240V |
|
|
Power Consumption Max |
|
10W |
10W Max in AC input |
|
Working Temperature |
|
+5℃ to + 40℃ |
|
|
Storage Temperature |
|
-20℃ to + 65℃ |
|
|
Environmental |
|||
|
Temperature |
|
0℃ to + 40℃ |
|
|
Humidity |
|
40RH to 90RH |
|
|
Mechanical Specification |
|||
|
Dimensions |
|
172*126*32mm |
|
|
Weight |
|
0.6Kg approximate |
|

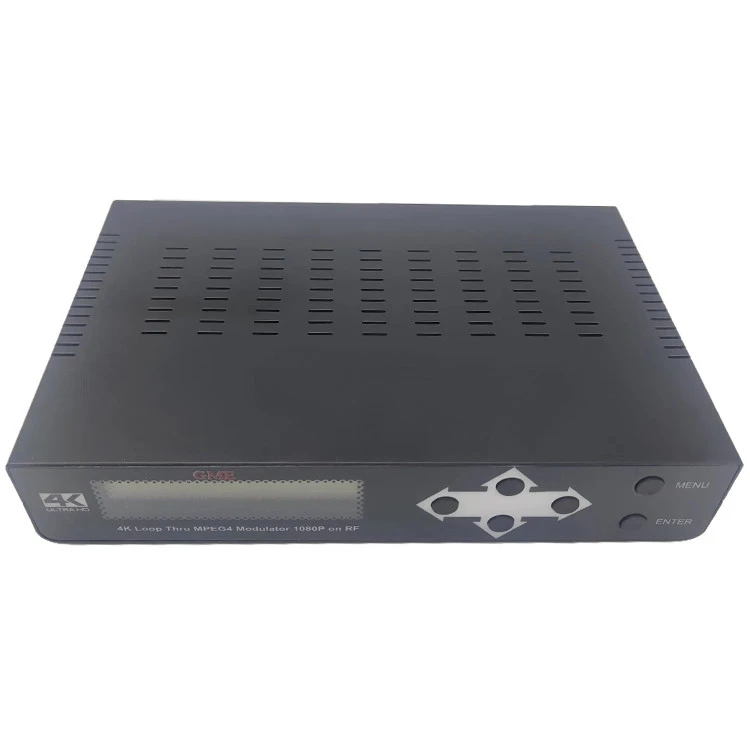

Description of Controls and Components
1. - Display (LCD)
2. - Menu navigation keys

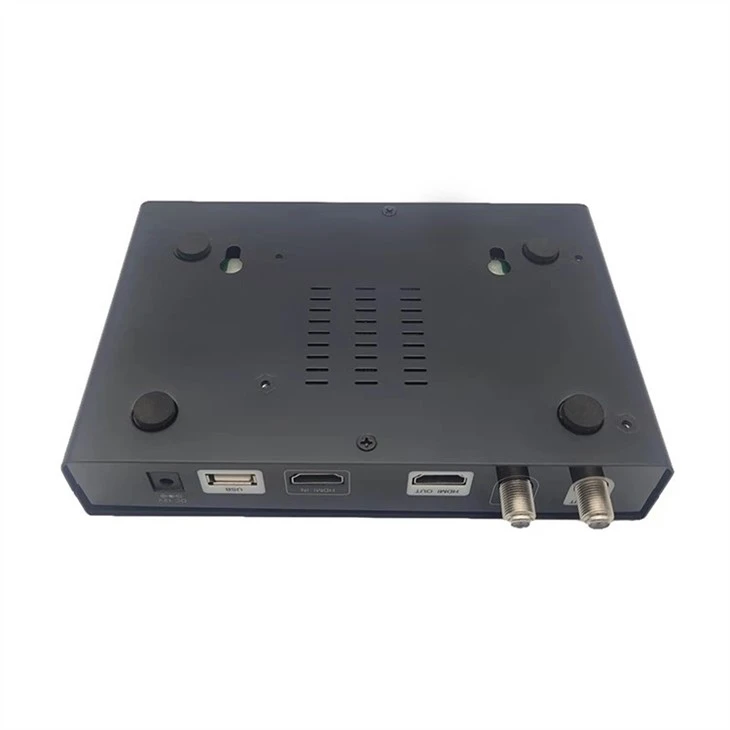

3. - TV COFDM Output
4. - RF Combiner
5. - 4K Pass Through
6. - HDMI IN
7. - USB: S/W update

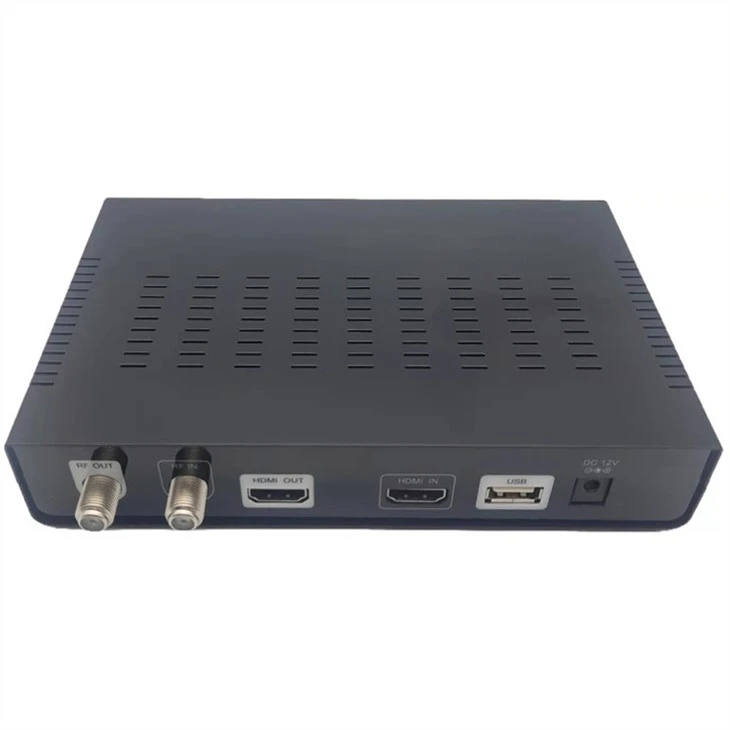

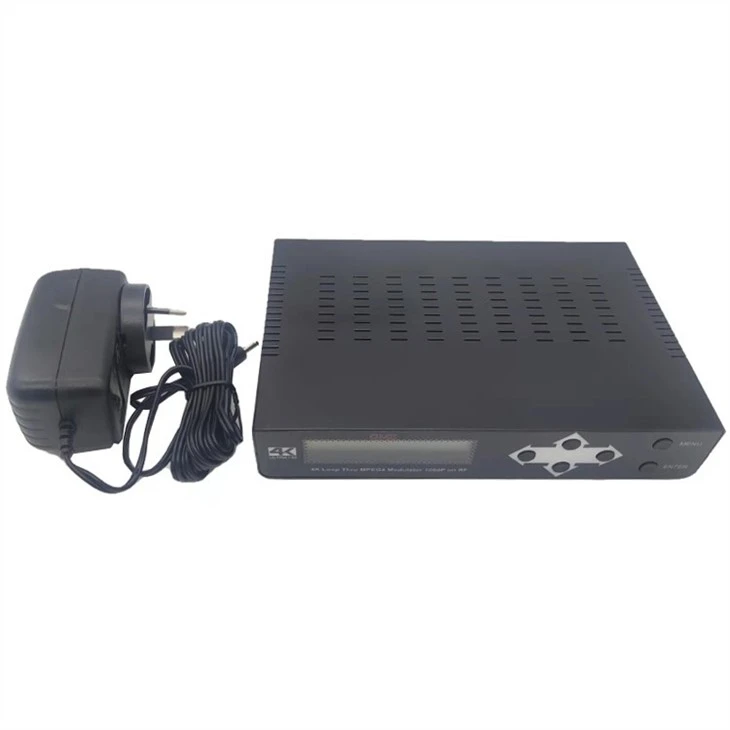

8. - Input 12V DC power adapter (included)
