Description
The GTM-8608B module able to generate a signal in DVB-T format (Digital Terrestrial Television) from HDMI input.

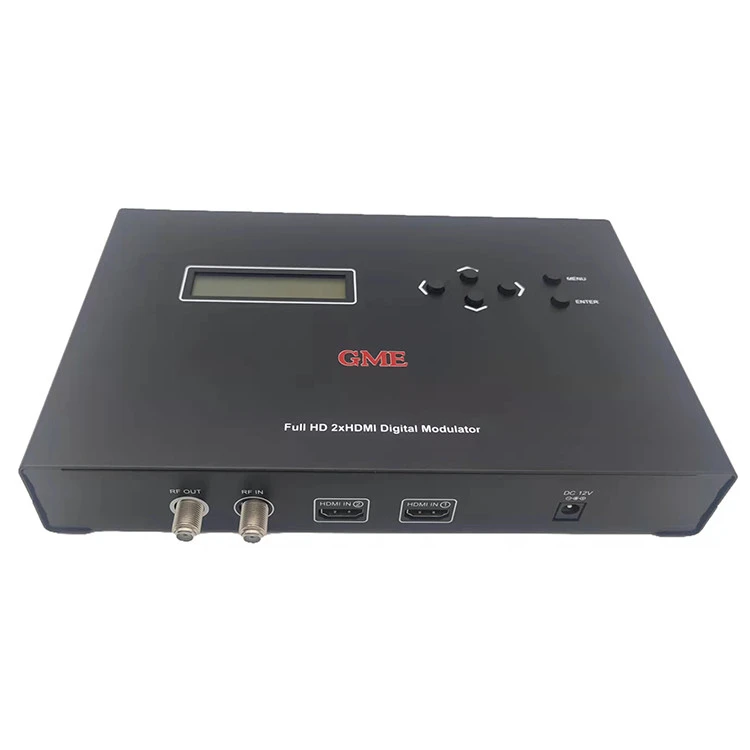

Full HD 2 HDMI Digital Modulator GTM-8608B is MPEG-4 encoding, DVB-T modulation integrated device toconvert HDMI signal to DVB-T RF out.
The GTM-8608B module adjusts the compression rate to the available bandwidth, using the modulation DVB-T parameters.
Specification
|
Place of Origin: Guangdong, China |
|||
|
Model Number: GDM-011 (GTM-8608B) |
|||
|
ITEM |
TYPICAL |
Q.C LIMIT |
TEST CONDITIONS |
|
1. RF Output |
|||
|
Connector |
Female TYPE-F |
|
|
|
Impedance |
75 ohms |
|
|
|
Output Frequency Range |
CH5~CH69 |
177.5MHz ~858 MHz |
|
|
Low Band CH5~CH12 |
177.5MHz ~226.5MHz |
|
|
|
High Band CH21~CH69 |
474MHz~858MHz |
|
|
|
RF Out Level |
97dBµV |
97dBµV ± 5dBµV |
|
|
RF Power Level ADJ |
|
70 dBµV ~100 dBµV |
|
|
MER |
|
>30dB |
|
|
2. RF Input |
|||
|
Connector |
Female TYPE-F |
|
|
|
Impedance |
75 ohms |
|
|
|
FREQ. RANGE |
|
|
50~ 950 MHz |
|
INSERTION LOSS |
- 4.8dB |
- 4.8 dB MAX. |
|
|
3. HDMI INPUT |
|||
|
Connector |
HDMI JACK |
|
|
|
Compatible format |
|
Auto / 480I / 480P / 576I / 576P / 720P / 1080I / 1080P |
|
|
4. System |
|||
|
Local Interface |
LCD + control buttons |
|
|
|
Remote management |
|
Web Management |
|
|
Ethernet port |
|
RJ45, 100M |
|
|

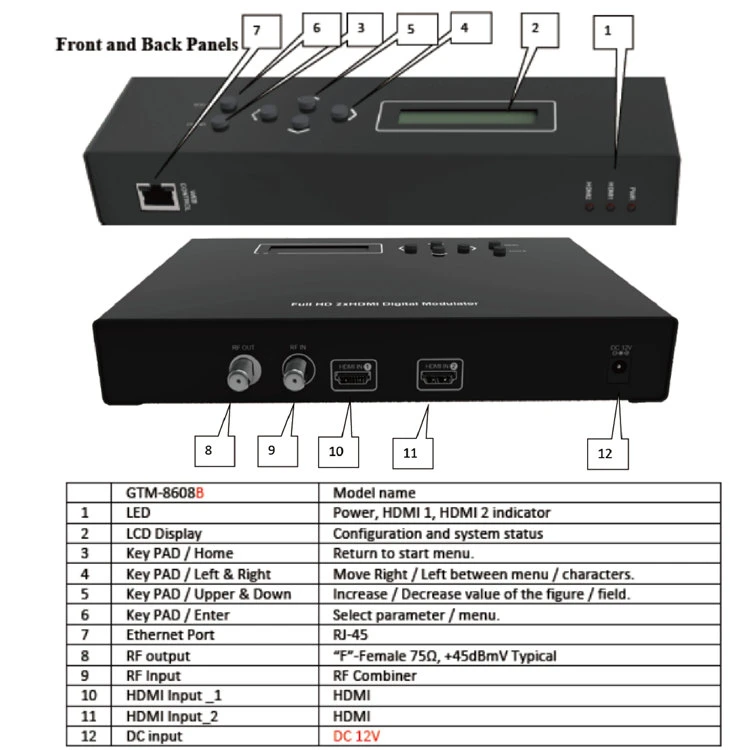

5. Front Panel Function |
|||
|
Buttons |
|
MENU |
|
|
|
ENTER |
|
|
|
|
▲UP |
|
|
|
|
▼Down |
|
|
|
|
◀ Left |
|
|
|
|
▶ Right |
|
|
|
Display |
|
LCD |
|
|
6. General Data |
|||
|
Software |
|
Software Version |
|
|
Supply Voltage |
|
AC100V~240V |
|
|
Power Consumption Max |
|
24W |
24W Max in AC input |
|
Working Temperature |
|
+5℃ to + 40℃ |
|
|
Storage Temperature |
|
-20℃ to + 65℃ |
|
|
Environmental |
|||
|
Temperature |
|
0℃ to + 40℃ |
|
|
Humidity |
|
40RH to 90RH |
|
|
Mechanical Specification |
|||
|
Dimensions |
|
266*162*40mm |
|
|
Weight |
|
1078g approximate |
|
