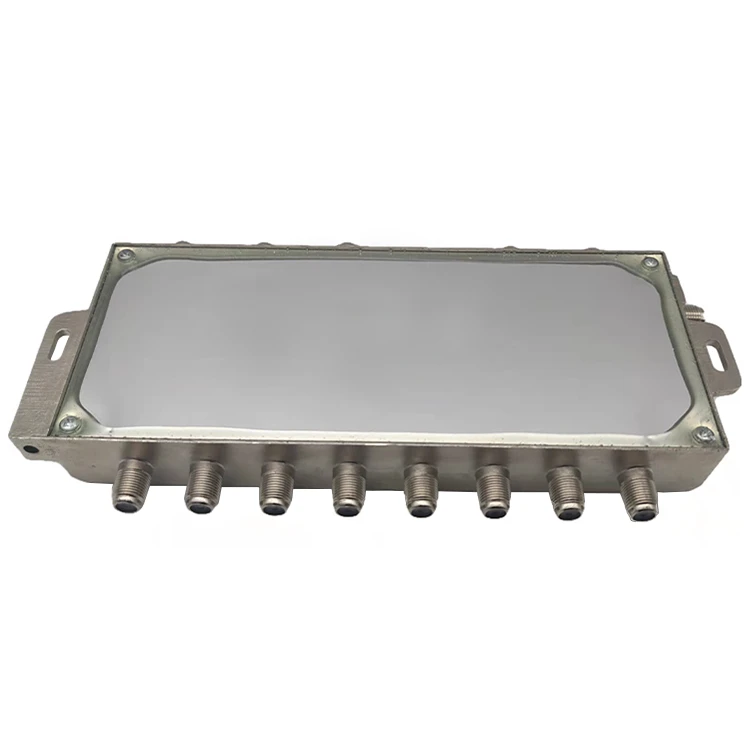

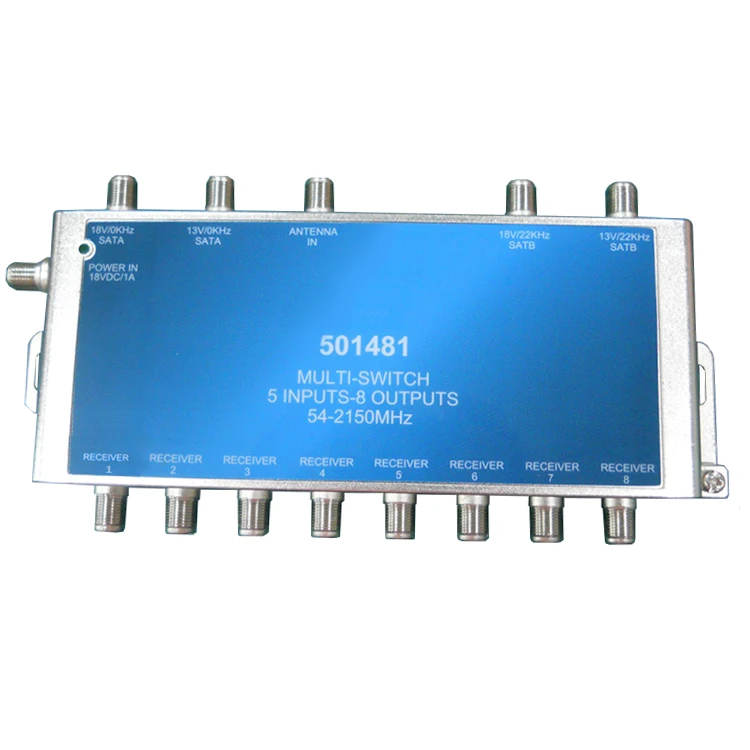

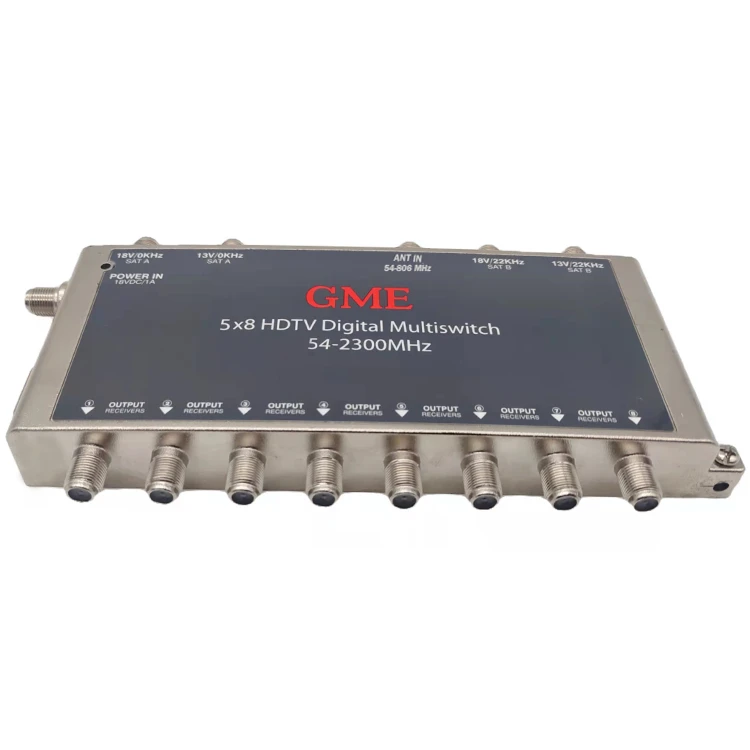

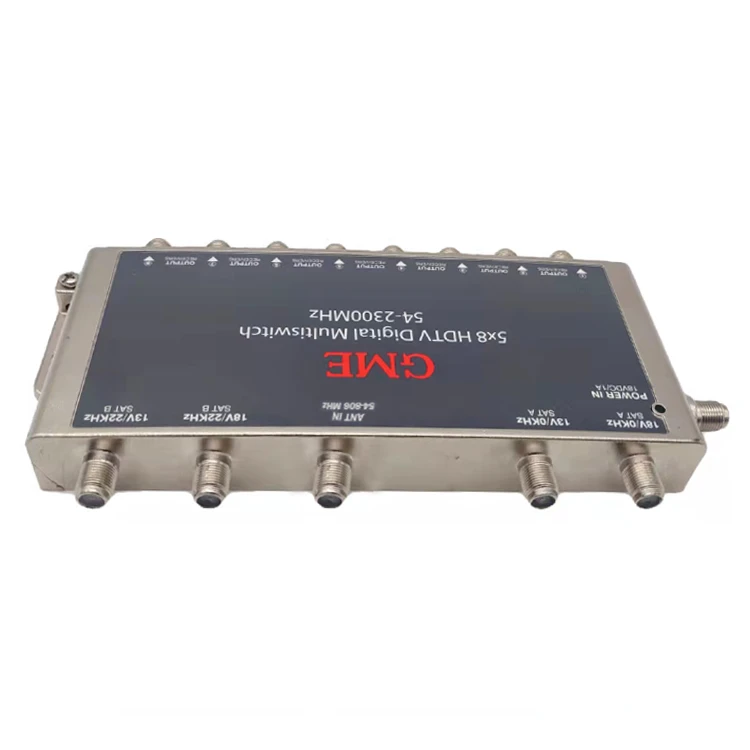

The 5×8 HDTV Digital Multiswitch (5-input × 8-output high-definition digital matrix switch) is a professional audio-video signal distribution device. It flexibly routes 5 high-definition input sources (such as set-top boxes, Blu-ray players, computers, etc.) to 8 display devices (such as televisions, projectors, monitors).
Features
- 5 inputs & 8 outputs

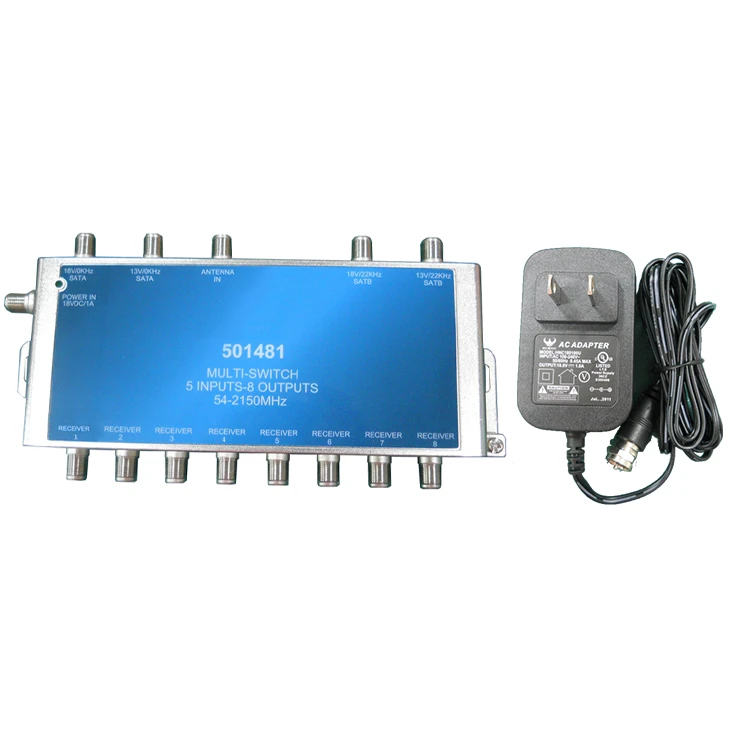

- Each LNB can be powered via the Multiswitch by using power adaptor connected to multi switch.
- Each satellite receiver connected can select programs either in Vertical polarity or in Horizontal polarity by using the polarity selection facility built in each individual receiver which are 13V/18V & 22KHz ON/OFF.
Specifications
| specification/Model | 4058/4058-MN | 4058-22KHz |
| Input Freq.Range(ANTIn) | 40-806 MHz | 40-806 MHz |
| Input Freq.Range (LNB In) | 950-2150 MHz | 950-2150 MHz |
| Output | 40-2150 MHz | 40-2150 MHz |
| Insertion Loss 40-216 MHz | -3dB | -3 dB |
| 217-806 MHz | -2 dB | -2dB |
| 950-1750 MHz | 2dB | 2dB |
| 1751-2150 MHz | 0dB | 0 dB |
| Flatness 40-216 MHz | ±2 dB | ±2dB |
| 217-806 MHz | ±2.5dB | ±2.5dB |
| 950-1750 MHz | ±3.0 dB | ±3.0 dB |
| 1751-2150 MHz | ±3.0 dB | ±3.0 dB |
| Isolation Sat In to Sat in 950-2150 MHz | -35 dB | -35 dB |
| Isolation Out to Out 40-806 MHz | -25 dB | -25 dB |
| 950-2150 MHz | -30 dB | 30 dB |
| Cross Polarization 950-1750 MHz | 35 dB | 35dB |
| 1751-2150 MHz | -30 dB | -30 dB |
| Isolation B/W 950MHz&860MHz Sat Port | -25dB | -25 dB |
| 860MHz &950MHz Ant Port | ||
| Return Loss Ant In 40-806 MHz | -10 dB | -10 dB |
| Sat In 950-2150 Mhz | -10 dB | -10 dB |
| Output 40-806 MHz | -10 dB | -10 dB |
| 950-1450 MHz | -10 dB | -10 dB |
| 1451-2000 MHz | -10 dB | -10 dB |
| 2001-2150 MHz | -6 dB | -6 dB |
| Input Capability 1dB Compression Ant Port CH3 Input |
103dBμV | 103dBμV |
| Input Capability 1dB Compression Sat Port 950MHzInput |
96dB μV | 96dBμV |
| DC Pass Sat In | 400 mA | 400 mA |
| Connectors (all port) | F-Female | F-Female |
| Switch Voltage LNBA(18V/OKHz) | 15.5 VDC～19.5 VDC | 15.5 VDC～19.5 VDC |
| LNB B(18V/22KHz) | 15.5 VDC～19.5 VDC | 15.5 VDC～19.5 VDC |
| LNB C(14V/22KHz) | 12.5 VDC～14.0 VDC | 12.5 VDC～14.0 VDC |
| LNBD(14V/OKHz) | 12.5 VDC～14.0 VDC | 12.5 VDC～14.0 VDC |
| Adaptor Power Input | 120VAC/60Hz | 120VAC/60Hz |
| Adaptor Power Output | 24VDC/1000mA W/PTC | 24VDC/1000mA W/PTC |
| 22KHz Signal Frog &Amplified at LNB Input 22KHz on |
22±4KHz 650±250mVp-p |
