Delivering up to 1.7Gbps over 1.4 km on existing coax cables, the 2560 achieves high throughput even with single-direction transmission.

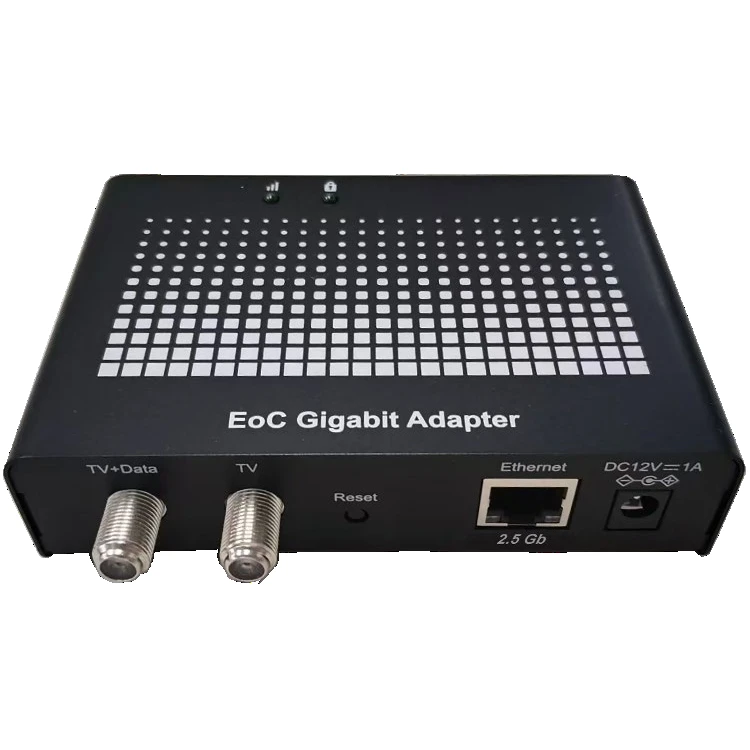

With a 2.5Gb RJ45 port, F-type connector, and dual RF pass-through, the 2560 provides high-speed Ethernet while keeping TV signals available. Its wall-mountable design with built-in mounting holes ensures neat and professional installation.
Ideal for HD IP cameras, access points, NVRs, and digital signage, the 2560 ensures fast, reliable networking without costly rewiring. One system supports up to 16 endpoints, offering flexible expansion for homes,buildings, MDUs.
With a 2.5Gb RJ45 port, F-type connector, and dual RF pass-through, the 2560 provides high-speed Ethernet while keeping TV signals available. Its wall-mountable design with built-in mounting holes ensures neat and professional installation.
Ideal for HD IP cameras, access points, NVRs, and digital signage, the 2560 ensures fast, reliable networking without costly rewiring. One system supports up to 16 endpoints, offering flexible expansion for homes,buildings, MDUs.
FEATURES
1. High Throughput
Up to 1.7Gbps over 1.4 km coax with single-direction transmission.
2. 2.5Gb PHY & RJ45
Equipped with a 2.5Gb RJ45 port for faster, stable Ethernet.
3. Dual RF Pass-Through
Keeps CATV/SAT TV signals available while delivering data.
4. Wall-Mountable Design
Bottom cover with mounting holes.
5. Scalable Connectivity
Connect up to 16 endpoints.
SPECIFICATIONS
Standard
- ITU-T G.9960/G.9961
- Frequency:
5MHz– 200MHz for G.hn port
230MHz – 1GHz for TV port
- IGMP Snooping
Data Rates
- Coaxial transmission : up to 1.7Gbps
- Ethernet: LAN 10/100/1000/2500Mbps
Transmission Range
- Coaxial : up to 70dB attenuation
- Ethernet: Maximum 100 meters
Interface
- F connector : TV+Data port / TV port
- RJ45 : Ethernet 10/100/1000/2500Mbps
- Reset button : System Reboot / Return SW Factory
- LED indictor : Link / Ethernet
- DC IN : 12V / 1A
General
- Power : DC12 V
- Dimensions : 120 x 80 x 30 (mm)
- Environmental for operating :
Temperature: 0°C - 40°C (32°F - 104°F)
Humidity: 10% - 95% RH
- Environmental for storage :
Temperature: -10°C - 70°C (14°F - 158°F)
Humidity: 10% - 95% RH
