Description
- 17 port layer 2 intelligent Gigabit switching Intelligent switch for wide range of business applications.
- Network management with SNMP.
- Both rack mount and box mounting.
17 Ports: This indicates that the switch has 17 ports available for connecting devices. Ports on a network switch are used to connect devices like computers, printers, or other networking equipment.
Layer 2: This refers to the Data Link Layer (Layer 2) of the OSI model. Layer 2 switches operate at this layer and use MAC addresses to forward data within a local network. They are commonly used for Ethernet switching.
Intelligent Gigabit Switching: This implies that the switch supports Gigabit Ethernet, which provides data transfer rates of 1 gigabit per second. "Intelligent" could mean that the switch has additional features beyond basic switching, such as Quality of Service (QoS), VLAN support, or management capabilities.
Specification
|
Place of Origin: Guangdong, China |
||
|
Model Number: GDSW-002 (FESW-17GP) |
||
|
Support standards |
IEEE 802.310base-t |
|
|
Interface |
10/100/1000BASE-T(RJ-45)×16 ports |
|
|
Switch performance |
Switching systems: Store & forward |
|
|
Status LED |
Power LED × 1 |
|
|
Cooling fan |
No |
|
|
Electrical specification |
Rated input voltage |
AC 100-240 V |
|
Input voltage range |
Ac90-264 V |
|
|
Rated frequency |
50/60 Hz |
|
|
Maximum power consumption |
11.2 w (0.21a a) |
|
|
Environment specification |
Operating temperature |
0～50℃ |
|
Humidity during operation |
<80% |
|
|
Storage temperature |
-20～60℃ |
|
|
Humidity during storage |
<95% |
|
|
External dimensions |
W 235 × D 150 × H 38 (mm) (there is no projection.) |
|
|
Weight |
1.2 kg (body only) |
|
|
Conformity standards |
EMI standards |
VCCI ClassB |
|
Environmental standard |
EU RoHS |
|
|
Accessories |
AC power cable (L type 2p1e) |
|
|
Instruction manual (CD-ROM) |
||
|
Instruction manual |
||
|
Cable stop hook |
||
|
L-type bracket |
||
|
T-type bracket |
||
|
Switching function |
Port 802 |
|
|
Port mirroring |
||
|
Flow control / receive only support |
||
|
Broadcast storm protection |
||
|
Spanning tree |
||
|
Rapid spanning tree |
||
|
Multiple spanning tree (IEEE 802.1s) |
||
|
IGMP V2 / V3 snooing |
||
|
MLD V1 / V2 snooping |
||
|
DHCP snooping |
||
|
BPDU transmission |
||
|
EAP transmission |
||
|
UDLD |
||
|
Jumbo frame support |
||
|
Ingress filtering |
||
|
Hol blocking prevention |
||
|
Port management |
Loop protection (LDF detection) |
|
|
VLAN |
Port based VLAN |
|
|
QoS function |
Number of queues |
|
|
Authentication function / security |
IEEE 802.1x authentication (single host / multiple host / multiple authentication) |
|
|
Management |
Cli |
|
Goodmind Electronics (Shenzhen) Co., Ltd.
We are a professional manufacturer specializing in the production of switches. A production and manufacturing environmentthat integrates automated assemblyworkshop production lines, SMT, molds,injection molding, and hardware. We can provide integrated system solutions and technical support services, helping customers enhance competitiveness. The customer experience extends from the initial purchase transaction throughout the entire product lifecycle. Maintenance and repair of products during their lifecycle are crucial for maintaining long-term customer value. Our sustainable management is achieved through the capability of returns, repairs, restoration, and recycling. With a primary focus on comprehensively improving customer satisfaction, our unique advantage lies in meeting after-sales service requirements for global brands, thereby establishing profound partnerships with customers.
of industry experience
production building area
workshop production worker
R&D personnel
Knowledge related to intelligent gigabit switches
How can I manage an Intelligent Gigabit Switch?
Intelligent Gigabit Switches typically come with web-based graphical user interfaces (GUIs), command-line interfaces (CLIs), or both. These interfaces allow administrators to configure settings, monitor performance, and troubleshoot issues easily.
Do Intelligent Gigabit Switches support Power over Ethernet (PoE)?
Some Intelligent Gigabit Switches come with PoE capabilities, allowing them to deliver power to connected devices such as IP cameras, phones, or wireless access points through the Ethernet cables. This simplifies installations by eliminating the need for separate power cables.
How does Intelligent Gigabit Switching differ from regular switches?
Intelligent Gigabit Switches go beyond basic connectivity by offering features like VLANs for segmenting networks, QoS for prioritizing traffic, and management interfaces for configuration and monitoring. These features enhance network control and performance.

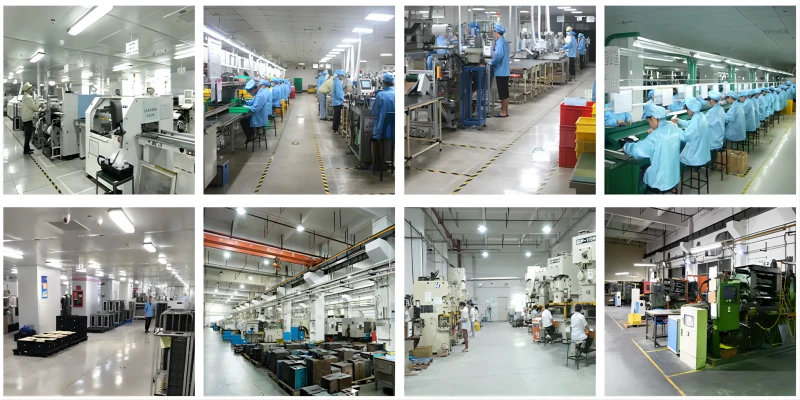

Our production workshop
Our certificate
FAQ
Q: What is a Layer 2 switch?
A: A Layer 2 switch operates at the Data Link Layer of the OSI model, using MAC addresses to forward data within a local network. It is commonly used for Ethernet switching.
Q: How many ports does the switch have?
A: The switch has 17 ports, which can be used to connect various devices such as computers, printers, or other networking equipment.
Q: What is Gigabit Ethernet?
A: Gigabit Ethernet is a standard for high-speed Ethernet communication, providing data transfer rates of 1 gigabit per second.
Q: What makes the switch "intelligent"?
A: The term "intelligent" suggests that the switch may have additional features beyond basic switching. This could include Quality of Service (QoS), VLAN support, management capabilities, or other advanced functionalities.
