Description

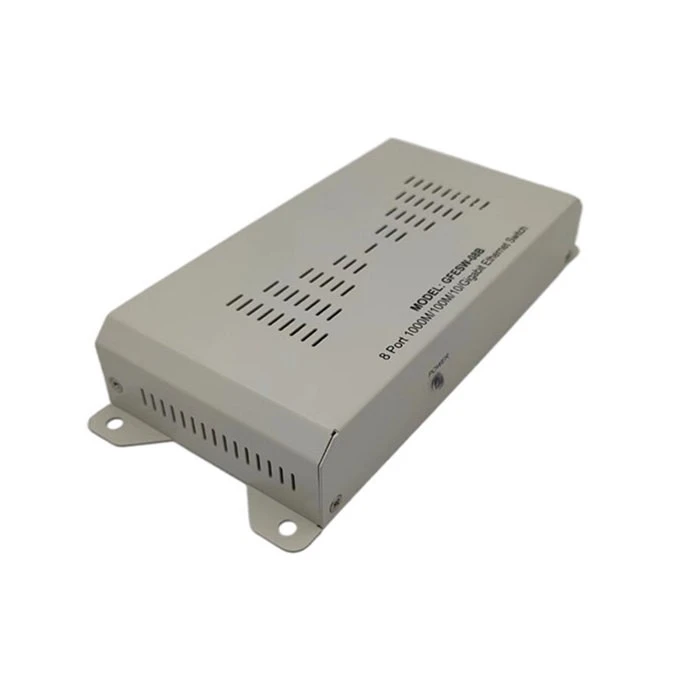

Gigabit Switching Hub 8 port. The all-metal iron shell is adopted, which has stronger heat dissipation performance and ensures the stable operation of the machine.
Eight 10/100/1000M self-adaptive RJ45 ports, each port supports full line-speed forwarding capability of MDI/MDIX self-adaptive function, supports IGMP function, supports IEEE802.3x full/half duplex mode self-adaptation, dynamic LED Indicator lights, plug and play, no management required.
Specification
|
Place of Origin: Guangdong, China |
||
|
MODEL NO.: GDSW-008 (GFESW-08B) |
||
|
Name |
Gigabit Switching HUB |
|
|
Overview |
1000M/100M/10M Swithing HUB 8 Port Metal housing, bulit-in power suplly, power control function |
|
|
Support standards |
IEEE 802.3ab (1000BASE-T) |
|
|
IEEE 802.3u (100BASE-TX) |
||
|
IEEE 802.3 (10BASE-T) |
||
|
IEEE 802.3x (Flow Control) |
||
|
Acquired Standard |
VCCI ClassB |
|
|
Interface |
Standard |
1000BASE-T/100BASE-TX/10BASE-T |
|
Port |
RJ45 x 14 Port |
|
|
Performance |
Access method |
CSMA/CD |
|
Switching mode |
Stock & forward |
|
|
Switching fabric |
16Gbps |
|
|
jumbo farame |
16Kbytes |
|
|
Packet buffer |
192Kbytes |
|
|
MAC ADDRESS WNTRY |
8000 (max) |
|
|
Transmission function |
BPDU, EAPOL |
|
|
Multicast |
IGMP v1/v2/v3/MLD v1/v2 |
|
|
Status LED |
Power (green) × 1, link / Act (green) × 8, speed (green / orange) × 8 Multicast (red) |
|
|
Cooling fan |
|
with out |
|
Power Supply |
|
DC 12V 1A |
|
Maximum power consumption |
3.3W |
|
|
Environmental conditions |
Action time |
Temperature 0 to 50 degrees Celsius, humidity 90% or less |
|
When keeping |
Temperature - 20 - 70 degrees Celsius, humidity 95% or less |
|
|
Appearance |
Inch method |
W185 × D85 × H32 (mm) |
|
Quality |
482g (including mounting fittings) |
|
|
Accessories |
Power cord and instruction manual |
|
Company Profile
Goodmind Electronics (Shenzhen) Co., Ltd. was established in 1992 with a registered capital of 18 million U.S. dollars. Its own factory is located in Shenzhen and has more than 1000 employees. It is a high-tech enterprise integrating R&D, production, sales and service , The company specializes in Antenna / Network Communication / Bluetooth / AV Accessories / Smart Home / Car Accessories professional manufacturing company. The factory is vertically integrated. The factory has plastic processing, metal stamping, zinc die casting, SMT , DIP and Assembly center. The company has strong financial strength, professional R&D team, excellented manufacturing equipment and lean manufacturing, and is dedicated to creating high-quality products for customers.
What are the advantages of using a Gigabit Switching Hub?
Gigabit Switching Hubs offer faster data transfer speeds compared to traditional Ethernet switches, which operate at lower speeds such as 10/100 Mbps. They are ideal for transferring large files, streaming HD video, and other high-bandwidth activities.
Can I use this Gigabit Switching Hub to expand my network?
Yes, you can use this Gigabit Switching Hub to expand your network by connecting additional devices to it. Simply connect the devices you want to add to your network to any of the available ports on the hub.
Is this Gigabit Switching Hub suitable for home or office use?
Yes, this Gigabit Switching Hub is suitable for both home and office use. It provides high-speed connectivity for all your devices, making it ideal for both personal and professional environments.
FAQ
Q: How many ports does this Gigabit Switching Hub have?
A: This Gigabit Switching Hub has 8 ports, allowing you to connect up to 8 devices to your network.
Q: Does this Gigabit Switching Hub support plug-and-play installation?
A: Yes, this Gigabit Switching Hub supports plug-and-play installation, which means you can simply connect it to your network and it will automatically configure itself. There is no need for any complicated setup procedures.
Q: Can I use this Gigabit Switching Hub to prioritize network traffic?
A: Some Gigabit Switching Hubs come with features such as Quality of Service (QoS) that allow you to prioritize network traffic based on specific criteria. Check the product specifications to see if this feature is supported.
Q: What is the warranty period for this Gigabit Switching Hub?
A: The warranty period for this Gigabit Switching Hub may vary depending on the manufacturer. Check the product documentation or contact the manufacturer for information about the warranty coverage.
