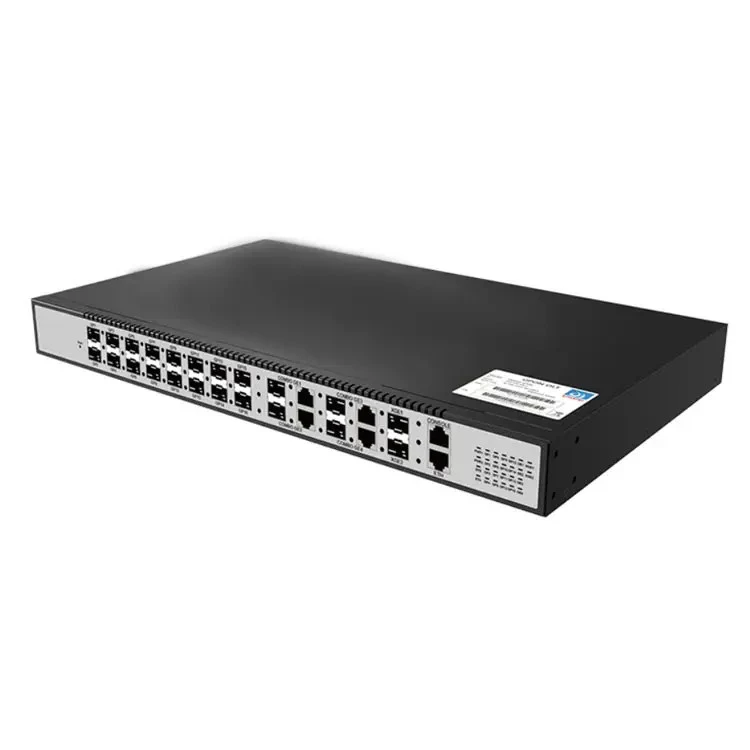

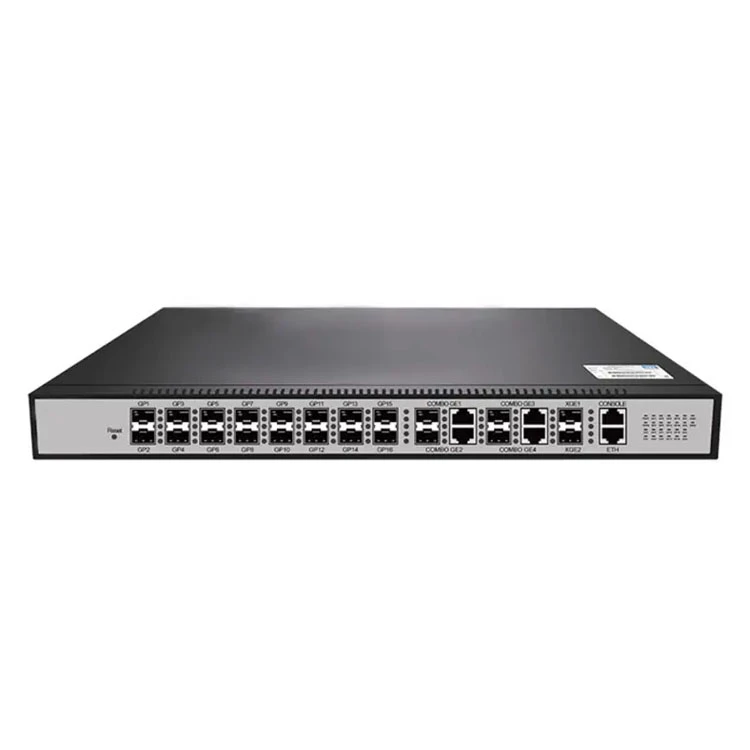

GPT-16-1 | 1U Rack-Mountable GPON OLT
The GPT-16-1 is a high-performance, 1U cartridge-style GPON OLT designed for superior stability and reliability in demanding network environments.
Key Features:

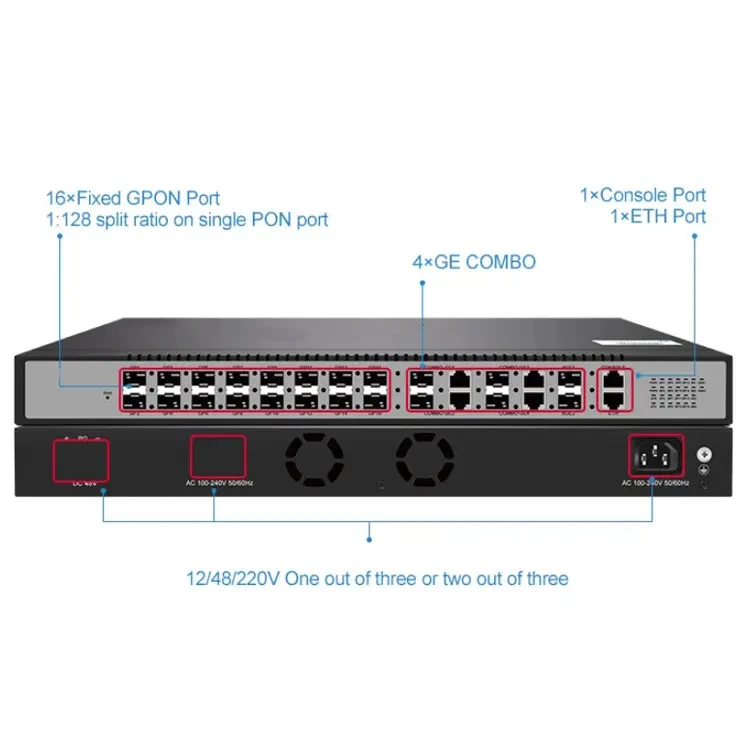

- 16 GPON Ports – Scalable fiber access for multiple users.
- Flexible Uplink Options – 4× Combo (RJ45/SFP) uplink ports + 2× SFP+ (10G) interfaces for high-speed backhaul.
- Multi-Management Support – CLI, WEB, and SNMP for flexible configuration and monitoring.
- Cloud-Based Management – Enables rapid deployment, remote configuration, and centralized control, reducing operational costs and deployment time.
Ideal Deployment Scenarios:
- Rural & Remote Areas – Cost-effective fiber expansion in low-density regions.
- Smart Industrial Parks & Commercial Sites – Reliable high-bandwidth connectivity.
- FTTH (Fiber to the Home) – Efficient last-mile fiber distribution.
Engineered for durability and ease of management, the GPT-16-1 optimizes network efficiency while minimizing labor and maintenance overhead.
Specifications
| Item | GPT-16-1 |
| Interface | 16*GPON |
| 4*10/100/1000M Combo | |
| 2*10G SFP+ | |
| PON | Physical interface: SFP slot |
| Type: Class C++/Class C+++/Class C++++ | |
| Split ratio on single PON port: 1:128 | |
| Flash | 32MB |
| DDR | 1GB |
| Size | 442mm x 260mm x 44mm |
| Weight | ＜5kg |
| Standard Protocol | IEEE802.3 (10Base-T) |
| IEEE802.3u (100Base-TX) | |
| IEEE802.3z (1000BASE-X) | |
| IEEE802.3ab (1000Base-T) | |
| IEEE802.1Q (VLAN) | |
| Management Port | Console port/ETH port |
| Environment | Operating environment: -10°C~55°C |
| Storage environment: -40°C~70°C | |
| Storage humidity: 10%~90% (Non-condensing) | |
| power supply | AC: 100V-240V 50/60Hz |
| power dissipation | ＜60W |
| PON function |
Support auto registration |
| ONU white list and black list | |
| DBA configuration | |
| P2P | |
| ONU authorization | |
| Platform Management Features |
Device list |
| Project Management | |
| Version release | |
| Lisense management | |
| Permission management | |
| User management | |
Configuration and Management |
CLI, WEB, SNMP/NMS, CLOUD |
| Software and firmware upgrades | |
| Chinese/English command prompt | |
| Ping and debug diagnosis | |
| User/Log/Alarm management | |
| L3 Functions | Support static routing |
| Support DHCP servers, DHCP Snooping and DHCP proxy | |
| Support OSPF | |
| L2 Functions | Support VLAN, VLAN conversion and QinQ |
| Support up to 4,094 VLAN | |
| Support port mirror | |
| Support RSTP and MSTP (recovery time <1s) | |
| Support link aggregation (recovery time <10ms) | |
| Support storm control | |
| Support IGMP snooping/proxy | |
| Support port isolation | |
| Support ACL access control based on data stream | |
| Support QoS based on port, VID, TOS, and MAC address | |
| Support encrytion of PON port transmitting data |
