Introduction
This ONU is designed for FTTH. It combined with G.hn interface.It can changed your network from Coaxial Cable to PON access without additional investment. It supports XPON dual-mode technology (EPON and GPON), It is widely compatible with the global mainstream OLT brand, supports plug-and-play, OMCI and TR069 remote maintenance features.
Features
- Support device - based rate limitation and bandwidth control
- In compliant with IEEE802.3ah & ITU-T G.984 standard
- ITU-T G.9960/G.9961 G.hn over Coax
- Up to 20KM transmission Distance
- Support data encryption, group broadcasting, port VLAN separation ,etc.
- Support Dynamic Bandwidth Allocation (DBA)
- Support ONU auto - discovery/Link detection/remote upgrade of software;
- Support port VLAN configuration
- Support power off alarm function ,easy for link problem detection
- Support QOS configuration
- Support port binding
- Support port forwarding
- Support ACL to configure data packet filter flexibly
- Specialized design for system break down prevention to maintain stable system
- Support software online upgrading
- Support TR069 for ACS(Auto Config Server)
- Support broadband and CATV services
- Support CATV service remote shutdown function
- Support IGMPv1/v2/Snooping
- Support Dying Gasp
- Support Port Loop Detect
Description
|
Dimension |
143mm×121mm×30mm(L×W×H) |
|
Net weight |
330g |
|
Operating condition |
Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensing) |
|
Storing condition |
Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensing) |
|
Power adapter |
DC 12V/1A, external AC-DC power adaptor |
|
Power supply |
≤4.2W |
|

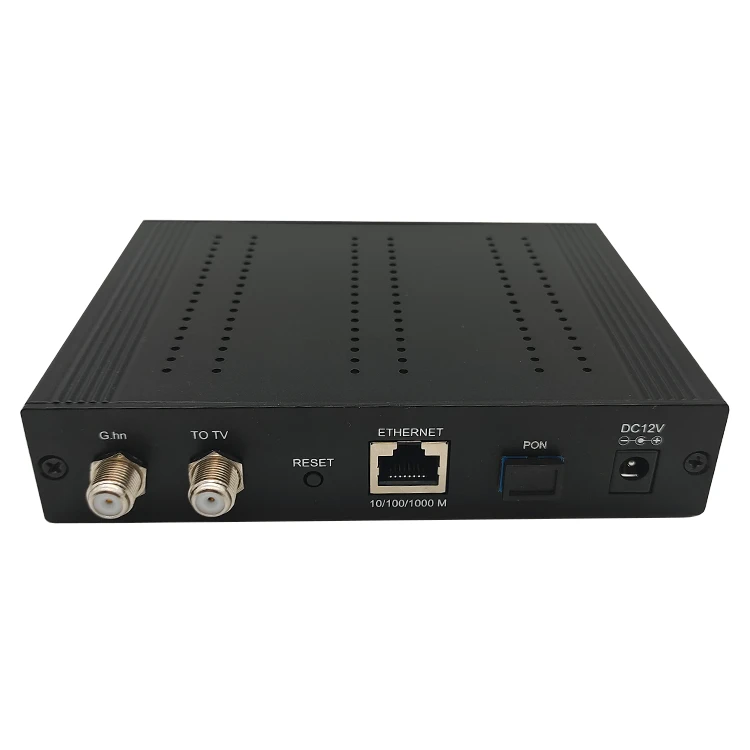

Interfaces |
1GE+CATV+G.hn |
|

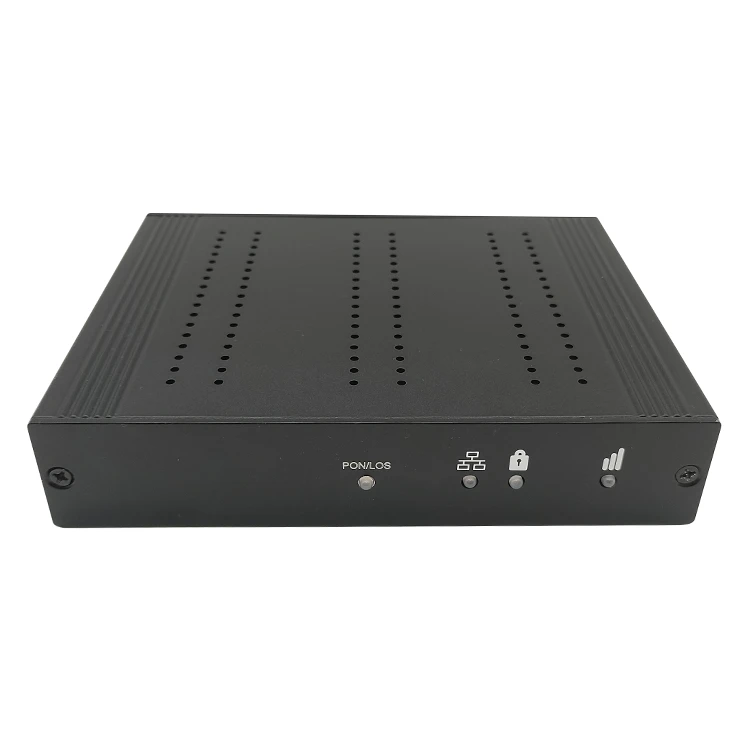

Indicators |
PWR, PON/LOS, LAN, TV |
|
PON interface |
1XPON port(EPON PX20+ and GPON Class B+) SC single mode, SC/APC connector TX optical power: 0～+4dBm RX sensitivity: -28dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm, CATV 1550nm |
|
LAN interface |
1*GE Auto-negotiation RJ45 ports 1*F-female or IEC female connector, Max. 1.7 Gbps |
|
CATV interface |
RF Optical power : +2～-18dBm Optical receiving wavelength: 1550±10nm RF frequency range: 47～1000MHz RF output impedance: 75Ω RF output level: ≥ 70dBuV(0～-15dBm) AGC range: 0～-15dBm MER: ≥32dB(-14dBm optical input) |
|
PON mode |
GPON or EPON Mode |
|
Uplink Mode |
Bridging and Routing Mode Well connect with OLTs of mainstream |
|
CATV |
Support CATV Rmote management |
|
Standard |
Support CTC OAM 2.1 and 3.0 Support ITUT984.x OMCI ITU-T G.9960/G.9961 G.hn over Coax |
|
Layer2 |
802.1D&802.1ad bridging 802.1p CoS 802.1Q VLAN |
|
Layer3 |
IPv4 DHCP Client/Server PPPoE, NAT, DMZ, DDNS |
|
Multicast |
IGMP v2/v3, IGMP snooping |
|
Security and Firewall |
Prevent Rogue ONU DDOS, Filtering Based on ACL/MAC/URL |

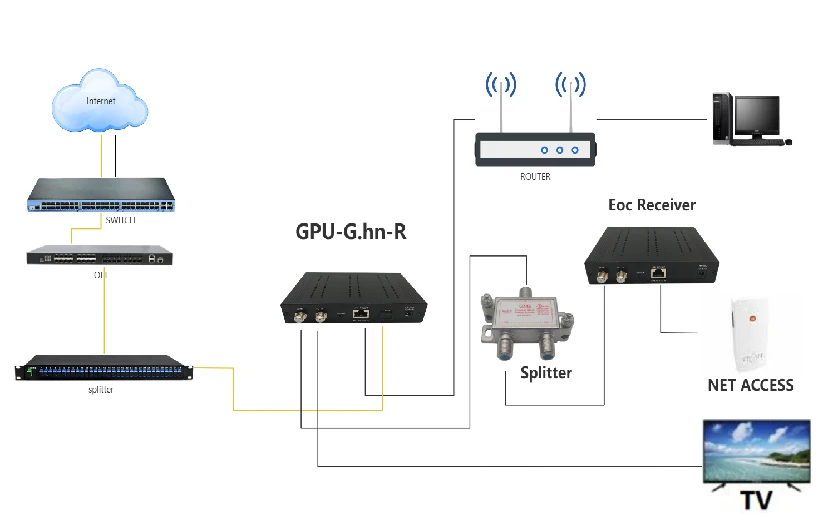

FTTx applacation
