Introduction
This ONU is designed for FTTH. It supports XPON dual-mode technology (EPON and GPON), It is widely compatible with the global mainstream OLT brand, supports plug-and-play, OMCI and TR069 remote maintenance features.
Features
- Support device - based rate limitation and bandwidth control
- In compliant with IEEE802.3ah & ITU-T G.984 standard
- Up to 20KM transmission Distance
- Support data encryption, group broadcasting, port VLAN separation ,etc.
- Support Dynamic Bandwidth Allocation (DBA)
- Support ONU auto - discovery/Link detection/remote upgrade of software;
- Support port VLAN configuration
- Support power off alarm function ,easy for link problem detection
- Support QOS configuration
- Support port binding
- Support port forwarding
- Support ACL to configure data packet filter flexibly
- Specialized design for system break down prevention to maintain stable system
- Support software online upgrading
- Support TR069 for ACS(Auto Config Server)
- Support broadband and CATV services
- Support CATV service remote shutdown function
- Support IGMPv1/v2/Snooping
- Support Dying Gasp
- Support Port Loop Detect

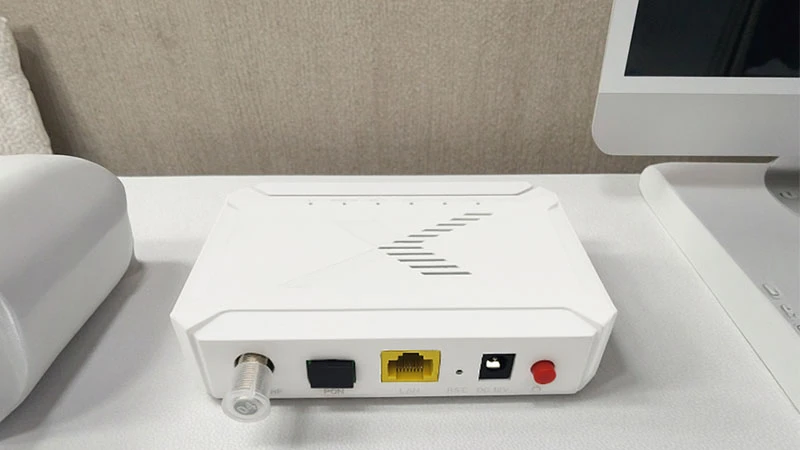

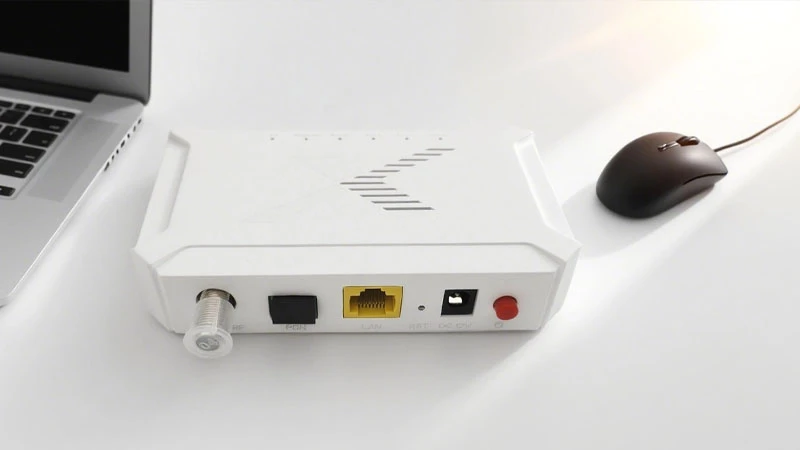

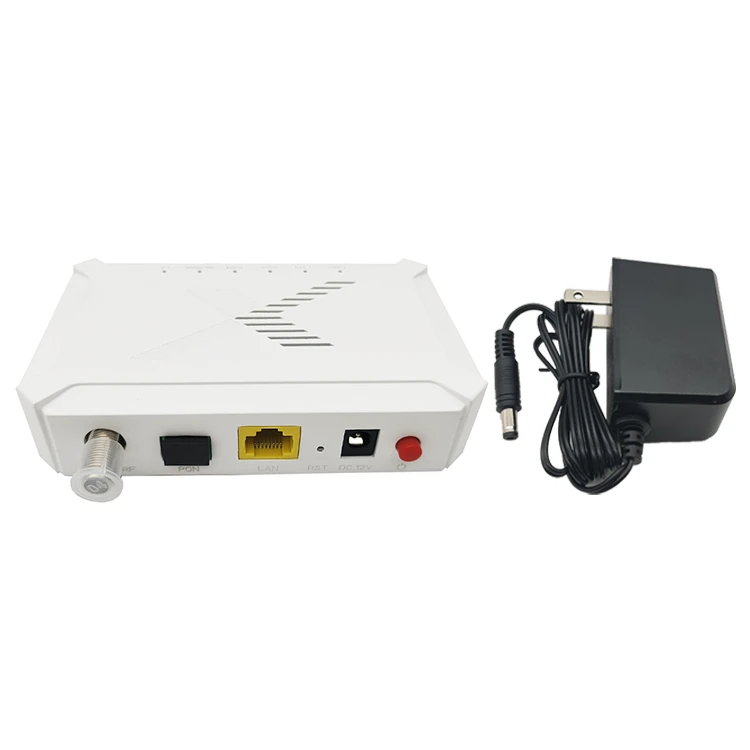

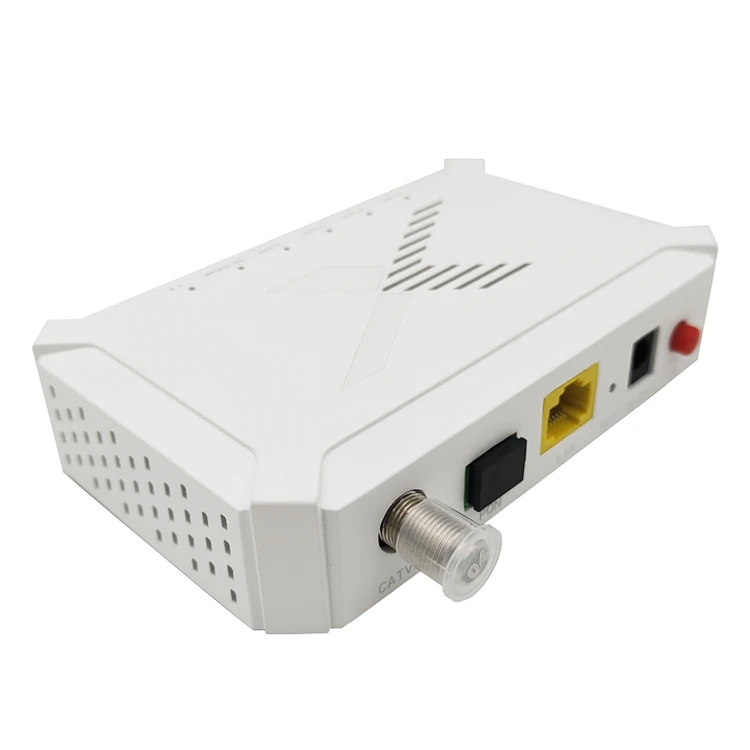

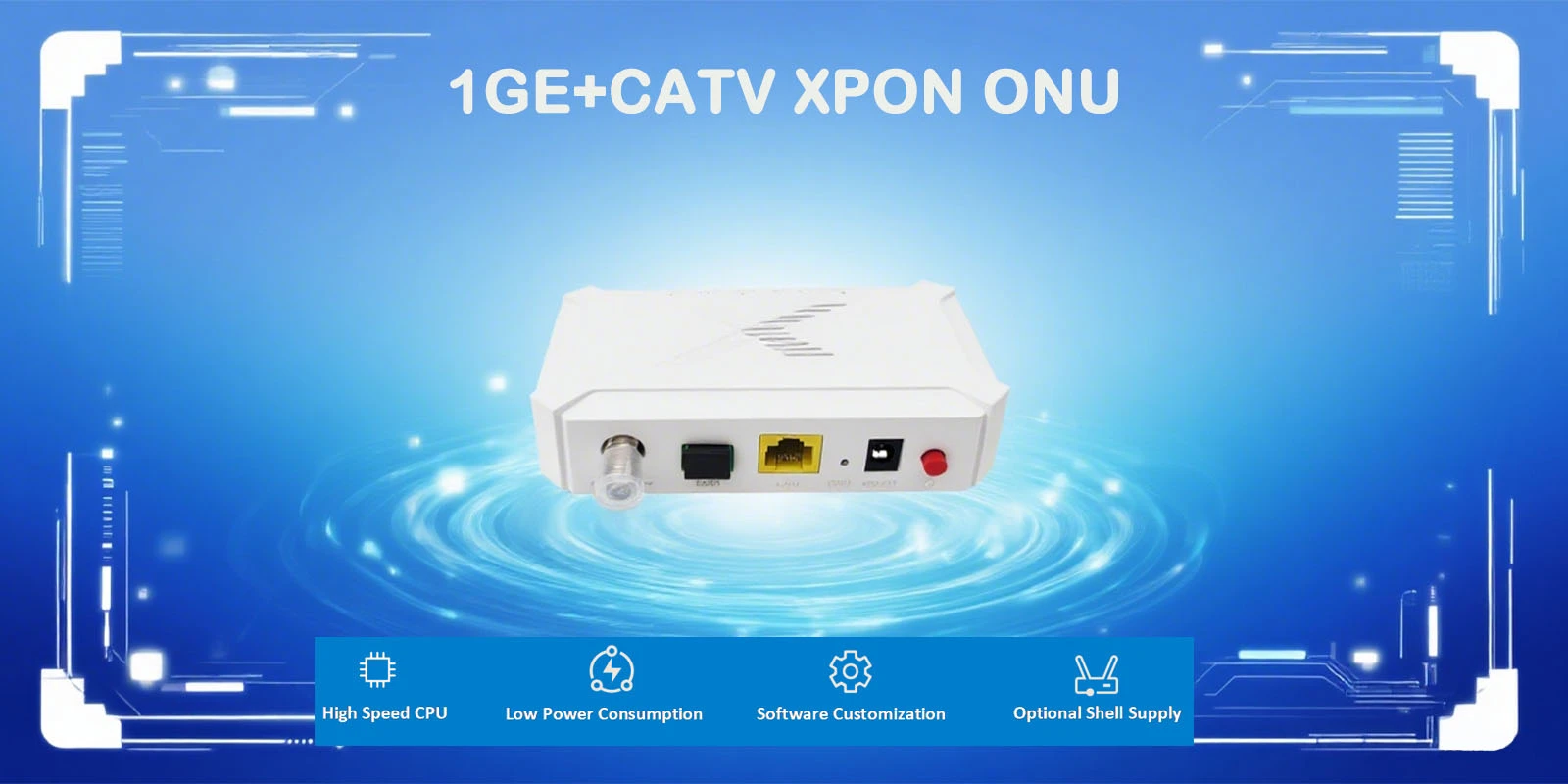

1GE+CATV XPON ONU
Multi-service integration that accommodates performance, cost, and operational efficiency
What are the advantages of a 1GE+CATV XPON ONU?
The 1GE+CATV XPON ONU is a type of XPON terminal device that integrates Gigabit Ethernet (1GE) and cable TV (CATV) transmission functions, primarily used in fiber-to-the-home (FTTH) scenarios.
Dual-Mode Compatibility (GPON/EPON)
Compatible with mainstream XPON OLT devices, automatically adapts to both EPON and GPON networks, reducing deployment complexity and cost for operators.
Integrated Data and Video Services
Supports both Gigabit Ethernet access and CATV broadcast signal reception, meeting users' needs for high-speed internet and TV entertainment simultaneously.
High Cost-Effectiveness
Combines data and CATV functions into one device, saving on cabling and equipment costs, making it ideal for large-scale deployment.
Independent CATV RF Output
Equipped with a dedicated RF output port, allowing direct connection to TVs or set-top boxes with stable and low-noise RF signal transmission.
Typical Application Scenarios
Suitable for triple-play solutions with multi-service integration
Description
|
Dimension |
140mm×90mm×30mm(L×W×H) |
|
Net weight |
110g |
|
Operating condition |
Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensing) |
|
Storing condition |
Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensing) |
|
Power adapter |
DC 12V/0.5A, external AC-DC power adaptor |
|
Power supply |
≤4.2W |
|

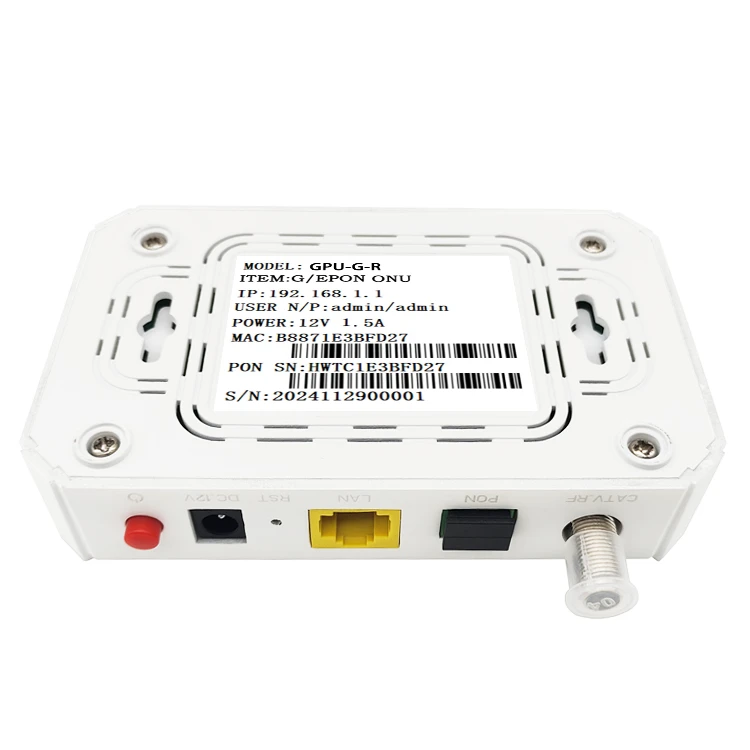

Interfaces |
1GE+CATV |
|

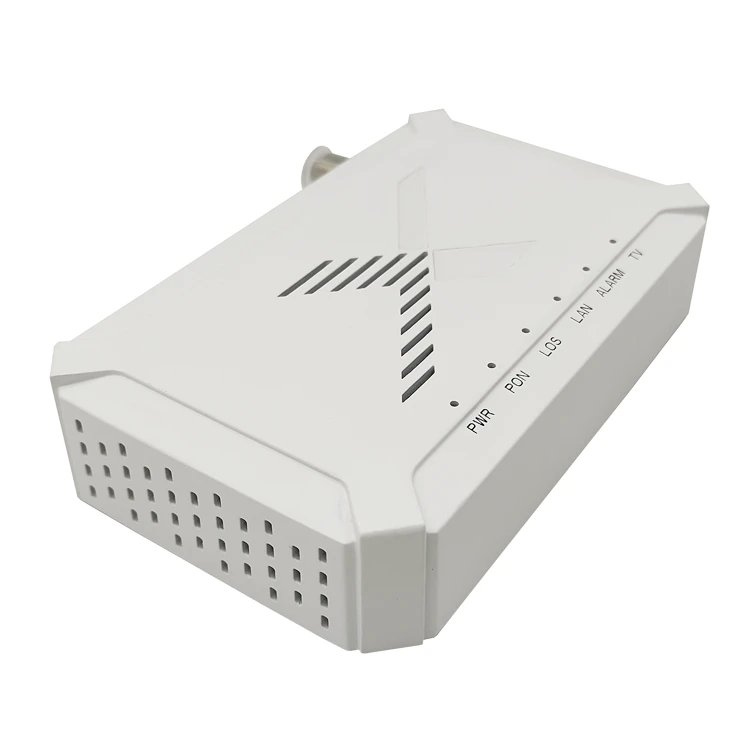

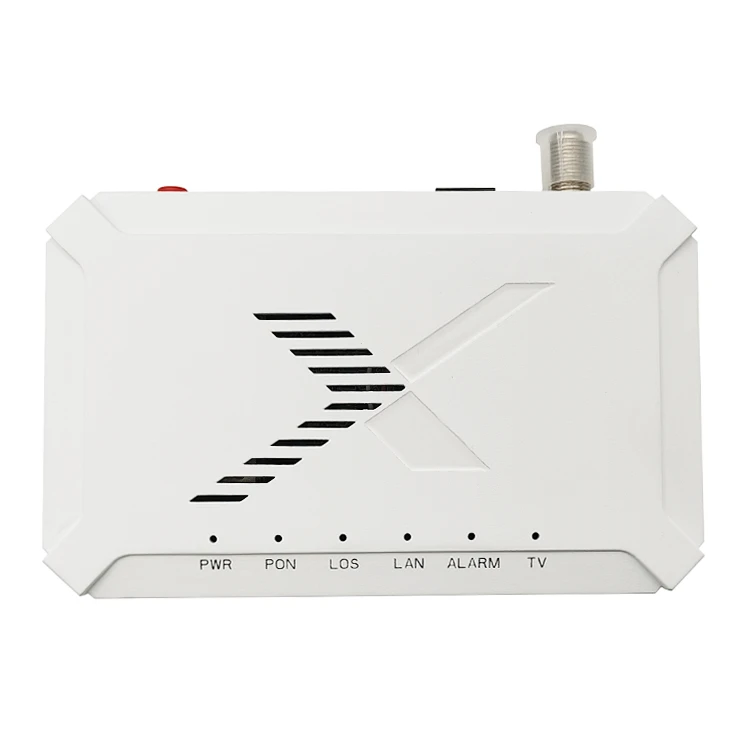

Indicators |
PWR, LOS, PON, LAN, ALARM, TV |
|
PON interface |
1XPON port(EPON PX20+ and GPON Class B+) SC single mode, SC/APC connector TX optical power: 0～+4dBm RX sensitivity: -28dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm, CATV 1550nm |
|
LAN interface |
1*GE Auto-negotiation RJ45 ports |
|
CATV interface |
RF Optical power : +2～-18dBm Optical receiving wavelength: 1550±10nm RF frequency range: 47～1000MHz RF output impedance: 75Ω RF output level: ≥ 70dBuV(0～-15dBm) AGC range: 0～-15dBm MER: ≥32dB(-14dBm optical input) |
|
PON mode |
GPON or EPON Mode |
|
Uplink Mode |
Bridging and Routing Mode Well connect with OLTs of mainstream |
|
CATV |
Support CATV Rmote management |
|
Standard |
Support CTC OAM 2.1 and 3.0 Support ITUT984.x OMCI |
|
Layer2 |
802.1D&802.1ad bridging 802.1p CoS 802.1Q VLAN |
|
Layer3 |
IPv4 DHCP Client/Server PPPoE, NAT, DMZ, DDNS |
|
Multicast |
IGMP v2/v3, IGMP snooping |
|
Security and Firewall |
Prevent Rogue ONU DDOS, Filtering Based on ACL/MAC/URL |

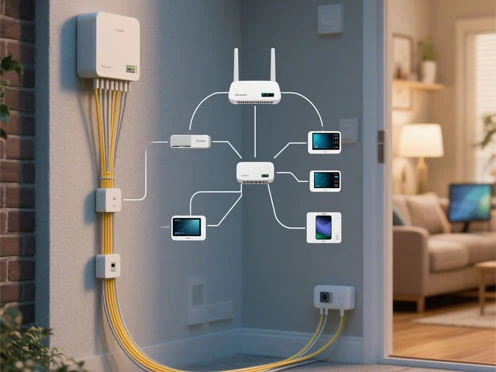

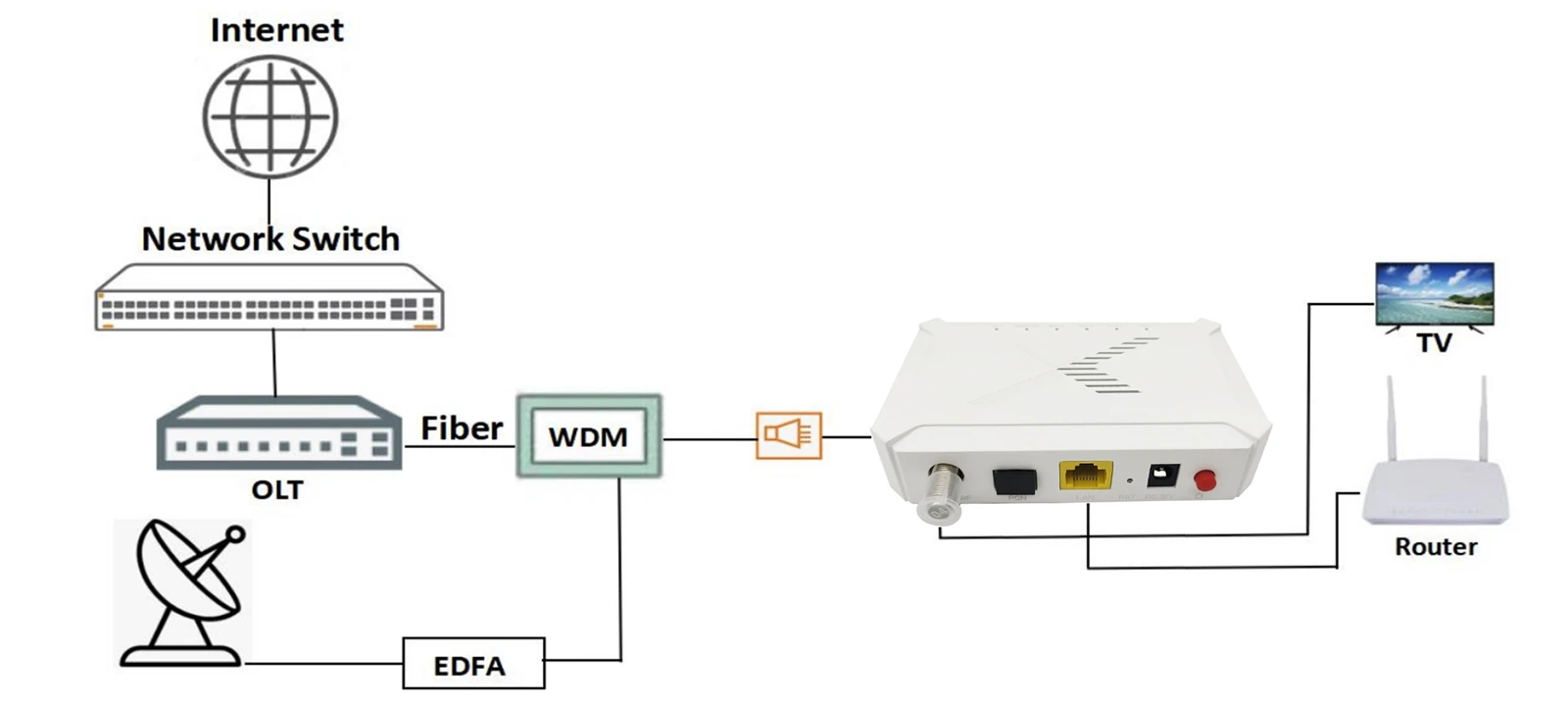

FTTx applacation

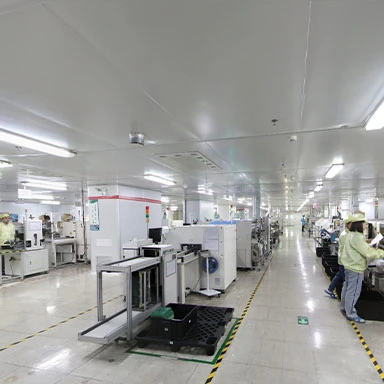

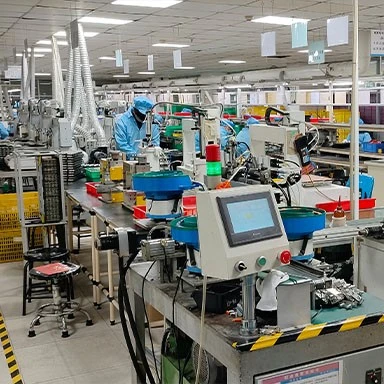

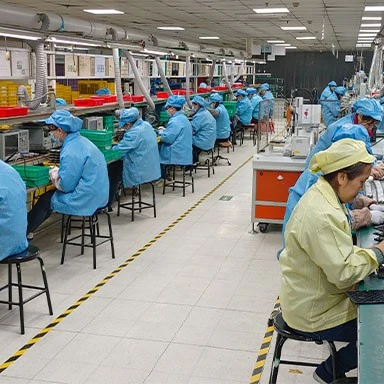

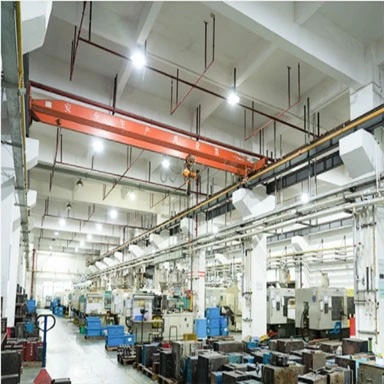

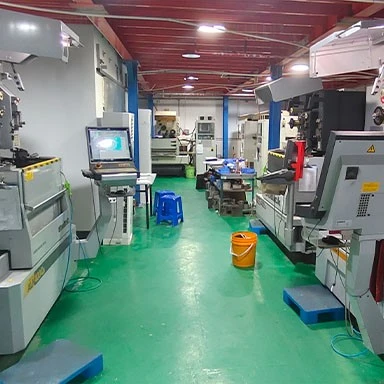

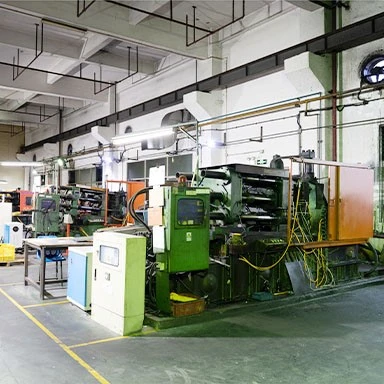

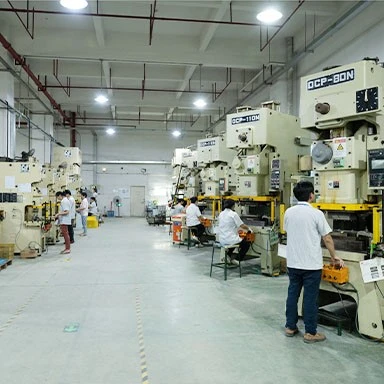

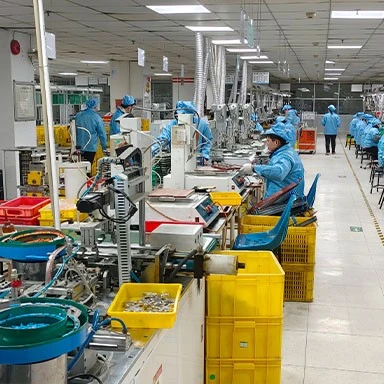

Our Production Workshop

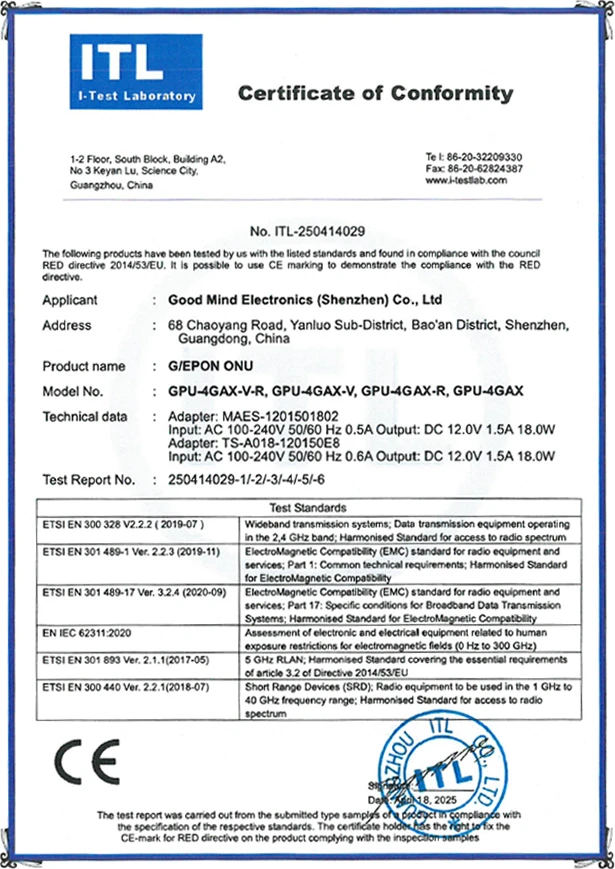

Our Certificate
payment method
Packaging & Transport
Packaging & Transport
PACKING
We will pack our products tightlyto ensure that they are notdamaged in transit.

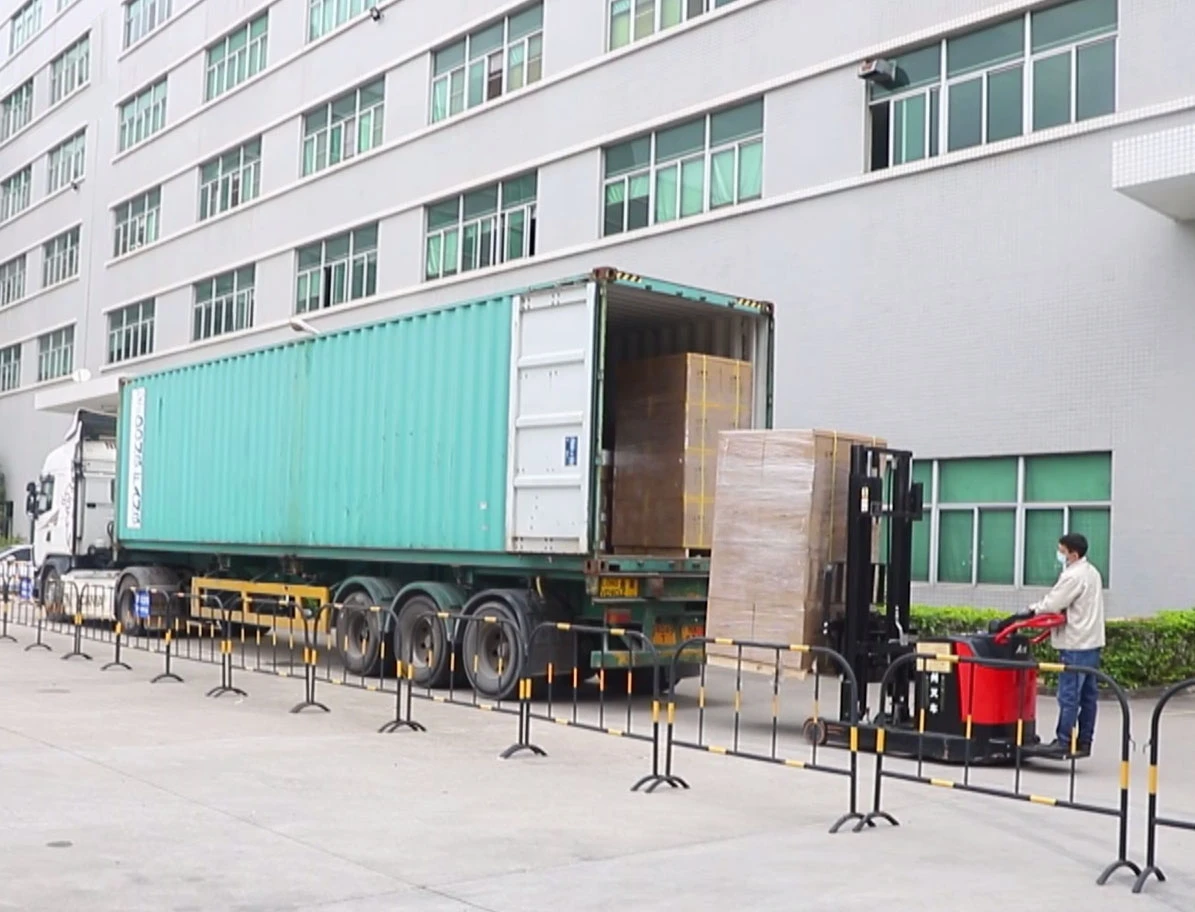

TRANSPORT
We support the three major transportation by sea, landand air to ensure that your goods can arrive on time.
FAQ
Q: You are factory or trading company?
A: we are 100% factory and also do trading online
Q: What is your shipping way?
A: We usually ship it via DHL /UPS/Fedex/TNT/Aramex. if you have big quanti-ty, you can choose Air or Sea shipment.
Q: What is your payment term?
A: T/T wire bank transfer, L/c, etc.
Q: How can you slove the problem if we receive the defective goods?
A: Send us the pictures or video first time, we would like to offer free replace. ment goods for you.
Q: Can ltake a sample for quality check?
A: Sure,we can offer sample for your testing.
Q: Can we have our logo or company name to be printed on yourproducts or the?
A: Yes,you sure. We accept OEM/ODM orders and provide services for logoprinting ,carton marks as well as packing designings.You can send us the artwork by email in jPG,TIF ,Al,EPS,TIFF of CorelDraw for-mats Logo printing may require MOQ which may vary from different mod-els.Please contact us for details.
