- Plug & Play to mainstream EPON/GPON OLT.
- Support static lP Routing, IPv4/IPv6,DHCPClient/Server, PPPoE, NAT and etc.
- Support DBA & QoS.
- IGMP v1/v2/v3, IGMP snooping.
- Wide Coverage
- High Gain 5dBi 2T2R Antennas
- Supports IEEE802.11b/g/n
- Up to 300Mbps
Specifications
|
○ Hardware Parameter |
|
|
Operating condition |
l Operating temp: -10~ +55°C l Operating humidity: 5~95% (non-condensing) |
|
Storing condition |
l Storing temp: -40 ~ +70°C l Storing humidity: 5 ~ 95% (non-condensing) |
|
Power adapter |
DC 12V, 1A, external AC-DC power adaptor |
|
Power supply |
≤12W |
|

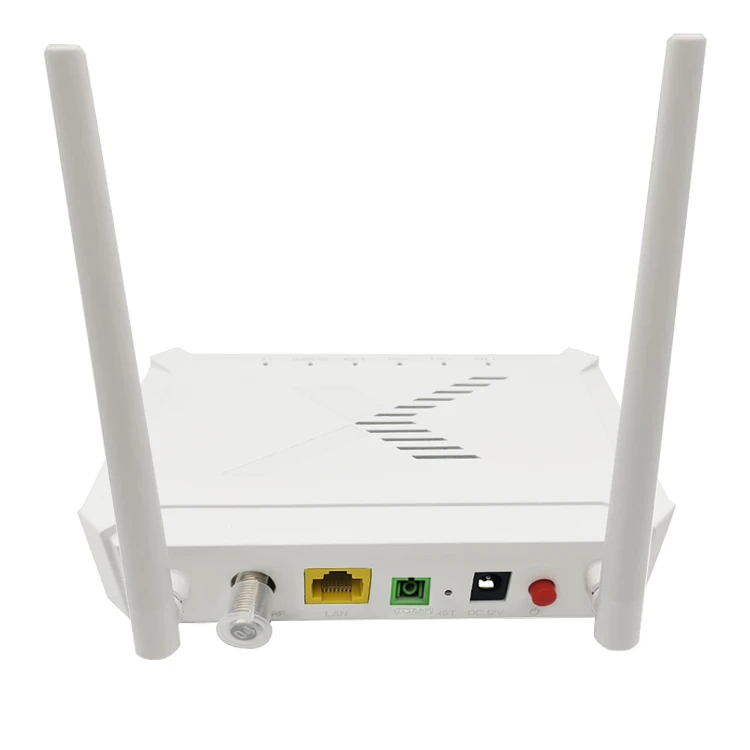

Interfaces |
1GE+WIFI4+CATV |
|
Indicators |
POWER, PON, LOS, LAN, CATV, WiFi |
|
|
|
|
○ Interface parameter |
|
|
PON interface |
l 1 XPON port(EPON PX20+ & GPON Class B+) l SC single mode, SC/APC connector l TX optical power: 0～+4dBm l RX sensitivity: -27dBm l Overload optical power: -3dBm(EPON) or -8dBm (GPON) l Transmission distance: 20KM |
|
LAN interface |
1*GE Auto-negotiation RJ45 ports |
|
CATV interface
|
l Optical receiving wavelength: 1550±10nm l Optical input range: +2～-18dBm l Optical reflection loss: ≥40dB l RF frequency range: 47～1000MHz l RF output impedance: 75Ω l RF output level and AGC range: ≥81±2dBuv@+1～-10dBm ≥79±2dBuv@ 0～-11dBm ≥77±2dBuv@-1～-12dBm ≥75±2dBuv@-2～-13dBm ≥73±2dBuv@-3～-14dBm ≥71±2dBuv@-4～-15dBm l MER: ≥32dB(-14dBm optical input) |
|
○ Function Data |
|
|
PON mode |
XPON Dual mode , Can access to mainstream EPON/GPON OLTs |
|
Software mode |
Routing mode |
|
WiFi |
l Compliant with IEEE802.11b/g/n, l Operating frequency: 2.400-2.4835GHz l support MIMO, rate up to 300Mbps, l 2T2R,2 external antenna 5dBi, l Support: multiple SSID l Channel:13 l Modulation type: DSSS,CCK and OFDM l Encoding scheme: BPSK,QPSK,16QAM and 64QAM l WiFi Authentication:WEP/WAP-PSK(TKIP) /WAP2-PSK(AES) l Support: multiple SSID |
|
Firewall |
DDOS, Filtering Based on ACL/MAC/ URL. |
|
Layer2 |
802.1D&802.1ad bridge, 802.1p Cos, 802.1Q VLAN. |
|
Layer3 |
IPv4/IPv6, DHCP Client/Server, PPPoE, NAT , DMZ ,DDNS. |
|
Multicast |
IGMP v1/v2/v3 , IGMP snooping |
|
Security |
Flow & Storm control, Loop Detection |
|
O&M |
WEB/TELNET/OAM/OMCI/TR069. |
