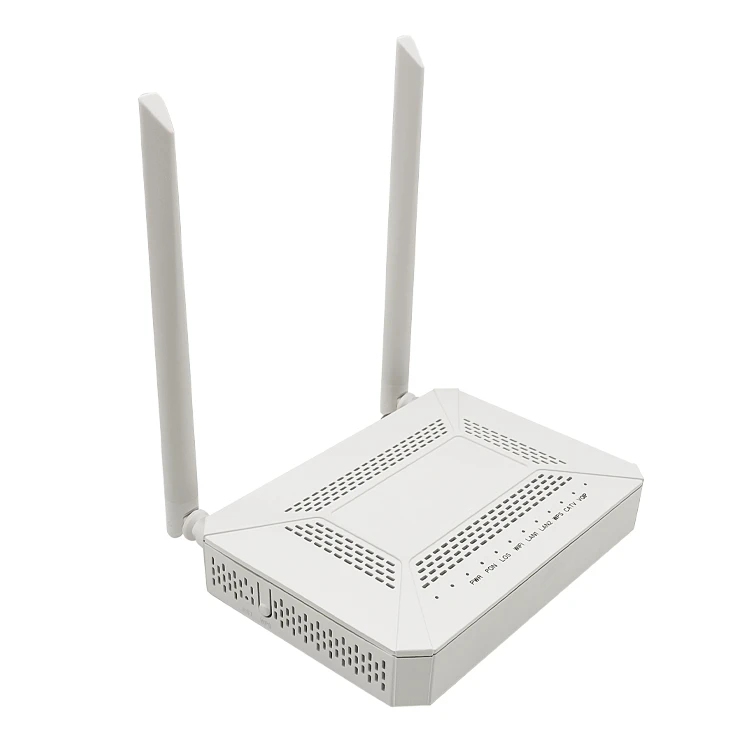

A WiFi 4 ONU is a key component in fiber-to-the-home (FTTH) networks, enabling ISPs to deliver high-speed internet via optical fiber. It functions as a modem + Wi-Fi router, converting optical signals into wired (Ethernet) and wireless (Wi-Fi 4) connections for end users.
Technical Parameter
| User interface |
1*10/100/1000M RJ45 1*10/100M RJ45 1*POTS 2.4G WiFi |
| PON |
EPON&GPON mode adaptive Interface type: SC-APC/SC-UPC Network coverage radius: 20KM
GPON: upstream 1.25Gbps/ downstream 2.5Gbps Optical receive sensitivity: -7dBm~-28dBm Continuous light power: 0.5dBm~+5dBm
EPON: upstream 1. 25Gbps/downstream 1.25Gbps Optical receive sensitivity: -7dBm~ -27dBm Continuous light power: 0dBm~4dBm |
| POTS Port |
1*RJ11 with 3REN Max 1 km distance Balanced Ring, 55V RMS |
| Size | 140mm(L)×90mm(W)×30mm(H) |
| Environment |
Operating temperature: 0℃～60℃ Operating humidity: 10%～85% (non-condensing) Storage temperature: -40℃～80℃ Storage humidity: 5%～95% (non-condensing) |
| Power supply |
12V/ 1A DC power interface size: 2.1mm/ 5.5mm |
| Power | < 8W |
| Management | WEB/ TELNET/ TR069/ OMCI/ OAM |
