GPU 6267 is a highly integrated dual-band Wi-Fi 6 GPON optical access terminal device (AX3000 Mbps), belonging to the operator's fiber-to-the-home (FTTH) terminal product category. This device supports ultra-broadband access through GPON uplink technology and provides users with basic Wi-Fi functionality, routing, gigabit Ethernet capabilities, and a client CATV interface. The uplink network port of GPU 6267 is a GPON port, while the downlink user ports include four GE electrical ports, one USB interface, one CATV port, and an AX3000 Wi-Fi 6 WLAN wireless port.
|
DESCRIPTION :4GE+CATV WiFi6 AX3000 GPON ONT
|
|
|
Hardware Parameters
|
|
|
Flash
|
256MB NAND
|
|
Memory
|
512MB DDR3
|
|
LED
|
POWER+PON/LOS+NET+LAN+WiFi+CATV+WPS+USB
|
|

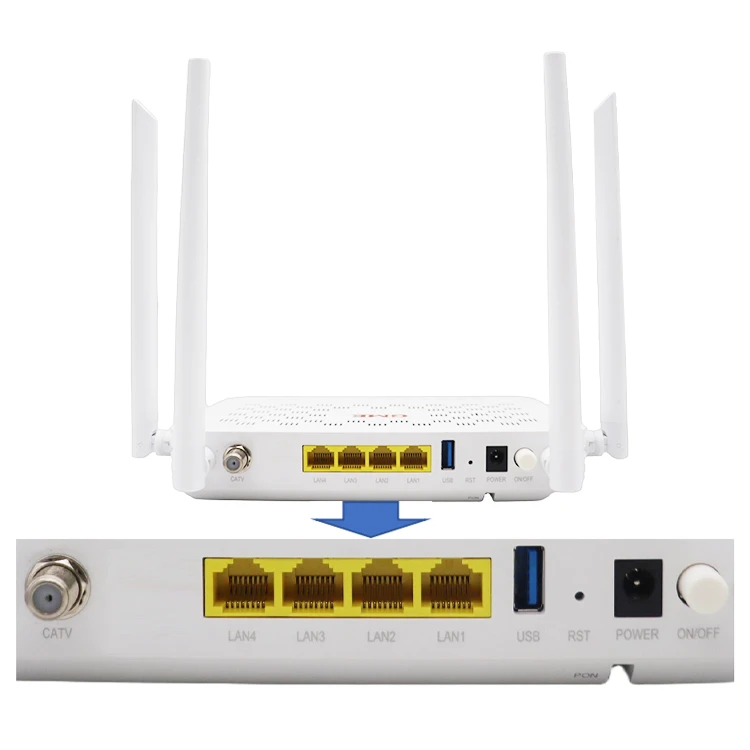

Port
|
4*RJ45(GE)
|
|
1*Reset+1*Power +1*LEDbutton+1*WiFi button+1*WPS
|
|
|
1*SC/UPC (or SC/APC)
|
|
|
1*DC
|
|
|
1*USB3.0
|
|
|
1*CATV
|
|
|
Interface Parameters
|
|
|
Ethernet port
|
Ethernet port-based VLAN tags and tag
remova VLAN transparent and mark MAC address learning 10/100/1000Mbps Autonegotiation |
|
WiFi6 (AX3000)
|
|
|
WiFi protocol
|
2.4GHz supports
802.11b/g/n/ax 5GHz supports 802.11a/n/ac/ax |
|
Transmit power
|
2.4G 100mW,5G /200mW,
|
|
Antenna gain
|
5dBi
|
|
Antenna
|
dual-antenna MIMO
(2*2) (2.4G&5G) |
|
WLAN penetrate
|
one reinforced concrete wall
or two ordinary brick walls (non-reinforced concrete), |
|
WLAN access capability
|
64 /SSID
|
|
channel
|
2.4GHz (channel 1-13)
5GHZ (channel 36-161 ) |
|
WPS
|
WLAN terminal devices with
WPS Push Button function establish connection within 2 minutes |
|
WLAN security function
|
WPA-PSK,WPA2-PSK,
WPA3,WPA-PSK/WPA2-PSK AES,AES+TKIP |
|
Air Speed
|
574 Mbps (2.4GHz) ,2402
Mbps (5GHz) |
|
Multicast
|
WMM(Wi-Fi Multi Media)
|
|
CATV
|
|
|
Remote control CATV
|
ON/OFF
|
|
Optical AGC
|
-10~+2dBm
|
|
Output level
|
76dBuV
|
|
RF bandwidth
|
47-1000 MHZ
|
|
In band flatness
|
+1.25dB
|
|
Output return loss
|
>12dB
|
|
CATV system parameters
|
C/N : ≥ 43dB , C/CTB : ≥
55dB , C/CSO ≥ 55dB , MER ≥ 32dB , BER ≤ 1*10E-6 |
|
Environment
|
|
|
Operating Temperature
|
0℃ ~45℃
|
|
Storage Temperature
|
-20℃ ~70℃
|
|
Operating Humidity
|
5%~95%(non-condensing)
|
|
Power supply
|
12V/1.5A
|
