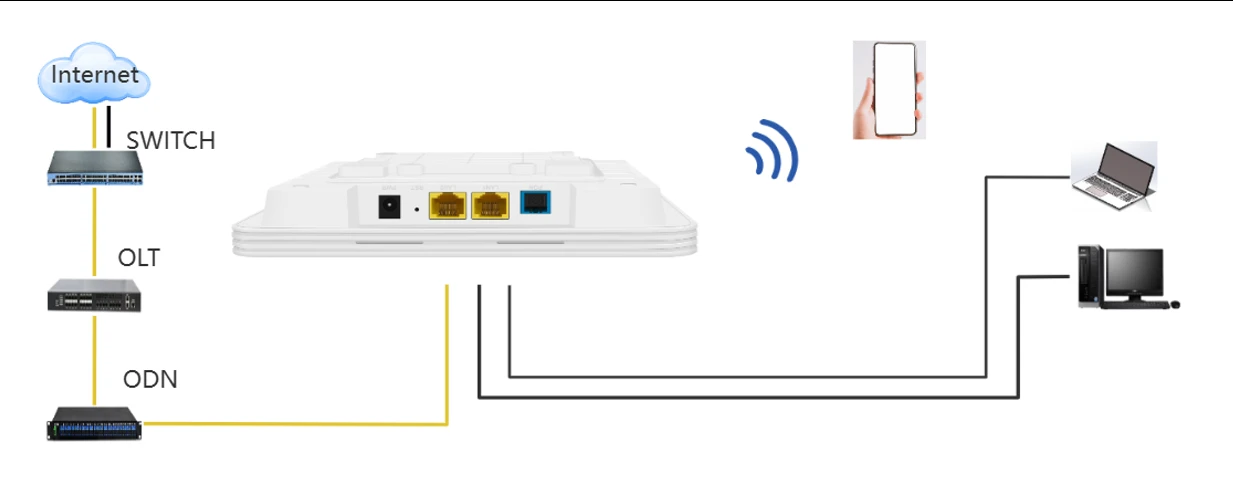

GPU 6260 is an intelligent routing passive PoF optical network terminal in FTTH solution. GPU 6260 provides 1*GE LAN port, 1*2.5GE port and AX3000 WiFi, high access speed up 2.5Gbps downstream and 1.25Gbps upstream. It is widely compatible with the global mainstream OLT brand, supports plug-and-play, OMCI and TR069 remote maintenance features.
Features
- Support device - based rate limitation and bandwidth control
- Support data encryption, group broadcasting, port VLAN separation ,etc.
- Support ONU auto - discovery/Link detection/remote upgrade of software;
- Support port VLAN configuration
- Support QOS configuration
- Support port binding,port forwarding
- Specialized design for system break down prevention to maintain stable system
- Support software online upgrading
- Support TR069 for ACS(Auto Config Server)
- Support PPPoE/DHCP Server/IPTV/POTS/NAT/ TR069/IPv6/IPv4
- Support wireless security of 64/128 bit WEP,802.1x,WPA and WPA2
- Support Easy Mesh
- Support Cloud Management
Technical Parameter
|

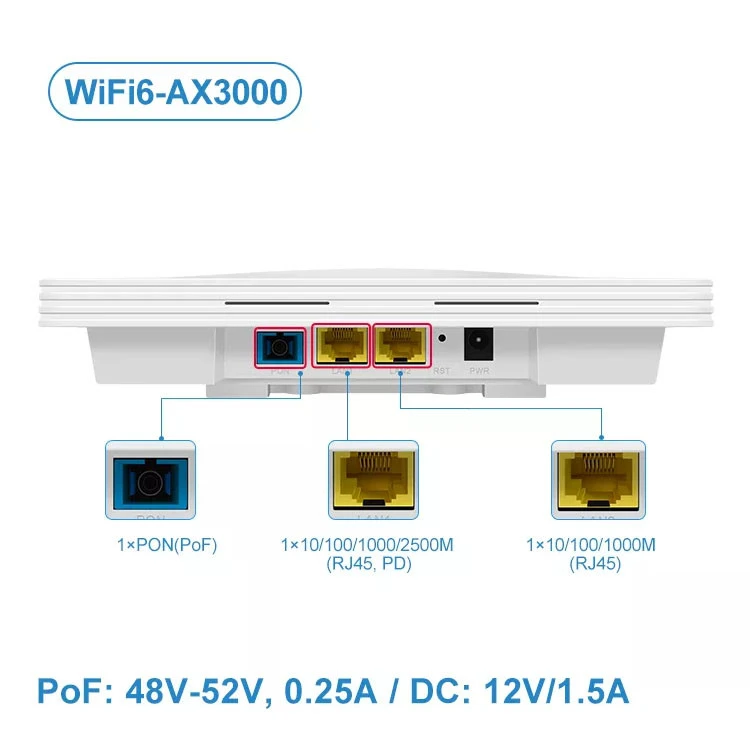

User Interface |
1*GE RJ45 |
|
1*2.5GE RJ45 |
|
|
2.4GHz: 574Mbps, 5.8GHz: 2402Mbps |
|
|
PON |
EPON&GPON mode adaptive Interface Type:SC-UPC/SC-APC Transmission distance: 20KM |
|
GPON: upstream 1.25Gbps /downstream 2.5Gbps Transmitting optical power: 0~4dBm Optical receive sensitivity:-7dBm~-28dBm |
|
|
EPON: upstream 1.25Gbps /downstream 1.25Gbps Transmitting optical power: 0~4dBm Optical receiver sensitivity: -7dBm~-27dBm |
|
|
Ethernet |
1*10/100/1000/2500M auto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance |
|
Size |
188*188*43.6mm |
|
Environment |
Operating temperature:0°C~50°C Operating humidity:0％〜85% (non-condensing) Storage temperature:-40°C~80°C Storage humidity:5%~95% (non-condensing) |
|
Power Supply |
12V/1.5A DC power interface size:2.1mm/5.5mm |
|
Power Consumption |
＜12W |
