GPU 6270 is a next-generation broadband access terminal designed to meet the requirements of fixed network operators for FTTH deployments and triple-play service delivery.
Powered by a high-performance chipset, this Optical Network Terminal (ONT) supports XPON dual-mode functionality, ensuring seamless compatibility with both EPON and GPON networks. It integrates WiFi 6 technology (IEEE 802.11b/g/n/ac/ax), delivering wireless speeds of up to 1500Mbps for enhanced connectivity. With comprehensive Layer 2 and Layer 3 features, the GPU 6270 is well-suited for carrier-grade FTTH applications requiring robust data support.
The device supports standard OAM and OMCI protocols, enabling seamless configuration and management on both Huawei and ZTE OLT platforms. This simplifies network maintenance while ensuring Quality of Service (QoS) across multiple service types. The GPU 6270 complies with international standards including IEEE802.3ah and ITU-T G.984.

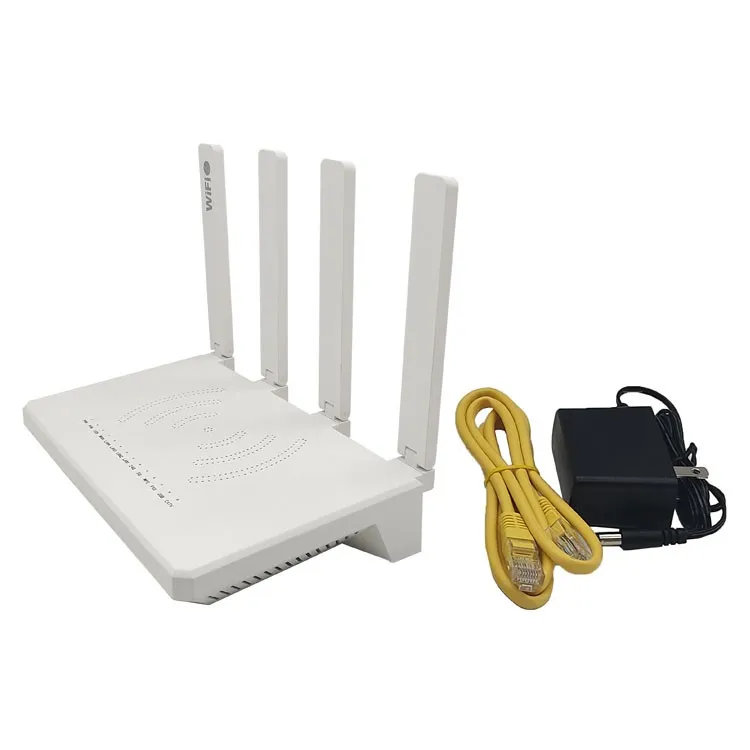

Designed with deployment flexibility in mind, the GPU 6270 is available in black or white enclosures. Its compact chassis features a bottom-mounted fiber structure, allowing for easy placement on desktops or wall mounting to suit a variety of installation environments.
Specifications
| Hardware Parameter | Function Data | ||
| Dimension | 260.4mm×157.4mm×45.8mm(L×W×H) | O&M | WEB/TELNET/OAM/OMCI/TR069 |
| Net weight | 0.45Kg | Support private OAM/OMCI protocol | |
| Operating condition | Operating temp:-10 ~ +55°C | Internet connection | Support Routing Mode |
| Operating humidity:5 ~ 95% (non-condensed) | Multicast | IGMP v1/v2/v3, IGMP snooping | |
| Storing condition | Storing temp: -40 ~ +70°C | MLD v1/v2 snooping | |
| Storing humidity: 5 ~ 95% (non-condensed) | VoIP | SIP and IMS SIP | |
| Power adapter | DC 12V, 1.5A, external AC-DC power adaptor | G.711a/G.711u/G.722/G.729 Codec | |
| Power supply | ≤18W | Echo cancellation,VAD/CNG,DTMF Relay | |
| Interface | 1XPON+4GE+1POTS+1USB3.0+WiFi6 | T.30/T.38 FAX | |
| Indicators | PWR ,PON ,LOS ,WAN ,LAN1~4 ,2.4G ,5G , | Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference | |
| WPS ,FXS ,USB | Line testing according to GR-909 | ||
| Interface parameter | WIFI | WIFI6: 802.11a/n/ac/ax 5GHz | |
| PON Interface | 1XPON port(EPON PX20+ and GPON Class B+) | WIFI4: 802.11g/b/n 2.4GHz | |
| SC single mode, SC/UPC connector | WiFi: 2.4GHz 2×2, 5.8GHz 2×2, 5dBi antenna, rate up to 1.5Gbps,Multiple SSID | ||
| TX optical power: 0～+4dBm | WiFi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3 | ||
| RX sensitivity: -27dBm | Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM | ||
| Overload optical power: -3dBm(EPON) or -8dBm(GPON) | Smart Connect for one Wi-Fi name - One SSID for 2.4GHz and 5GHz dual band | ||
| Transmission distance: 20KM | Support WIFI Easy-mesh function | ||
| Wavelength: TX 1310nm, RX1490nm | L2 | 802.1D&802.1ad bridge, 802.1p Cos,802.1Q VLAN | |
| User interface |
4×GE, Auto-negotiation,RJ45 ports | L3 | IPv4/IPv6, DHCP Client/Server,PPPoE, NAT, DMZ, DDNS |
| 1×POTS RJ11 Connector | Firewall | Anti-DDOS, Filtering Based on ACL/MAC /URL | |
| Antenna | 2.4GHz 2x2, 5GHz 2x2; external antennas | ||
