Description
This box is used as a termination point for the feedercable to connect with drop cable in FTTX communicationnetwork system.

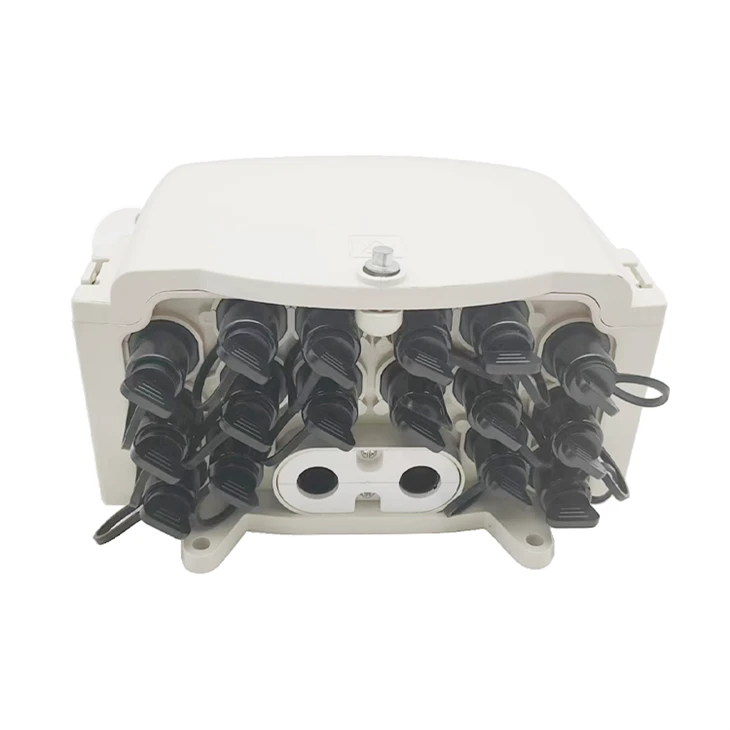

16 core fiber optic distribution box intergtates fiber splicing, splitting, distribution, storageand cable connection in one unit. Meanwhile, it providessolid protection and management for the FTTX networkbuilding
Specification
|
Place of Origin:Guangdong,China
|
|
|
Model Number:GDFI-005(F228)
|
|
|
DESCRIPTION :16 Core Fiber Optic Distribution Box
|
|
|
Applications
|
|
|
1.Wall mounting and pole mounting installtion
|
|
|
2.FTTH pre-installation and filed installation
|
|
|
3.4-7mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable
|
|
|

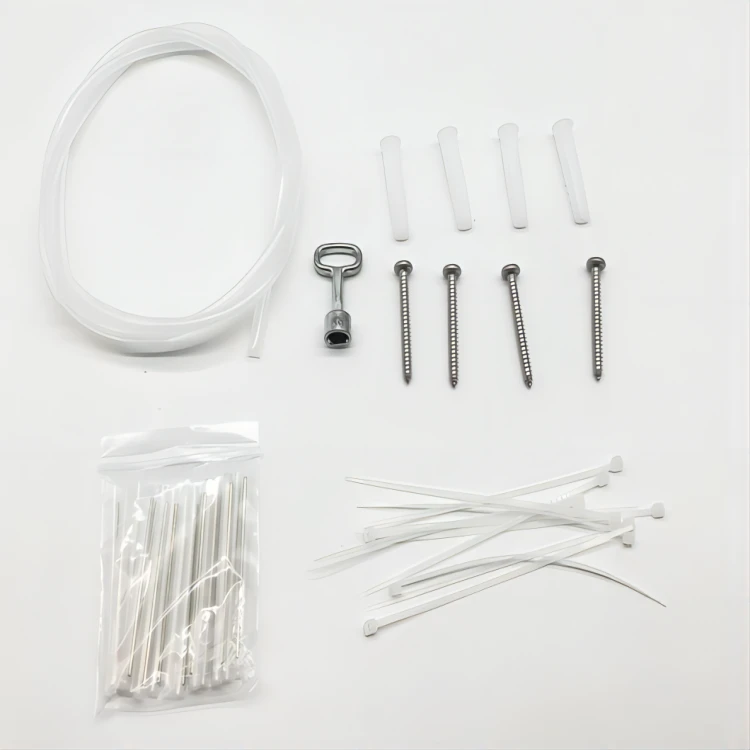

Standard Accessories
|
|
|
Metal Key
|
1pcs
|
|
Cable tie:
|
3mm*110mm 8pcs
|
|
Heat-shrink sleeve:
|
1.2mm*60mm 16pcs
|
|
Screw
|
4mm*40mm 4pcs
|
|
Expension bolt
|
M6 4pcs
|
|
Fiber protective tube
|
1pcs
|
Company Profile
Goodmind Electronics (Shenzhen) Co., Ltd. was established in 1992 with a registered capital of 18 million U.S. dollars. Its own factory is located in Shenzhen and has more than 1000 employees. It is a high-tech enterprise integrating R&D, production, sales and service , The company specializes in Antenna / Network Communication / Bluetooth / AV Accessories / Smart Home / Car Accessories professional manufacturing company. The factory is vertically integrated. The factory has plastic processing, metal stamping, zinc die casting, SMT , DIP and Assembly center. The company has strong financial strength, professional R&D team, excellented manufacturing equipment and lean manufacturing, and is dedicated to creating high-quality products for customers.
of industry experience
production building area
workshop production worker
R&D personnel
Features
1,Total enclosed structure.
2, Material: ABS, wet-proof, water-proof,dust proof,anti-aging,protection level up to IP65.

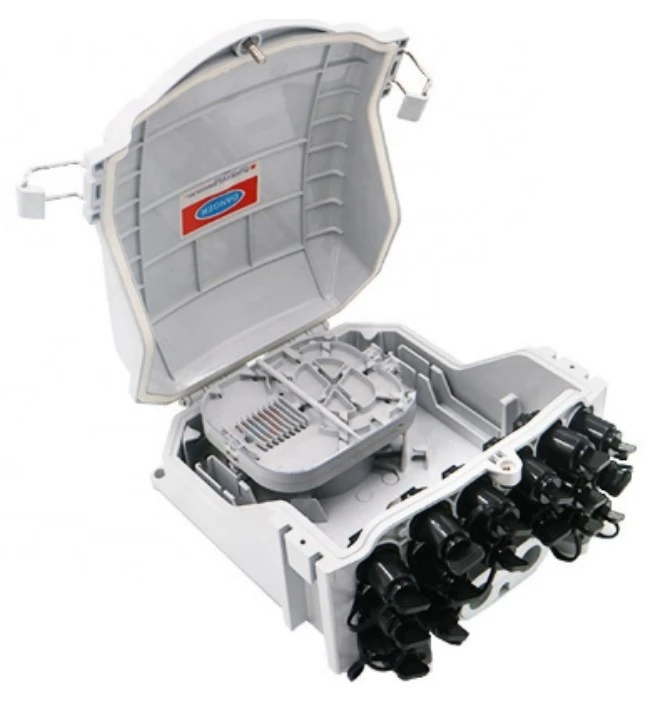

3, Clamping for feeder cable and drop cable, fiber splicing,fixation, storage distribution ... etc all in one.
4 , Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor .installation,easy maintenance.
5, Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6 , Box can be installed by the way of wall-mounted or poledmounted,suitable for both indoor and outdoor uses.
Where are fiber optic distribution boxes used?
Fiber optic distribution boxes are used in various applications, including telecommunications networks, data centers, enterprise networks, residential broadband installations, and outdoor fiber deployments.
Applications
- Wall mounting and pole mounting installtion
- FTTH pre-installation and filed installation
- 4-7mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable
Standard Accessories
Metal Key ：1pcs
Cable tie:3mm*110mm 8pcs
Heat-shrink sleeve:1.2mm*60mm 16pcs
Screw: 4mm*40mm 4pcs
Expension bolt: M6 4pcs
Fiber protective tube：1pcs
What is the purpose of a fiber optic distribution box?
The primary purpose of a fiber optic distribution box is to provide a central point for organizing, protecting, and distributing fiber optic cables within a network or building. It facilitates cable termination, splicing, and connectivity.
What types of fiber optic cables are compatible with a 16-core distribution box?
16-core distribution boxes are compatible with various types of fiber optic cables, including single-mode and multi-mode cables. They support different connector types such as LC, SC, ST, and MTP/MPO.
How is a 16-core distribution box installed?
Installation methods vary depending on the specific box design and application requirements. Typically, distribution boxes can be wall-mounted, pole-mounted, or installed within network cabinets or enclosures. Proper cable management and protection are essential during installation.
FAQ
Q: What are the environmental considerations for outdoor installations?
A: For outdoor installations, distribution boxes are designed to be weatherproof and resistant to environmental factors such as moisture, dust, and UV exposure. They may feature ruggedized enclosures and sealing mechanisms to ensure reliable operation in harsh conditions.
Q: Can a 16-core distribution box be expanded or upgraded?
A: Some distribution boxes are modular and can be expanded or upgraded to accommodate more fibers or additional features. However, it's essential to check the specific product specifications and compatibility requirements for expansion options.
Q: How do I maintain a fiber optic distribution box?
A: Regular maintenance of distribution boxes involves inspecting cables, connectors, and enclosures for signs of damage, cleaning optical interfaces, and ensuring proper cable management. Any necessary repairs or replacements should be performed by qualified technicians.
Q: What are the advantages of using a 16-core distribution box?
A: The advantages include efficient cable management, simplified installation and maintenance, scalability for future expansions, and protection of fiber optic cables against environmental hazards.
