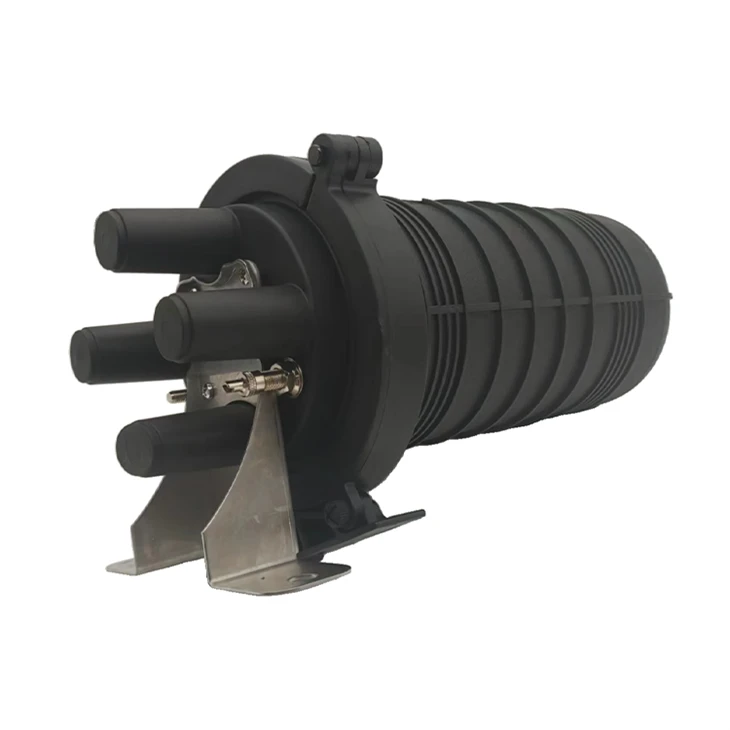

This product is used to connect the distribution cable and the incoming cable, is widely applied in communication, network systems, CATV cable TV and so on. It adopts scientifically formulated engineering plastic and be shaped by injection molding, with anti-aging, anti-corrosion, flame retardant, waterproof, anti-vibration and anti-shock effects. Can effectively prevent the optic fibers from the influence of outdoor environment.

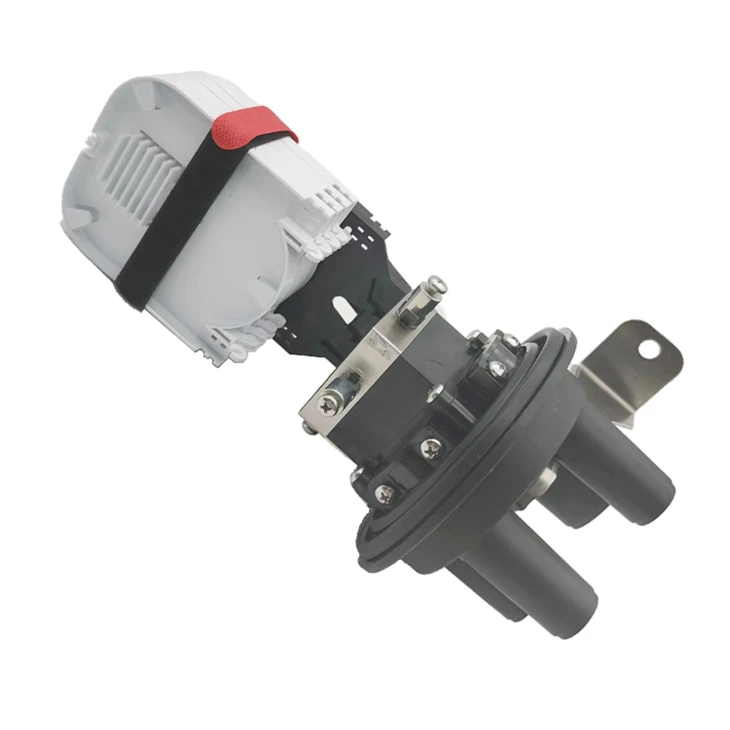

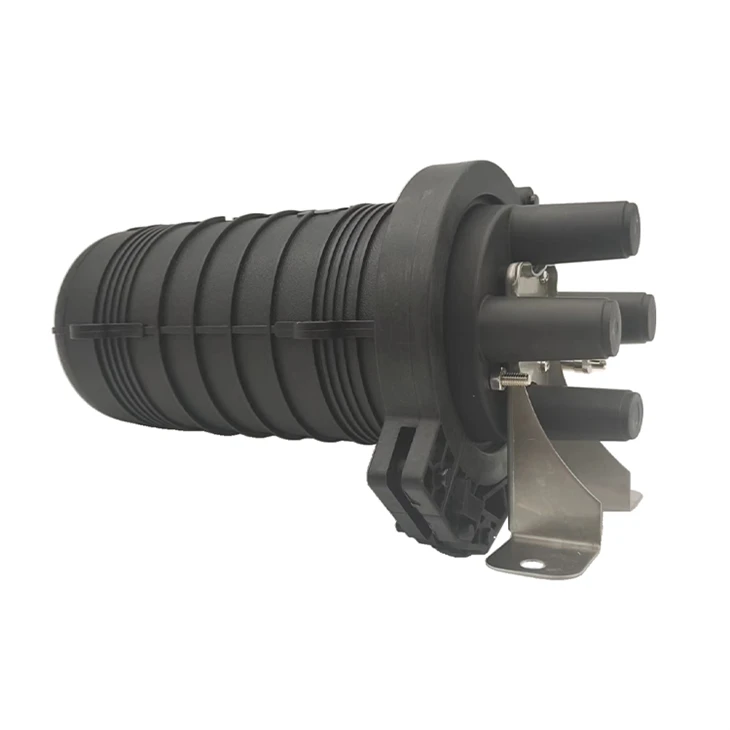

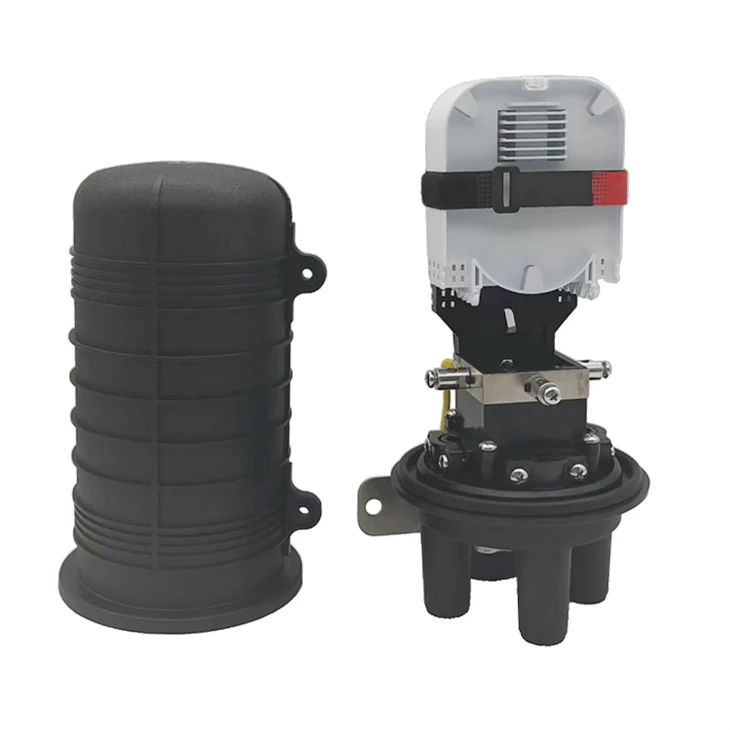

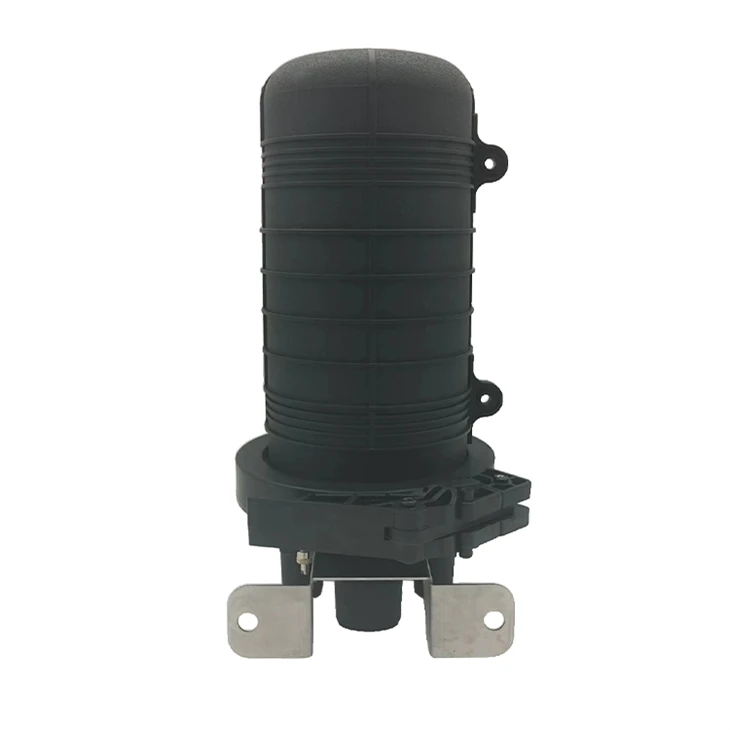

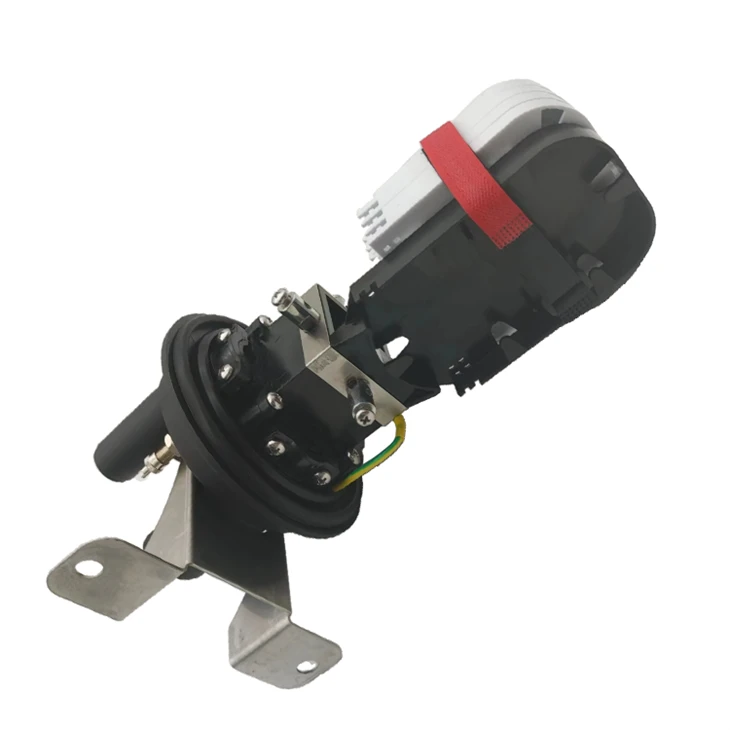

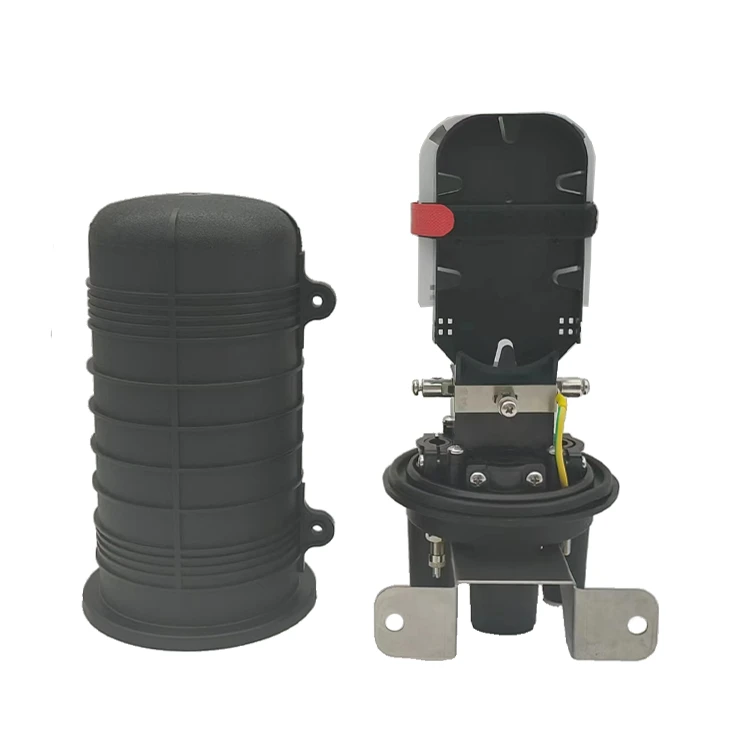

Dome-to-base design; fiber optic 48 core up to 4 pieces splice trays, hinge for access of any splice without disturbing others trays; Fast and reliable sealing performance, easy to package multiple times. With lightning protection grounding device, it can be applied in overhead, wall mounting or directly buried.
Specification
|
Model:
|
GDFI-006(AX-48C) | ||
|
Size:
With clamp biggest outer dia. |
305*188.8mm
|
Raw material
|
Dome,clamp： modified PP,
Base：Nylon +GF
Tray: ABS
Metal parts：Stainless steel |
|
Entry ports number
|
1 oval port,
3 round ports |
Available cable dia.
|
Oval port：available for 2 pcs, 6~12 mm cables
Round ports：Each available for 1pc 6-15.5mm cable |
|
Max. tray number
|
4 trays
|
Base sealing method
|
Heat-shrink
|
|
Tray capacity：
|
12F
|
Applications:
|
Aerial, directly buried, Wall/pole mounting
|
|
Max. closure splice capacity
|
48F
|
IP gradeI
|
68
|
Goodmind Electronics (Shenzhen) Co., Ltd. was established in 1992 with a registered capital of 18 million U.S. dollars. Its own factory is located in Shenzhen and has more than 1000 employees. It is a high-tech enterprise integrating R&D, production, sales and service , The company specializes in Antenna / Network Communication / Bluetooth / AV Accessories / Smart Home / Car Accessories professional manufacturing company. The factory is vertically integrated. The factory has plastic processing, metal stamping, zinc die casting, SMT , DIP and Assembly center. The company has strong financial strength, professional R&D team, excellented manufacturing equipment and lean manufacturing, and is dedicated to creating high-quality products for customers.

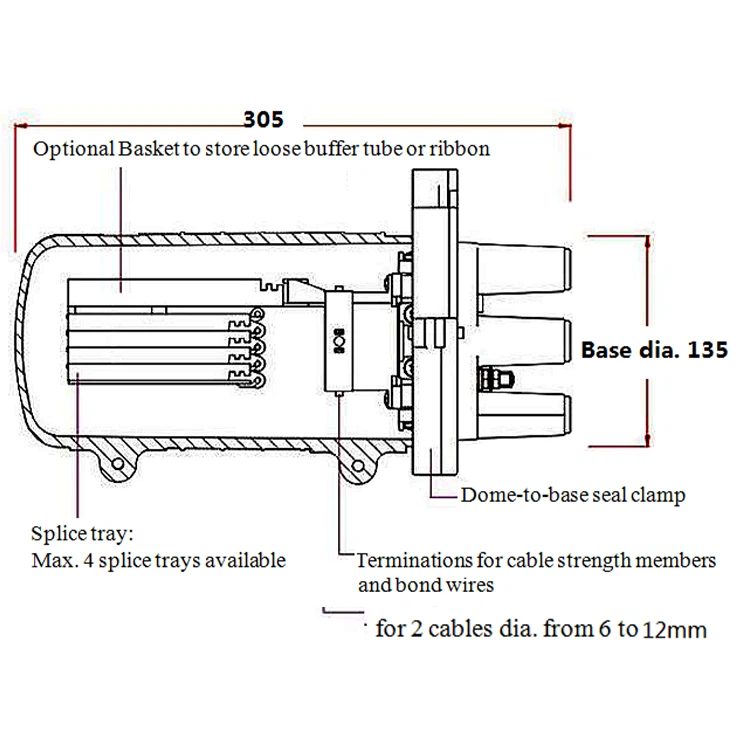

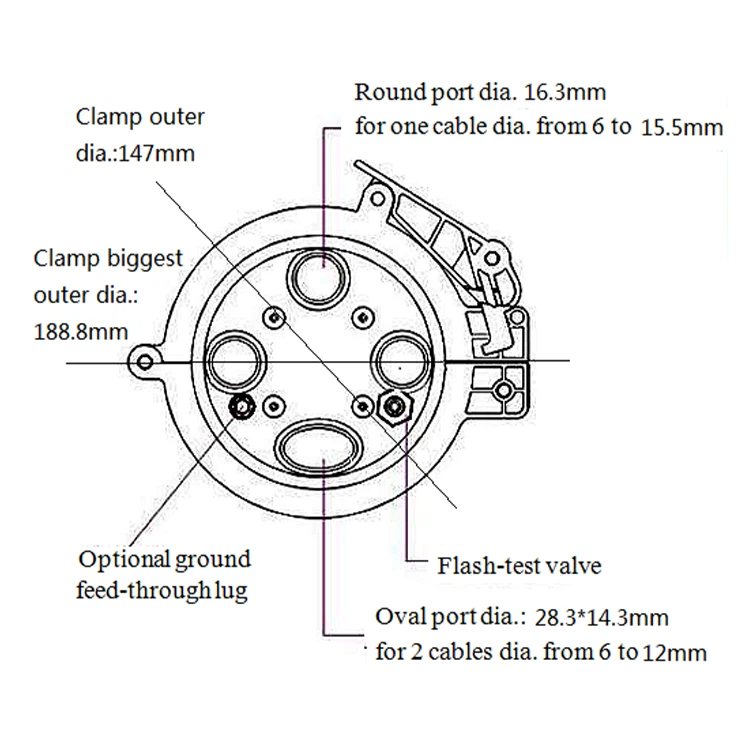

Outer Structure
Technical Parameter:
1. Working Temperature: -40 degrees centigrade~+65 degrees centigrade
2. Atmospheric Pressure: 62~106Kpa
3. Axial Tension: >1000N/1min
4. Flatten Resistance: 2000N/100 mm (1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV(DC)/1min, no arc over or breakdown
7. Temperature recycle: under -40℃~+65℃,with 60(+5)Kpa inner pressure, in 10cycles; Inner pressure shall decrease less than 5 Kpa when closure turn to normal temperature.
8. Durability：25 years
How are Fiber Optic 48 Core cables terminated or connected?
- Fusion splicing: Individual fibers within the cable are fused together using an electric arc, creating a permanent connection.
- Mechanical splicing: Fibers are aligned and held together using mechanical connectors, providing a temporary or semi-permanent connection.
- Connectorization: Fiber connectors are attached to the ends of the fibers, allowing for quick and easy connections to other equipment or cables.
A "48-core fiber optic" typically refers to a fiber optic cable with 48 individual strands or cores, each capable of carrying data independently. These cores are typically made of glass or plastic and are surrounded by a protective outer layer.
Fiber optic cables are used for high-speed data transmission over long distances, and they offer advantages such as high bandwidth, low signal loss, and immunity to electromagnetic interference. The number of cores in a fiber optic cable determines its capacity to carry data simultaneously.
A 48-core fiber optic cable can support high-capacity data transmission, making it suitable for various applications such as telecommunications networks, internet infrastructure, data centers, and other high-bandwidth applications. These cables are often used in scenarios where a large amount of data needs to be transmitted quickly and efficiently.
What is a 48-core fiber optic cable?
A 48-core fiber optic cable consists of 48 individual strands or cores within a single cable. Each core can carry data independently, allowing for high-capacity data transmission.
Where is a 48-core fiber optic cable used?
These cables are commonly used in telecommunications networks, data centers, internet infrastructure, and any application requiring high-speed and high-capacity data transmission.
How does a 48-core fiber optic cable differ from other fiber optic cables?
The main difference lies in the number of individual cores. A 48-core cable has 48 separate strands, while cables with fewer cores are available for less demanding applications.

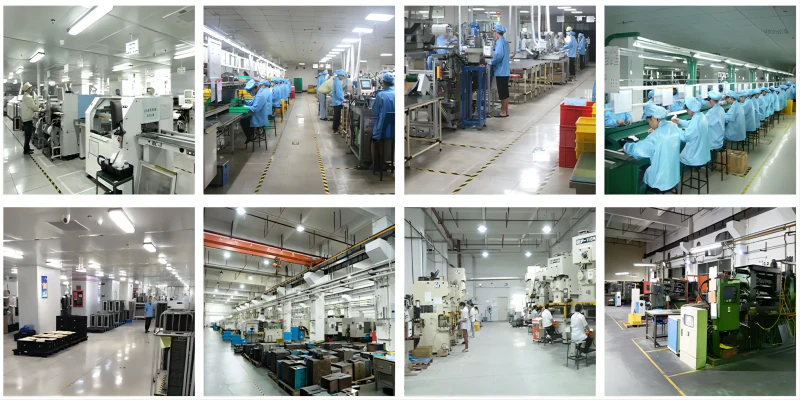

Our production workshop
Our certificate
FAQ
Q: What is the data transmission capacity of a 48-core fiber optic cable?
A: The data transmission capacity depends on the specific specifications of the cable, such as the type of fiber used and the overall design. Higher core counts generally offer greater capacity.
Q: Can a 48-core fiber optic cable be used for long-distance communication?
A: Yes, fiber optics are known for their ability to transmit data over long distances with minimal signal loss. However, the specific distance capabilities depend on factors like the type of fiber and the equipment used.
Q: How is a 48-core fiber optic cable terminated or connected?
A: Fiber optic cables are terminated with connectors that allow them to be connected to networking equipment. Common connector types include LC, SC, or MTP/MPO connectors.
Q: What are the maintenance considerations for a 48-core fiber optic cable?
A: Regular inspections, cleaning, and testing are essential for maintaining optimal performance. Any damaged or faulty components should be promptly replaced.
