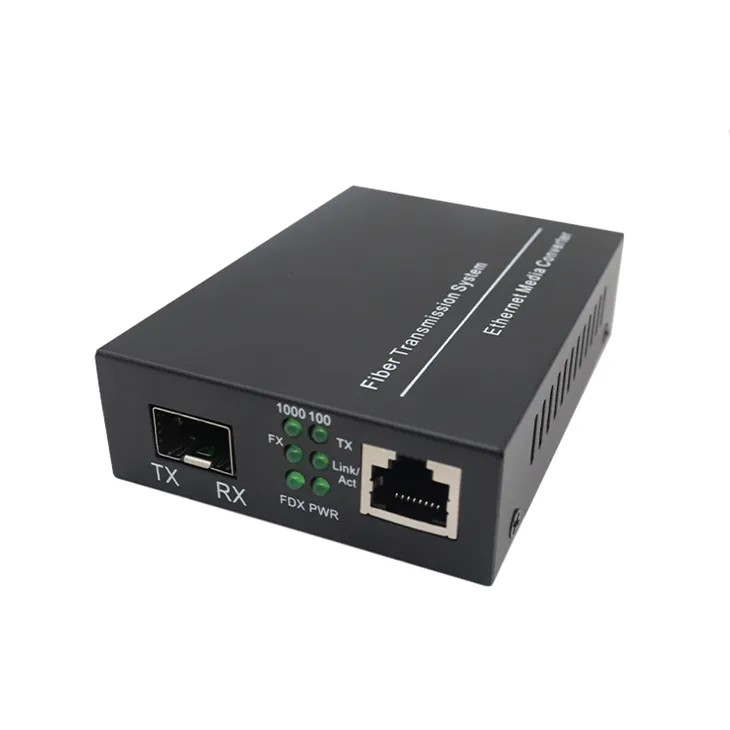

Fiber Media Converter

Describe

The 10/100/1000M Adaptive Fast Ethernet Optical Media Converter is an advanced solution for optical transmission over high-speed Ethernet networks. It can switch between twisted pair and fiber optic cables, bridging network segments across 10/100 Base-TX, 1000 Base-FX, and 1000Base-FX. This device is designed to support long-distance, high-speed Ethernet connections, offering seamless relay-free data transmission up to 100 km. With stable and reliable performance, it conforms to Ethernet standards and includes lightning protection. It is well-suited for a variety of industries requiring high-performance, broadband data networks, such as telecommunications, cable TV, railways, military, finance, aviation, shipping, energy, water management, and oilfields. It is an excellent solution for building broadband campus networks, cable TV systems, and intelligent FTTB/FTTH networks.

Feature

● In accordance with Ethernet standards EEE802.3,10/100Base-TX/1000Base-TX and 1000Base-FX.

● Supported Ports: LC for optical fiber; RJ45 for twisted pair.

● Auto-adaptation rate and full/half-duplex mode supported at twisted pairport.

● Auto MDI/MDIX supported without need of cableselection.

● Up to 6 LEDs for status indication of optical power port and UTP port.

● External and built-in DC power supplies provided.

● Up to 1024 MAC addresses supported.

● 512 kb data storage integrated, and 802.1X original MAC address authentication supported.

● Conflicting frames detection in half-duplex and flow control in full duplex supported.

● LFP function can selectable before order.

Specification
