Description

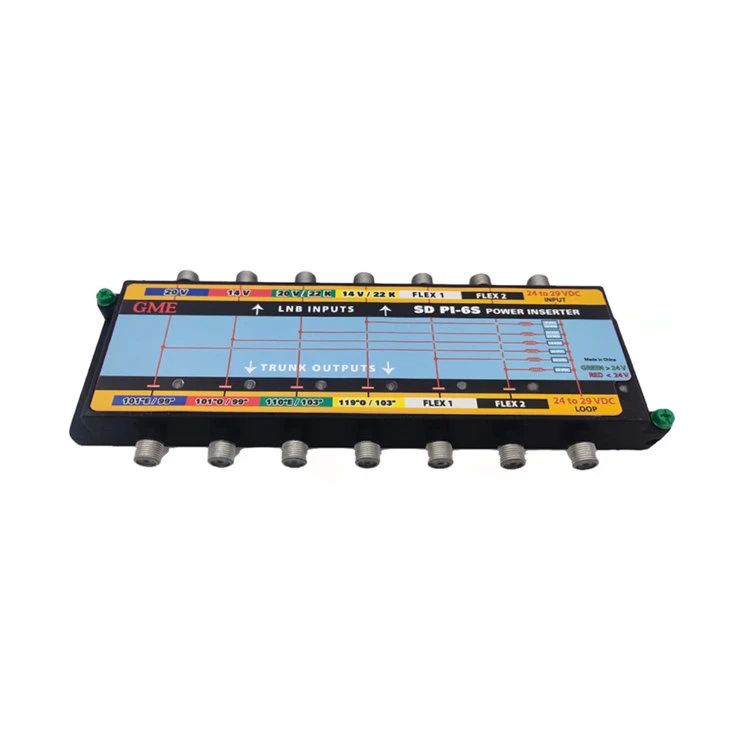

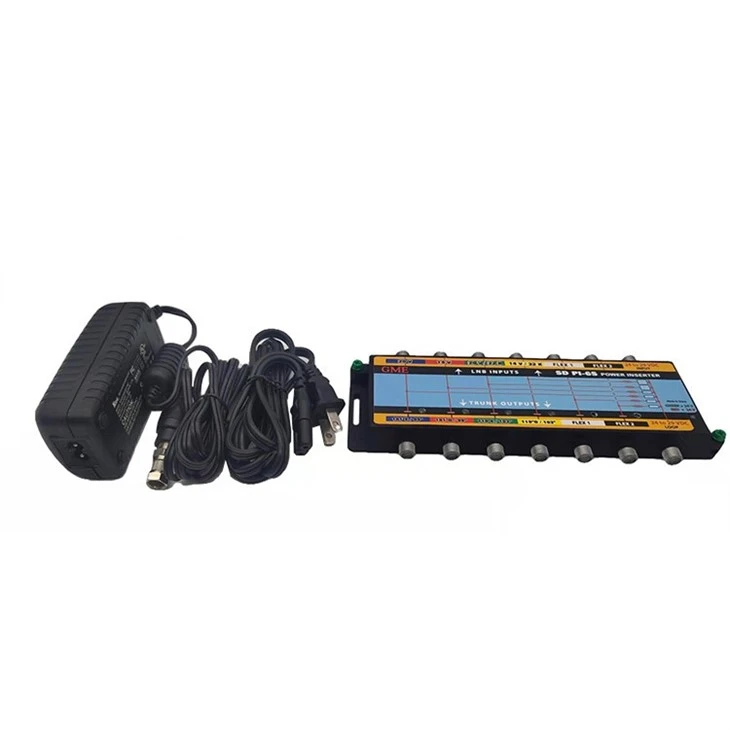

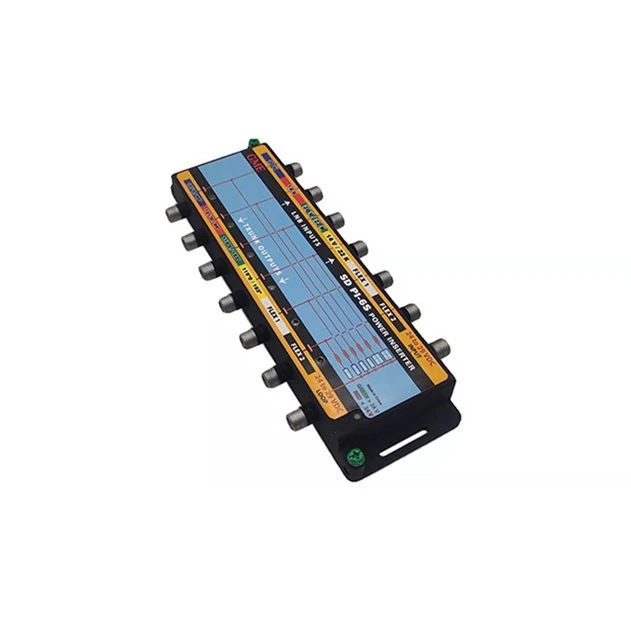

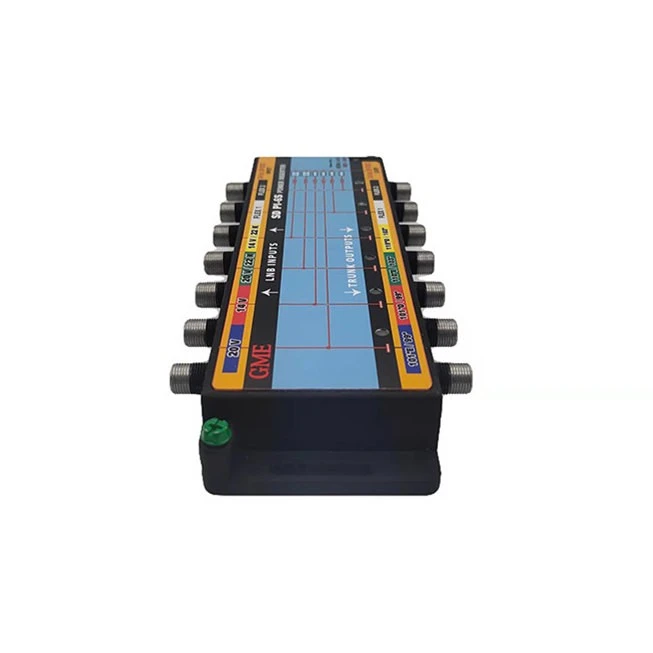

DirecTV Satellite Power Inserter Polarity Locker

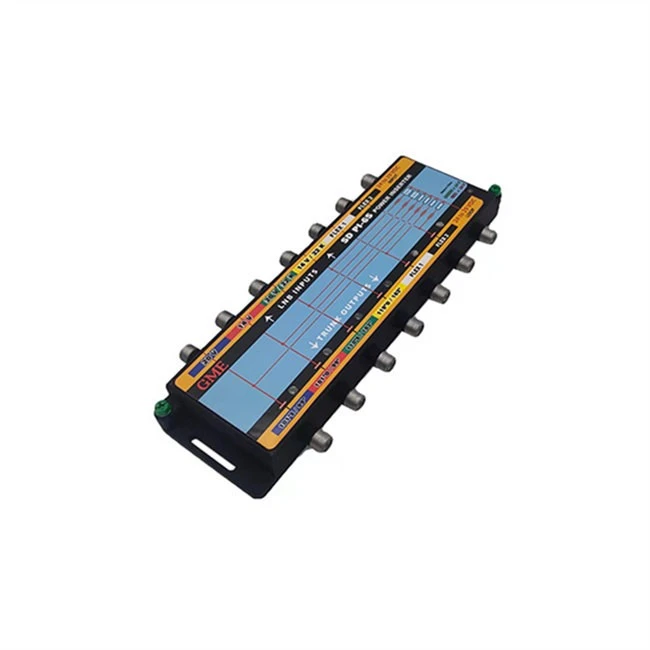

Model SDPI6S powers a DIRECTV SL5 LNB, polarity locks the four dish outputs and provides two 20 V outputs to power the 95º LNB on the DTV66E dish and a possible future polarity. Line powered amplifiers may be powered by the power inserter. A total of two amps of DC is available from the short circuit protected power transformer.
Situation
The signals from a DIRECTV® (4) polarity SLSP-F SlimLine® dish with SL5 LNB, DTV66E 95º dish and a possible 6th polarity are required for multiple switches.
Solution
Model SD PI-6S powers a DIRECTV® SL5 LNB, polarity locks the four dish outputs and provides 20 V FLEX1 and 13 V on FLEX2 inputs to power the 95º LNB on the DTV66E dish or other LNBs.
Features
◆ DIRECTV SL5 Ka/Ku bandwidth 250 to 2150 MHz
◆ Powered by PI-29 or PS242000A power adaptors
◆ Powers SL5, SL3 and Worldview LNBs
◆ Compact case: 1 inch SCTE Indoor F Spacing
◆ Voltage Level Meter built in RED / GREEN
Specification
|
Place of Origin: Guangdong, China |
|||
|
Model Number: GDINS-001 (SD PI-6S) |
|||
|
ITEM |
TYPICAL |
Q.C.LIMIT |
TEST CONDITIONS |
|
FREQ. RANGE |
|
|
250-2150 MHz |
|
INSERTION LOSS |
|||
|
|
-1.0 dB |
-1.5 dB MAX |
250-2150 MHz |
|
ISOLATION |
|||
|
BETWEEN PORTS |
-40dB |
-35dB MIN |
250-2150 MHz |
|
RETURN LOSS |
|
|
|
|
INPUT/OUTPUT |
-12dB |
-10dB MIN |
250-2150 MHz |
|
DC POWER PROVIDED INPUTS |
|||
|
PORT#1 (20V 101°& 99°) |
|
20±0.5 VDC |
@50-350 mA |
|
PORT#2 (14V 101°& 99°) |
|
13.5±0.5 VDC |
@50-350 mA |
|
PORT#3 (22KHz & 20V 110°& 103°) |
|
20±0.5 VDC (+22KHz) |
@50-350 mA |
|
PORT#4 (22KHz & 14V 119°& 103°) |
|
13.5±0.5 VDC (+22KHz) |
@50-350 mA |
|
PORT#5 (FLEX PORT1) |
|
20±0.5VDC |
@50-350 mA |
|
PORT#6 (FLEX PORT2) |
|
20±0.5VDC |
@50-350 mA |
|
22KHz SIGNAL CHARACTERISTICS |
|||
|
FREQ |
|
22±4KHz |
|
|
DUTY CYCLE |
|
±50﹪ |
＜24.0 VDC |
|
LEVEL |
|
400mVp-p MIN |
＞24.0 VDC |
|
POWER LED COLOR |
|
RED |
|
|
CORRESPONDING TO: |
|
GREEN |
|
|
POWER SWITCHING |
|
24V-29VDC |
POWER SWITCHING |
|
INPUT |
|
100-240VAC / 50/60Hz |
ALL PORTS |
|
OUTPUT |
|
24VDC/2.08A |
ALL PORTS |
|
IMPEDANCE |
|
75 OHM |
(6) SCTE INDOOR F |
|
CONNECTOR |
|
"F"TYPE FEMALE |
|
|
NUMBER OF INPUT/OUTPUT PORTS |
|
|
|
Company Profile
Goodmind Electronics (Shenzhen) Co., Ltd. was established in 1992 with a registered capital of 18 million U.S. dollars. Its own factory is located in Shenzhen and has more than 1000 employees. It is a high-tech enterprise integrating R&D, production, sales and service , The company specializes in Antenna / Network Communication / Bluetooth / AV Accessories / Smart Home / Car Accessories professional manufacturing company. The factory is vertically integrated. The factory has plastic processing, metal stamping, zinc die casting, SMT , DIP and Assembly center. The company has strong financial strength, professional R&D team, excellented manufacturing equipment and lean manufacturing, and is dedicated to creating high-quality products for customers.
How does a Satellite Power Inserter work?
The Satellite Power Inserter is connected inline between the satellite receiver and the satellite dish. It receives power from the satellite receiver through the coaxial cable and then sends this power to the LNB through the same cable. This power is essential for the LNB to amplify and convert the received satellite signals into a usable form for the receiver.
What is the purpose of a Satellite Power Inserter?
The primary purpose of a Satellite Power Inserter is to provide power to the LNB, which is necessary for it to operate. Without the power supplied by the inserter, the LNB would not be able to amplify the weak signals received from the satellite dish.
How do I install a Satellite Power Inserter?
Installation of a Satellite Power Inserter is typically straightforward. First, disconnect the coaxial cable from the satellite receiver. Then, connect one end of the coaxial cable to the input port of the inserter and the other end to the output port of the inserter labeled "to LNB" or similar. Finally, connect the power inserter's power supply to a power outlet and ensure that the power inserter is receiving power.
