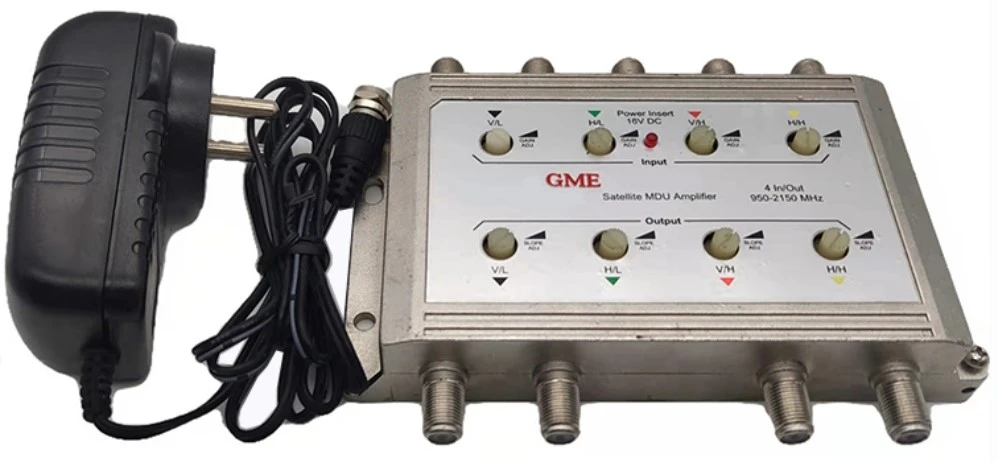

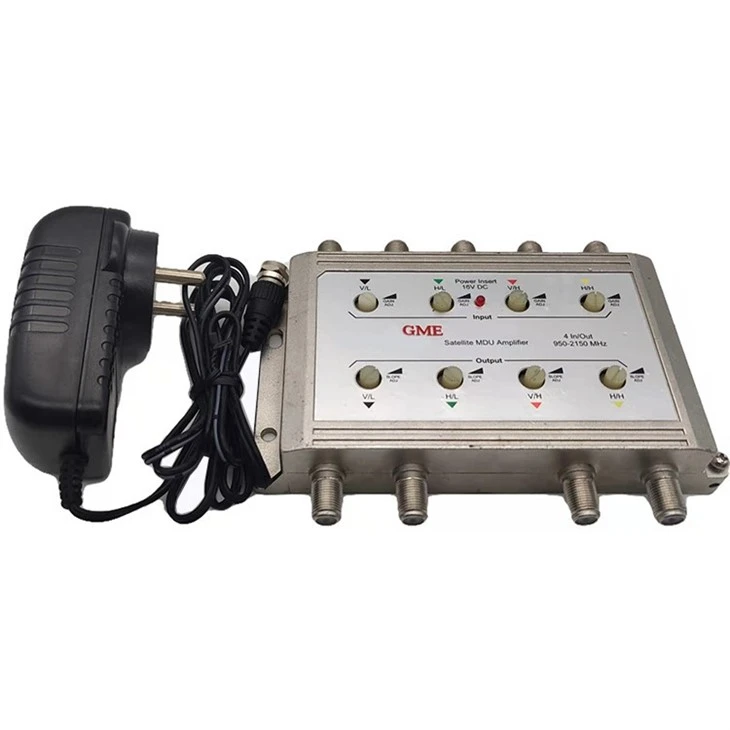

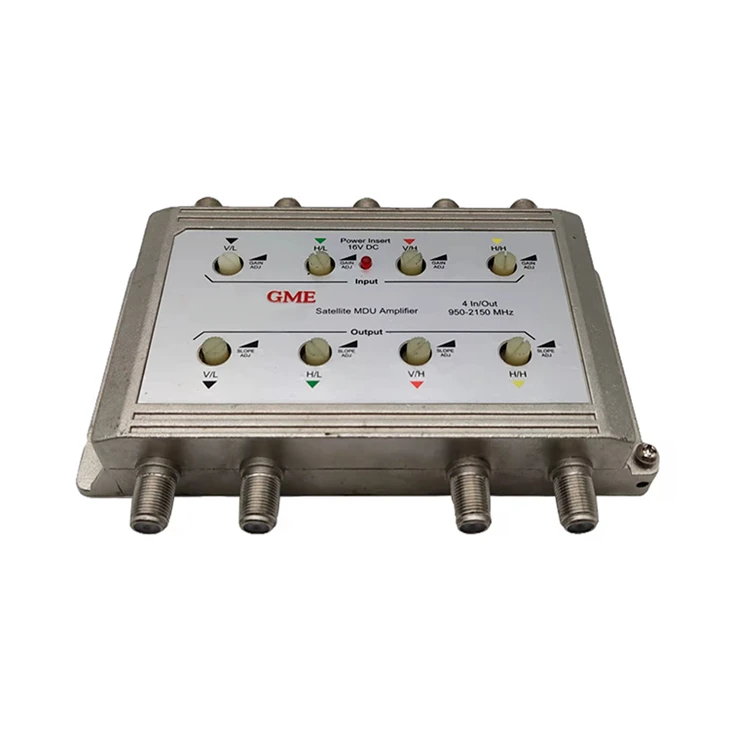

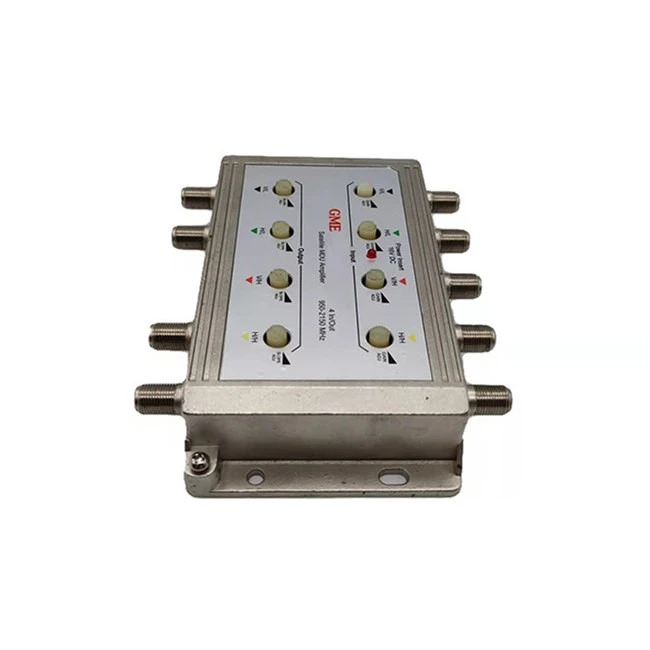

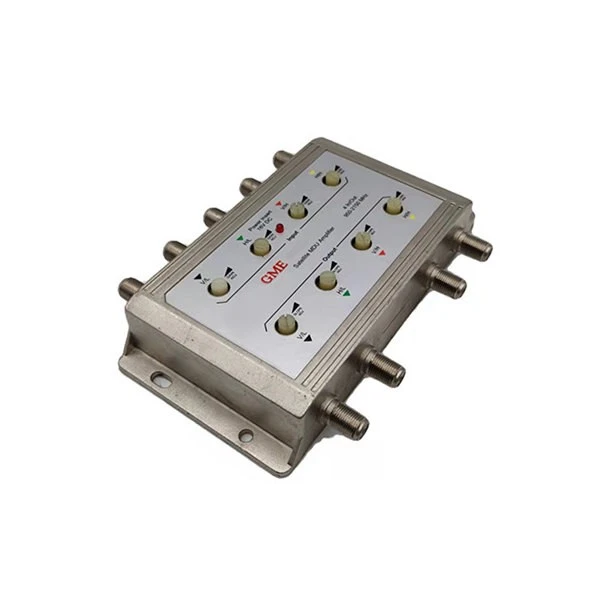

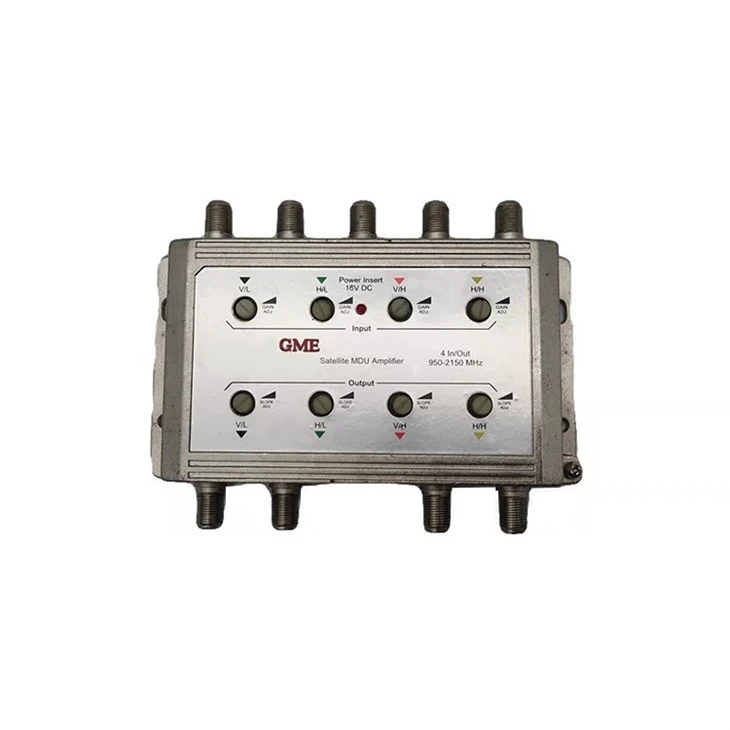

Satellite MDU Amplifier

Satellite MDU Amplifier

Details
The Satellite MDU Amplifier stands as a purpose-built apparatus meticulously crafted to enhance satellite signals within the confines of a multi-dwelling unit (MDU) environment. Functioning as a pivotal signal amplifier, its primary objective is to guarantee that denizens within the edifice can seamlessly tap into a lucid signal for their satellite TV subscriptions. Positioned ingeniously within the intricate web of the building's wiring system, the Satellite MDU Amplifier exhibits its prowess by distributing an intensified signal across various satellite receivers dispersed throughout the entire structure.
Category
Amplifier
Share to
Send Inquiry
Description
Technical Parameters

Description

The Satellite MDU Amplifier stands as a purpose-built apparatus meticulously crafted to enhance satellite signals within the confines of a multi-dwelling unit (MDU) environment. Functioning as a pivotal signal amplifier, its primary objective is to guarantee that denizens within the edifice can seamlessly tap into a lucid signal for their satellite TV subscriptions. Positioned ingeniously within the intricate web of the building's wiring system, the Satellite MDU Amplifier exhibits its prowess by distributing an intensified signal across various satellite receivers dispersed throughout the entire structure.

This sophisticated device proves particularly instrumental in the realm of towering edifices harboring an extensive array of residential units. In such architectural landscapes, where the sheer density of units poses a potential challenge, the Satellite MDU Amplifier takes center stage. Its deployment serves to mitigate signal interference, creating a conducive environment for an enhanced reception experience for all occupants.

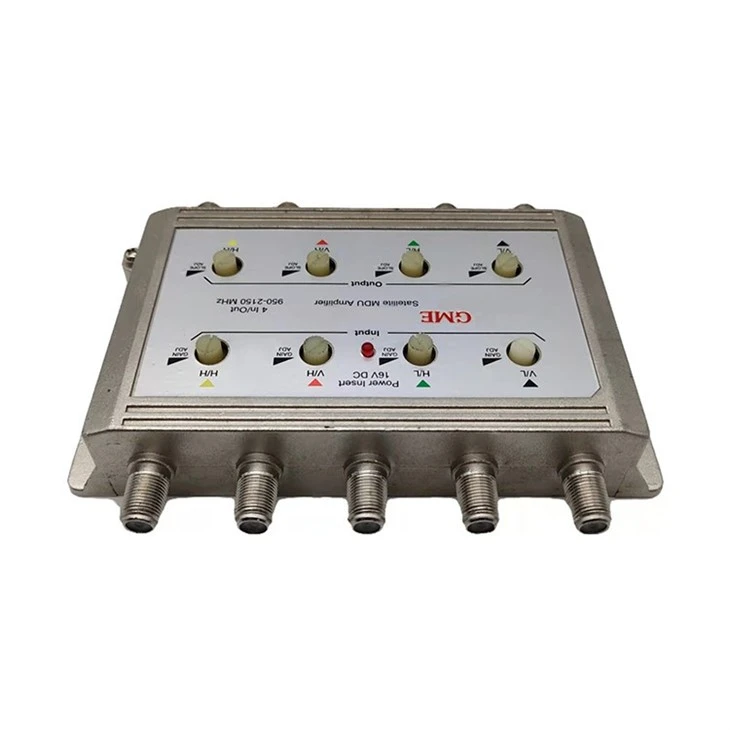

Satellite MDU Amplifier

This technology is not just a signal booster; it transcends conventional expectations by fostering a harmonious coexistence of multiple satellite receivers. By doing so, it effectively transforms the MDU into a haven of uninterrupted connectivity and superior signal quality. The strategic integration of the Satellite MDU Amplifier transforms the challenges posed by high-rise structures into opportunities for an optimized viewing experience.

As the architectural landscape evolves, the demand for seamless satellite TV services within MDUs grows exponentially. The Satellite MDU Amplifier, with its adept signal enhancement capabilities, emerges as a beacon of technological ingenuity, ensuring that residents within multi-dwelling units are not just connected but experience a level of signal clarity and reception quality that elevates their entertainment pursuits to new heights. In essence, it is not merely a device; it is the linchpin that transforms a building into a hub of uninterrupted satellite connectivity.

product-820-727

Specification

Place of Origin: Guangdong, China

Model Number: GDAMP-016 (4430)

ITEM

TYPICAL

Q.C LIMIT

TEST CONDITIONS

No.of satellite inputs



4



No.of satellite outputs



4



Frequency range





950-2150MHz

Gain

+30dB

+28dB Min

950-2150MHz

Gain control adj



0-20dB

950-2150MHz

Slope control adj



0-10dB

950-2150MHz

Noise figure



8dB max

With slope min

Operating input level



-65dBm to -25dBm



Isolation

Input to input

-35dB

-30dB Min

950-1450MHz



-30dB

-25dB Min

1451-2150MHz

Output to output

-35dB

-30dB Min

950-1450MHz



-30dB

-25dB Min

1451-2150MHz

Return loss

Satellite input

-12dB

-10dB Min

950-1450MHz



-10dB

-8dB Min

1451-2150MHz

Satellite output

-10dB

-8dB Min

950-1450MHz



-18dB

-7dB Min

1451-2150MHz

Output capability

1dB compression



-7dBm min

12 transponders inputs

@ Gain control: Max. Gain





each -34dBm typ.

1dB compression



-13dBm min

12 transponders inputs

@ Gain control: Min. Gain





each -16dBm typ.

Pix Forzen





12 transponders inputs

@ Gain control: Max. Gain



-6.7dBm min

each -7.6dBm typ.

Pix Forzen





12 transponders inputs

@ Gain control: Min. Gain



-9.0dBm min

each -7.6dBm typ

Composite Triple Beat



-37dBm max.

Test Frequencies

@ f2+f1



@ 2f2-f1: -60dB

f1: 950MHz





At output

f2: 956MHz

Current to LNB

Supply voltage to LNB



350mA Min



Power adaptor



16.5V-19.0VDC

100-240VAC input/







18VDC 1A output

Connector



"F" Type female

All ports

Impedance



75 ohms

All ports

Mounting





Mountable with screws

Grounding





Terminal for grounding to be available
