Description

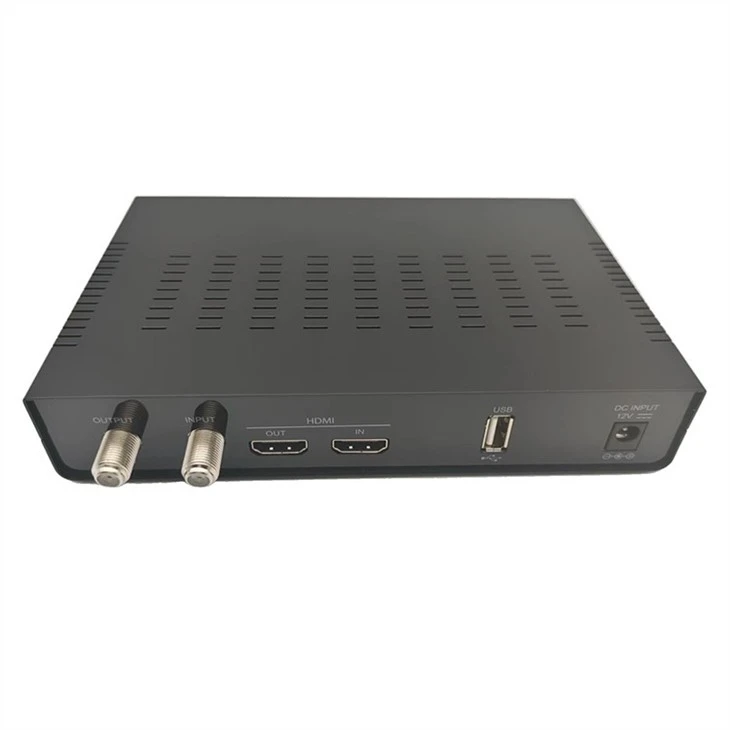

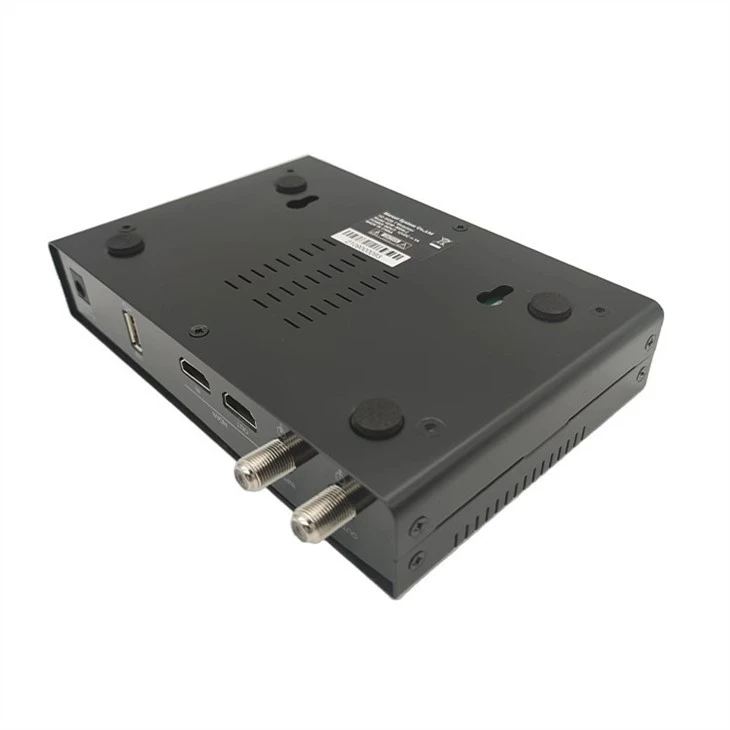

This MPEG-2 HD encoder modulator is designed for particular MPEG-2 application markets. HD 1CH ISDB-T Modulator With built-in MPEG-2 Full HD encoder, this encoder modulator is suitable for different applications such as hotels, schools, motels and MDUs.
Specification
|
Place of Origin: Guangdong, China |
|||
|
Model Number: GDM-024 (GDM-860AL2) |
|||
|
ITEM |
TYPICAL |
Q.C LIMIT |
TEST CONDITIONS |
|
1. Encoding Section |
|||
|
Video |
|
|
|
|
Encoding |
MPEG2 |
|
MPEG-2 MP@HL |
|
Input |
HDMI |
|
|
|
Bit Rate |
|
18Mbps Max |
|
|
Resolution |
|
1080p25/30 Max |
Input: 1080p |
|
Audio |
|
|
|
|
Encoding |
MPEG2/AAC/AC3 |
|
|
|
Sample Rate |
|
48KHz |
|
|
Bit Rate |
|
128kbps |
|
|
2. ISDB-T Modulator |
|||
|
Standard |
|
|
ARIB STD-B31 |
|
FFT mode |
2K,4K,8K |
|
|
|
Bandwidth |
6M |
|
|
|
Constellation |
QPSK, 16QAM, 64QAM |
|
|
|
Guard Interval |
1/4, 1/8, 1/16, 1/32 |
|
|
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
|
|
|
MER |
≥30dB |
|
|
|
RF Frequency |
93.14 – 803.14MHz |
|
|
|
INSERTION LOSS |
-3dB |
-4.8dB Max |
RF IN TO RF OUT |
|
RF Output Level |
90dBμV |
85dBμV Min |
|
|
RF Level Adj |
|
0dB ~ -26dB |
|
|
Attenuation step |
|
1dB per step |
|
|
3. System |
|||
|
Local Interface |
LCD + control buttons |
|
|
|
HDMI OUT |
|
HDMI PASS THROUGH |
|
|
USB |
|
S/W update |
|
|
4. General |
|||
|
Power supply |
|
AC Input: 100V ~240V 50/60Hz |
|
|
Operation Temperature |
|
5°C- 40°C |
|
|
Relative Humidity |
|
80% @30°C |
|
|
Dimensions |
|
117*114*32mm |
|
|
Weight |
|
0.5Kg |
|
