MOCA 2.5 Coax

FEATURES

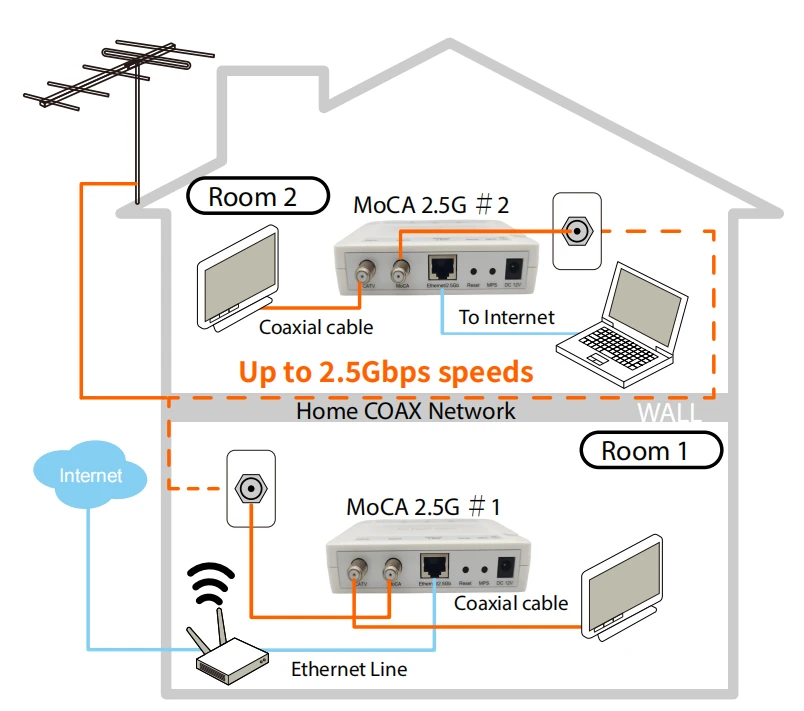

• MoCA (Multimedia over Coax Alliance) Use existing coaxial cable (Co-exists with cable, terrestrial, satellite signal)
• The high-speed transfer rates of 2500Mbps even make it possible to transmit video in 4K quality.
• Operating frequency D-Band( 1125~1675MHz), Up to 16 MoCA-enable device can be connected as same time.

SPECIFICATIONS

SYSTEM

• Standard :MoCA 2.5G:Actual data speeds: Up to 2.5 Gbps.2.5Gbps by default; 3Gbps enhancement mode.Backward-compatible with MoCA 2.0,1.1, and 1.0
• Transmission speeds：Ethernet 10/100/1000/2500(Mbps)
• Modulation Carrier：OFDM 1024 QAM, TDD
• Channel bandwidth：5X100 MHz
• CATV Output: Operating frequency range: 54MHz-1002MHz Networking Protocols :....2.5GBASE-T(IEEE 802.3bz, NBASE-T)
• Frequency Band: 400~1675MHz

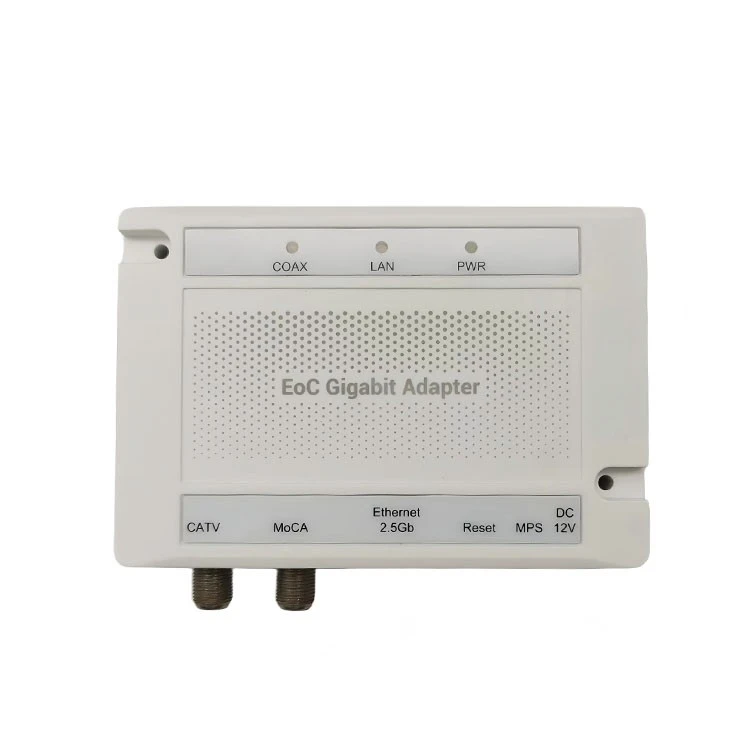

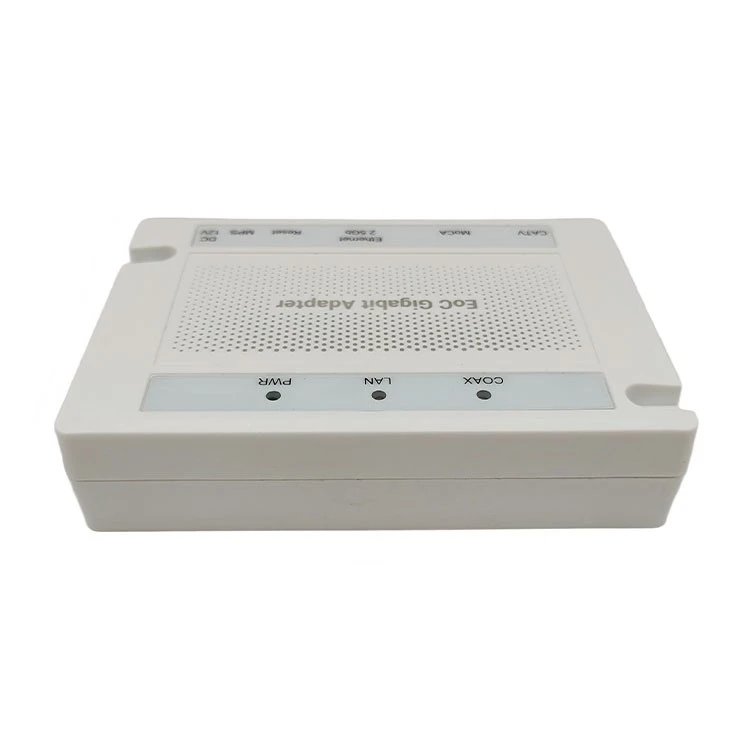

LED Indicators and Buttom

• LED Indicators : Power On/Blinking quick, slow_Green Ethernet link On/Off Coax On/Off
• Button control : MoCA Protected Setup

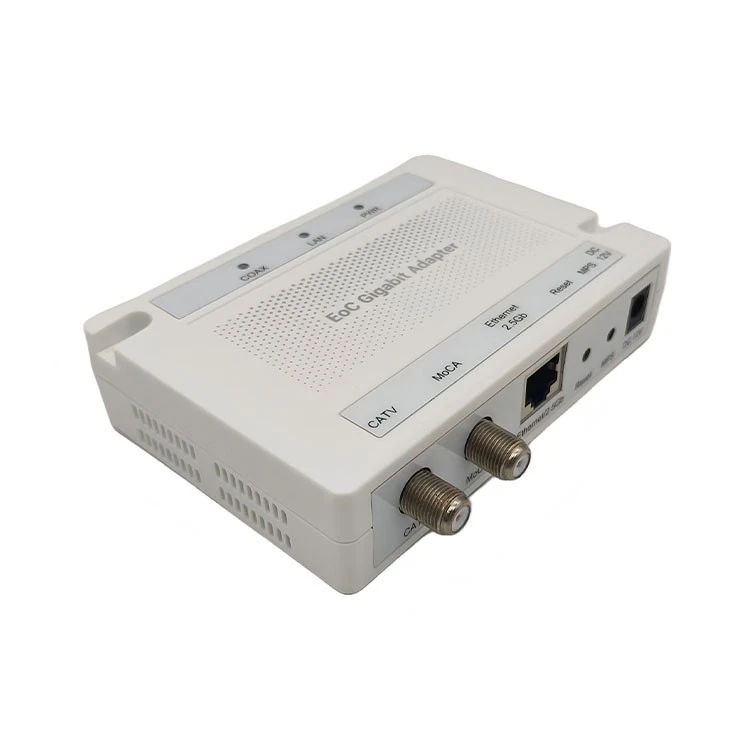

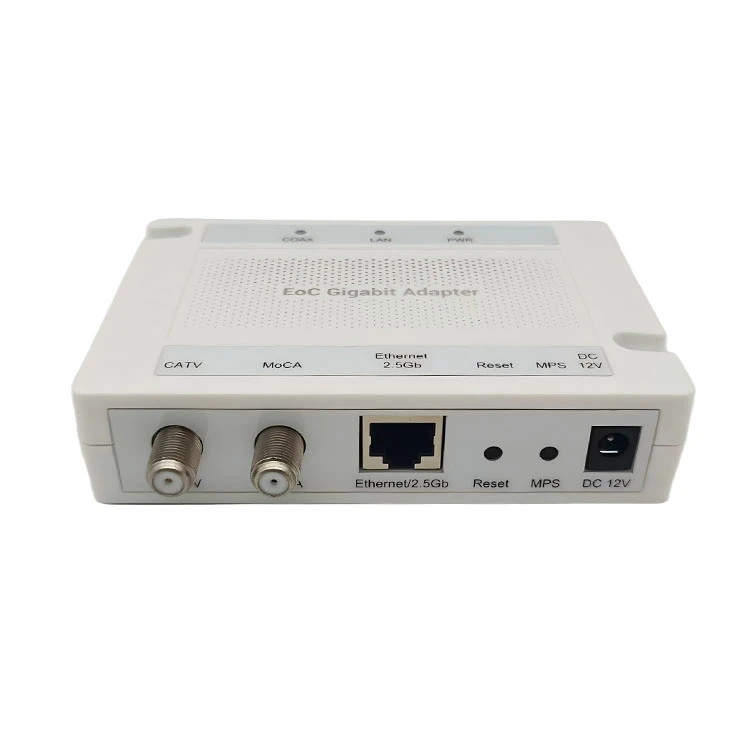

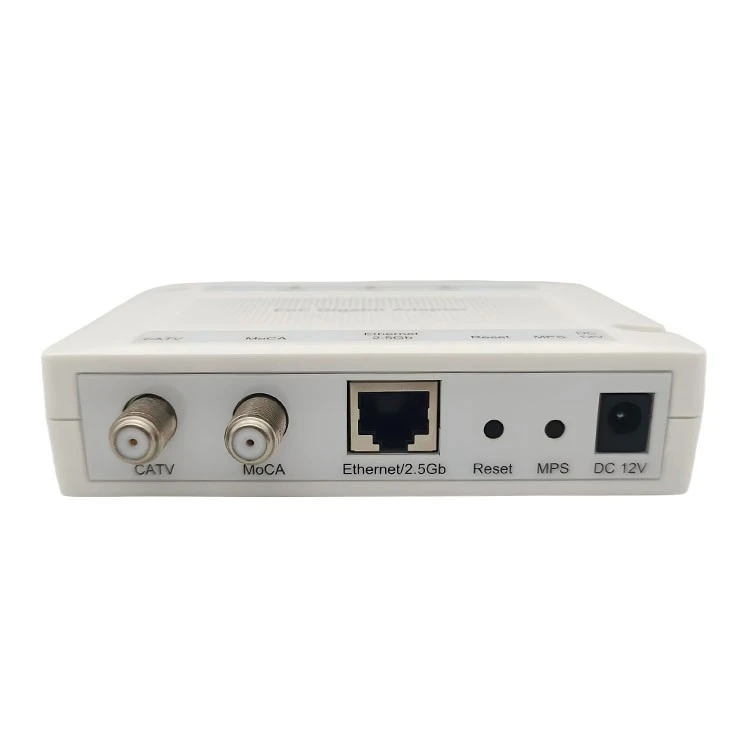

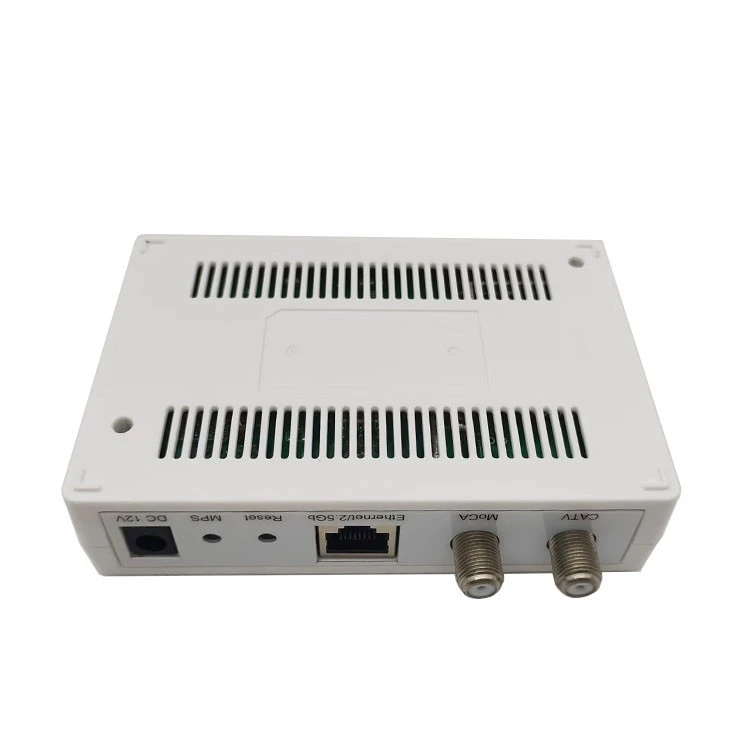

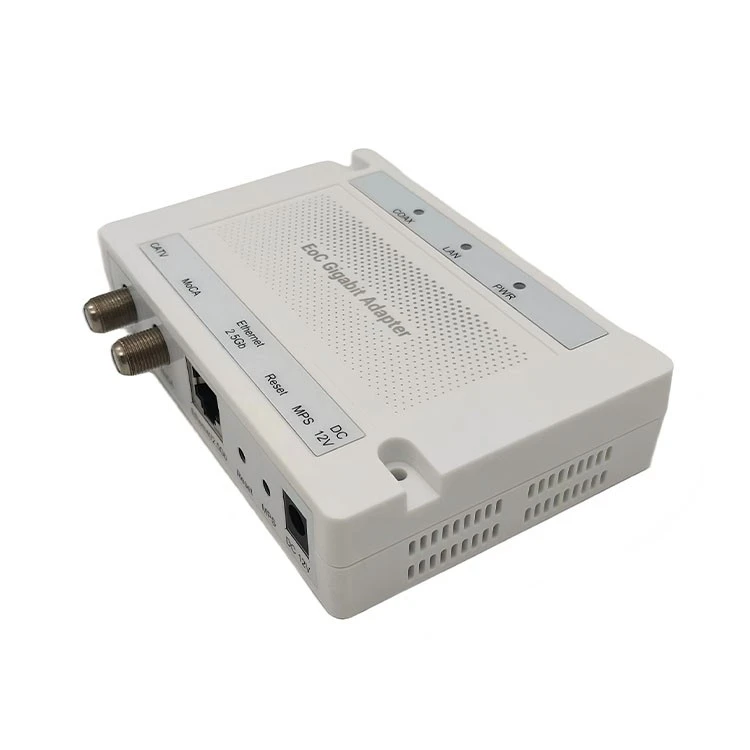

Connectors

• MoCA Port : F-female, 75 ohms
• CATV Port : F-female, 75 ohms
• LAN Connector : RJ45
• DC : DC Jack

 General

• Power Supply : 12 VDC
• Dimensions : 121x80x28mm
• Environmental for operating :

    Temperature: 5°C- 40°C

     Relative Humidity: 80% @ 30°C
