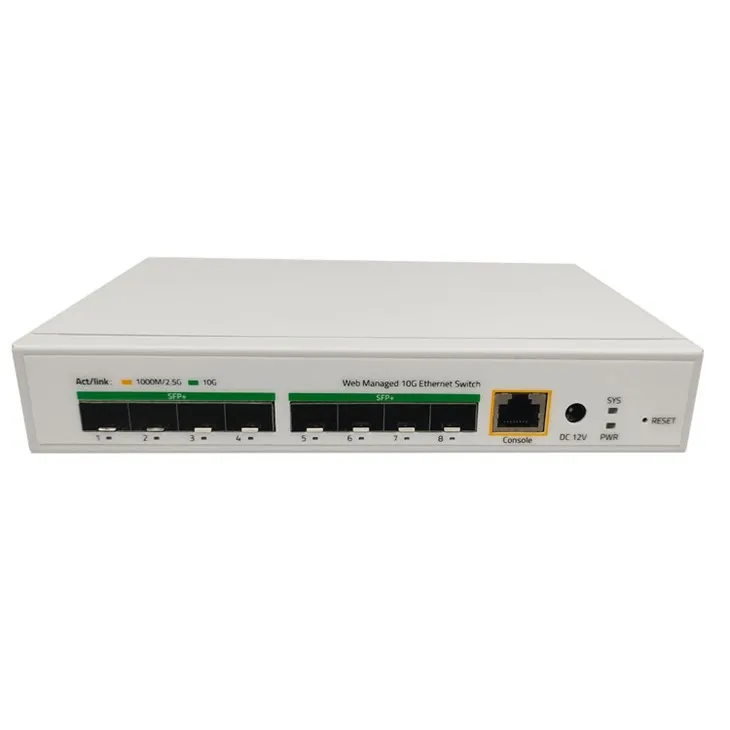

Product Overview
The GD8XP-SDC is our proprietary Layer 3 10G managed switch, equipped with 8 * 10Gbps SFP+ fiber ports and 1 console port. The HC8XP-SDC offers comprehensive security and QoS policies, as well as a wide range of VLAN features. It is user-friendly in terms of management and maintenance, making it an ideal solution for enterprise networking and access needs in environments such as residential communities, hotels, office networks, and campus networks.
Features
● Backwards compatible with 1000M/2.5Gbps transmission rate;
● 10Gbps SFP+ optical module, supports SR/LR/LRM/ER/ZR and other models;
● Layer3 static and dynamic routing protocol
● Two aggregation modes, static aggregation and dynamic aggregation (LACP), effectively increase link bandwidth, improve link
reliability, and can also achieve load balancing and link backup;
● Flexible and convenient management and maintenance, supporting various management modes, such as Console, Telnet andSSH;
● WEB/CLI/ SNMP management
Hardware Specifications
| Attributes | GD8XP-SDC | ||||
| Protocol | IEEE 802.3,802.3az,802.3ae,802.3x,802.3ad,802.1x,802.1Q,802.1p,802.1d,802.1w | ||||

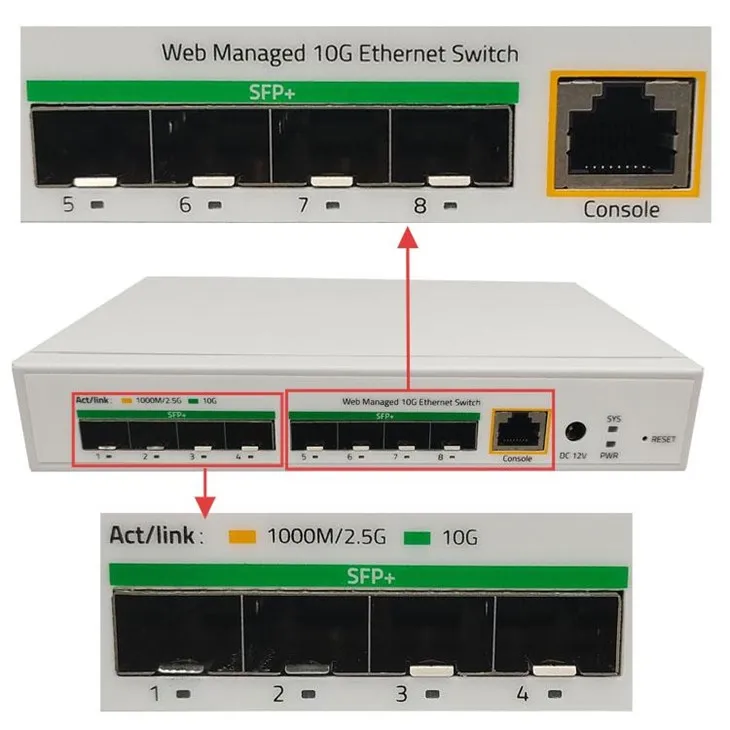

| Ethernet Port | 8* 1G/2.5G/10G Base-X SFP+ port | ||||
| Console Ports | 1* RJ45 | ||||
| Chipset | RTL9303 | ||||
| Switching Capacity | 160Gbps | ||||
| Forwarding Rate | 119.05Mbps | ||||
| MAC Address | 16K | ||||
| Jumbo Frame | 12K Byte | ||||
| Packet Buffer | 12Mbit | ||||
| LED | PWR, LINK/ACT, SYS | ||||
| Flash | 32MB | ||||
| DDR Memory | 512MB | ||||
| Power Supply | DC 12V =1.5A | ||||
| Power Consumption | ≤20W | ||||
| Dimensions | 207× 136 ×35mm | ||||
| Working Temperature | -10℃ ~ 50℃ | ||||
| Storage Temperature | -40℃ ~ 70℃ | ||||
| Working Humidity： | 10~90% Non-condensing | ||||
| Storage Humidity | 5~90% Non-condensing |
