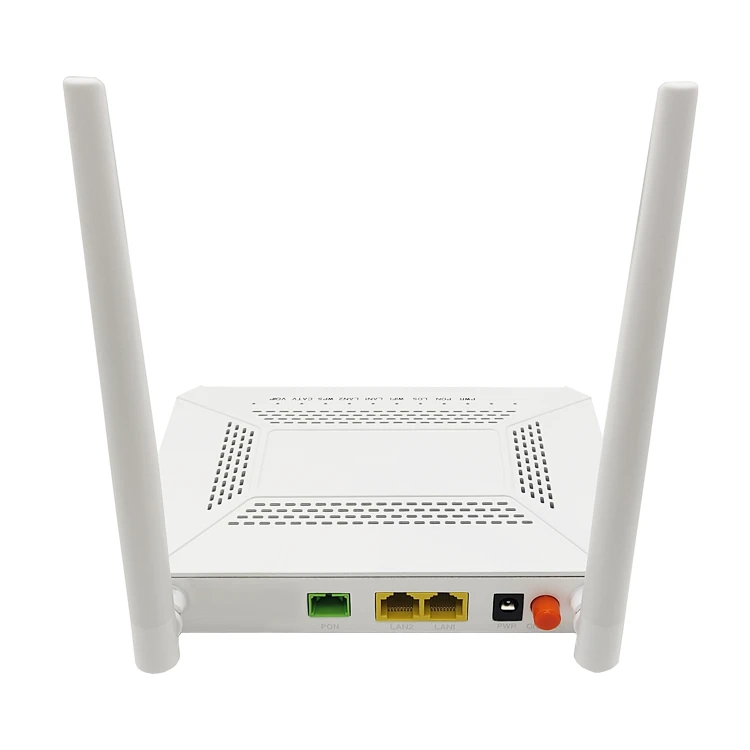

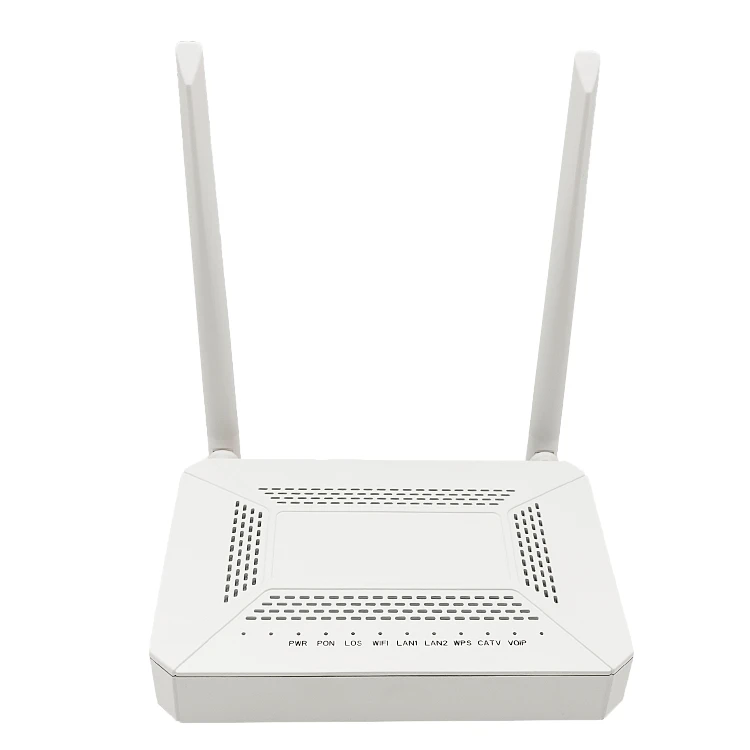

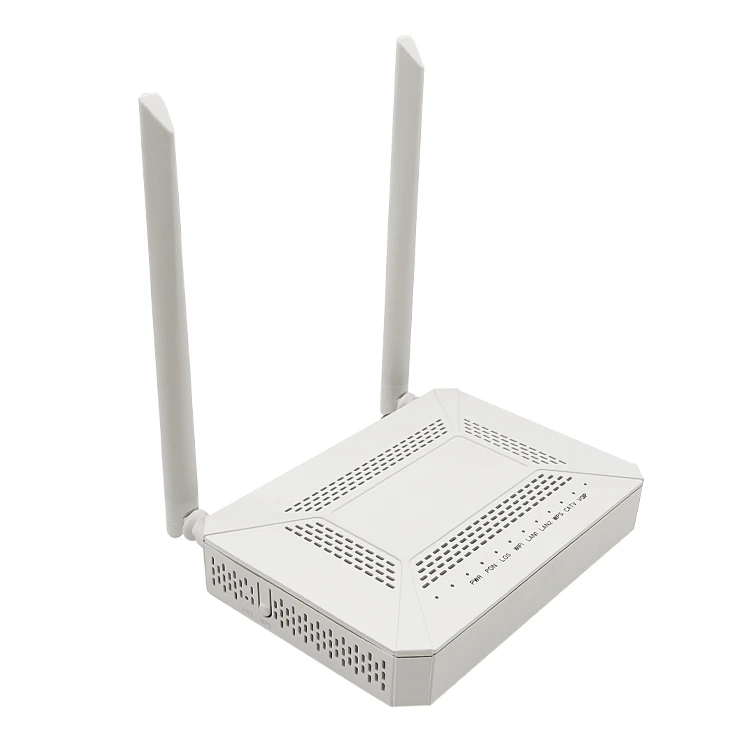

The GPU 6116 is a high-performance GPON ONU with built-in Wi-Fi routing, offering:
- Ultra-fast 1Gbps LAN + 100Mbps port for flexible connectivity
- Stable 2.4GHz Wi-Fi for seamless wireless coverage
- ISP-optimized for Internet + IPTV streaming
A top choice for telecom operators delivering fiber-to-the-home (FTTH) services!
Technical Parameter
| User interface |
1 *10/100/1000M RJ45 1*10/100M RJ45 2.4G WiFi |
| PON |
EPON&GPON mode adaptive Interface Type: SC-UPC/SC-APC Network coverage radius: 20KM
GPON: upstream 1.25Gbps /downstream 2.5Gbps Optical receive power: -7dBm~-28dBm Continuous light power: 0.5dBm~+5dBm
EPON: upstream 1.25Gbps /downstream 1.25Gbps Optical receive power: -7~-27dBm Continuous light power: 0dBm~4dBm |
| Ethernet |
Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance |
| Size | 130mm(L) *85mm(W) *30mm(H) |
| Environment |
Operating temperature: 0°C～60℃ Operating humidity: 10%～85% non-condensing Storage temperature: -40℃～80℃ Storage humidity: 5%～95% non-condensing |
| Power supply |
12V/1A DC power interface size: 2.1mm/5.5mm |
| Power Consumption | <8W |
| Management | WEB/TELNET/TR069/OMCI/OAM |
