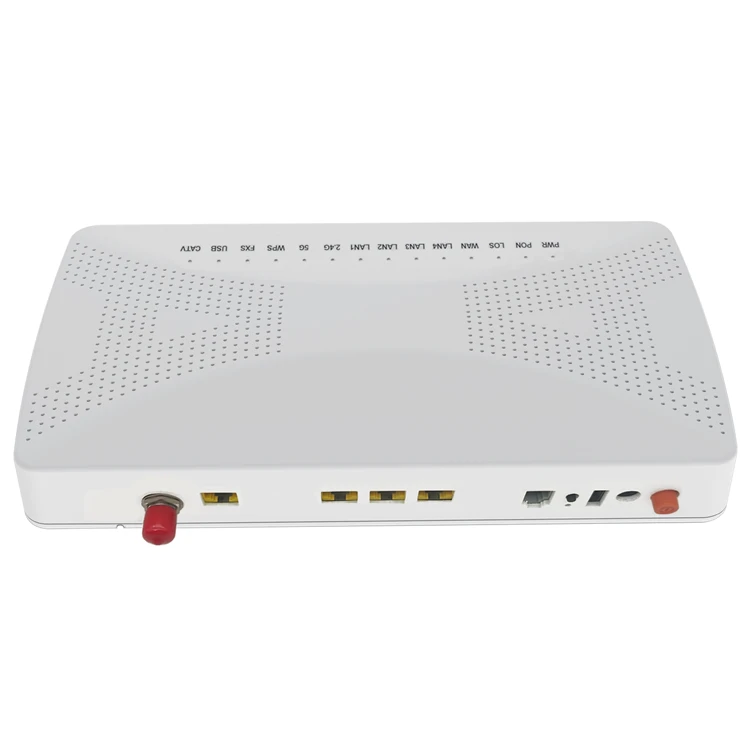

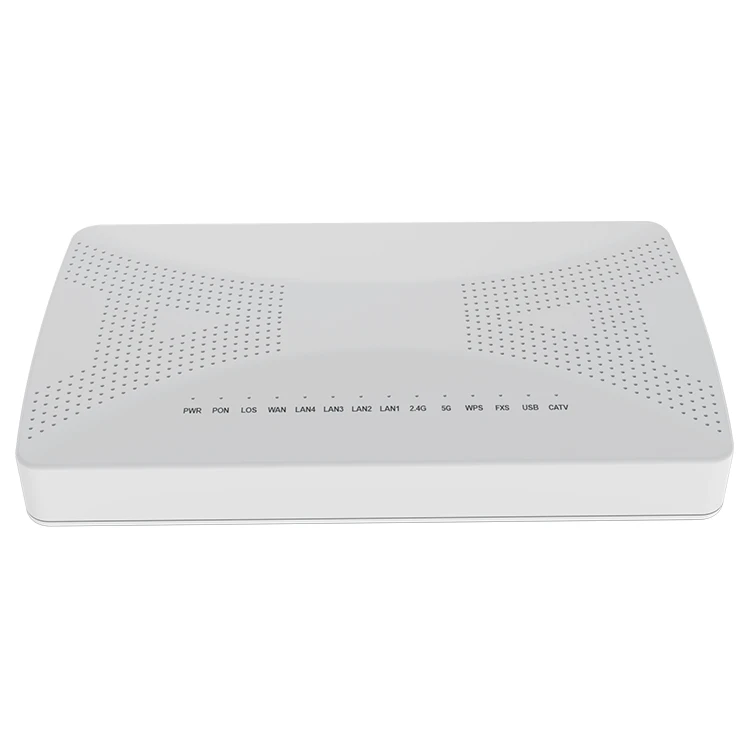

This ONU is designed for FTTH. It supports XPON dual-mode technology (EPON and GPON),With WiFi speeds up to 3000Mbps, it also supports IEEE 802.11b/g/n/ac/ax technology and other Layer 2/Layer 3 features, It is widely compatible with the global mainstream OLT brand, supports plug-and-play, OMCI and TR069 remote maintenance features.
Features
- Support multi-SSID (Maximum 4 SSID)
- Support ACL to configure data packet filter flexibly
- Support TR069 for ACS(Auto Config Server)
- In compliant with IEEE802.3ah & ITU-T G.984 standard
- Support data encryption, group broadcasting, port VLAN separation ,etc.
- Support Dynamic Bandwidth Allocation (DBA)
- Support ONU auto - discovery/Link detection/remote upgrade of software
- Support power off alarm function ,easy for link problem detection
- Support wireless security of 64/128 bit WEP,802.1x,WPA and WPA2
- Support port VLAN configuration
Specification
| PON | CATV |
| ·XPON port(EPON PX20+and GPON Class B+) | ·Optical receiving wavelength:1550±10nm |
| ·SC single mode,SC/APC connector | ·Optical input range:+2~-18dBm |
| ·TX optical power:0.5~+5dBm | ·Optical reflection loss:≥45dB |
| ·RX sensitivity:-28dBm | ·RF frequency range:47～1000MHz |
| ·Overload optical power:-3dBm(EPON)or -8dBm(GPON) | ·RF output impedance:75Ω |
| ·Transmission distance:20KM | RF output level ≥76±2dBuv |
| ·Wavelength:TX1310nm,RX1490nm | ·Support AGC control |
| ·In compliant with IEEE802.3ah &ITU-T G.984 standard | ·MER:≥32dB(-14dBm optical input) |
| WiFi | Parameters |
| ·WIFI6:802.11b/g/n/ac/ax 5GHz,2.4GHz | ·Dimension:246×157×38 mm(L×W×H) |
| ·WiFi Encryption:WPA/WPA2/WPA3 | ·Net weight:355g |
| ·Support OFDMA,MU-MIMO,Dynamic QoS,1024-QAM | ·Operating temp:-10~+45℃ |
| ·Smart Connect for one Wi-Fi name -One SSID for 2.4GHz and 5GHz dual band | ·Operating humidity::5～95% |
| ·2.4GHz 2T2R,5GHz 2T2R | ·Storing temp::-40～+70℃ |
| ·Storing humidity::5～95% |

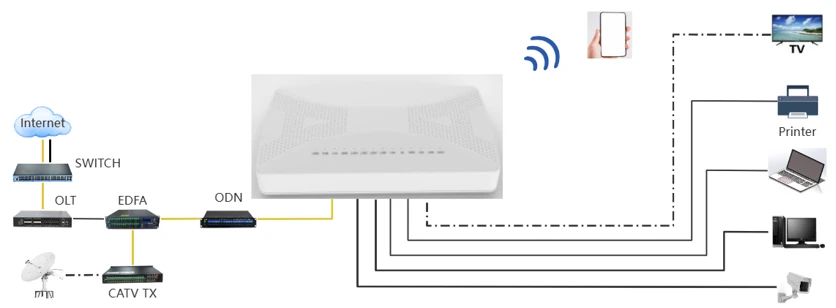

Application
