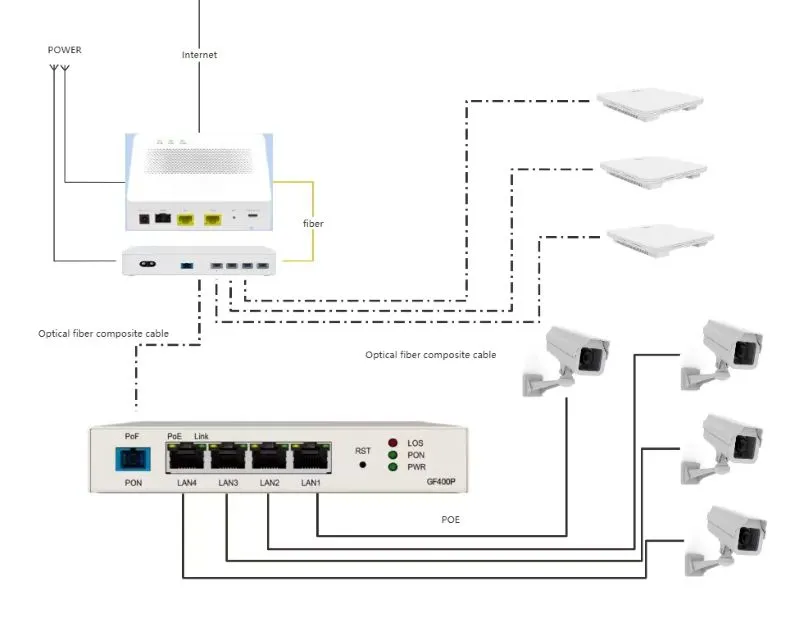

An active optical splitter acts like an intelligent "distribution center": it not only replicates and amplifies optical signals but also remotely powers terminal devices, addressing the pain points of network coverage and cabling. Compared with traditional passive splitters that require no power, it represents a key intelligent upgrade in functionality.
Technical parameters
| Product name | Active optical splitter |
| Product size | 163mm × 105mm × 39mm (L*W*H) |
| Input port | SC/UPC (PON) |
| Optical output ports 1-4 | SC/UPC optoelectronic output port, insertion loss ≤7.4dB |
| Rated input voltage | AC 170~240V |
| Photoelectric por output voltage | DC 56V |
| Photoelectric por output current | Less than 0.41A/por |
| Total output power | 70W |
| Box material | PC+ASA |
| Flame retardant grade | V0 |
| Working temperature | -10°C~+60°C |
