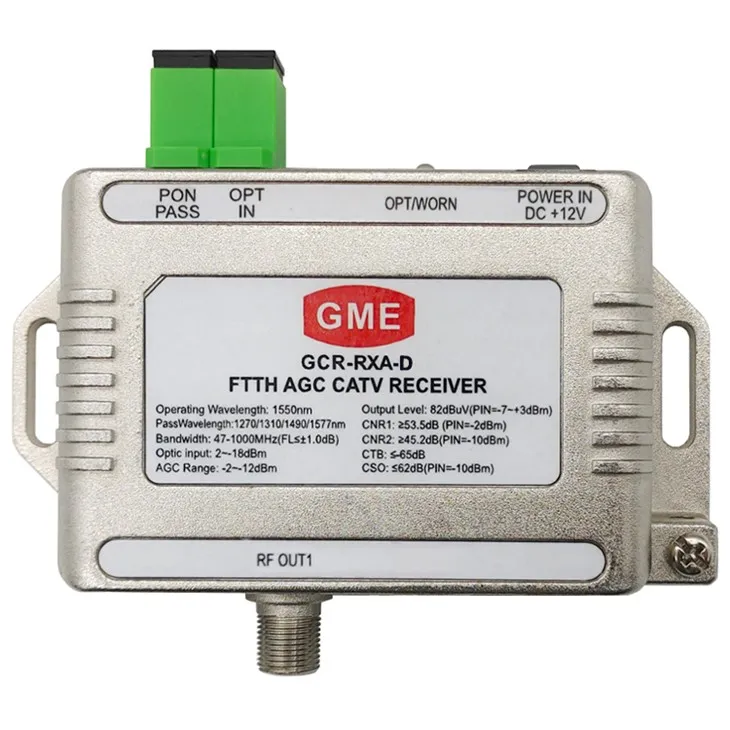

Optical receiver is for digital television, fiber to the home. This machine adopts the high sensitivity optical receiving tube.Flexible application integration, application of fiber to the home network.It is Built-in CWDM, suitable for single-fiber triple wavelength system, CATV operating Wavelength 1550nm, pass wavelength 1270/1310/1490/1577nm, can conveniently connect the ONU of EPON, GPON.XG(S)PON

Features

• Up to 20KM transmission Distance

• Extra-low noise

• Wide dynamic receiving optical power range: within Pin=-16, MER≥36dB

• Applicable XG(S)PON,GPON, EPON, compatible with any FTTx PON technology

• Can save a large number of optical power resource, greatly reduce the network configuration cost

• Within 47~1000MHz bandwidth, all with excellent flatness feature ( FL≤±1dB )

• Metal case, offer safeguard for optoelectronic sensitive devices

• High output level, can be used by many users

• Low power consume, high performance, high cost performance

• 6KV surge protection on all ports

• Support 4 RF OUT max
