Optical receiver is for digital television, fiber to the home. This machine adopts the high sensitivity optical receiving tube.Flexible application integration, application of fiber to the home network.It is Built-in CWDM, suitable for single-fiber triple wavelength system, CATV operating Wavelength 1550nm, pass wavelength 1310/1490nm, can conveniently connect the ONU of EPON, GPON.
Features • Up to 20KM transmission Distance
• Extra-low noise
• Wide dynamic receiving optical power range: within Pin=-16, MER≥36dB
• Applicable GPON, EPON, compatible with any FTTx PON technology
• Can save a large number of optical power resource, greatly reduce the network configuration cost
• Within 47~1000MHz bandwidth, all with excellent flatness feature ( FL≤±1dB )
• Metal case, offer safeguard for optoelectronic sensitive devices
• High output level, can be used by many users
• Low power consume, high performance, high cost performance
• 6KV surge protection on all ports
• Support 4 RF OUT max

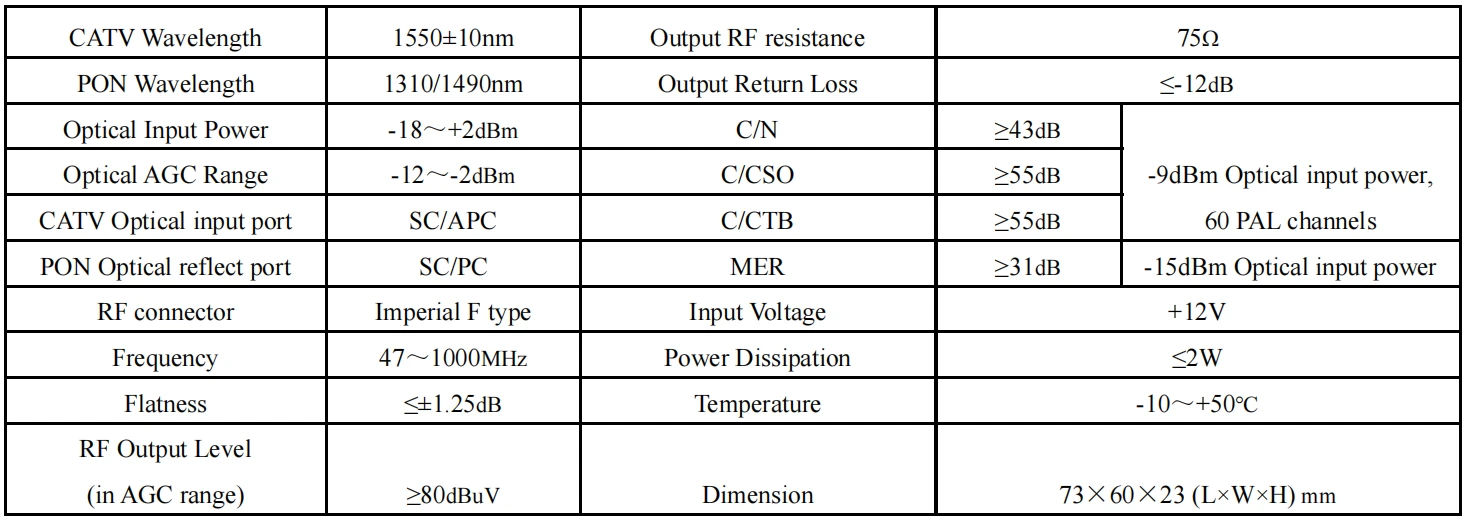

Technical Specification

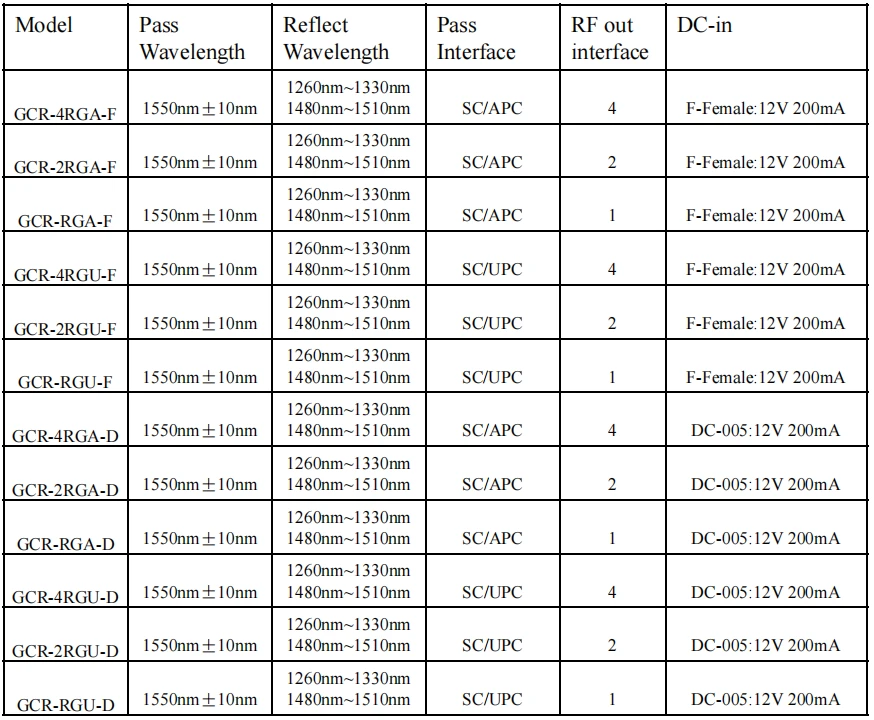

Model lists
