Description

DBS, OTA, CATV, 54 to 3000 MHz line powered amplifier with forward gain and sub-band 2 to 42 MHz passive return.

SITUATION

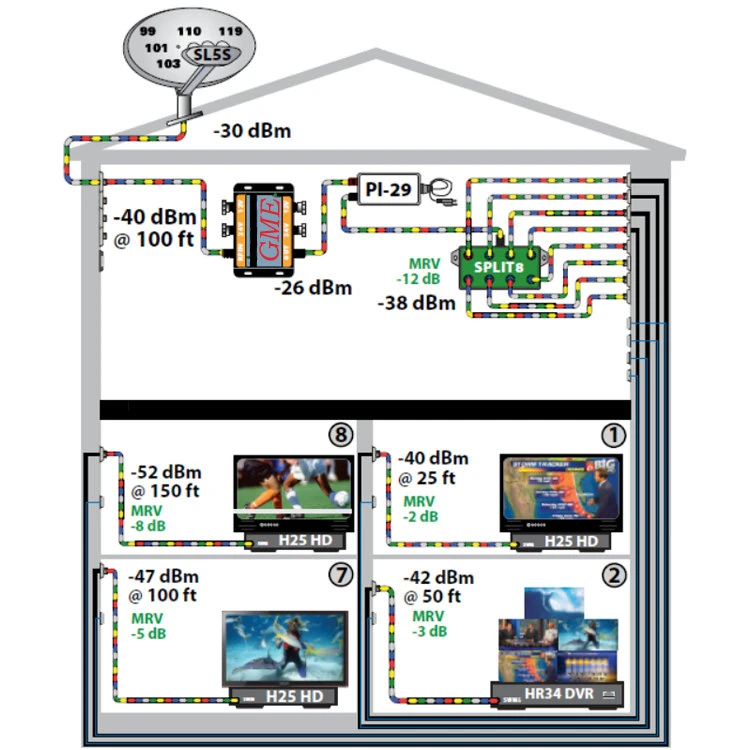

The output of a LNB or DBS switch is split to multiple rooms or apartments and the receiver signal levels are low at distant locations.

SOLUTION

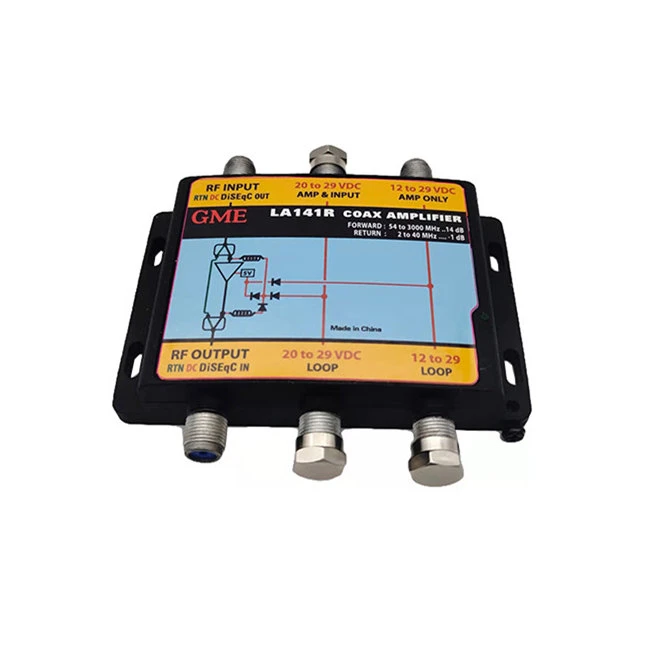

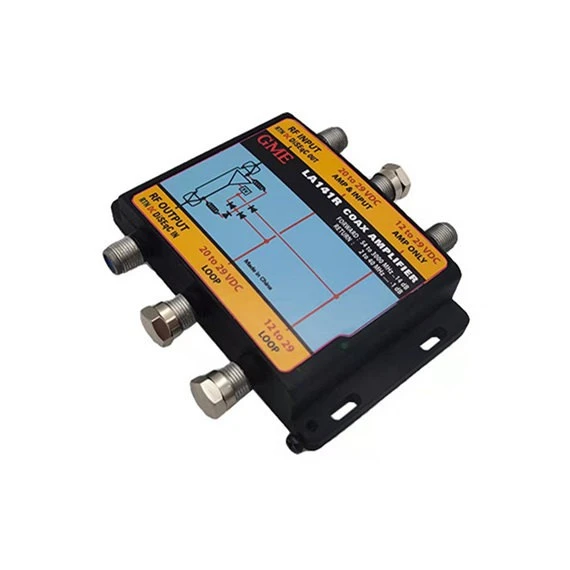

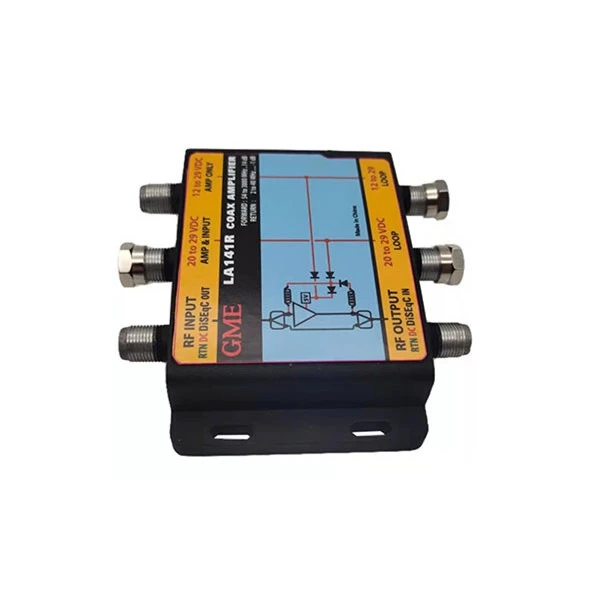

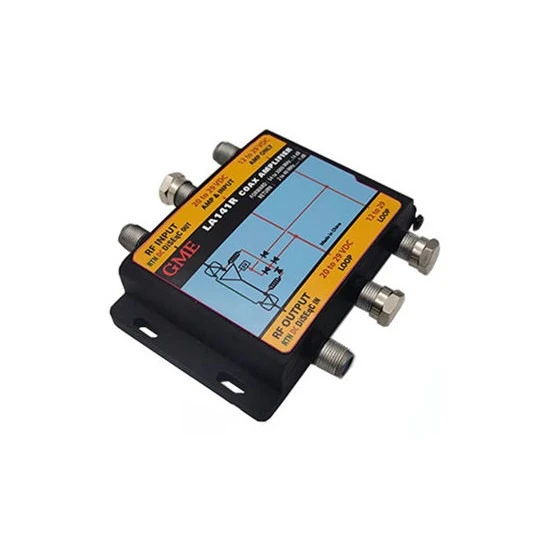

Model LA141 Gain In Line Amplifier boosts cable and DBS signal levels off setting the loss of 150 feet of RG-6 while passing data modem and receiver control signals from the receiver to the switch.

RELATED CONSIDERATIONS

This product is a universal coaxial amplifier. This Gain In Line amplifier works with OTA, CATV, DBS & SWM. It includes passive 22 kHz to 42 MHz sub-band return. Model SD SWMA2 bidirectionally passes 2 to 806 MHz, MoCA E band and receiver control signals for applications where MoCA is required at the amplifi er input and output.

Specification

Place of Origin: Guangdong, China
Model Number: GDAMP-009 (LA141)
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
Freq. Range
Forward path			950-2150MHz
Return path			22KHz-3MHz
Gain
	+11dB	+10dB Min	950MHz
	+12dB	+11dB Min	1450MHz
	+14dB	+13dB Min	1750MHz
	+15dB	+14dB Min	2150MHz
	+14dB	+13dB Min	2400MHz
Insertion loss	-1.2dB	-2.5dB Max	22KHz-3MHz
Return Loss
Input	-15dB	-12dB Min	950-2150MHz
	-12dB	-10dB Min	2151-2400MHz
Output	-12dB	-10dB Min	950-2150MHz
	-13dB	-11dB Min	2151-2400MHz
Input Capability
1dB compression	112dBuV	110dBuV Max	At 950MHz input
Working voltage		12-21Vdc
Impedance		75 ohm	Input/output port
Connector		F Type female	Input/output port
