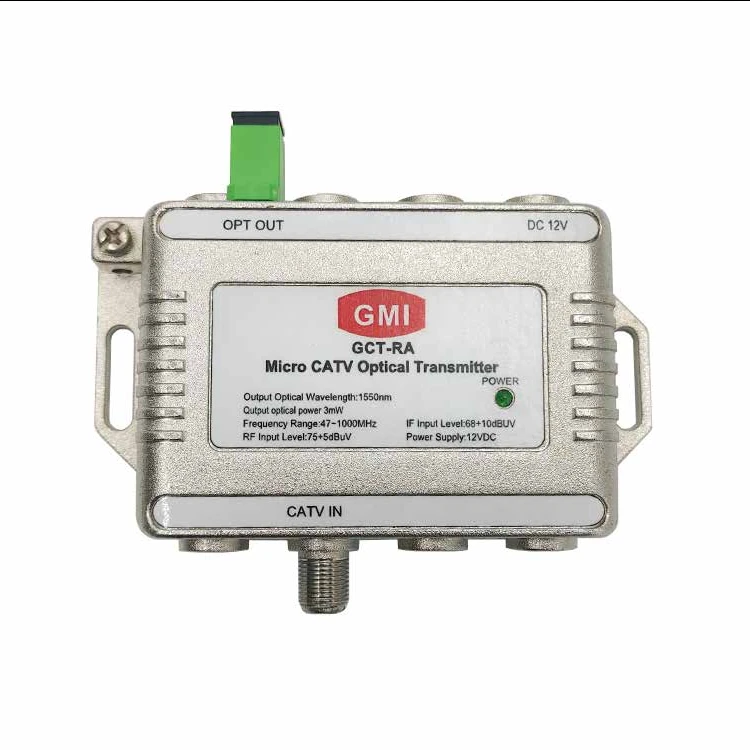

A CATV Optical Transmitter is a device used in Cable Television (CATV) networks to convert electrical RF (radio frequency) signals into optical signals for transmission over fiber optic cables. This technology is essential for modern cable TV distribution systems, enabling long-distance, high-quality signal delivery with minimal loss and interference.
How It Works:
RF Signal Input: The transmitter receives RF signals from a cable TV headend, which includes multiple television channels and data signals.
Laser Modulation: The RF signal modulates a high-power laser, typically using direct modulation (for lower-cost applications) or external modulation (for better performance and lower distortion).
Optical Signal Output: The modulated laser outputs an optical signal, which is transmitted through fiber optic cables to distribution nodes or optical receivers.
Signal Distribution: At the receiving end, optical signals are converted back into RF signals and distributed to end-users via coaxial cables.
Key Features:
High Power Output: Typically operates at 1310 nm or 1550 nm wavelengths for efficient fiber transmission.
Low Distortion & Noise: Uses DFB (Distributed Feedback) lasers or EDFA (Erbium-Doped Fiber Amplifiers) to enhance performance.
Long-Distance Transmission: Optical fibers minimize signal degradation, allowing transmission over tens or even hundreds of kilometers.
Multiple Signal Support: Can transmit analog TV, digital TV, internet, and voice services simultaneously.
Applications:
CATV Networks: Delivering cable TV signals over fiber-optic infrastructure.
FTTH (Fiber to the Home): Used in hybrid fiber-coaxial (HFC) networks for high-speed broadband.
IPTV & Data Transmission: Supporting digital video and high-speed internet services.
