This article provides an in-depth exploration of the core role of EDFA in CATV FTTH networks-enhancing optical signal power to achieve long-distance transmission-and introduces how integrated CATV+SAT IF receivers with advanced AGC, CWDM, and ultra-low noise technologies serve as key components for optimizing network performance.
In building efficient, stable CATV (Cable Television) FTTH (Fiber-to-the-Home) networks capable of supporting massive data and high-definition video transmission, optical amplifiers play a critical role. Among them, the EDFA (Erbium-Doped Fiber Amplifier) is one of the most essential optical amplification devices. So, what exactly is the primary purpose of EDFA in CATV FTTH networks, and how does it collaborate with next-generation receiving equipment? This article offers a detailed analysis.

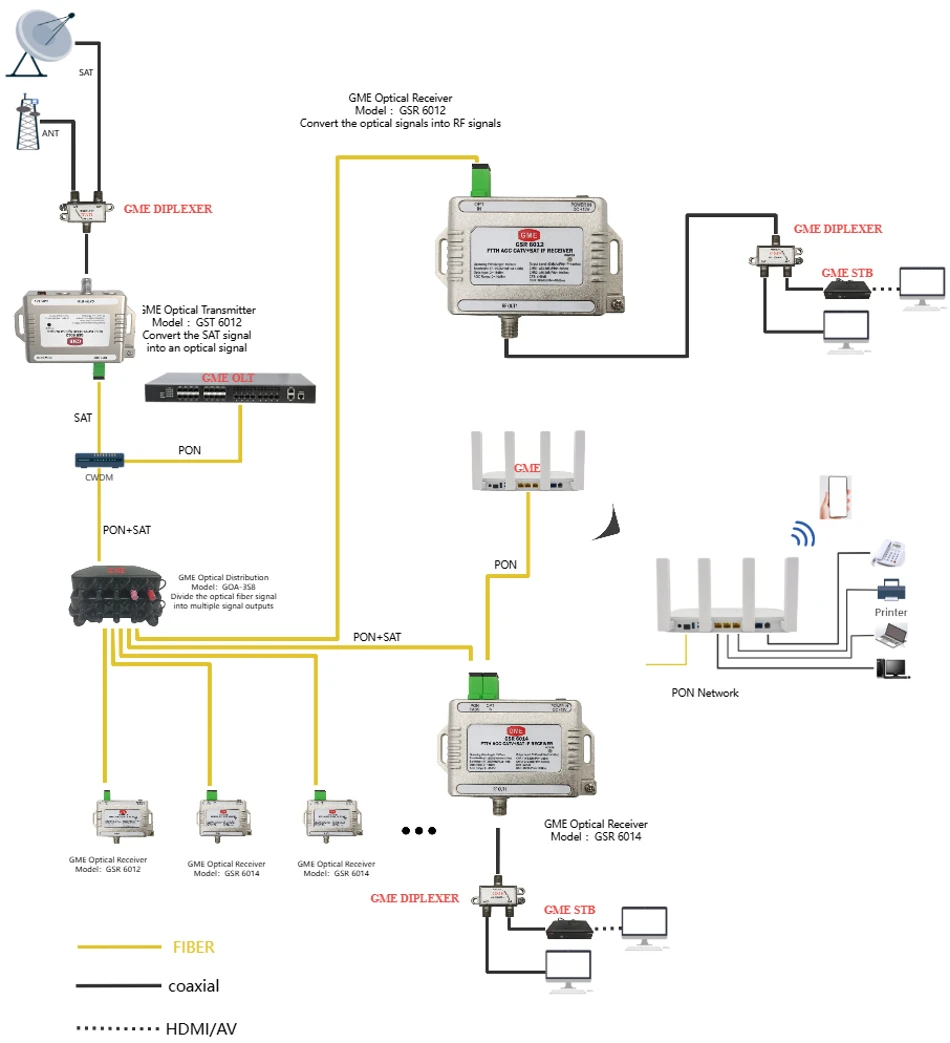

SAT-TERR OVER FIBER
The Core Function of EDFA in CATV FTTH Networks: Optical Signal Relay and Amplification
Simply put, the main purpose of EDFA is to directly amplify optical signals, compensating for losses during fiber transmission and significantly extending signal reach.
In an FTTH network, optical signals are transmitted from the operator's headend and must travel long distances to reach users' homes. Although fiber optics inherently exhibit low loss, optical power inevitably attenuates over distance. Once the signal weakens beyond a certain point, it can no longer be accurately identified by the user-side receiver, leading to signal interruption or severe quality degradation.
An EDFA acts like a "refueling station" along the fiber optic line. It amplifies optical signals directly without converting them into electrical signals, giving it unparalleled advantages:
High Output Power: Capable of amplifying multiple wavelengths simultaneously, supporting a large number of users.
Transparent Transmission: Format- and rate-agnostic, ensuring strong compatibility.
Low Noise: Excellent noise performance maintains signal quality.
By strategically deploying EDFAs in the network trunk, operators can construct CATV networks covering tens or even hundreds of kilometers without worrying about signal attenuation.
Beyond EDFA: Challenges at the Network Edge and Key Solutions-High-Performance Receivers
While EDFA addresses trunk transmission challenges, the signal may weaken again due to distribution and further transmission by the time it reaches user access points (e.g., buildings or homes), and it may contain noise introduced by the EDFA. At this stage, a high-performance FTTH receiver is essential for high-quality signal reception and conversion in the "last mile."
This is where an integrated AGC CATV+SAT IF RECEIVER (Automatic Gain Control CATV and Satellite IF Receiver) with advanced technologies comes into play. A receiver designed for modern triple-play services, such as one with the following features, is critical to ensuring end-user experience:
Broadband Support (45–2150 MHz): Fully supports traditional CATV RF signals and satellite IF (SAT IF) signals, meeting diverse service access demands.
Built-In Optical AGC: This serves as an "intelligent insurance" against optical power fluctuations. When input optical power varies due to environmental temperature changes or minor link losses, the AGC (Automatic Gain Control) automatically adjusts output level and gain to ensure stable and reliable signal output without manual intervention, significantly reducing operational costs.
Ultra-Low Noise Technology: Employs advanced active components such as GaAs amplifiers to minimize noise, improve Carrier-to-Noise Ratio (CNR), and particularly enhance the performance of signals amplified by EDFA, delivering clearer video quality.
Excellent Linearity and Flatness: Effectively reduces distortion, ensures uniform signal strength across all channels, and prevents issues like pixelation or interruption in certain channels.
High-Linearity Photodetector (PD) + Built-In CWDM: Utilizing CWDM (Coarse Wavelength Division Multiplexing) technology, it can receive signals from different wavelengths (e.g., 1550 nm CATV signals and 1490 nm/1310 nm data signals) and perform high-quality optical-to-electrical conversion via a high-linear PD, providing a clean signal source for backend processing.
High Return Loss and Single-Fiber Application: Operates over a single-core single-mode fiber with high return loss, reducing interference from reflected signals and ensuring link stability.
Synergy Between EDFA and Intelligent Receivers
In summary, the primary purpose of EDFA in CATV FTTH networks is to enable remote, efficient, and high-capacity relay transmission of optical signals, serving as the foundation for building widely networks. At the network edge, an integrated CATV+SAT IF receiver featuring optical AGC, ultra-low noise, CWDM, and other technologies acts as the final guardian ensuring high-quality signal delivery to users. Together, they form the backbone of modern high-speed, stable, and reliable fiber-optic broadband and video service networks.
For network operators and equipment manufacturers, selecting a high-performance receiver with the above features is a strategic decision for optimizing network performance, enhancing user satisfaction, and reducing overall operational costs.
