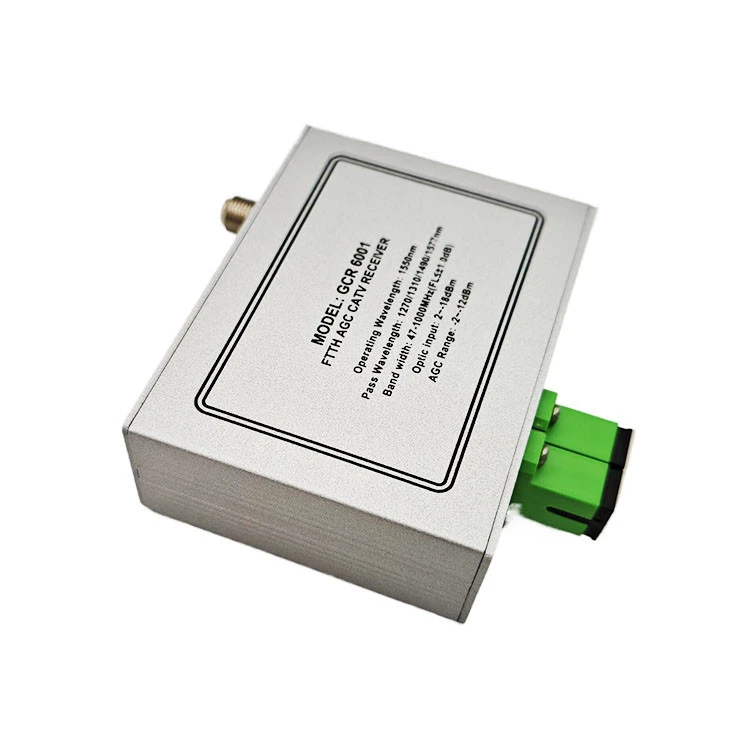

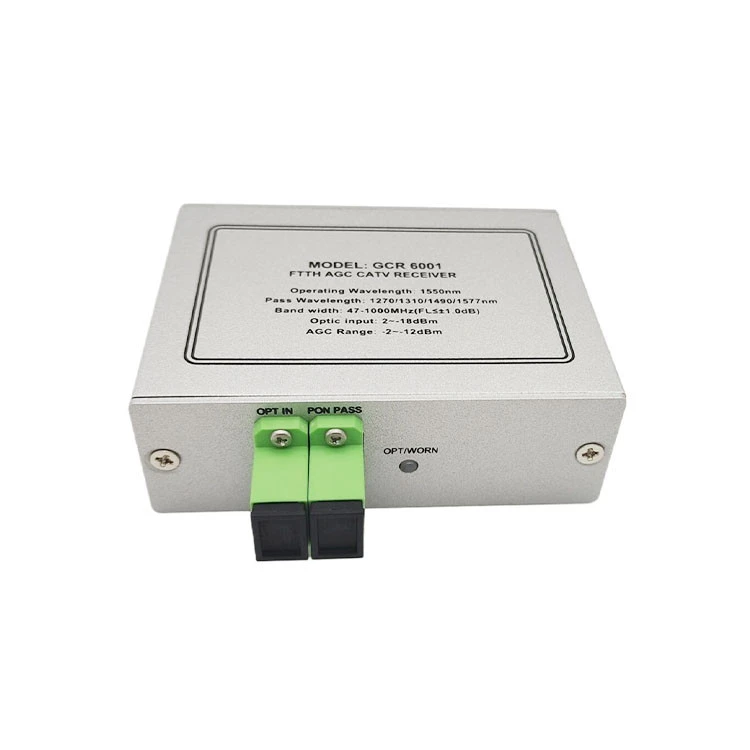

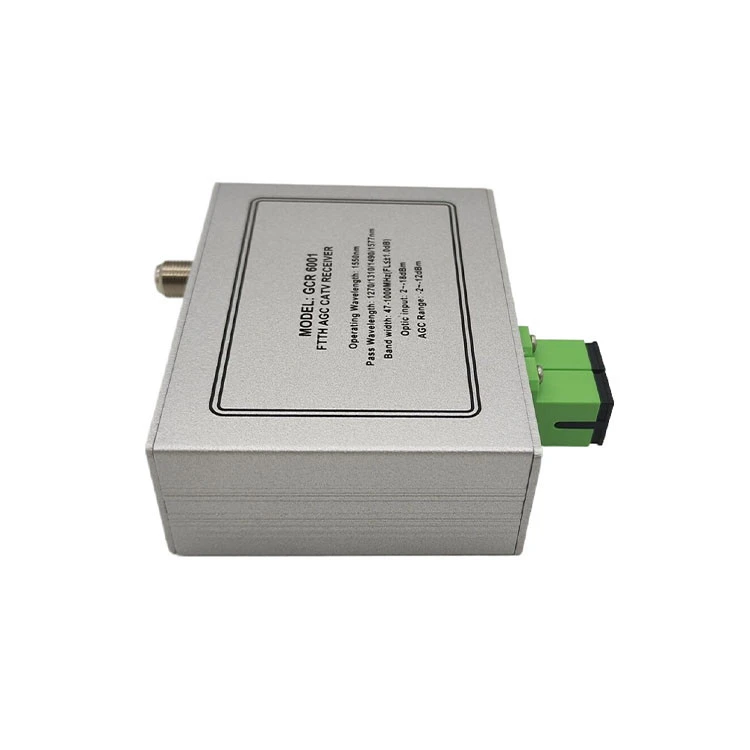

Introduction

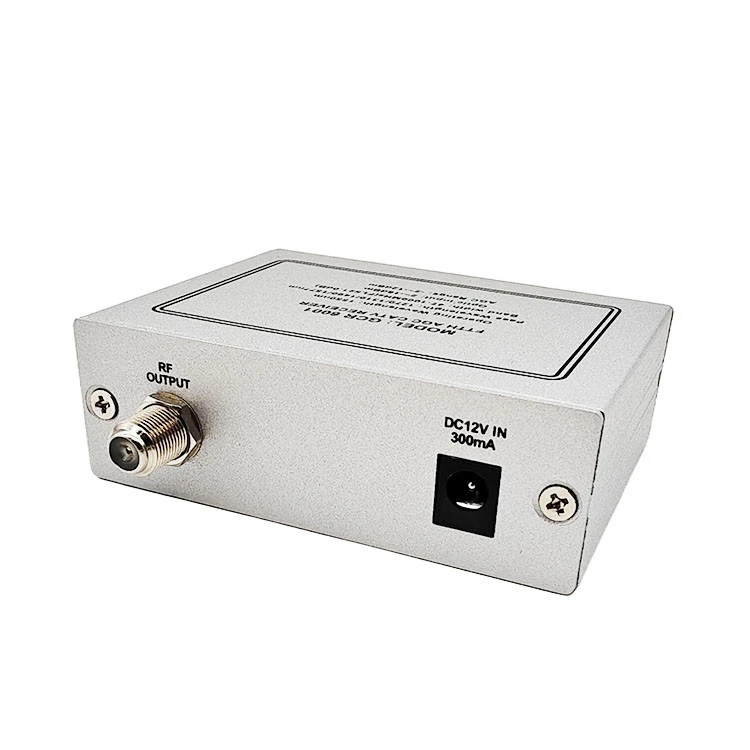

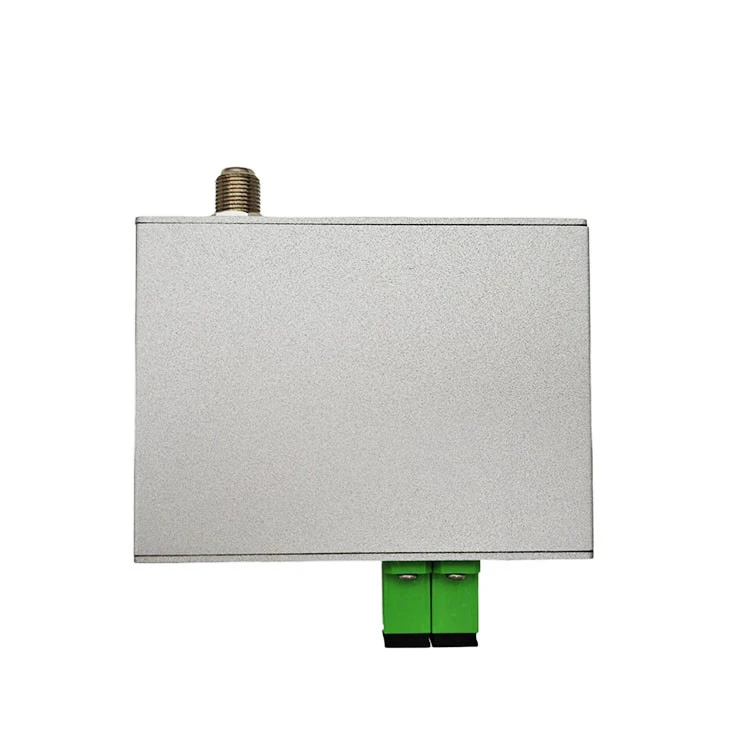

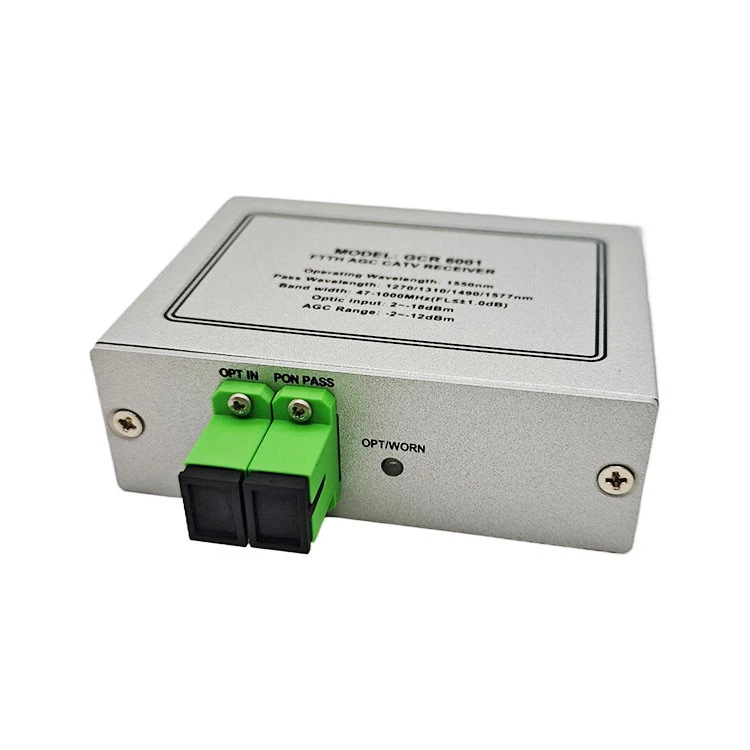

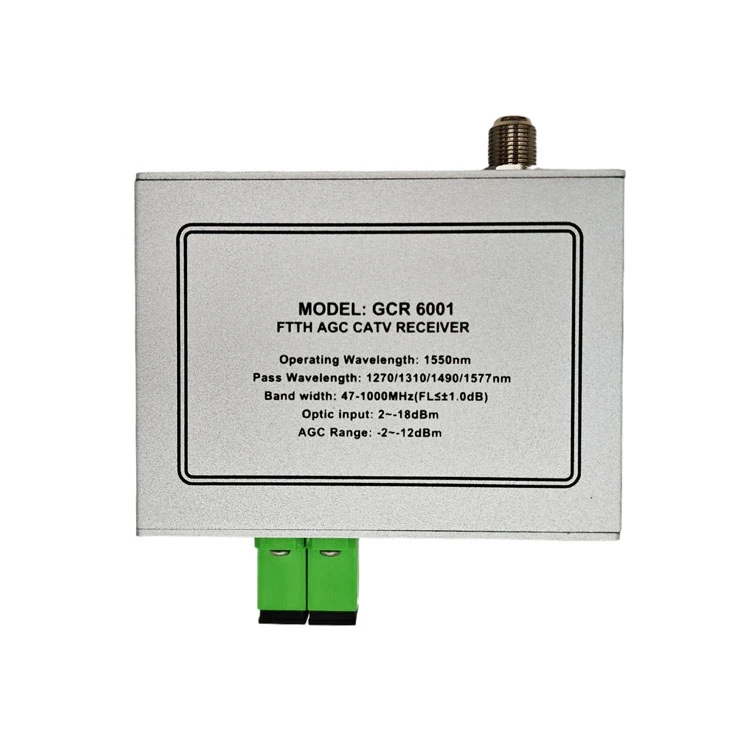

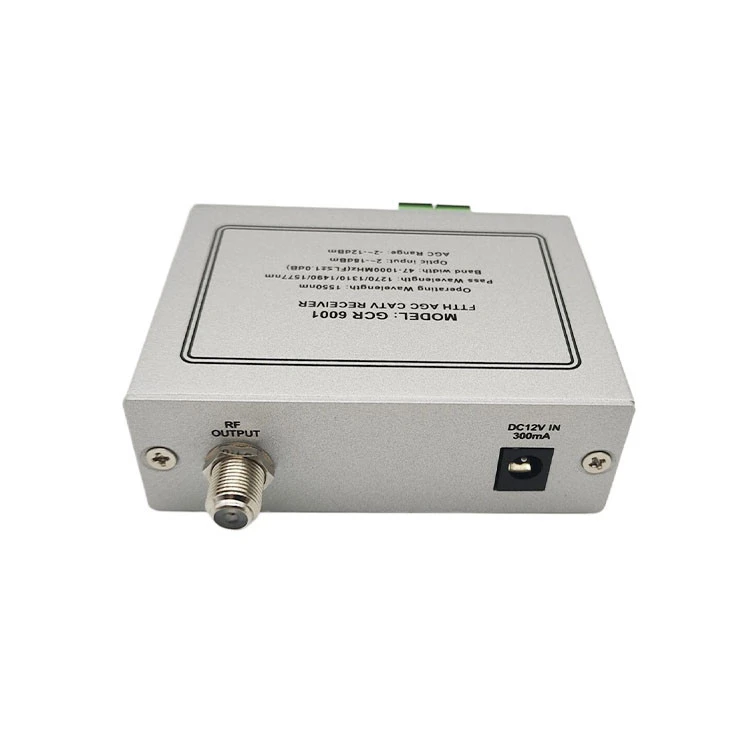

Optical receiver is for digital television, fiber to the home. This machine adopts the high sensitivity optical receiving tube.Flexible application integration, application of fiber to the home network.It is Built-in CWDM, suitable for single-fiber triple wavelength system, CATV operating Wavelength 1550nm, pass wavelength 1270/1310/1490/1577nm, can conveniently connect the ONU of EPON, GPON.XG(S)PON.

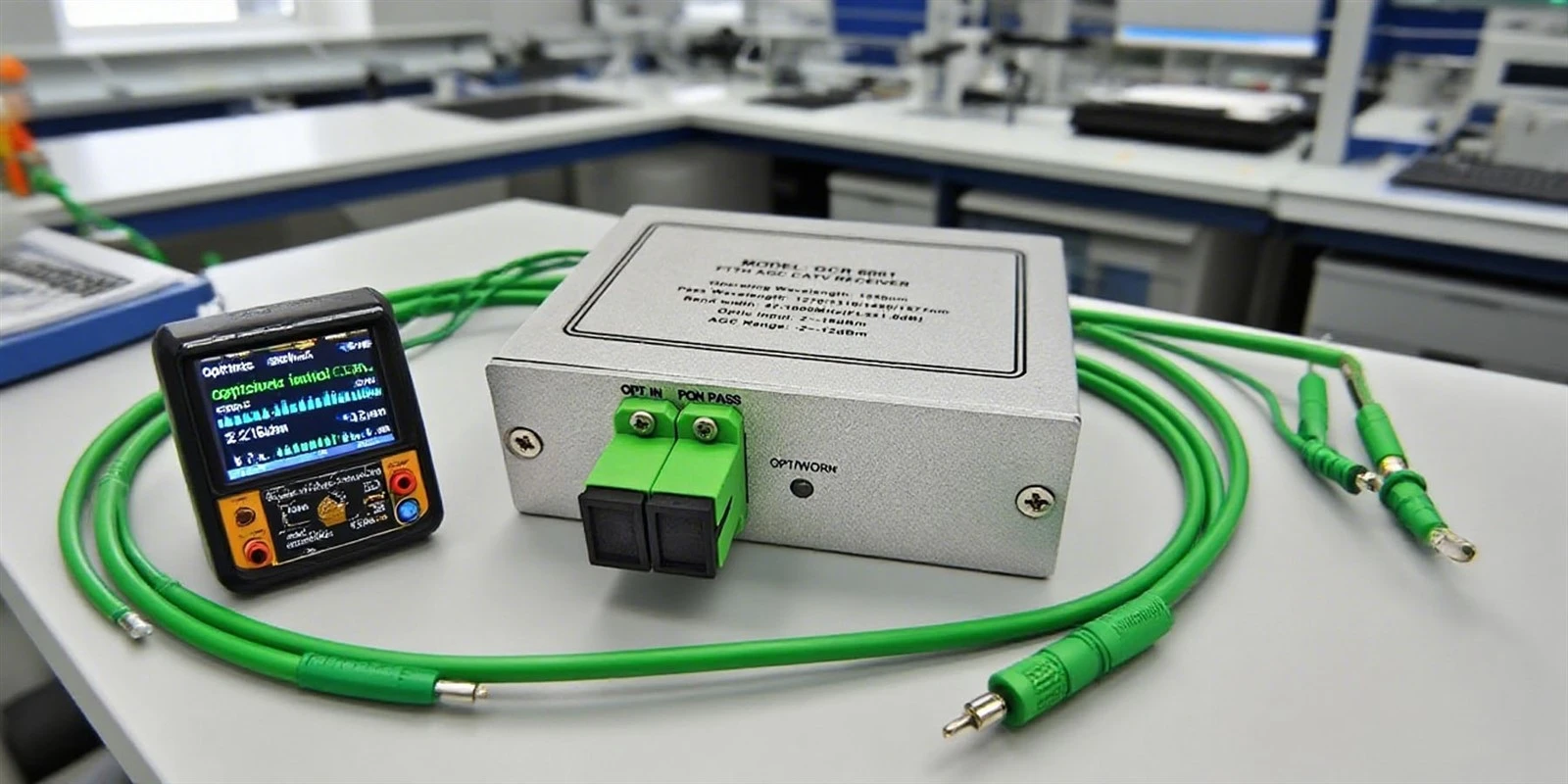

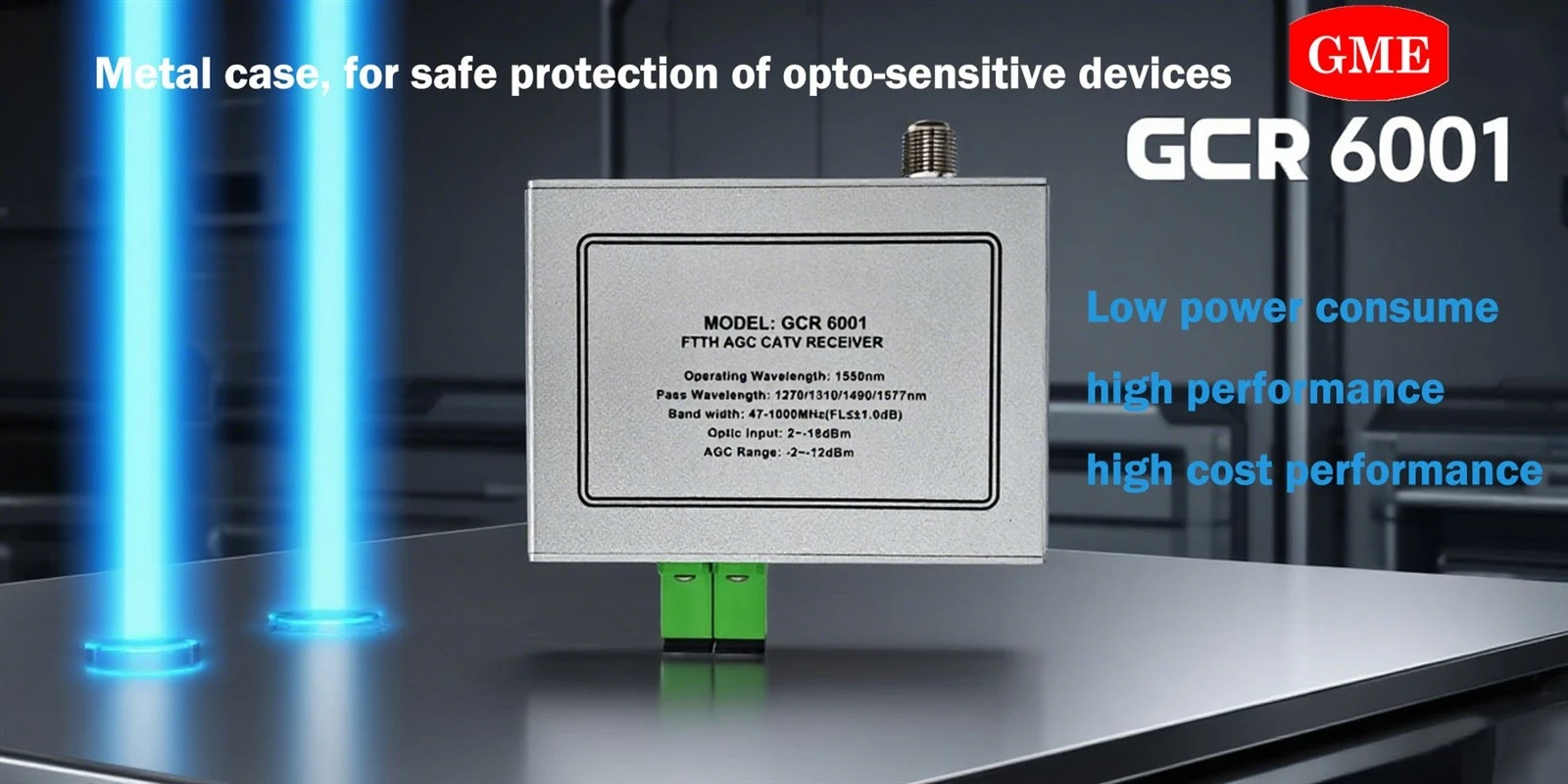

Professional FTTH AGC CATV Optical Receiver - Stable Transmission, Crystal-Clear Quality
Core Advantages of the FTTH AGC CATV Receiver
Outstanding Compatibility and Flexibility
It enables triple-wavelength (or more) transmission over a single fiber, simultaneously carrying broadcast TV signals (CATV) and high-speed internet data (PON). This significantly simplifies the network architecture, reduces wiring costs and complexity, and is highly suitable for the deployment of modern converged networks (FMCG).
High Performance and Signal Quality Assurance
Operating bandwidth ranges from 47 to 1000 MHz, with extremely low in-band fluctuation (≤±1.0 dB). The extremely low in-band flatness ensures uniform signal strength across all channels, preventing a "tilt effect" where some channels have strong signals while others are weak. As a result, it delivers higher-definition, more stable, and distortion-free video output, significantly enhancing the end-user viewing experience.
Strong Environmental Adaptability and Stability
When the input optical power fluctuates significantly due to factors such as line distance, split ratio variations, or fiber aging, the AGC function automatically adjusts to output a constant-level electrical signal.
High Sensitivity and Dynamic Range
The extremely high receiving sensitivity ensures that even after long-distance transmission or high split ratio distribution, when the optical signal becomes very weak, this receiver can still effectively identify and convert it, guaranteeing longer transmission distances and broader network coverage.
It provides a high-performance analog/digital CATV signal in-home solution for Fiber-to-the-Home (FTTH) networks, supporting ultra-low optical power reception and ensuring stable output through AGC (Automatic Gain Control)
Specification
|
CATV Wavelength |
1550±10nm |
Output RF resistance |
75Ω |
|
|
PON Wavelength |
1270/1310/1490/1577nm |
Output Return Loss |
≤-12dB |
|
|
Optical Input Power |
-18～+2dBm |
C/N |
≥43dB |
-9dBm Optical input power, 60 PAL channels |
|
Optical AGC Range |
-12～-2dBm |
C/CSO |
≥55dB |
|
|
CATV Optical input port |
SC/APC |
C/CTB |
≥55dB |
|
|
PON Optical reflect port |
SC/PC |
MER |
≥31dB |
-15dBm Optical input power |
|
RF connector |
Imperial F type |
Input Voltage |
+12V |
|
|
Frequency |
47～1000MHz |
Power Dissipation |
≤2W |
|
|
Flatness |
≤±1.25dB |
Temperature |
-10～+50℃ |
|
|
RF Output Level (in AGC range) |
≥80dBuV |
Dimension |
86.6×99×29 (L×W×H) mm |
|

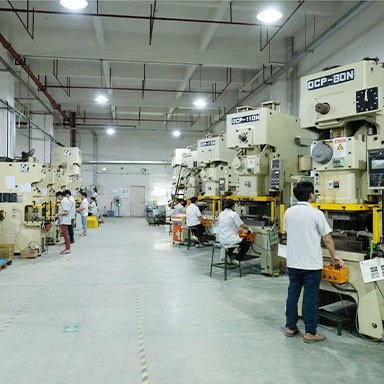

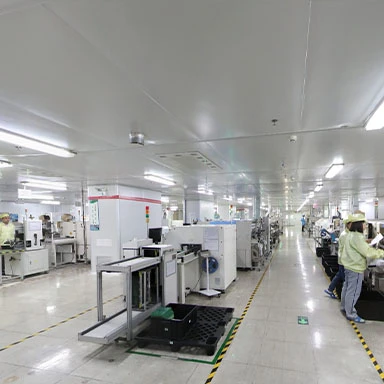

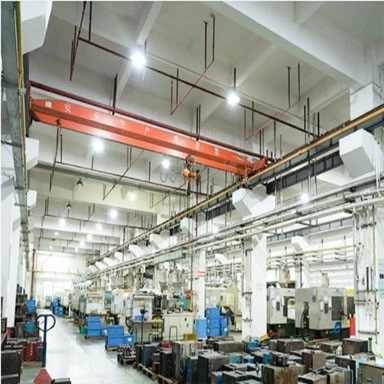

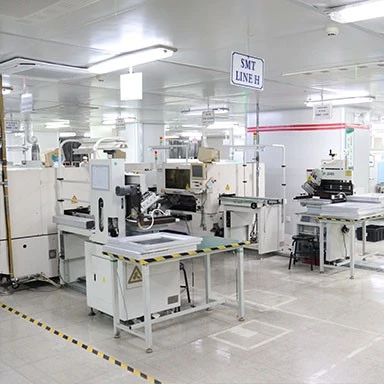

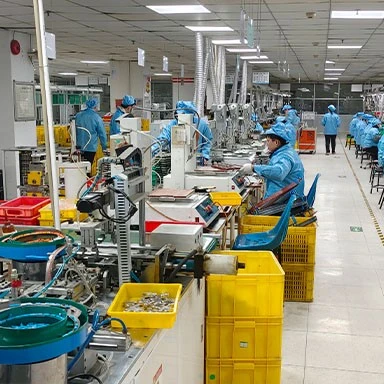

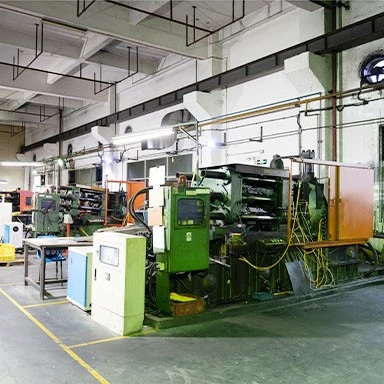

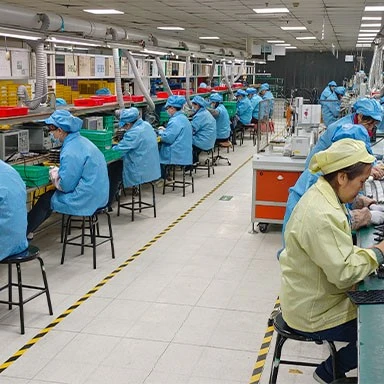

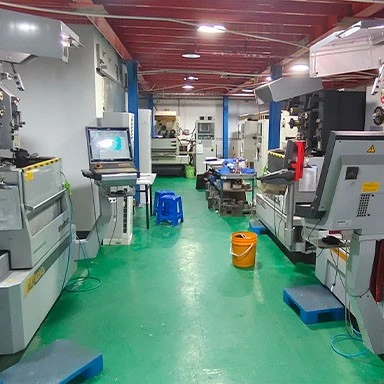

Our Production Workshop

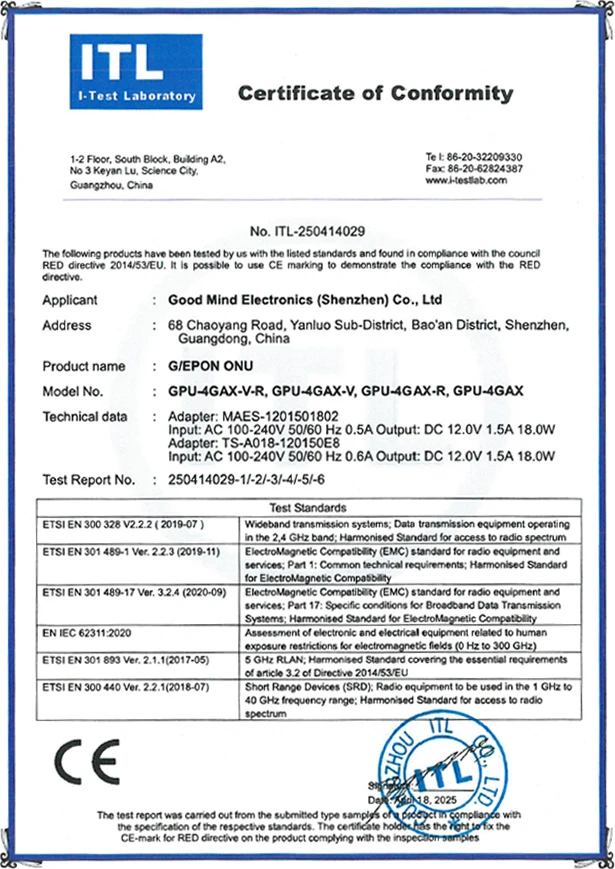

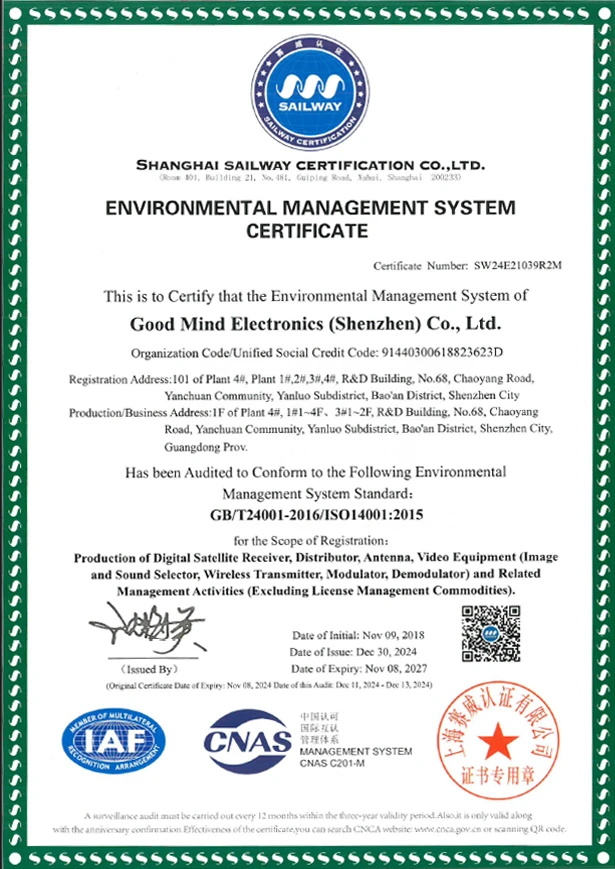

Our Certificate
payment method
Packaging & Transport
Packaging & Transport
PACKING
We will pack our products tightlyto ensure that they are notdamaged in transit.

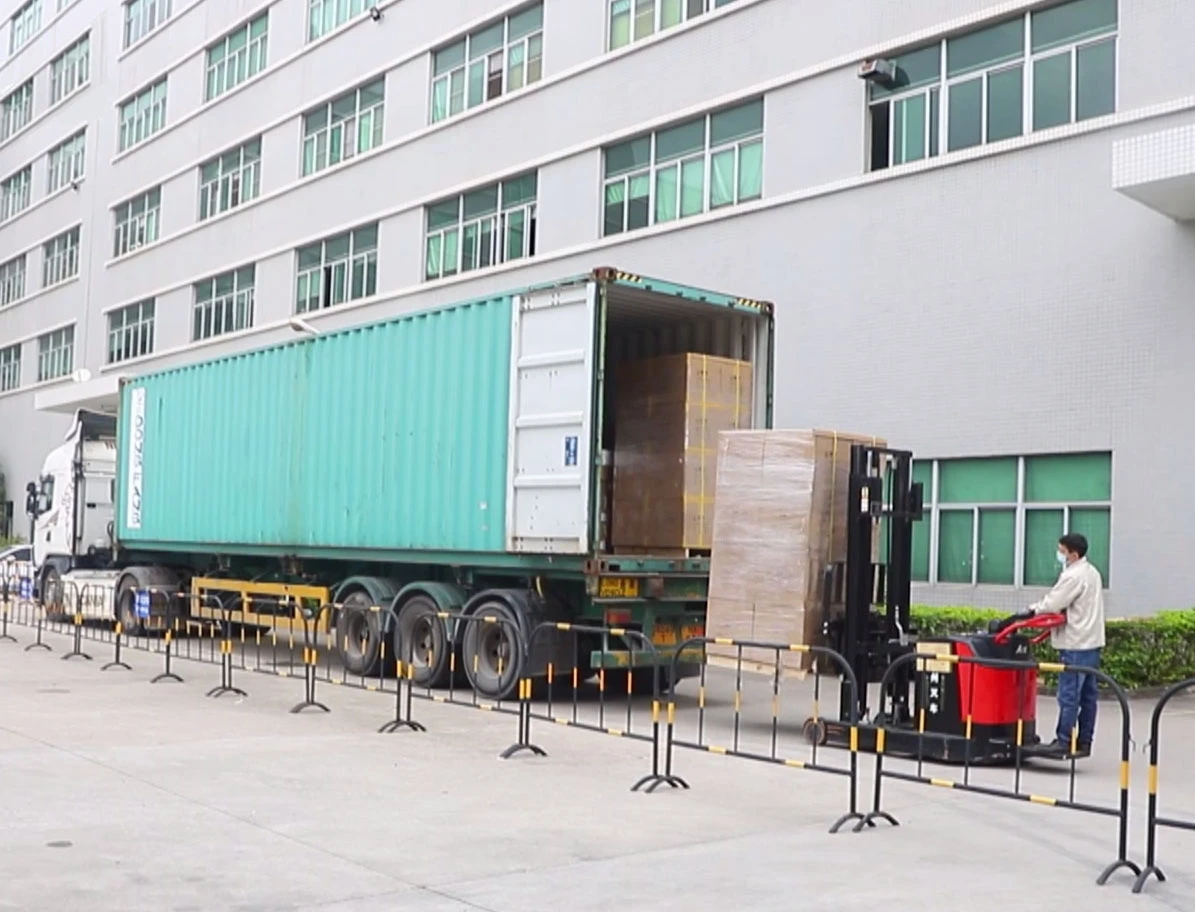

TRANSPORT
