The SAT-IF Optical Transmitter is professional equipment specifically designed for the fiber optic transmission of satellite Intermediate Frequency signals. It converts high-frequency signals (950-2600MHz) received by satellite antennas into optical signals, enabling high-quality, long-distance transmission over single-mode fiber. This type of equipment plays a critical role in modern communication networks. Particularly with the widespread adoption of triple-play services and FTTH, the SAT-IF Optical Transmitter, renowned for its excellent performance, has become an indispensable transmission solution in fields like CATV and satellite communications.
Performance Advantages
Exceptional High-Frequency Bandwidth Performance
SAT-IF Optical Transmitters support an extremely wide frequency range. Typical models cover multiple bands such as 45-1000MHz & 950-2150MHz & 45-2400MHz, with some high-end products even supporting wideband operation up to 50-3000MHz. This wideband characteristic allows them to simultaneously transmit CATV broadcast signals and SAT-IF satellite signals, meeting the demand for concurrent transmission of multiple services.
Excellent Linearity and Transmission Metrics
Utilizing DFB coaxial miniature packaged lasers and high-linearity amplification circuits, SAT-IF Optical Transmitters deliver outstanding transmission performance. Typical parameters include:
- Carrier-to-Noise Ratio (CNR) ≥ 52dB
- Composite Second Order (CSO) ≥ 65dB
- Composite Triple Beat (CTB) ≥ 62dB
- Response Flatness within ±1dB
These metrics ensure signal integrity is maintained even after long-distance transmission.
Flexible Configuration and High Reliability
SAT-IF Optical Transmitters offer multiple configuration options:
Optional Optical Wavelengths: 1310nm, 1550nm, or CWDM wavelengths.
Adjustable Output Optical Power: Ranging from 2mW to 30mW.
Dual Redundant Power Supplies: Supports hot-swapping, enhancing system reliability.
Adjustable SBS Suppression: Field-adjustable SBS suppression capability, greater than 17dBm.
Environmental Adaptability and Transmission Distance
Housed in an aluminum alloy die-cast casing for effective heat dissipation, they are available in both desktop and rack-mount configurations. Regarding transmission distance, standard equipment supports links up to 60 kilometers. Some military-grade technologies even support instant route switching, automatically switching to a backup path upon critical communication link failure.
Application Scenarios
Telecommunication Networks and Triple-Play Services

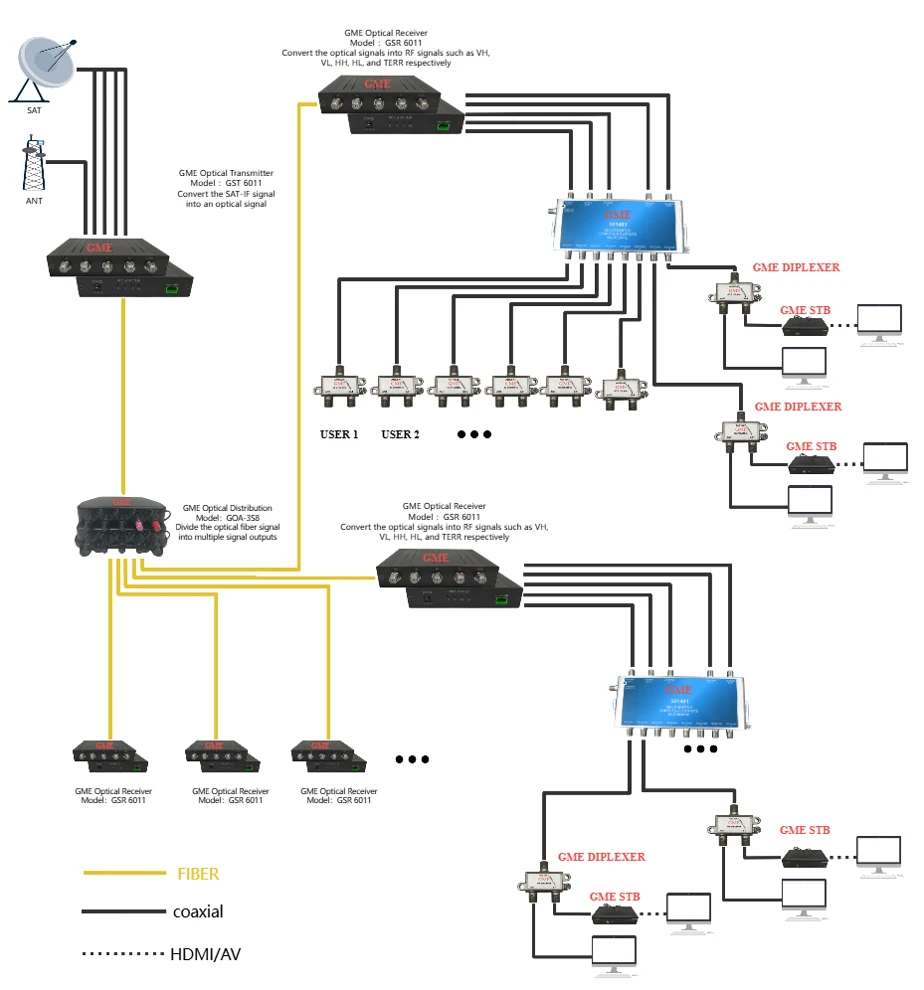

In FTTH networks, the SAT-IF Optical Transmitter is used for the unified transmission of CATV signals and satellite TV signals. It supports triple-play applications, capable of simultaneously transmitting broadcast TV, broadband data, and voice signals, making it a core component in modern residential complexes and hotel group TV systems.
Satellite Communication Systems
In satellite communications, the SAT-IF Optical Transmitter is used for L-band uplink/downlink fiber optic links, particularly for the connection between the satellite earth station and the indoor unit. It enables the transparent transmission of the full L-band analog satellite signals received by the antenna LNB via fiber optics, replacing traditional coaxial cable solutions.
Professional and Special Environment Applications
Ocean-going vessel satellite fiber optic distribution systems
Redundant ring architectures
Military-civilian communication radar signal transmission
DWDM node segmentation
These application scenarios fully leverage the advantages of fiber optic transmission: resistance to electromagnetic interference, lightning protection, and enhanced security.
Defense and Military Applications
In the military sector, similar SAT technologies are used in training systems, such as Multiple Integrated Laser Engagement Systems, providing infrared and visible dual-beam training solutions. Digital Intermediate Frequency technology provides crucial resilience for defense communications.
Summary
The SAT-IF Optical Transmitter, leveraging its wide bandwidth, high linearity, long transmission distance, and superior signal quality, has become an indispensable component of modern communication networks. Whether in civilian communication networks or professional satellite communication systems, it provides reliable and efficient signal transmission solutions, meeting the growing demand for high-quality video and data transmission. With the development of 5G and IoT technologies, the flexible configuration and robust performance of the SAT-IF Optical Transmitter will ensure its continued critical role in future communication infrastructure.
