Introduction:
Optical receiver is for digital television, fiber to the home. This machine adopts the high sensitivity optical receiving tube.Flexible application integration, application of fiber to the home network.
It is Built-in CWDM, suitable for single-fiber triple wavelength system, CATV operating Wavelength 1550nm, pass wavelength 1270/1310/1490/1577nm, can conveniently connect the ONU of EPON, GPON.XG(S)PON
- Up to 20KM transmission Distance
- Extra-low noise
- Wide dynamic receiving optical power range: within Pin=-16, MER≥36dB
- Applicable XG(S)PON,GPON, EPON, compatible with any FTTx PON technology
- Can save a large number of optical power resource, greatly reduce the network configuration cost
- Within 47~1000MHz bandwidth, all with excellent flatness feature ( FL≤±1dB )
- Metal case, offer safeguard for optoelectronic sensitive devices
- High output level, can be used by many users
- Low power consume, high performance, high cost performance
- 6KV surge protection on all ports
- Support 4 RF OUT max
Specification
|
CATV Wavelength |
1550±10nm |
Output RF resistance |
75Ω |
|
|
PON Wavelength |
1270/1310/1490/1577nm |
Output Return Loss |
≤14dB |
|
|
Optical Input Power |
-18～+2dBm |
Optical Return Loss |
≥55dB |
-9dBm Optical input power, 60 PAL channels |
|
Optical AGC Range |
-12～-2dBm |
C/CSO |
≥55dB |
|
|
CATV Optical input port |
SC/APC |
C/CTB |
≥55dB |
|
|
PON Optical reflect port |
SC/PC |
MER |
≥31dB |
-15dBm Optical input power |
|
RF connector |
Imperial F type |
Input Voltage |
+12V |
|
|
Frequency |
47～1000MHz |
Power Dissipation |
≤2W |
|
|
Flatness |
≤±1.25dB |
Temperature |
-10～+50℃ |
|
|
RF Output Level (in AGC range) |
≥80dBuV |
Dimension |
73×60×23 (L×W×H) mm |
|
Model lists
|
Model |
Pass Wavelength |
Reflect Wavelength |
Pass Interface |
RF out interface |
DC-in |
|

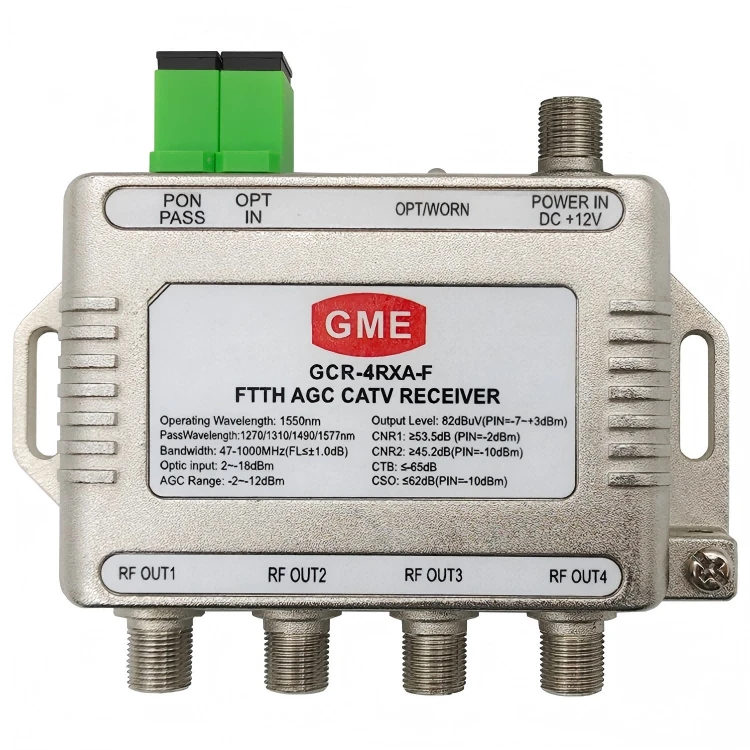

GCR-4RXA-F |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/APC |
4 |
F-Female:12V 300mA |
|

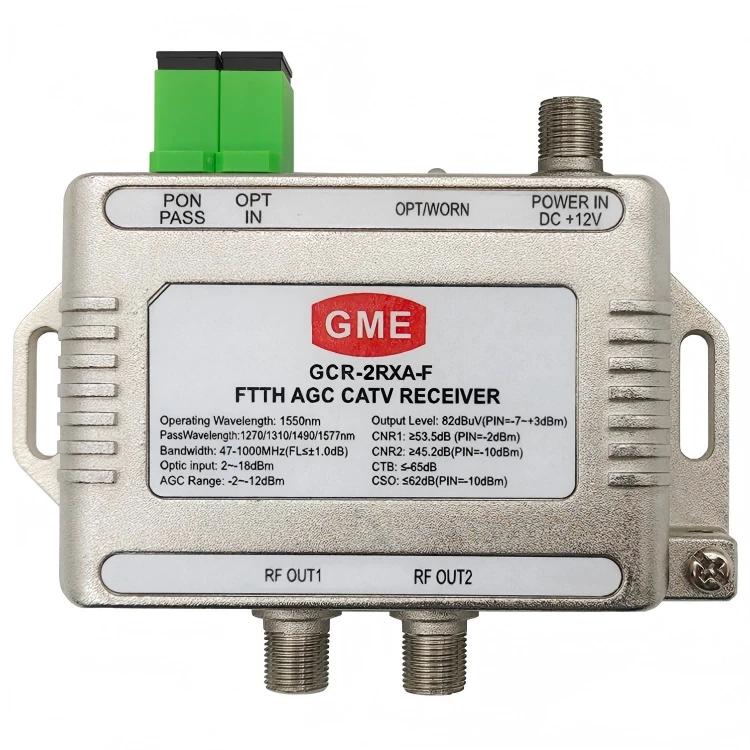

GCR-2RXA-F |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/APC |
2 |
F-Female:12V 300mA |
|

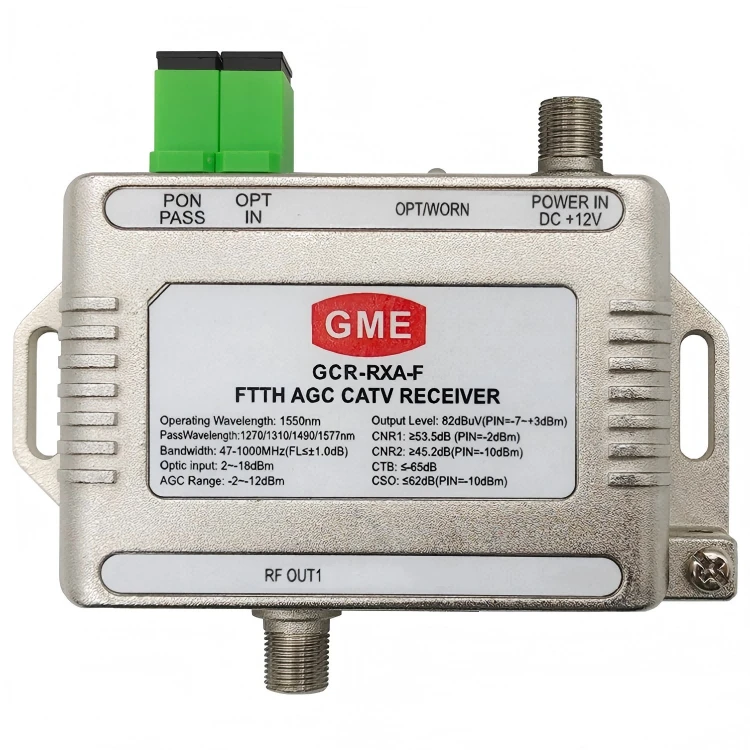

GCR-RXA-F |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/APC |
1 |
F-Female:12V 300mA |
|
GCR-4RXU-F |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/UPC |
4 |
F-Female:12V 300mA |
|
GCR-2RXU-F |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/UPC |
2 |
F-Female:12V 300mA |
|
GCR-RXU-F |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/UPC |
1 |
F-Female:12V 300mA |
|
GCR-4RXA-D |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/APC |
4 |
DC-005:12V 300mA |
|
GCR-2RXA-D |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/APC |
2 |
DC-005:12V 300mA |
|
GCR-RXA-D |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/APC |
1 |
DC-005:12V 300mA |
|
GCR-4RXU-D |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/UPC |
4 |
DC-005:12V 300mA |
|
GCR-2RXU-D |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/UPC |
2 |
DC-005:12V 300mA |
|
GCR-RXU-D |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/UPC |
1 |
DC-005:12V 300mA |
