Optical receiver is for digital television, fiber to the home. This machine adopts the high sensitivity optical receiving tube.Flexible application integration, application of fiber to the home network.It is Built-in CWDM, suitable for single-fiber triple wavelength system, CATV operating Wavelength 1550nm, pass wavelength 1270/1310/1490/1577nm, can conveniently connect the ONU of EPON, GPON.XG(S)PON
Features
Specification
|
CATV Wavelength |
1550±10nm |
Output RF resistance |
75Ω |
|
|
PON Wavelength |
1270/1310/1490/1577nm |
Output Return Loss |
≤14dB |
|
|
Optical Input Power |
-18～+2dBm |
Optical Return Loss |
≥55dB |
-9dBm Optical input power, 60 PAL channels |
|
Optical AGC Range |
-12～-2dBm |
C/CSO |
≥55dB |
|
|
CATV Optical input port |
SC/APC |
C/CTB |
≥55dB |
|
|
PON Optical reflect port |
SC/PC |
MER |
≥31dB |
-15dBm Optical input power |
|
RF connector |
Imperial F type |
Input Voltage |
+12V |
|
|
Frequency |
47～1000MHz |
Power Dissipation |
≤2W |
|
|
Flatness |
≤±1.25dB |
Temperature |
-10～+50℃ |
|
|
RF Output Level (in AGC range) |
≥80dBuV |
Dimension |
73×60×23 (L×W×H) mm |
|
Model lists
|
Model |
Pass Wavelength |
Reflect Wavelength |
Pass Interface |
RF out interface |
DC-in |
|
GCR-4RXA-F |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/APC |
4 |
F-Female:12V 300mA |
|
GCR-2RXA-F |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/APC |
2 |
F-Female:12V 300mA |
|
GCR-RXA-F |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/APC |
1 |
F-Female:12V 300mA |
|
GCR-4RXU-F |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/UPC |
4 |
F-Female:12V 300mA |
|
GCR-2RXU-F |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/UPC |
2 |
F-Female:12V 300mA |
|
GCR-RXU-F |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/UPC |
1 |
F-Female:12V 300mA |
|
GCR-4RXA-D |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/APC |
4 |
DC-005:12V 300mA |
|
GCR-2RXA-D |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/APC |
2 |
DC-005:12V 300mA |
|

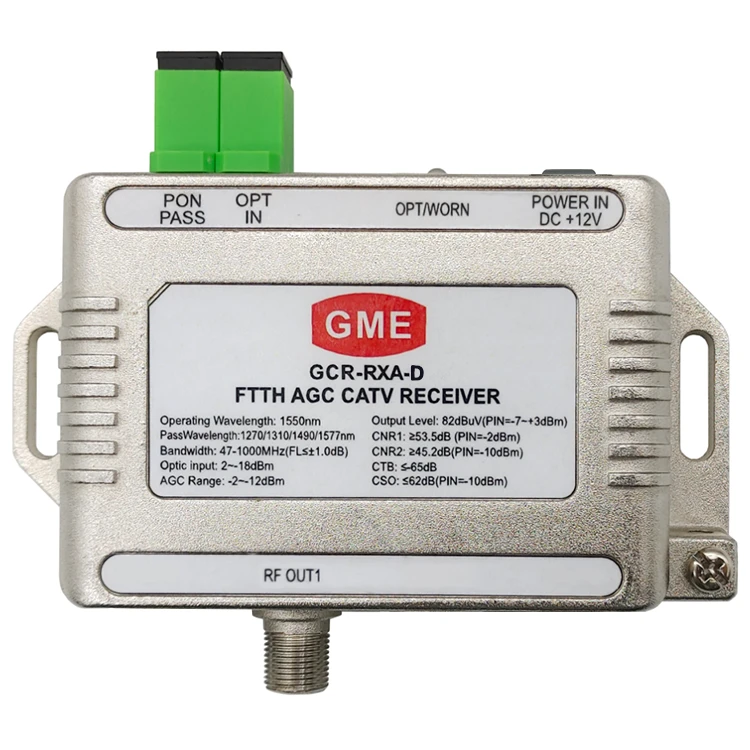

GCR-RXA-D |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/APC |
1 |
DC-005:12V 300mA |
|
GCR-4RXU-D |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/UPC |
4 |
DC-005:12V 300mA |
|
GCR-2RXU-D |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/UPC |
2 |
DC-005:12V 300mA |
|
GCR-RXU-D |
1550nm±10nm |
1260nm~1500nm 1575nm~1625nm |
SC/UPC |
1 |
DC-005:12V 300mA |
