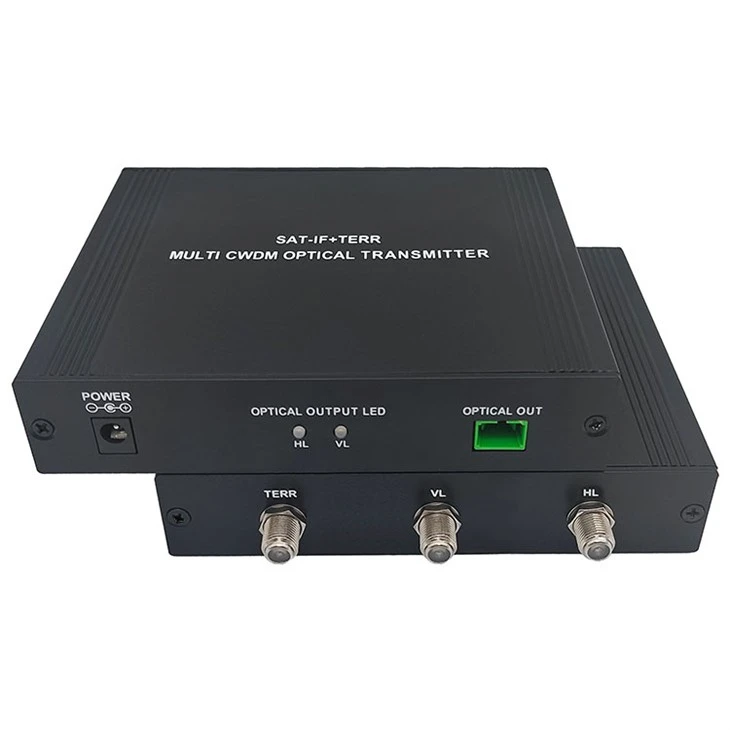

Features
- Designed for satellite optical system
- Wide operating frequency range:47-2150MHz
SAT-IF : 950MHz~2150MHz
CATV : 47MHz~860MHz
- Excellent Linearity and flatness
- Using 1-core single-mode fiber high return loss
- Using GaAs amplifier active devices
- Ultra low noise technology
- Build-in CWDM,using DFB coaxial small package laser
- Outputs 13/18V for LNB working
- A distribution of up to 32 optical nodes
Specification
|
Optical Parameter |
TERR+SAT Tarameter |
||
|
Optical Return Loss |
≥45 |
Frequency Range |
47~2150MHz |
|
Output Optical Power |
2x+3dBm |
Flatness |
±1.5 |
|
Optical Connector |
SC/APC |
Output Level(AGC) |
≥80±5@TERR ≥78±10@SAT-IF |
|
Output Optical Wavelength(nm) |
1510～1570 |
C/R |
≥52 |
|
Other Parameter |
CSO |
≥65 |
|
|
RF Connector |
F-female |
CTB |
≥62 |
|
Power Supply |
DC-24V |
Return Loss |
≥12 |
|
Power Consumption(W) |
<6 |
22KHz Accuracy |
/ |
|
Dimensions(mm) |
143x110x28.8 |
LNB Power supply |
13/18 |

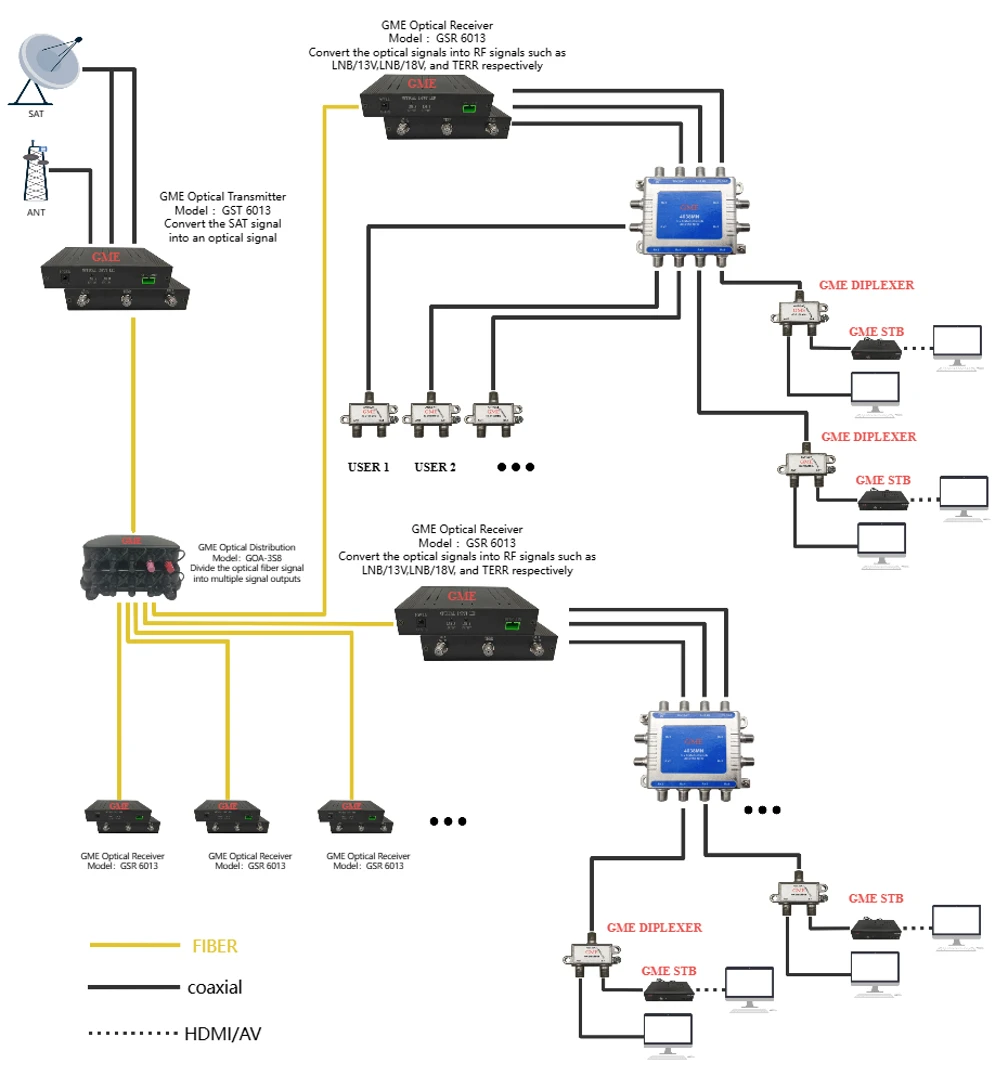

Application
